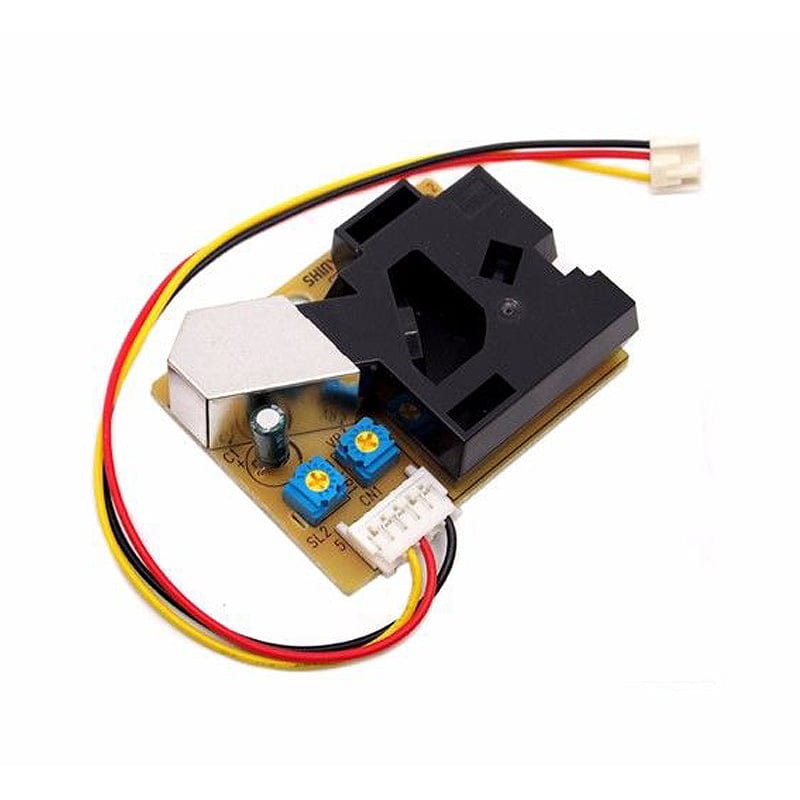

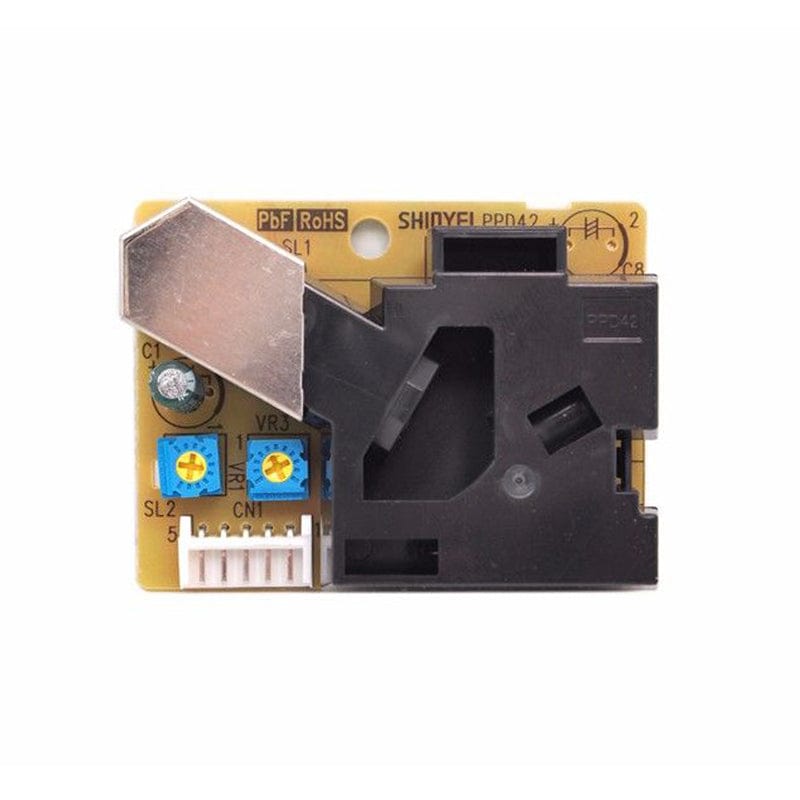

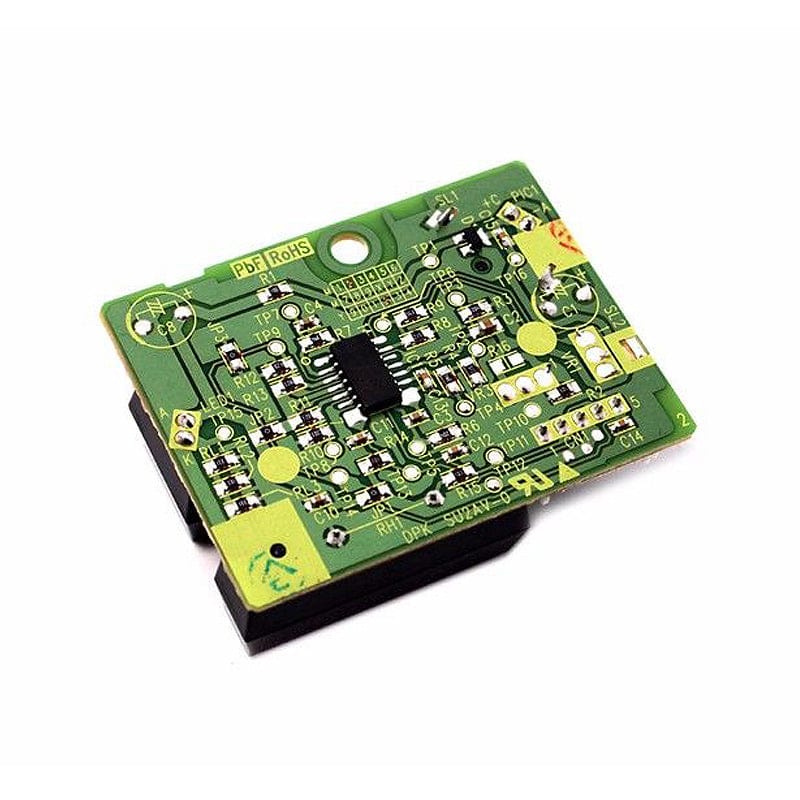

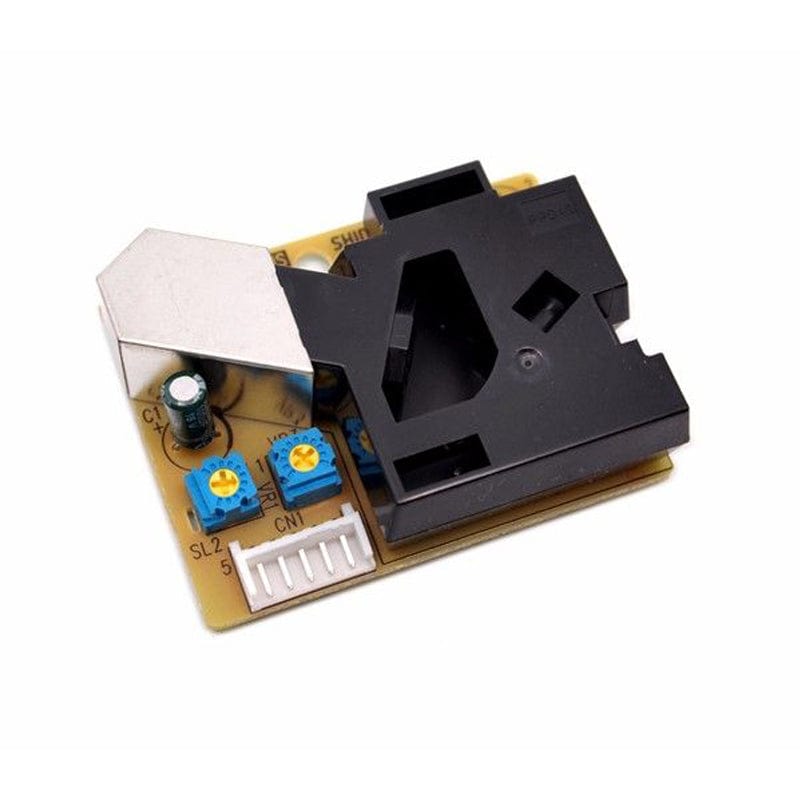

Grove - Dust Sensor (PPD42NS)

SeeedSKU: 103318
Price:
Sale price £10
incl. VAT
excl. VAT
Stock:
Only 12 units left
Quantity:

Awesome Extras

Arduino Uno Rev3 - The Pi HutArduino Uno Rev3 - The Pi Hut
ArduinoArduino Uno Rev3
Sale price £24.50 incl. VAT excl. VAT

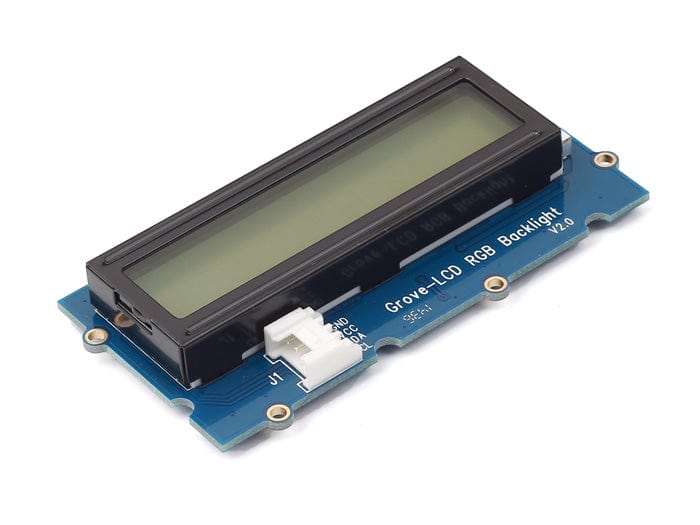

Grove - LCD RGB Backlight - The Pi Hut
SeeedGrove - LCD RGB Backlight
Sale price £16.40 incl. VAT excl. VAT
Grove Base Shield V2.0 for Arduino - The Pi HutGrove Base Shield V2.0 for Arduino - The Pi Hut
SeeedGrove - Base Shield V2.0 for Arduino
Sale price £4.50 incl. VAT excl. VAT

This Dust Sensor gives an indication of the air quality in an environment by measuring the dust concentration. The Particulate Matter level (PM level) in the air is measured by counting the Low Pulse Occupancy time (LPO time) in a given time unit. LPO time is proportional to PM concentration. This sensor can provide reliable data for air purifier systems; it is responsive to PM of diameter 1μm.

    Features

    • Grove compatible interface (extra wire with connector) [Arduino only]
    • Supply voltage range: 5V
    • Minimum detect particle: 1um
    • PWM output

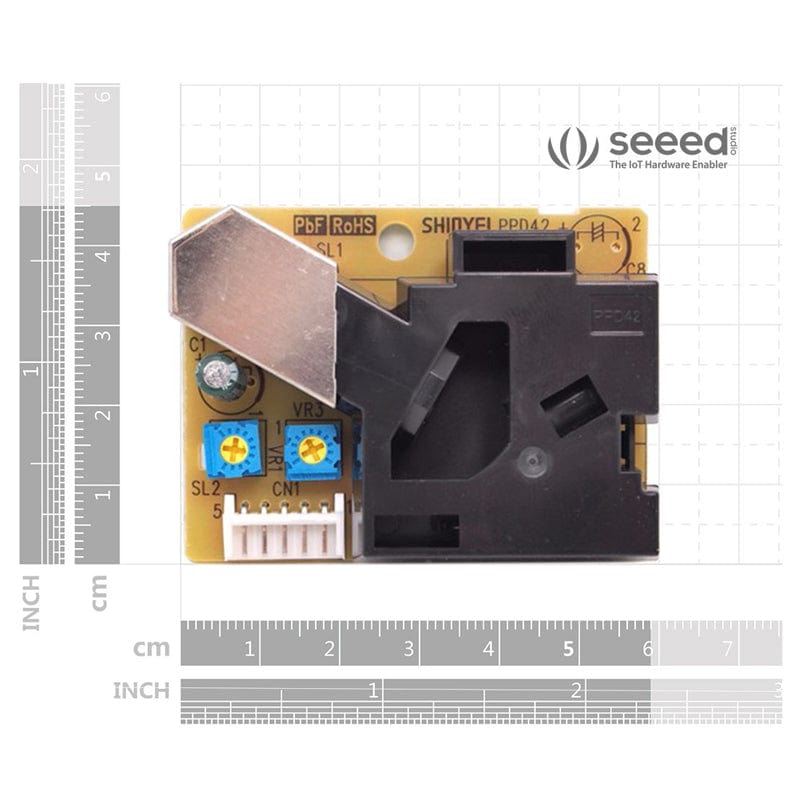

    • Dimensions: 59 (W) x 45 (H) x 22 (D) (mm)
    • Product number: Seeed 101020012

    Resources

    Package Contents

    • 1x Grove Dust Sensor
    • 1x Grove Cable

    Specifications

    Dimensions 59mm x45mm x22mm
    Weight G.W 28g
    VCC 4.75~5.75V
    Standby Current Supply 90mA
    Detectable range of concentration 0~28,000 / 0 ~ 8000 pcs/liter / pcs/0.01cf
    Operating Temperature Range 0~45 °C
    Output Method Negative Logic, Digital output, High: over 4.0V(Rev.2), Low: under 0.7V
    Detecting the particle diameter >1μm
    Dimensions 59(W) × 45(H) × 22(D) mm
    Humidity Range 95% rh or less

    Notes:

    • Only compatible with Arduino Grove systems
    • This sensor uses a counting method to measure dust concentration, not the weighing method, and the unit is pcs/L or pcs/0.01cf
    • Please pay attention to the warnings listed here
