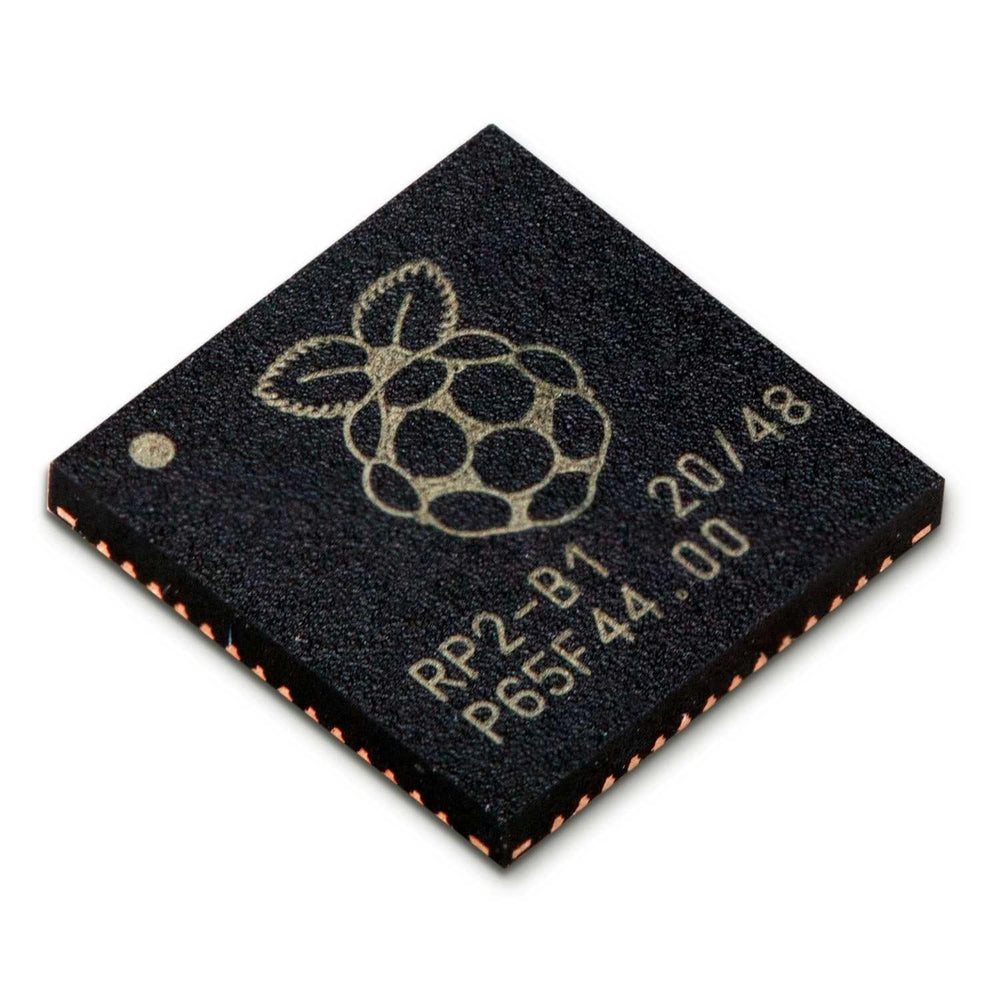

The Raspberry Pi RP2040 is the first microcontroller designed in-house at Raspberry Pi (“Raspberry Silicon”).

Initially only available onboard the Raspberry Pi Pico, it is now available to buy as a standalone microprocessor chip for your own home-made RP2040 PCB designs, industrial applications and more.

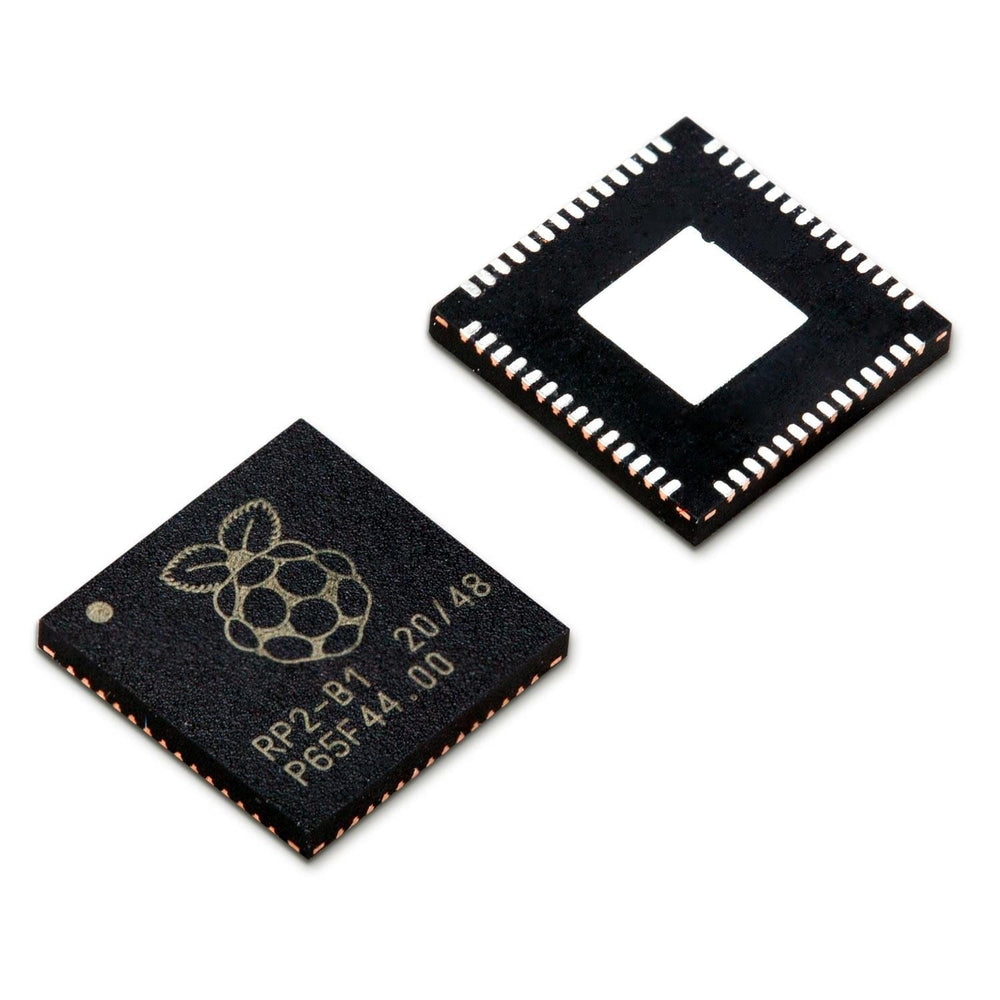

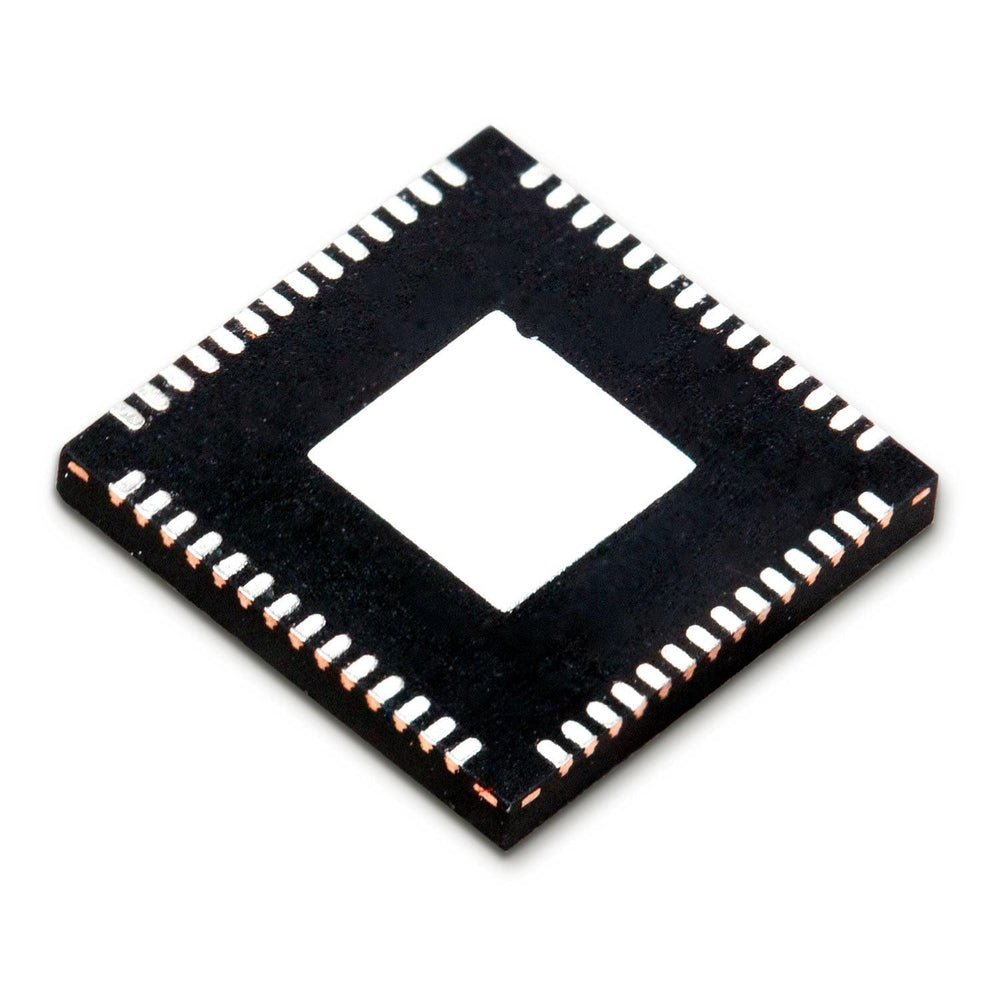

The RP2040 microcontroller comes in a QFN-56 package. The recommended PCB footprint can be found in the datasheet (or see the image below in the Resources section.

We are now stocking the latest RP2B2 version.

Features

  • Dual-core Arm Cortex-M0+ @ 133MHz
  • 264KB of on-chip RAM
  • Support for up to 16MB of off-chip Flash memory via a QSPI bus
  • DMA controller
  • Interpolator and integer divider peripherals
  • 30 GPIO pins, 4 of which can be used as analogue inputs
  • 2 × UARTs, 2 × SPI controllers, and 2 × I2C controllers
  • 16 × PWM channels
  • 1 × USB 1.1 controller and PHY, with host and device support
  • 8 × Raspberry Pi Programmable I/O (PIO) state machines
  • USB mass-storage boot mode with UF2 support, for drag-and-drop programming

Resources

PCB Footprint

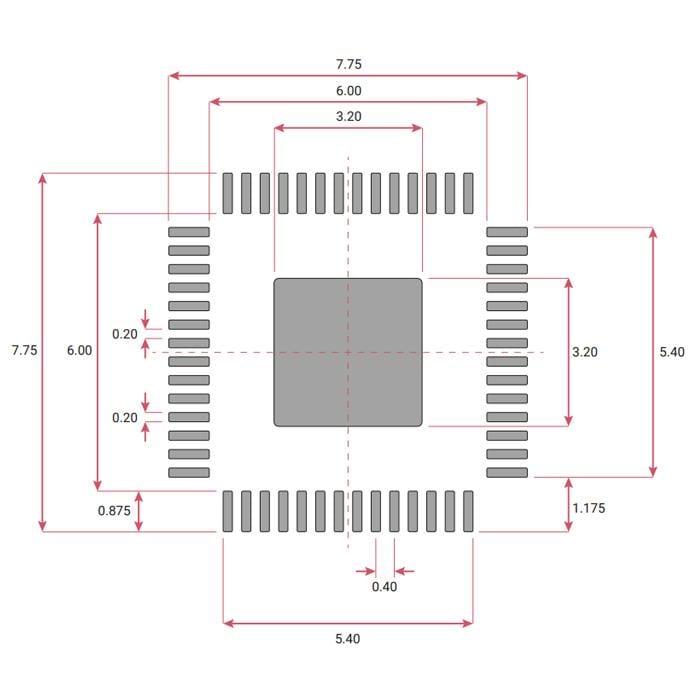

The RP2040 microcontroller comes in a QFN-56 package. The recommended PCB footprint (taken from the datasheet) can be seen below:

Raspberry Pi RP2040 Footprint
