USB UART/I2C Debugger

Name: USB UART/I2C Debugger
Brand: SBC
SKU: 103822
Price: 13.00 GBP
Availability: InStock

SBCSKU: 103822

£13

incl. VAT

excl. VAT

Only 4 units left

Compatible with:

Awesome Extras

The Pi Hut USB 3.0 Extension Cable

From £3 incl. VAT excl. VAT

The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut

The Pi Hut 120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)

£6 incl. VAT excl. VAT

Notify me

Raspberry Pi Raspberry Pi 4 Model B

From £33.30 incl. VAT excl. VAT

Raspberry Pi Raspberry Pi USB 3 Hub

£11.20 incl. VAT excl. VAT

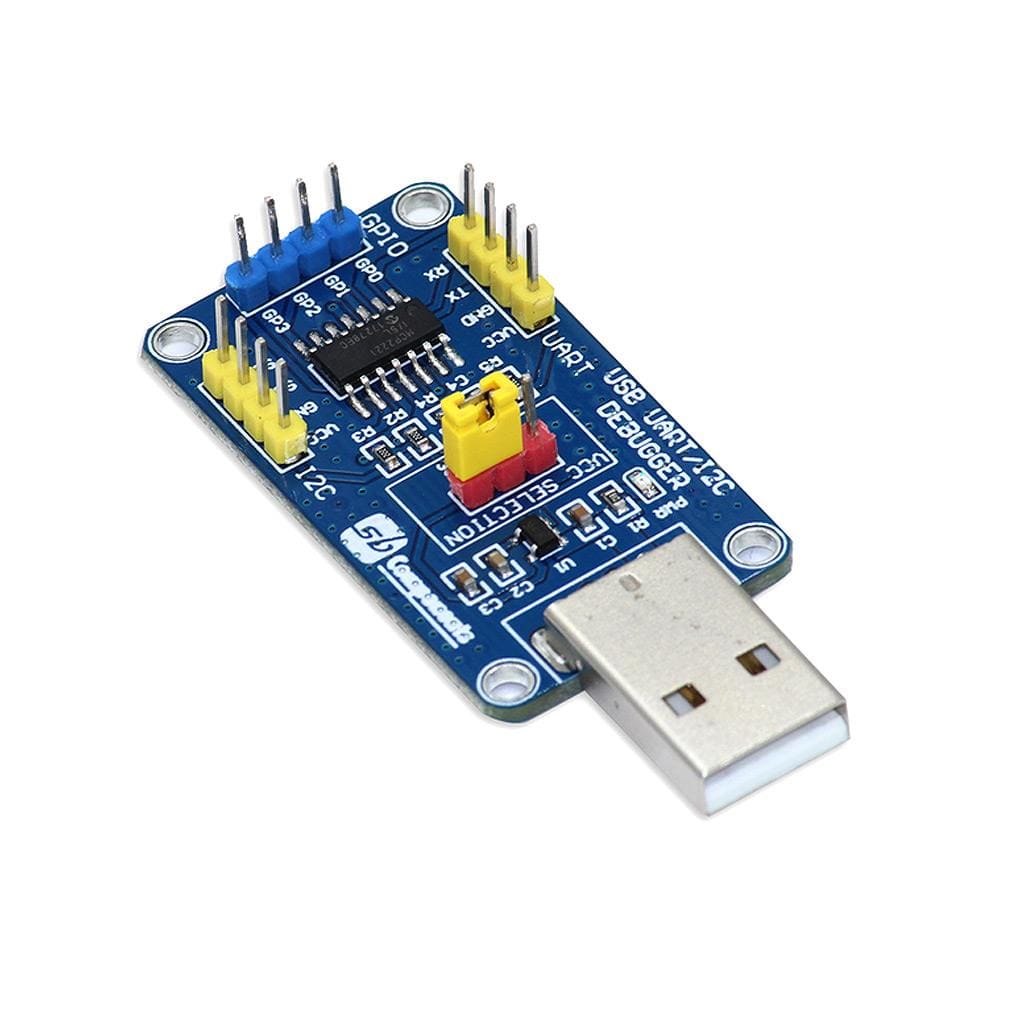

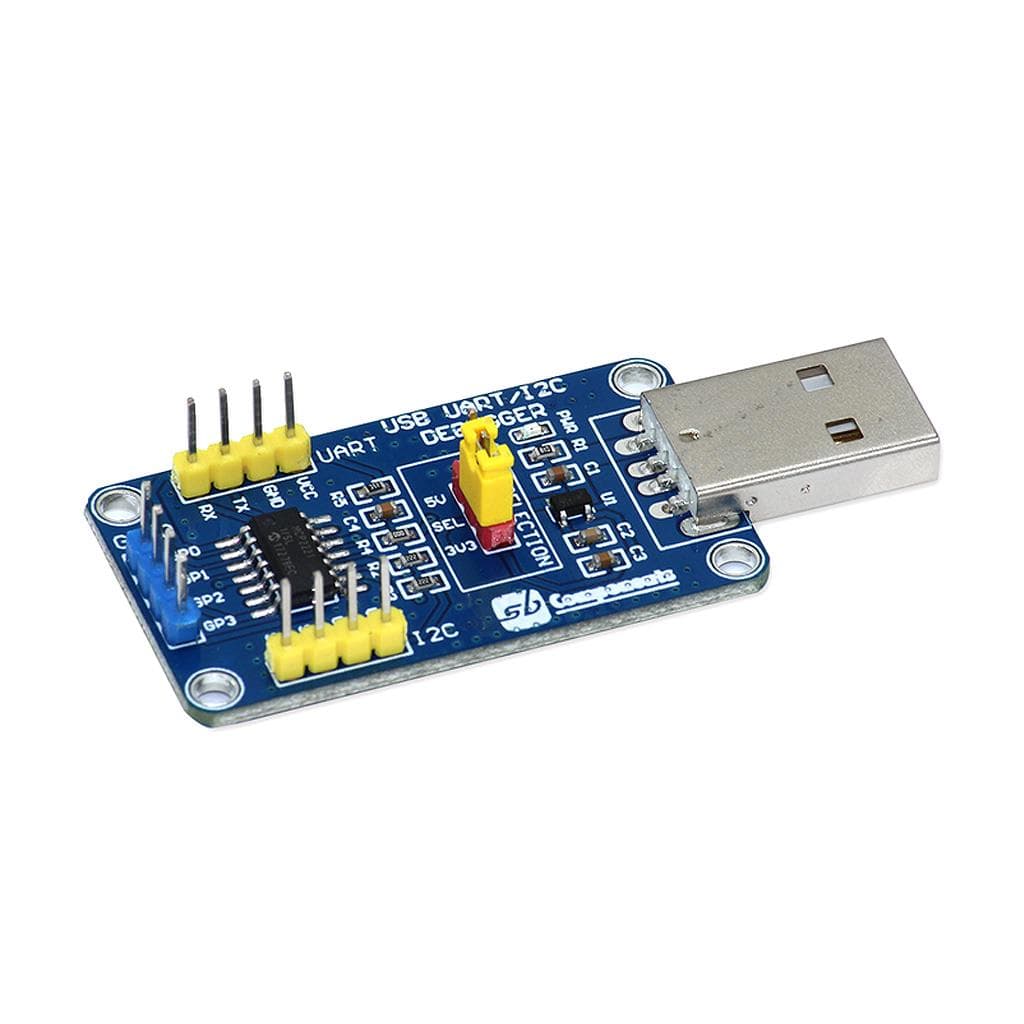

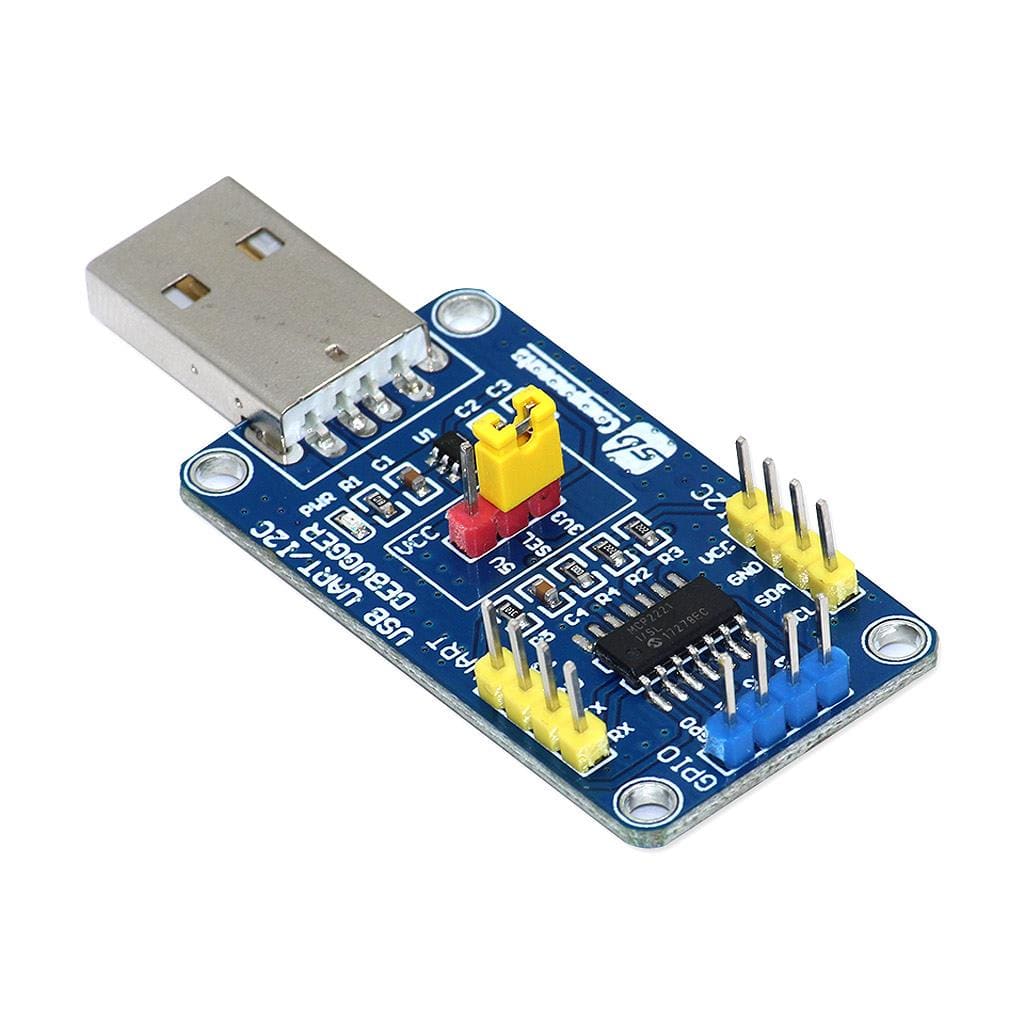

This is a USB UART/I2C Debugger - perfect for debugging a development board!

The debugger comprises a low-power MCP2221 USB to UART/I2C converter enabling USB connectivity for UART(Serial), GPIO and I2C interfaces.

The board supports full-speed USB (12 Mb/s), I2C up to 400 kHz clock rates and UART baud rates between 300 and 460800. It can operate on 3.3V or 5V logic levels via the onboard selection jumper.

This handy accessory allows you to configure/debug a module or development board with UART/I2C/GPIO Communication.

Features

USB to UART/I2C Converter
Supports full-speed USB (12 Mb/s)
I2C with up to 400 kHz clock rates
UART baud rates between 300 and 460800 bps

Specifications

Operating Voltage: 3.3V or 5V DC
Chip: MCP2221
Communication: I2C/UART/GPIO
USB Speed: 12Mb/s

Resources

GitHub

Package Contents

1x USB UART/I2C Debugger

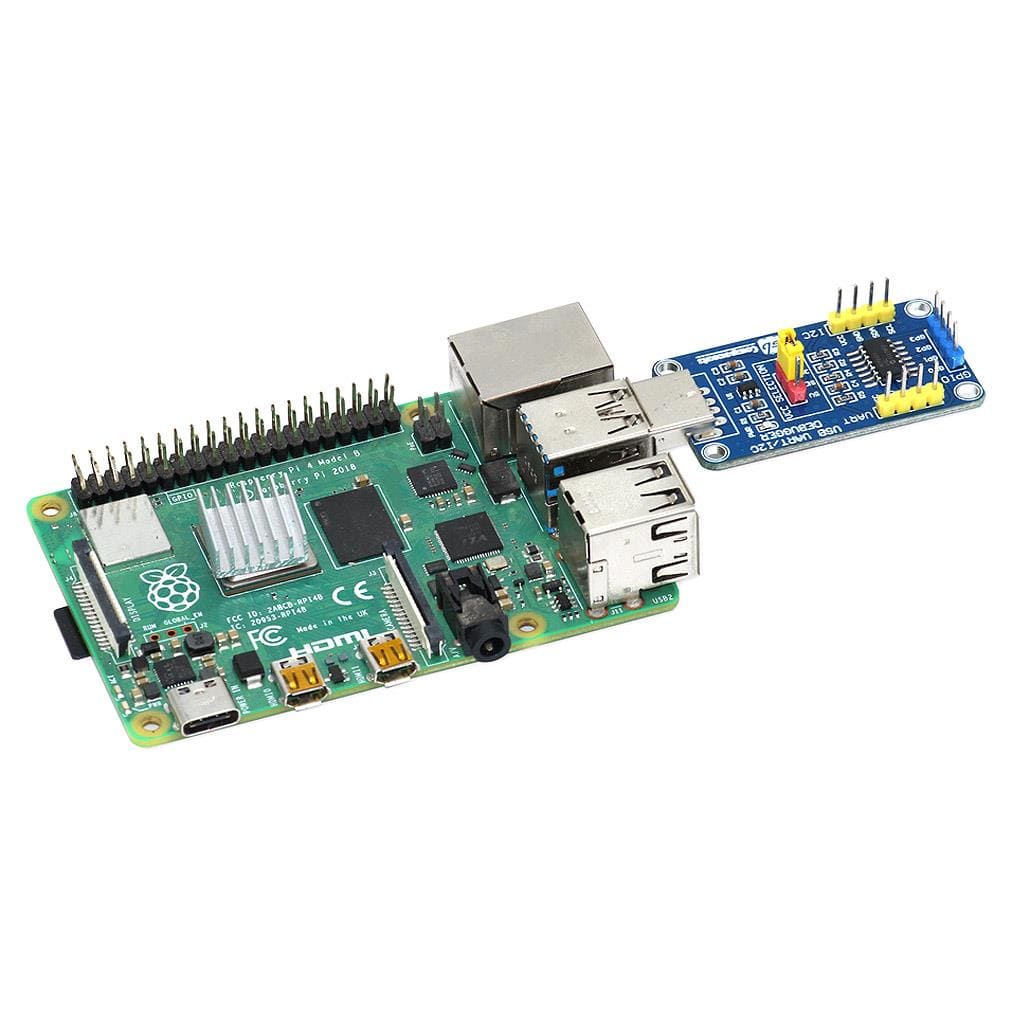

Raspberry Pi not included
