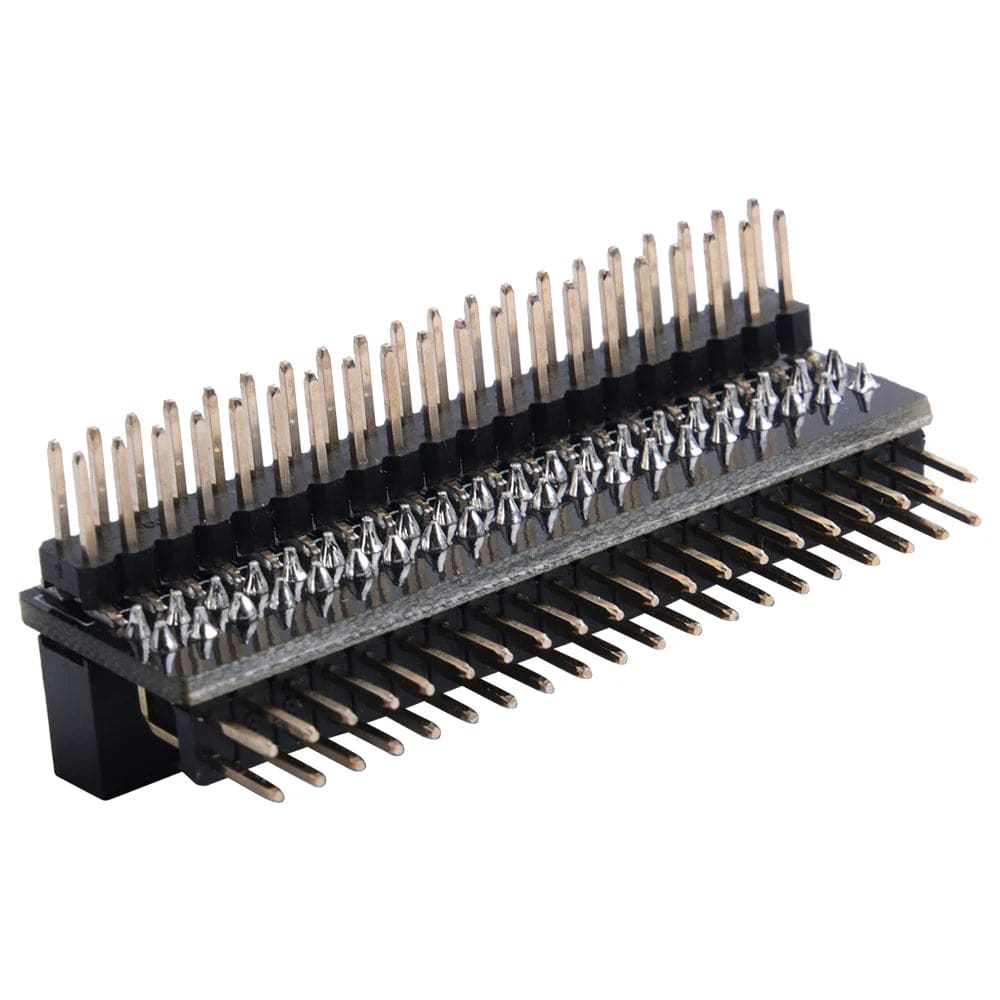

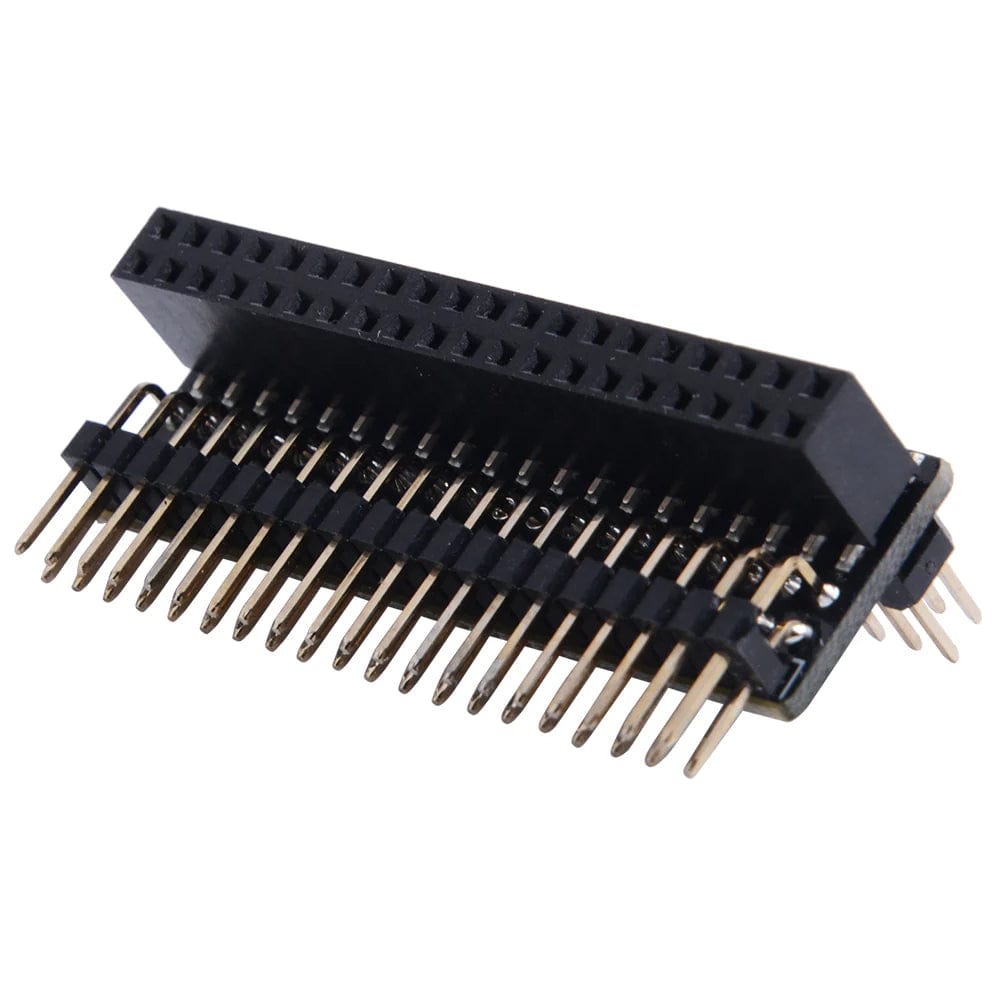

GPIO Edge Extension for Raspberry Pi

This GPIO Edge Extension is a handy add-on for your Raspberry Pi GPIO pins that provides both a vertical and horizontal GPIO extensions.

Having the horizontal GPIO pins alongside the usual vertical header offers more flexibility for GPIO access (from the side), whilst also giving you duplicate pins for each GPIO (be aware this is a simple extender - there is no software or controller, so you can't use the same IO pin twice for two different functions).

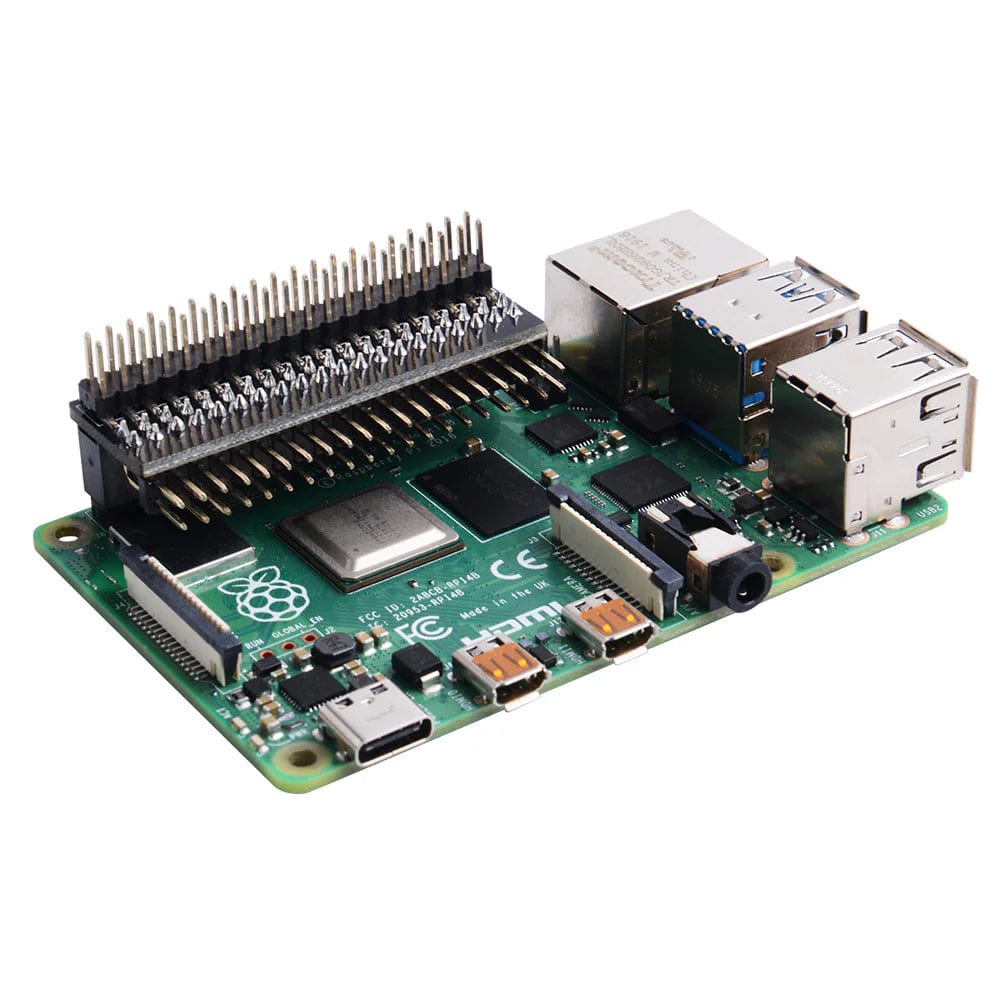

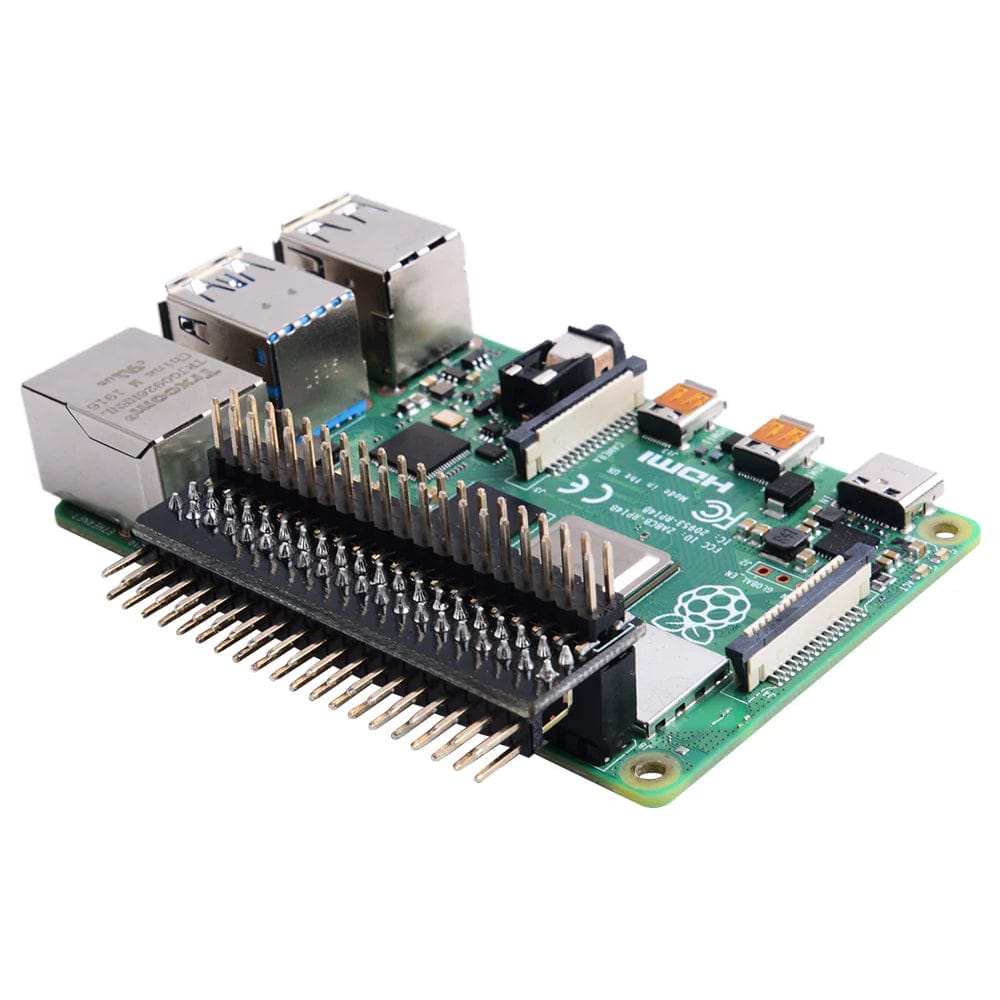

The edge extension will work on any 40-pin (2x20) Raspberry Pi i.e. Raspberry Pi 5, 4, 3B+, 3A+. 3, 2 , B+ and the Pi Zero family.

Features

• GPIO extension for Raspberry Pi
• Horizontal and Vertical GPIO access
• Provides duplicate pin access - great for additional 5V/3.3V pins
• Horizontal header allows flexibility with GPIO pin access

Note - pins are essentially duplicated by connection. There is no controller or software duplication of pins.

Resources

• Product Wiki

Package Contents

• 1x GPIO Edge Extension

Raspberry Pi not included
