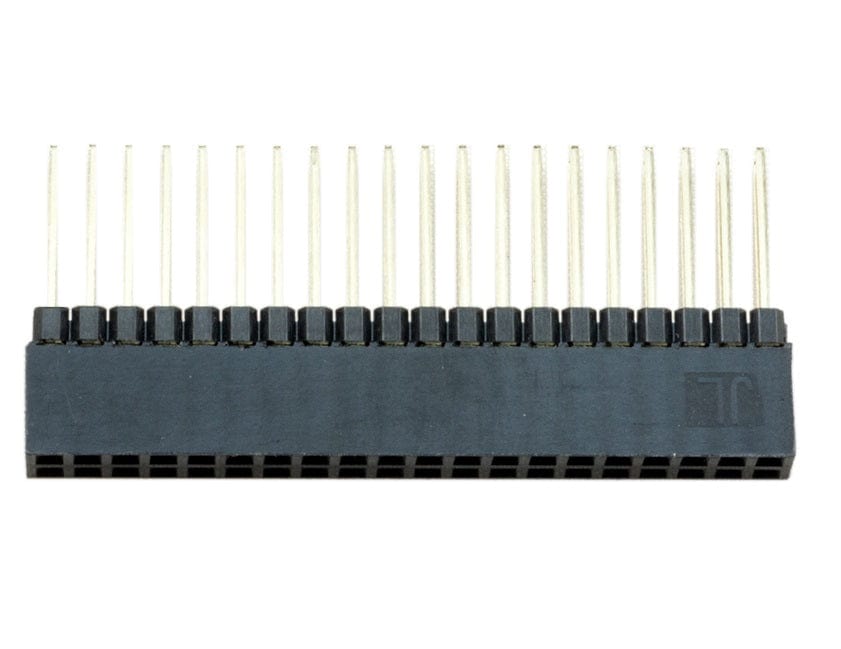

Extra-Tall Push-Fit Stacking GPIO Header for Raspberry Pi - Single Shroud

Stack multiple HATs & breakouts boards onto your Raspberry Pi with this custom-made extra-tall 2 x 20 pin female header with single shroud!

This is a push fit, single-shroud version of our extra tall header designed to match with our Raspberry Pi HAT Socket Headers. The pins are extra tall (14.70mm from main body to end of pin), and extra fat (0.65mm x 0.70mm) to ensure a good solid fit with socket headers!

The header features a single black shroud, which makes the body of the header 10.60mm tall when placed on a Pi - enough to clear the Ethernet & USB jacks. The black shrouds are not removable on the push-fit version of our extra tall headers.

Too high? Too low? We have a tall version with no shroud to go a little lower, and a version with a double shroud to go even higher!

We've also got a 14mm mounting kit for use with this header.

Features

• Gold Plated 40 Pin Double Row (2x20) Socket Connector
• Extension for the Raspberry Pi GPIO Connectors

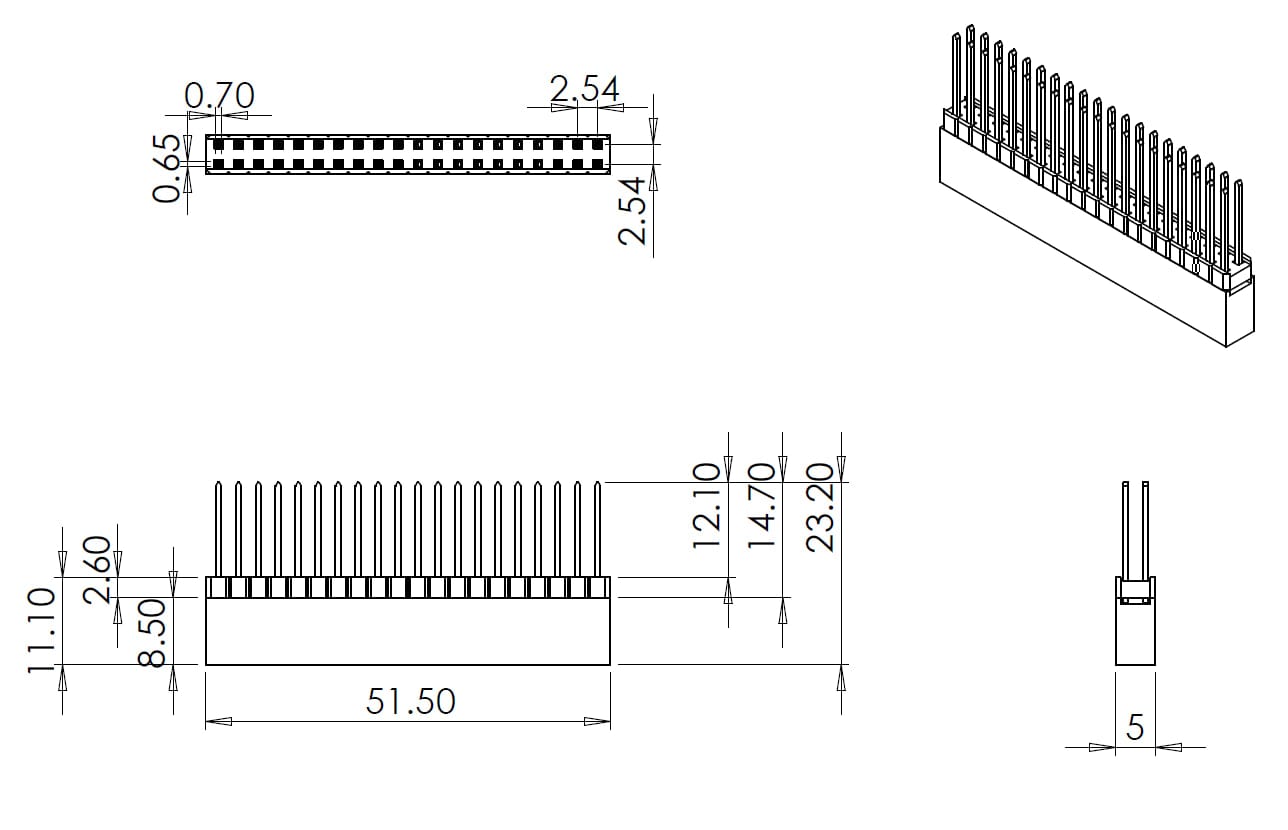

• Dimensions (L x W x H): 51.5 x 5.0 x 23.20 mm
• Pin Dimensions: 0.65 x 0.70mm
• Pitch 2.54mm
• Compatible with any 40-pin Raspberry Pi
