If the Raspberry Pi Touch Display 2 doesn't offer enough display real estate for your project, this whopper from Waveshare might be just what you're looking for. Size matters...

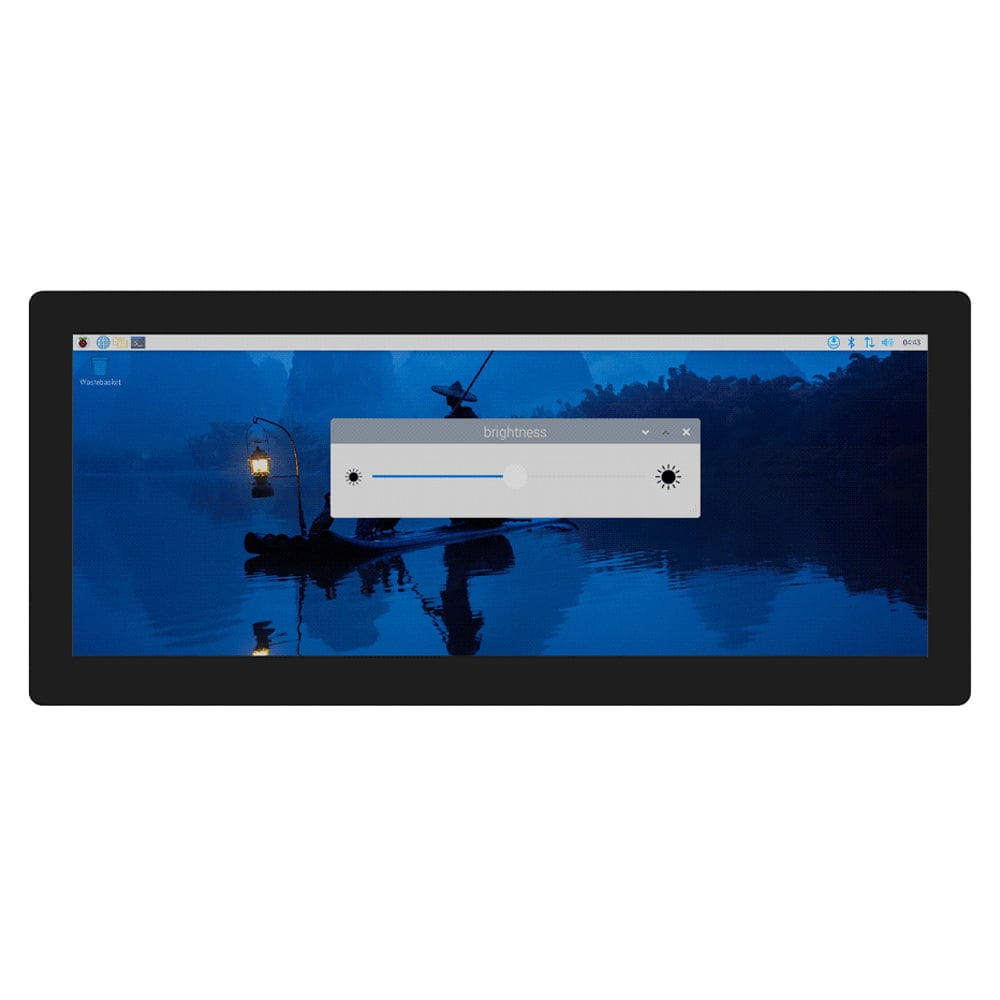

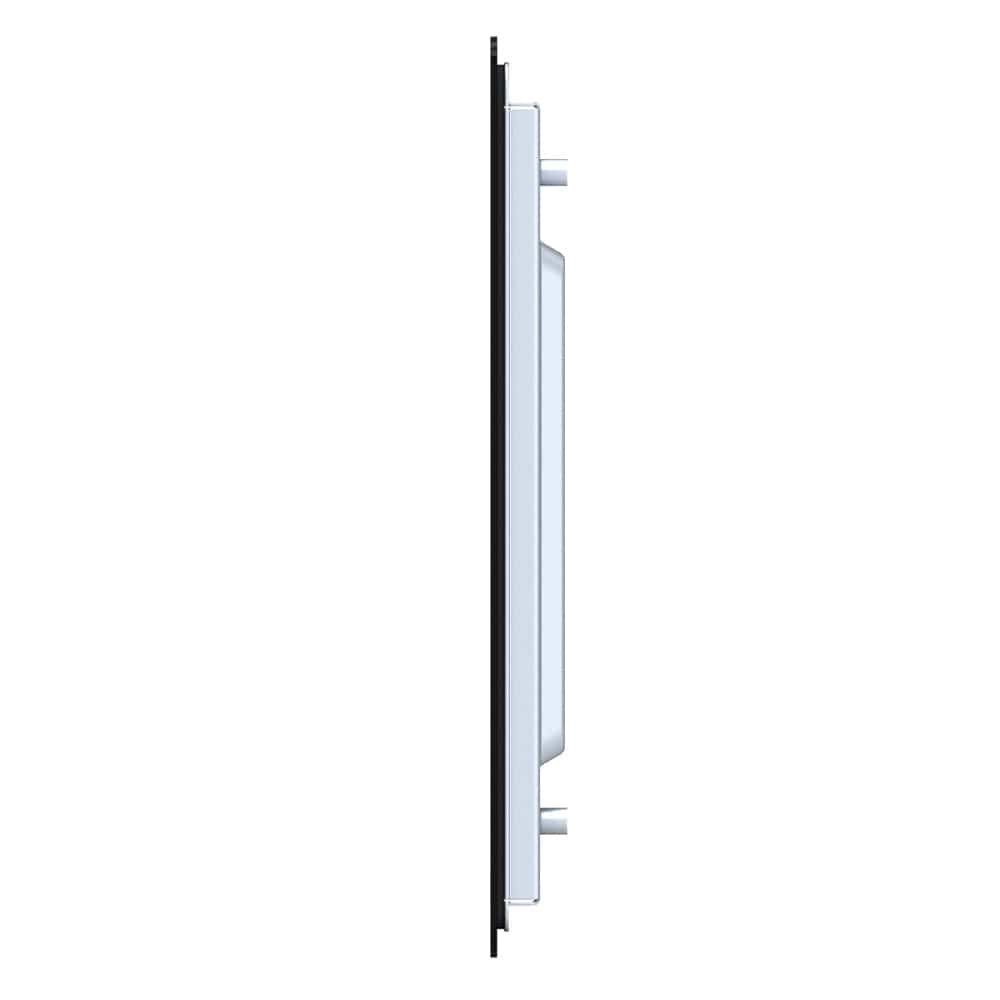

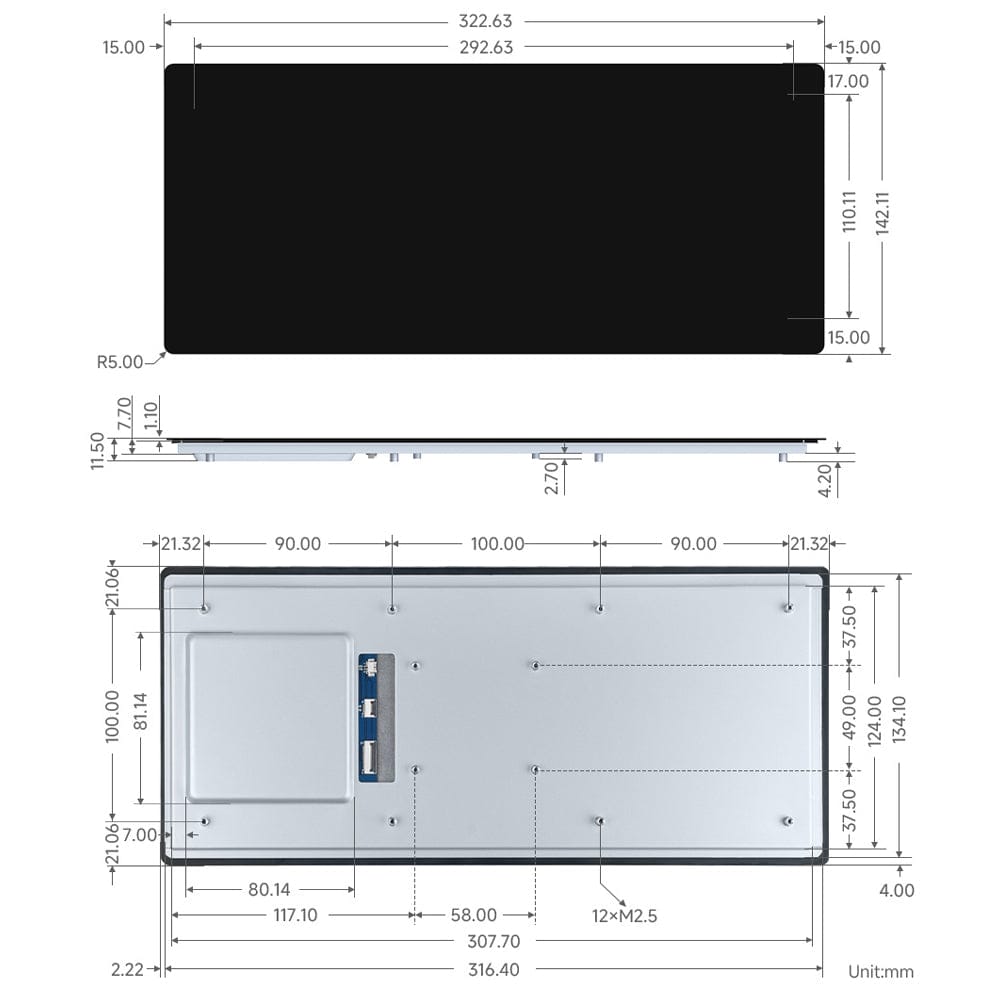

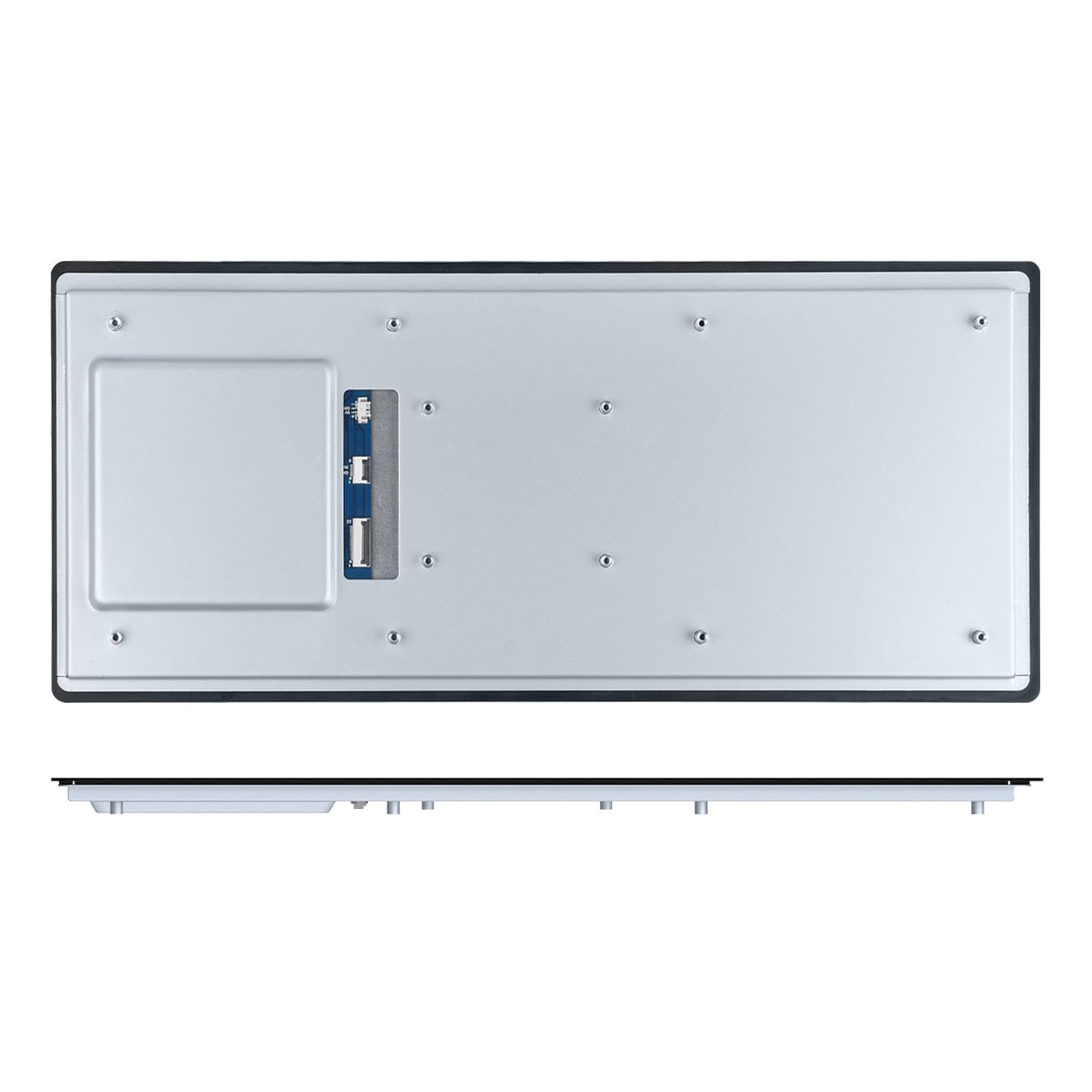

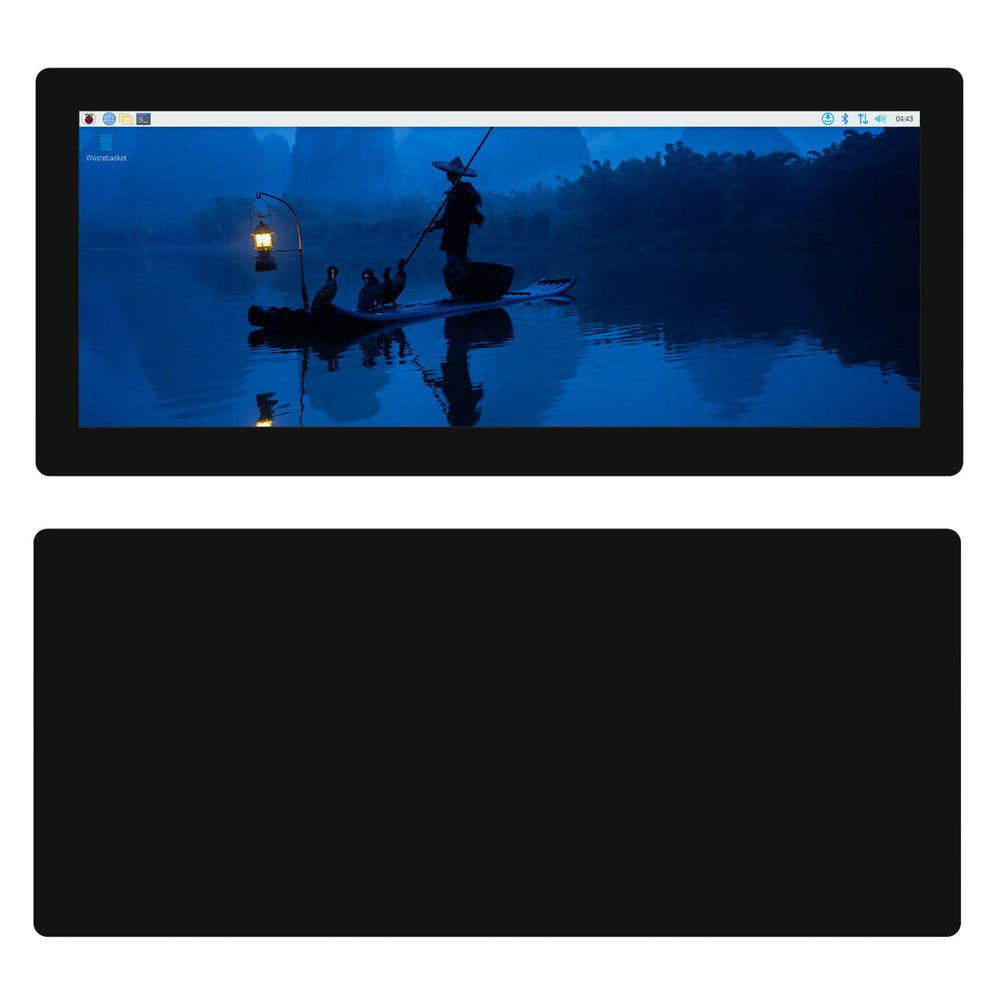

It's a 12.3" IPS panel designed for Raspberry Pi 5, with a 720x1920 portrait-native resolution (you can change it to landscape in software), wide 178° viewing angles, 10-point capacitive touch and 450cd/m² brightness with software brightness control. It has a slight bezel allowing you to panel mount it, and the overall thickness is just 11.5mm (before you mount your Raspberry Pi 5), ensuring it'll fit in as many custom enclosures/mounts as possible.

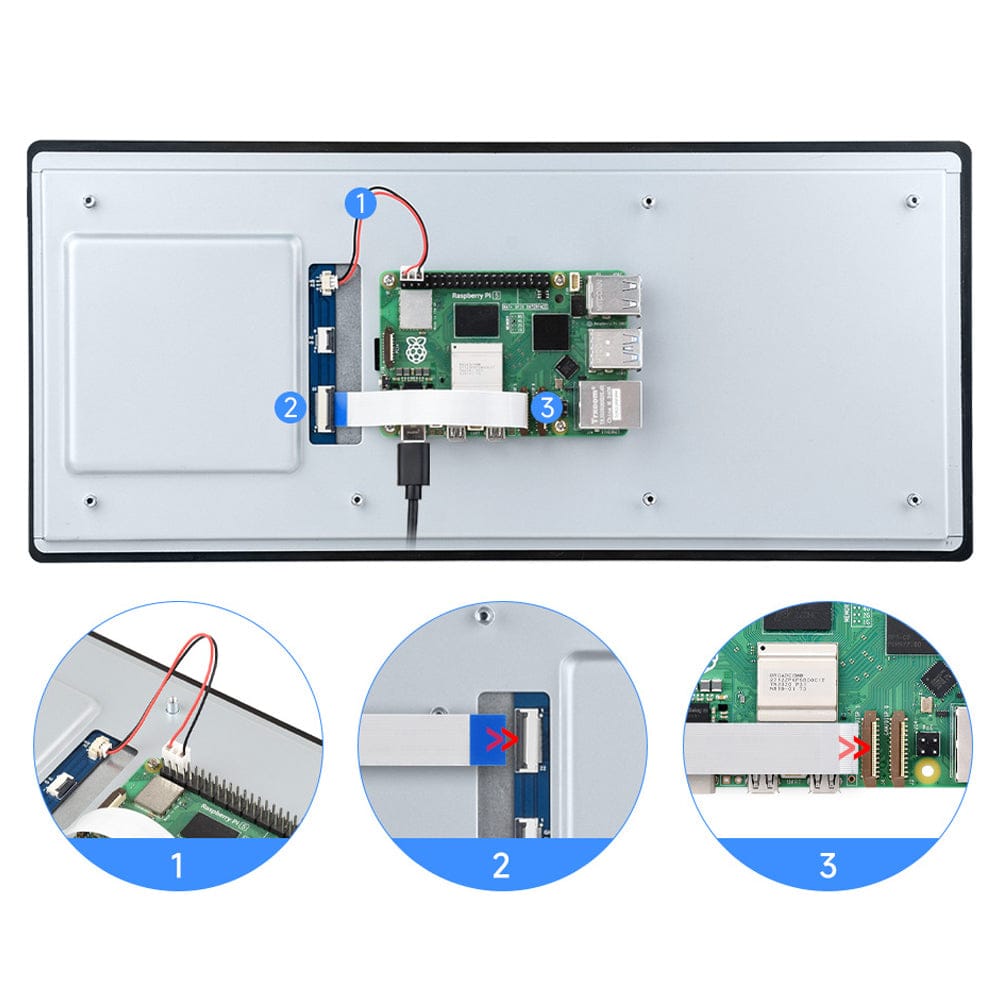

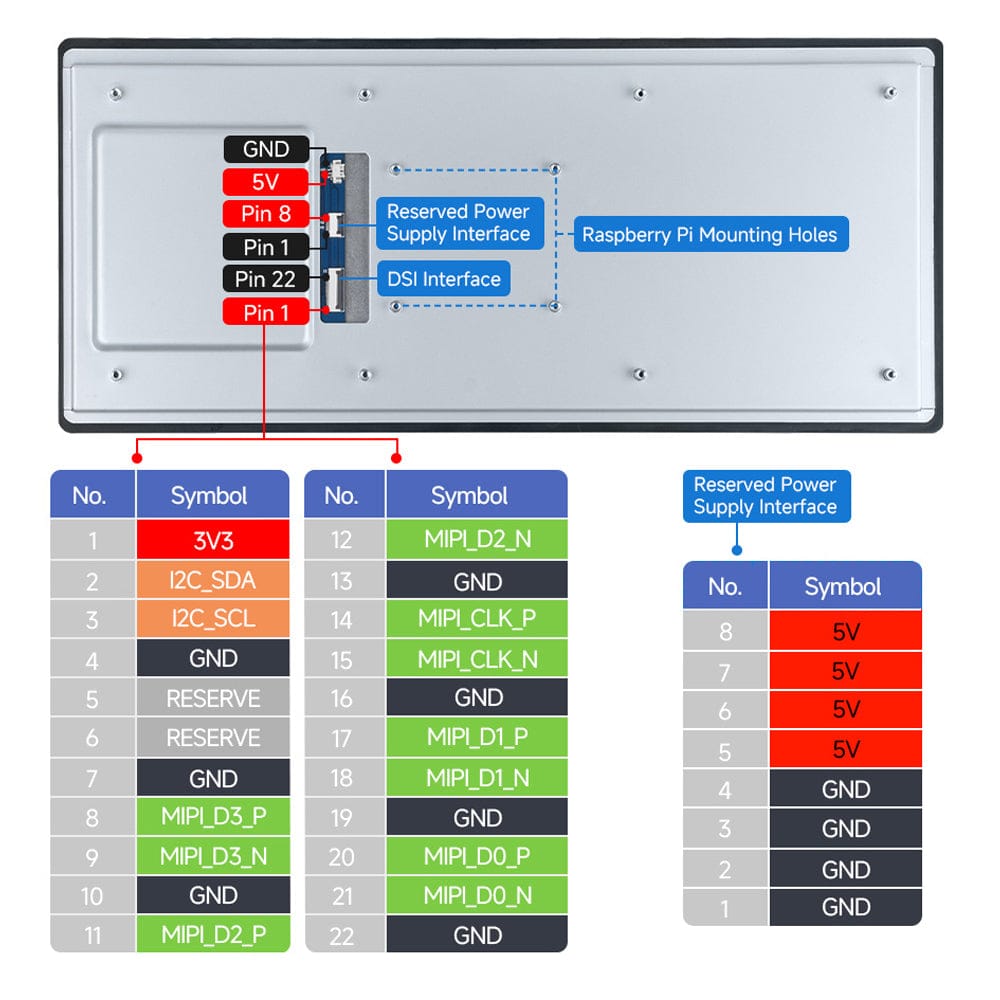

It's a DSI display, connecting to your Raspberry Pi 5 via the included FFC cable to one of the CSI/DSI ports, offering up to 60Hz refresh rate. A power cable assembly is also included, which connects the display to your GPIO pins to provide power (5V/GND).

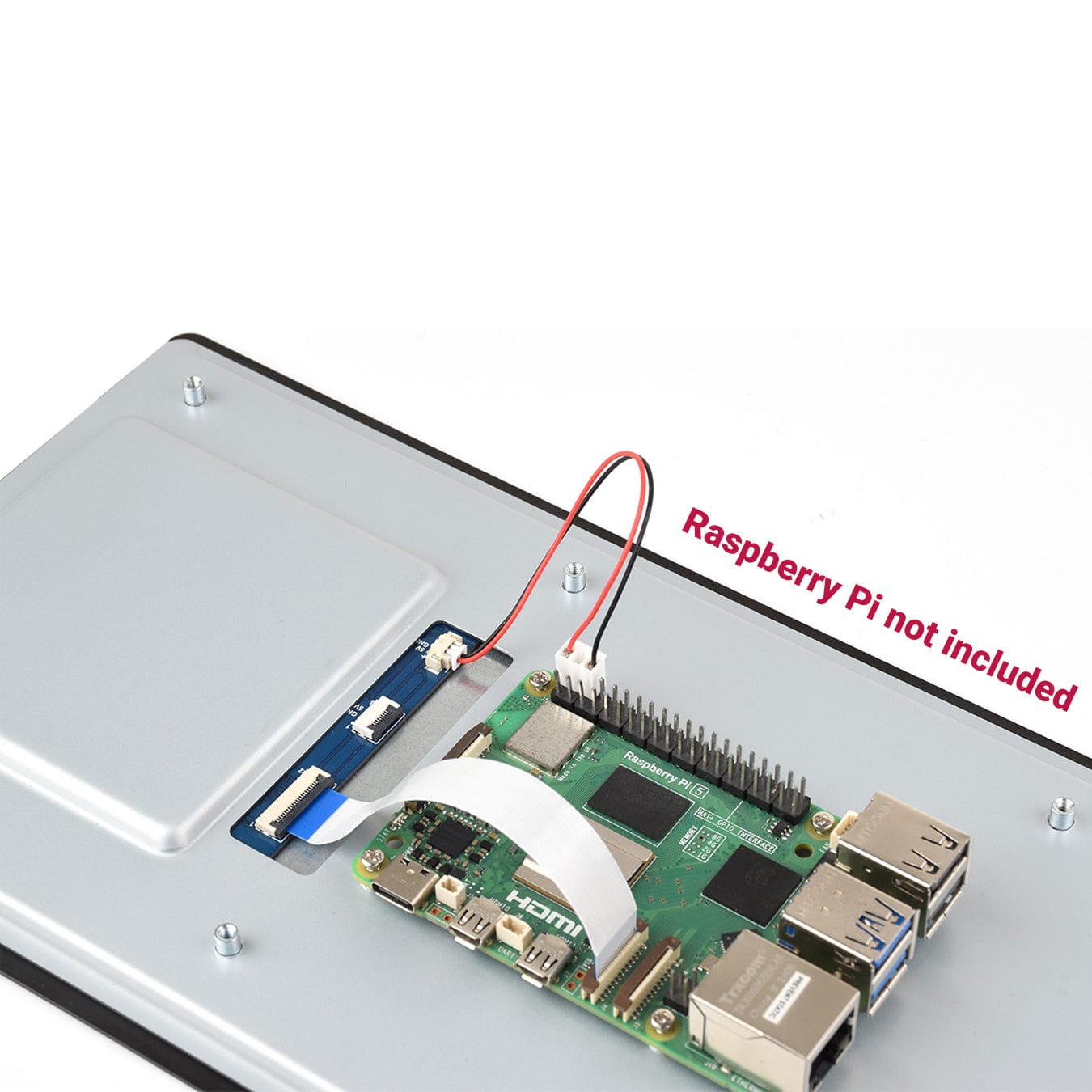

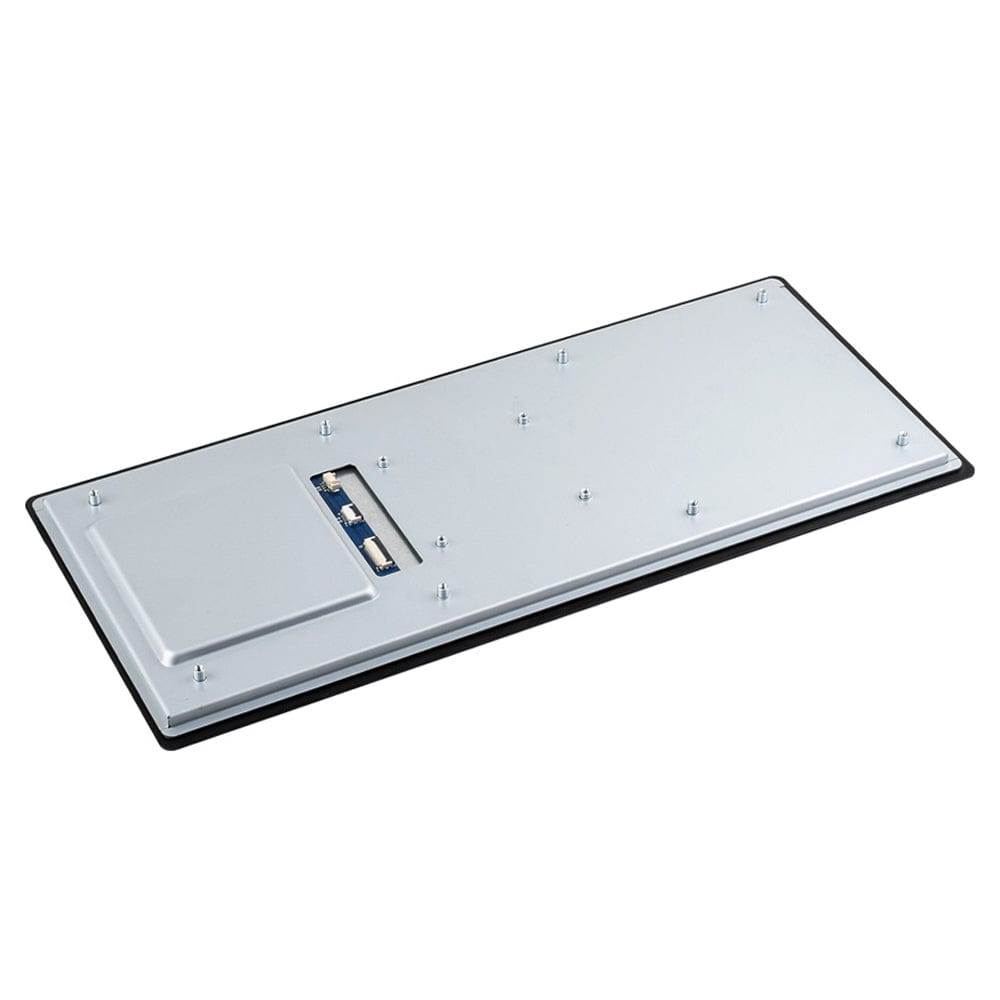

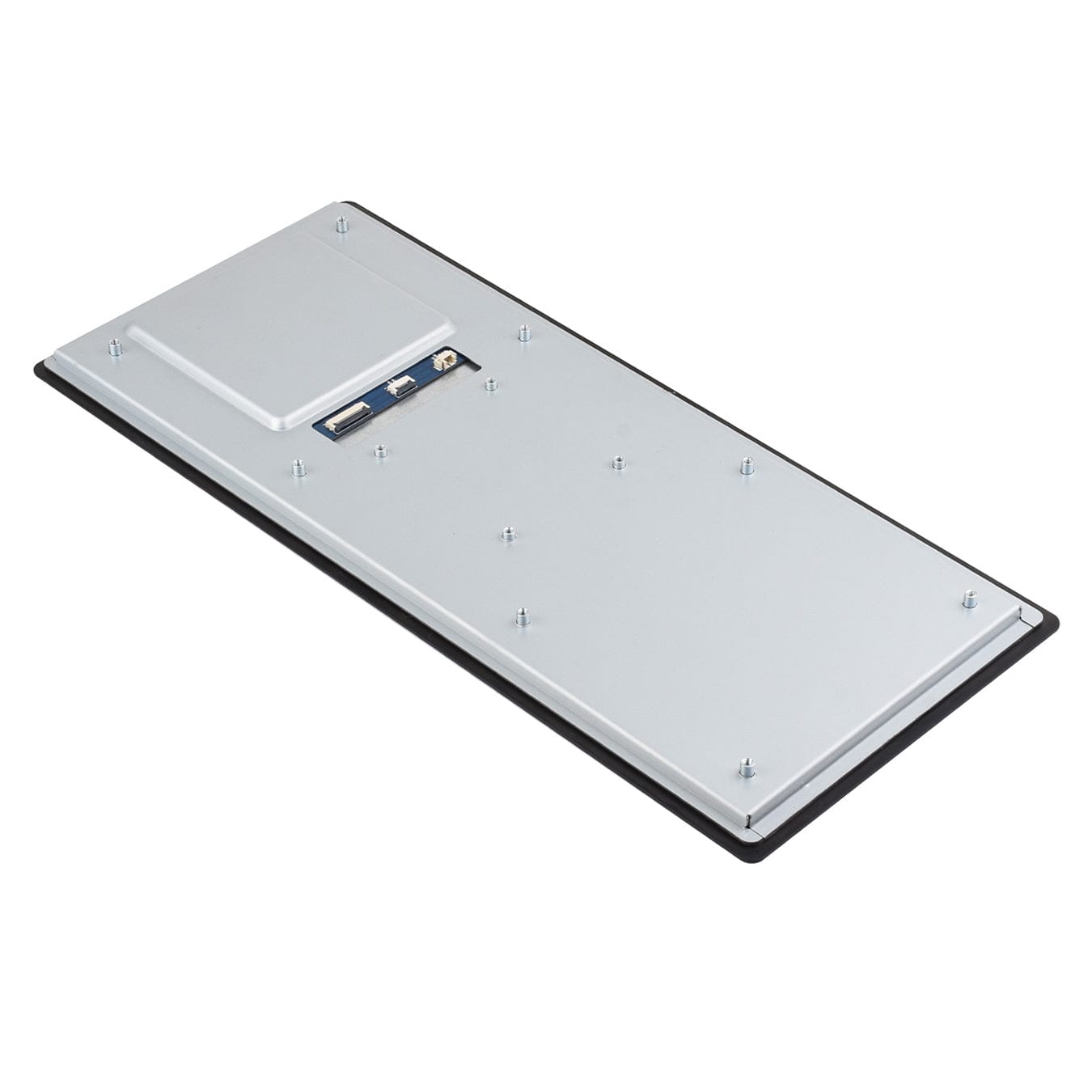

Your Raspberry Pi mounts to the rear of the display using the included metal fixings, giving you a tidy way to keep everything together.
Raspberry Pi not included.
Features
12.3" DSI touch screen display

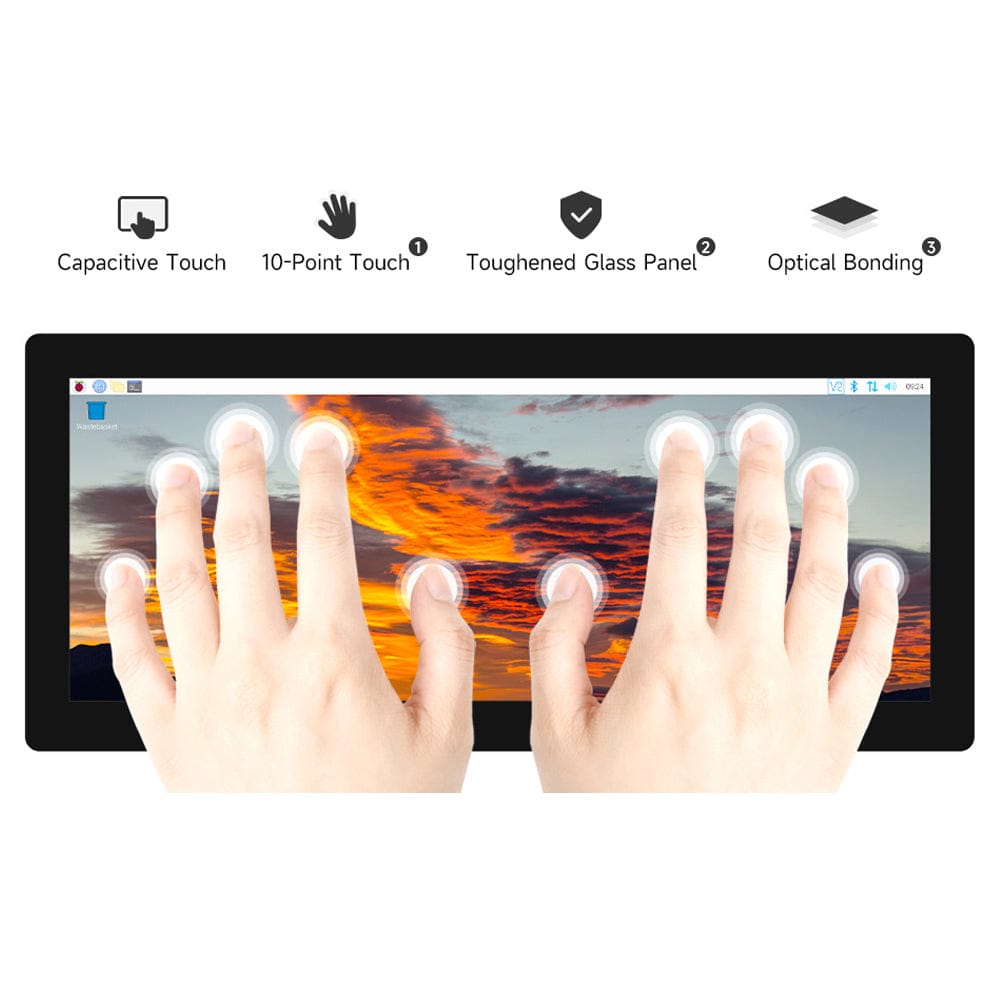

10-point capacitive touch control
IPS display panel
Hardware resolution of 720×1920
Optical bonding toughened glass panel
Toughened glass capacitive touch panel, hardness up to 6H
