12.3" IPS Capacitive 10-Point Touch Display (1920 x 720)

This 12.3" IPS screen with a 1920 x 720 resolution has colourful and sharp visuals and a 10-point capacitive touch with in-cell touch technology. With a wide 178° viewing angle and a brightness level of 300cd/m², the display provides clear and vibrant visuals from nearly any angle.

Compatible with multiple operating systems, this screen works with Raspberry Pi OS, Ubuntu, Kali, and Retropie when used with a Raspberry Pi, and it works easily with Windows 11, 10, 8.1, 8, and 7. DDC/CI backlight adjustment allows for easy control of brightness, making it adaptable to various lighting environments.

The display includes two audio output options with a 3.5mm jack and a 4-pin header. It also has a USB Type-C port, which provides a quick connection to laptops or smartphones, making it a great choice for any project needing a high-quality display.

Features

• 12.3" IPS screen with 1920 x 720 hardware resolution.
• 10-point capacitive touch with in-cell touch technique, narrow frame with thin thickness, fast response.
• Raspberry Pi OS/Ubuntu/Kali and Retropie when used with Raspberry Pi.
• Windows 11/10/8.1/8/7 when used as a computer monitor.
• Ubuntu when working with the Jetson series.
• Multi-language OSD menu support (can be used for power control, adjusting brightness/contrast, etc.)
• Support software DDC/CI brightness adjustment.

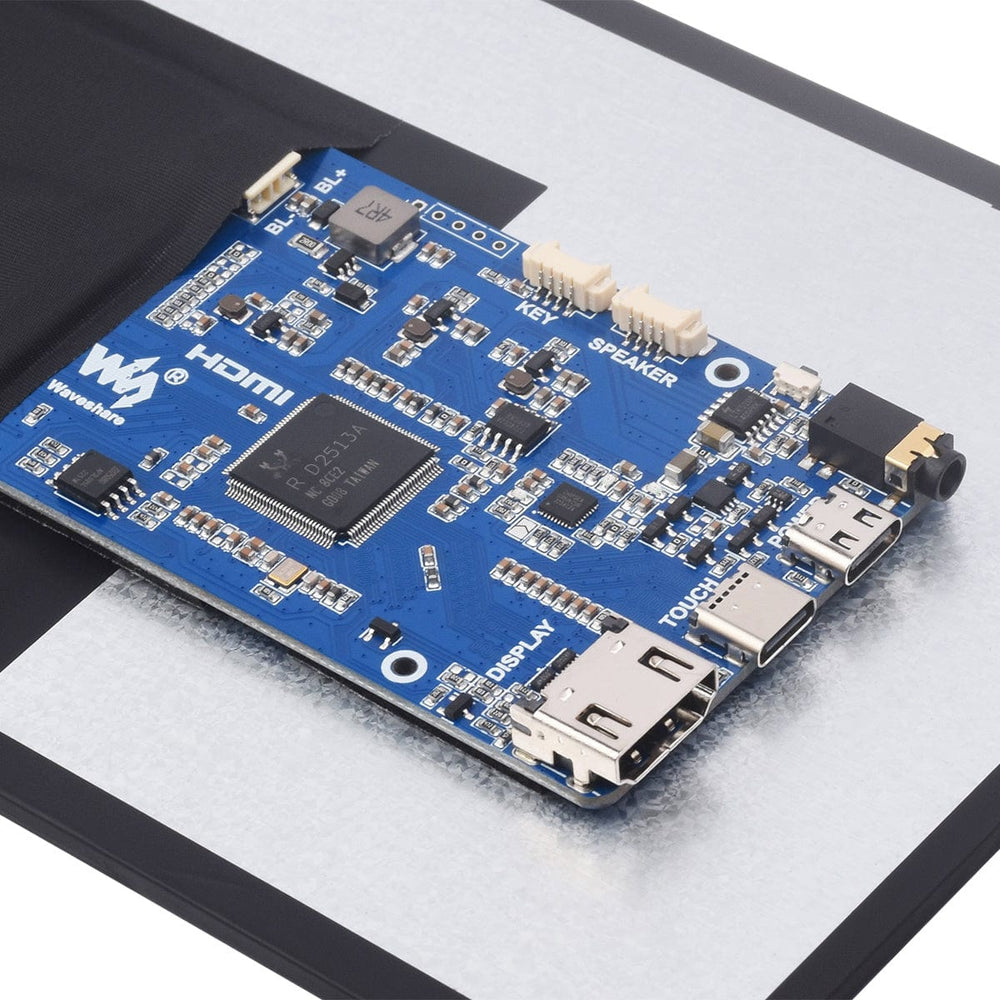

What's on Board

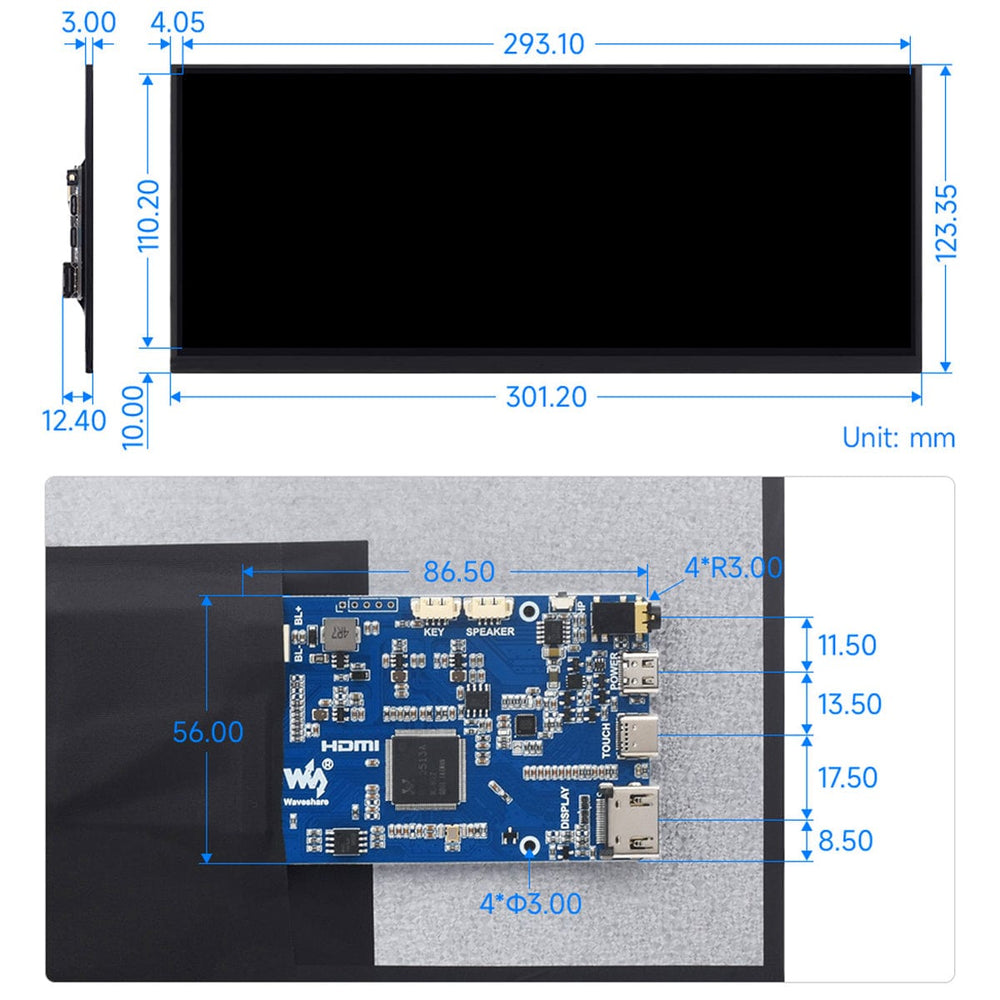

Specifications

Connection Example - Raspberry Pi 5

Resources

• Product Wiki

Package Contents

1. 1x 12.3" 1920 x 720 LCD
2. 1x HDMI Flat Cable -1m
3. 1x HDMI to Micro HDMI Adapter
4. 1x USB-A to Type-C Cable ~1m
5. 1x Type-C Dual-Plug Cable
6. 1x Triangular Stand
7. 1x Button Board
8. 1x 1.27H 4-pin Button Board Cable
9. 1x Capacitive Touch Pen
10. 1x Cleaning Cloth
