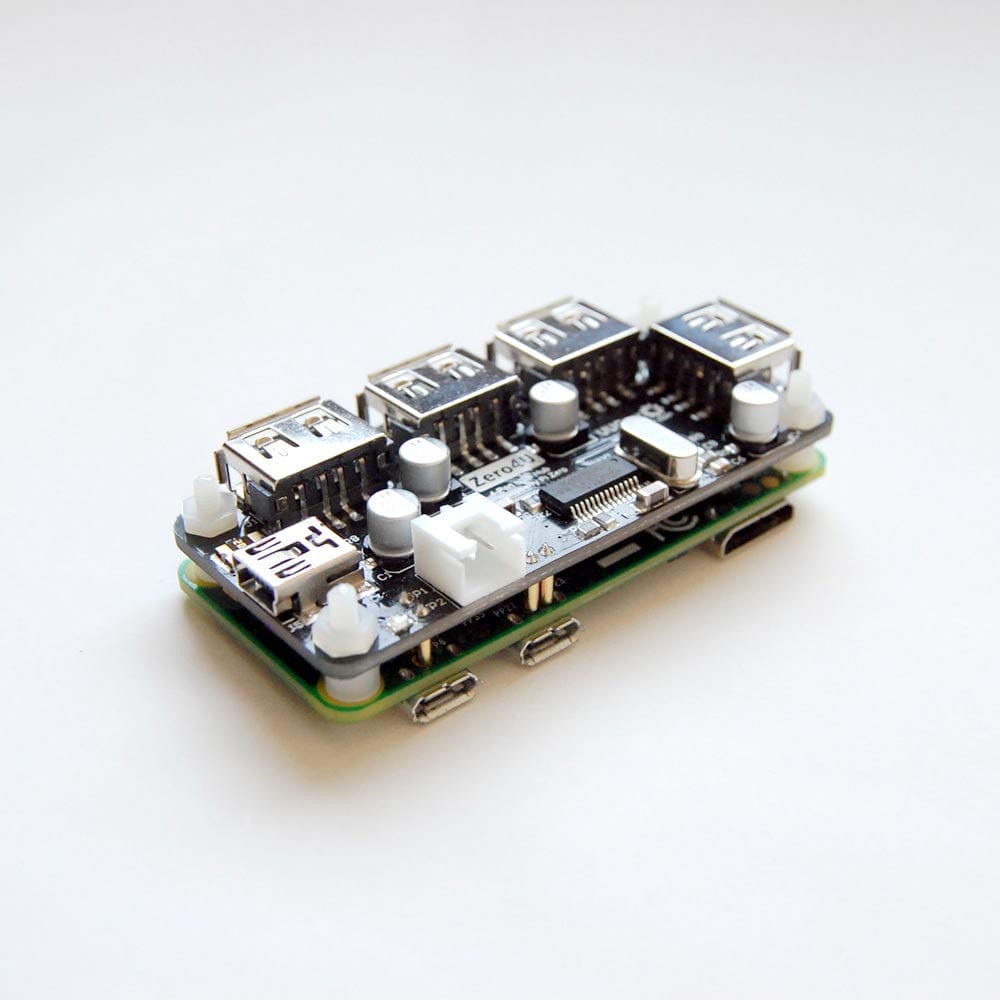

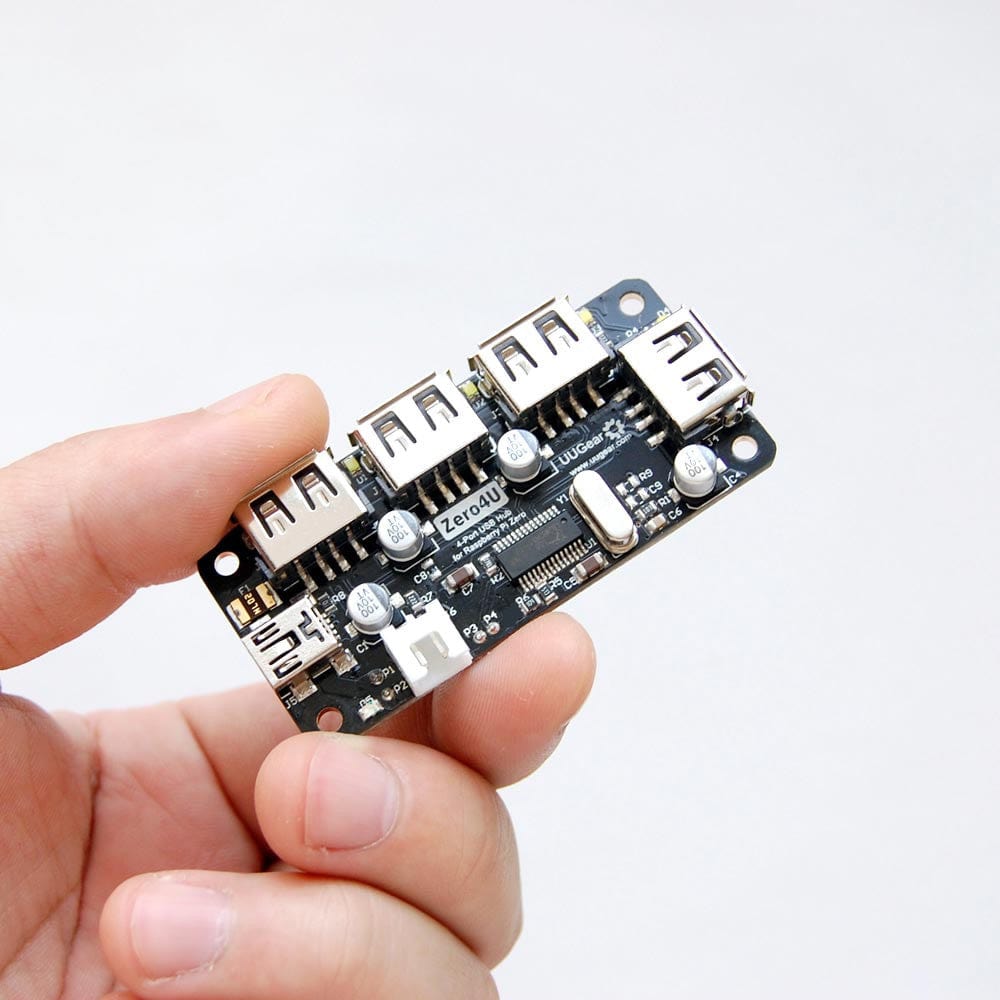

This is a 4-port USB hub for Raspberry Pi Zero, and it can be mounted to Raspberry Pi Zero back-to-back. After mounting this USB hub to your Raspberry Pi Zero, it immediately has 4 USB ports that could transfer data in USB 2.0 high-speed. The 4 pogo pins on the back will connect the PP1, PP6, PP22 and PP23 testing pads on Raspberry Pi Zero, hence no soldering will be needed.
The USB hub will take power directly from your Raspberry Pi Zero, so you don’t need to power the USB hub separately. However you can use the JST XH2.54 connector on board as the alternative power input port.
There are one blue LED on board as the power indicator, and four white LED aside the USB ports as transaction indicators.
If you use this USB hub with other types of computer, you can use a USB cable (not included) to connect the mini-USB port on board to the up-stream USB port.

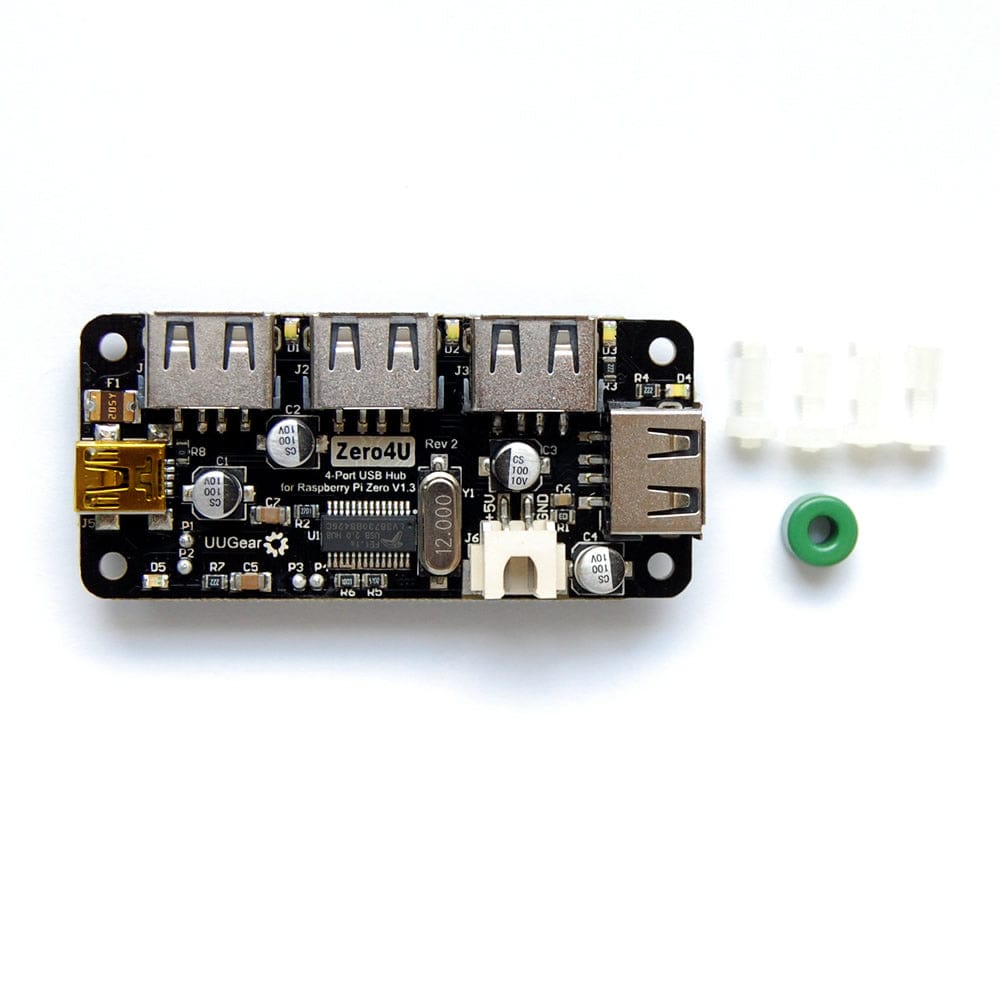

- 4-port USB hub board x 1
- 5 x 4mm plastic spacer x 4
- M2.5 plastic screw x 4
- M2.5 plastic nut x 4
*Please Note - this product will only fit the latest Raspberry Pi Zero v1.3 (with camera connector)*
