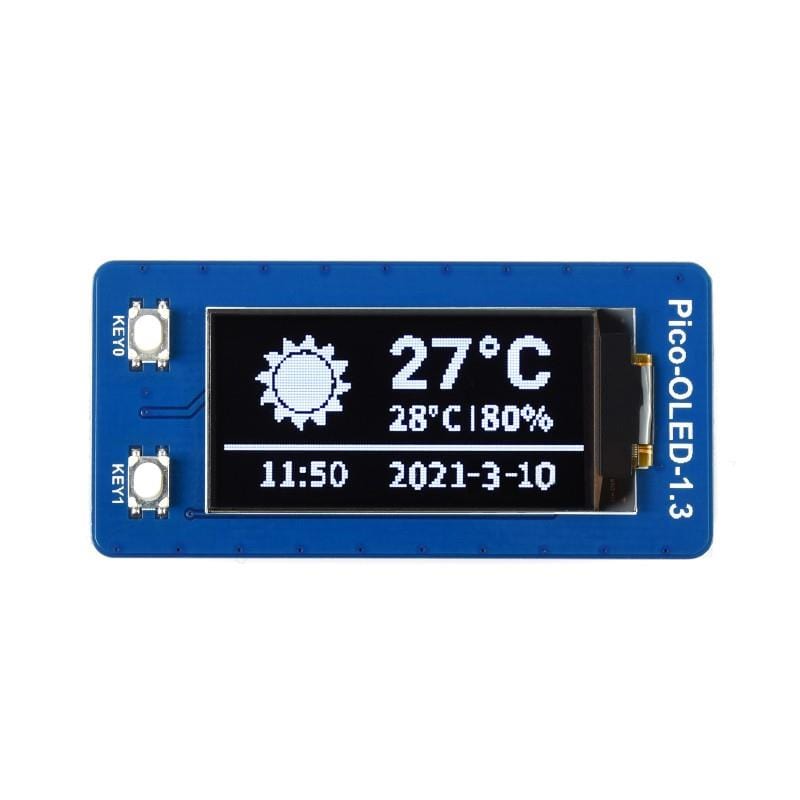

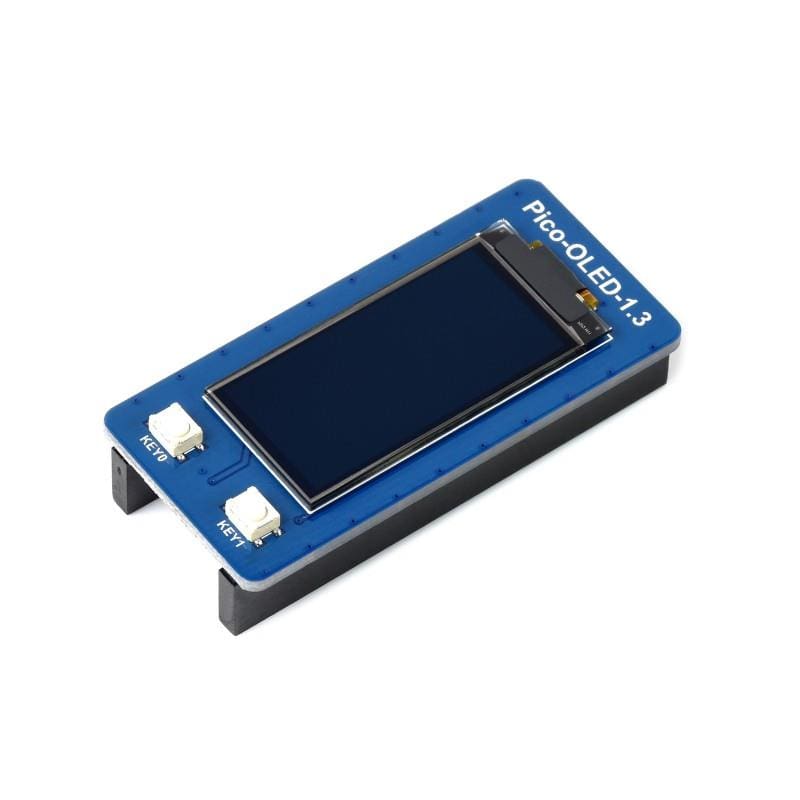

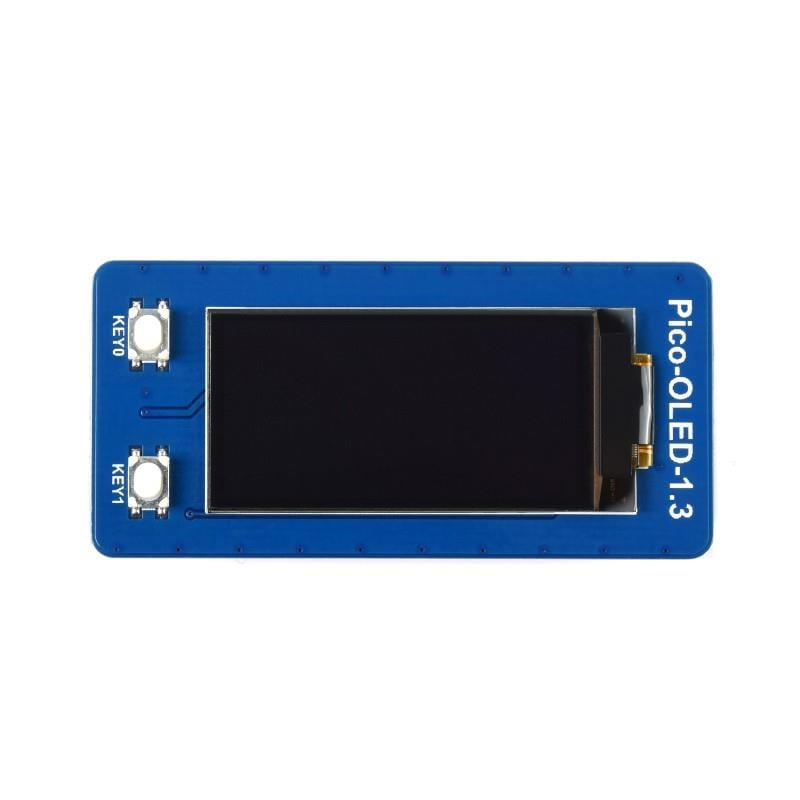

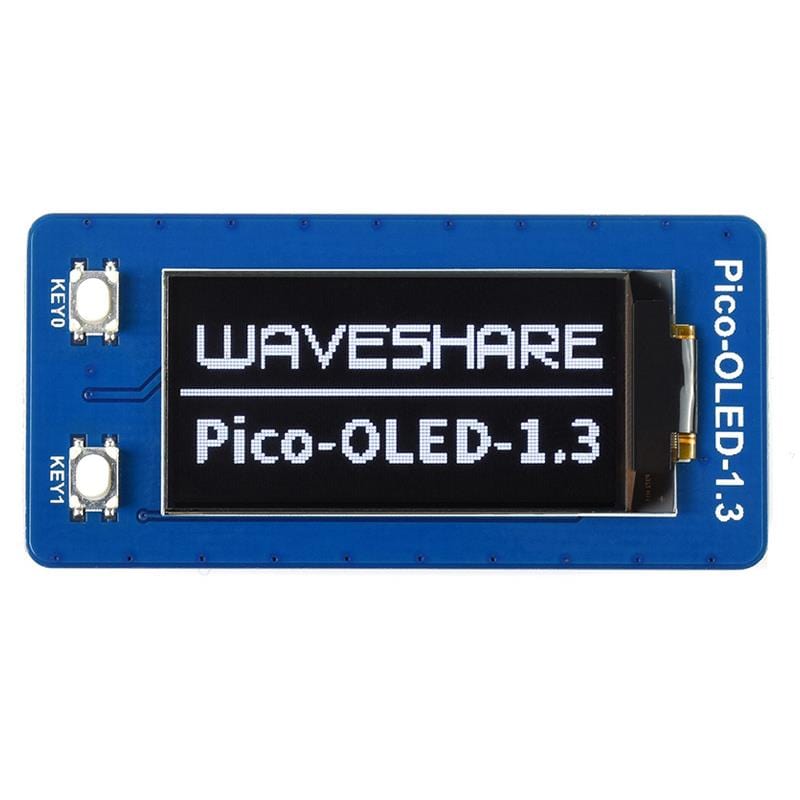

1.3" OLED Display Module for Raspberry Pi Pico (64×128)

OLEDs are one of our favourite displays to play with as they allow a lot of information to show in a relatively tiny space. Now for the tiniest Raspberry Pi comes a teeny-tiny OLED module!

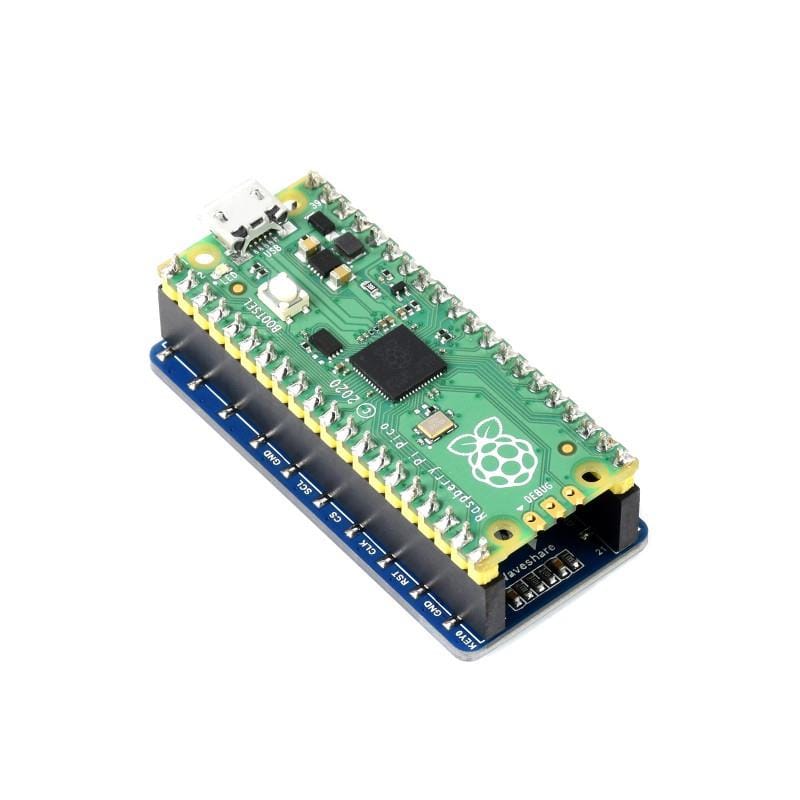

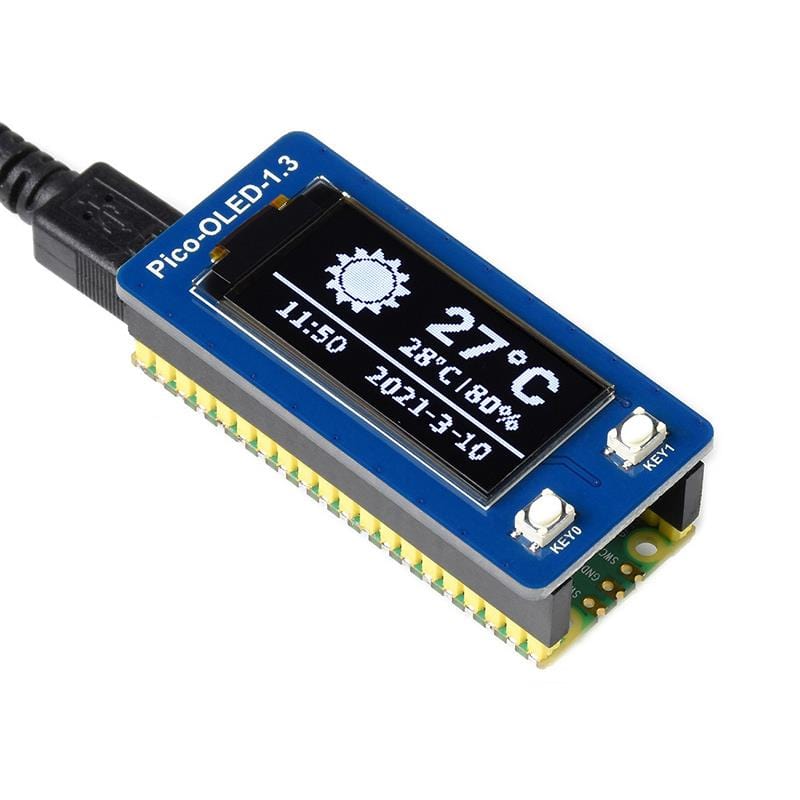

This 1.3" OLED Display Module pushes into your Raspberry Pi Pico and communicates via SPI/I2C to send data to the display. The two onboard buttons can be programmed to do anything you like - change the display, input data or even use them as basic controls make for mini-game!

Raspberry Pi Pico C/C++ and MicroPython demos are also provided to help you get started, and it comes fully assembled too!

Note: Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy a Pico with pre-soldered headers.

Features

• Resolution: 64x128
• Adopts both 4-wire SPI and I2C interfaces - better compatibility, fast data rate
• SH1107 driver
• 2x user buttons for easy interacting
• Standard Raspberry Pi Pico header - supports Raspberry Pi Pico series boards
• Online development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Package Contents

• 1x Pico 1.3" OLED Display Module

Raspberry Pi Pico not included

Resources

• Product Wiki and code examples
• Pico beer brewing temperature regulation project using this display to monitor data! (thanks to Paulo for the link and excellent project example)

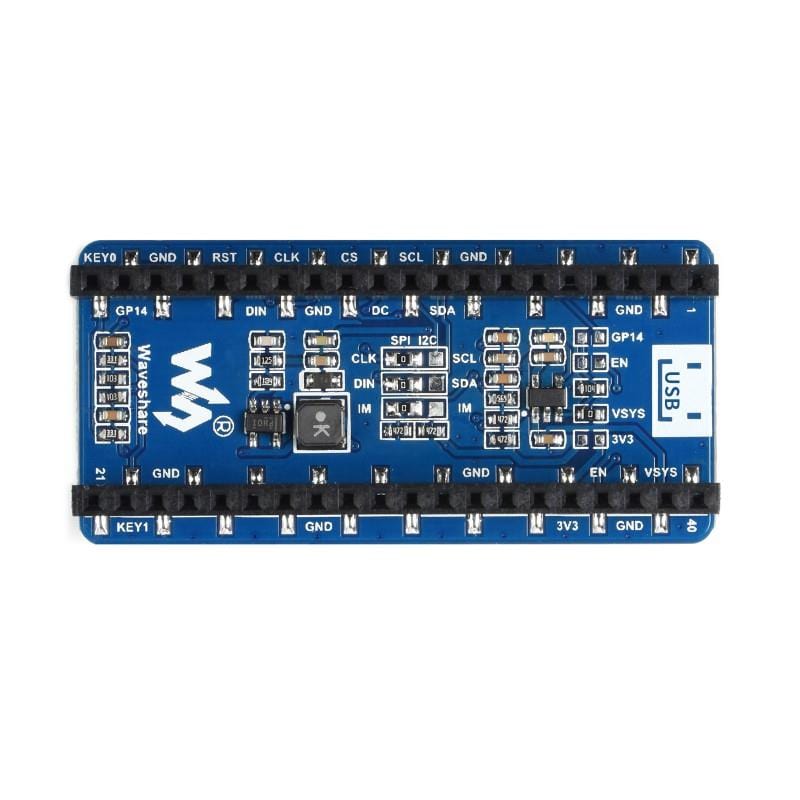

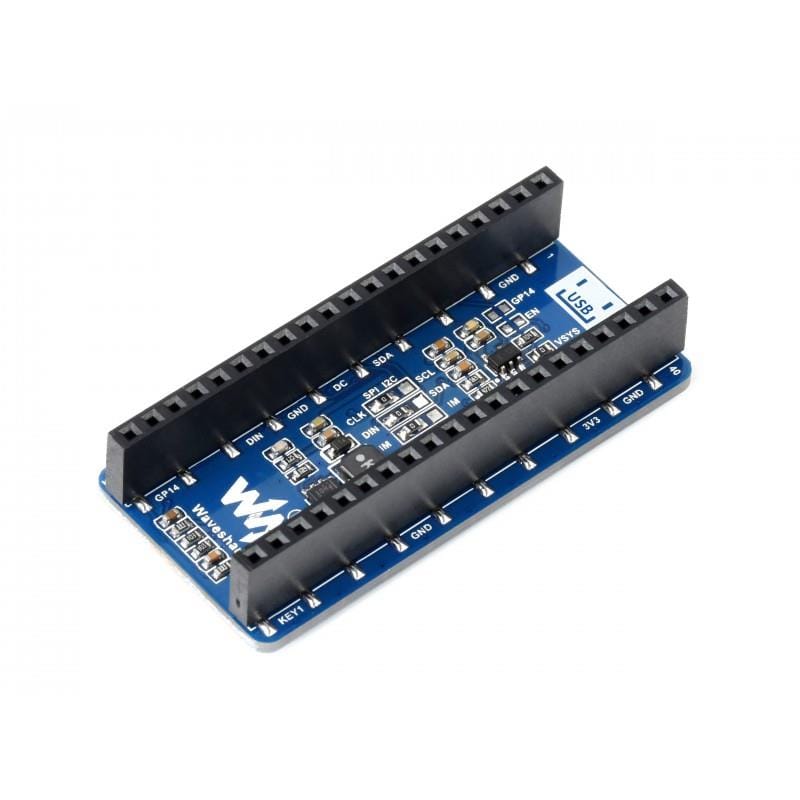

Pinout

Specifications

• Operating Voltage: 3.3v
• Resolution: 64×128 Pixels
• Communication Interface: 4-wire SPI

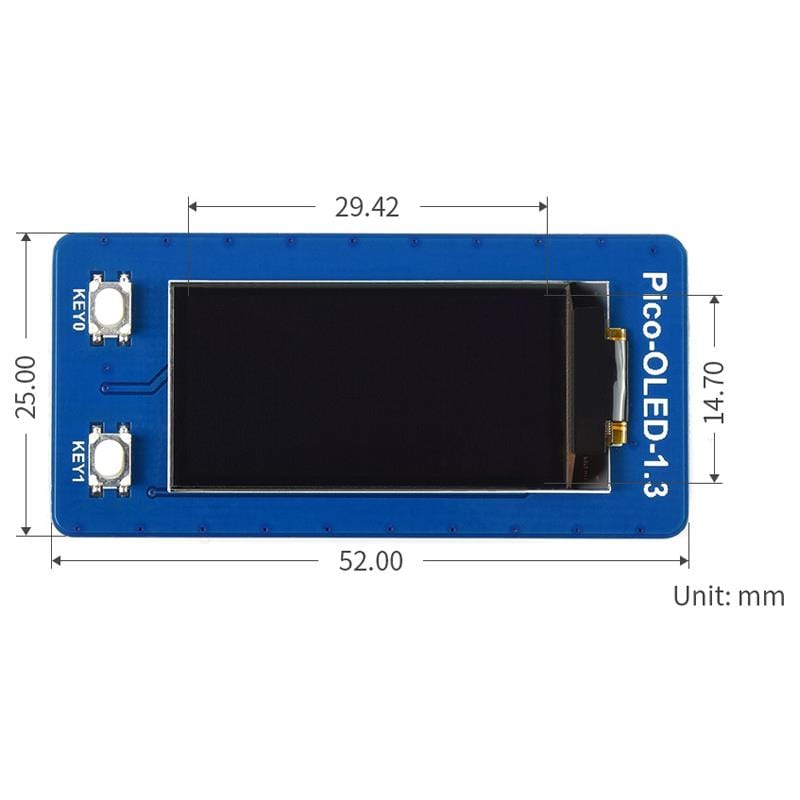

• I2C Display Size: 14.70 × 29.42mm
• Display Panel: OLED
• Pixel Size: 0.15 × 0.15mm
• Driver: SH1107
• Dimensions: 52.00 × 25.00mm
