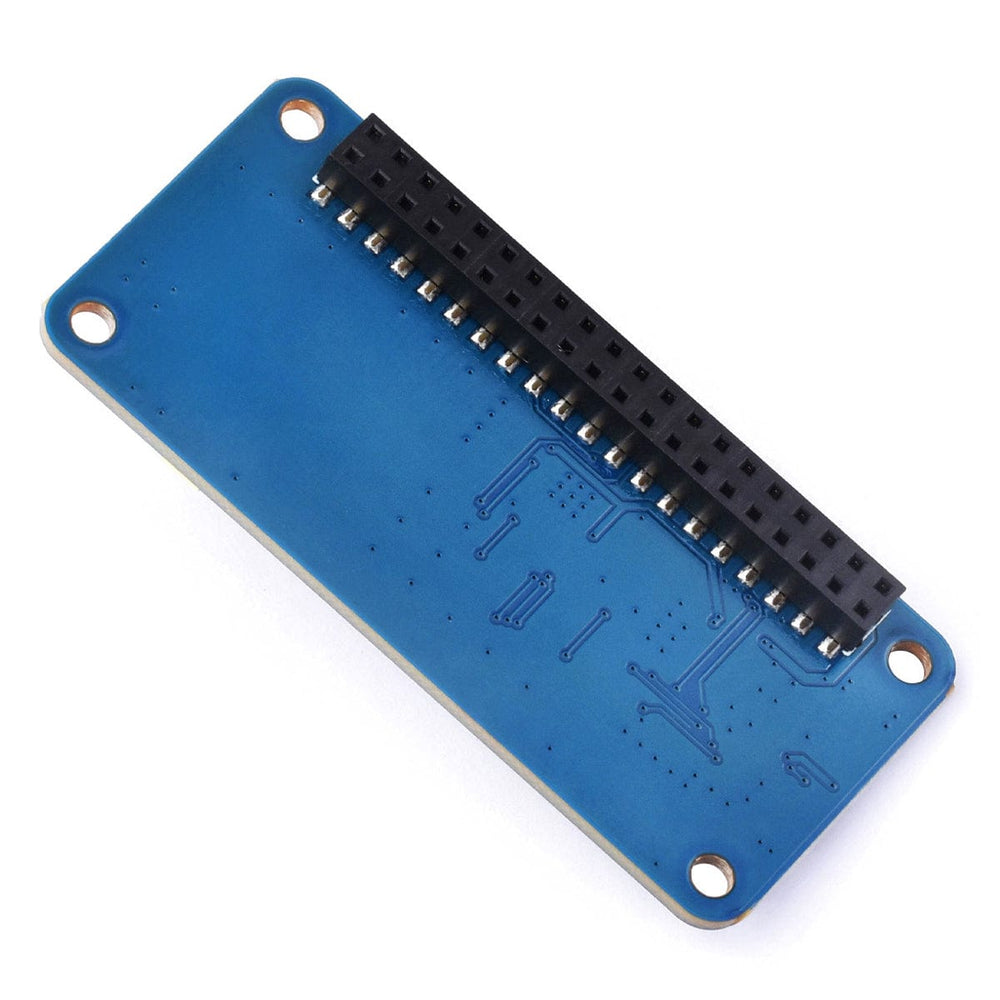

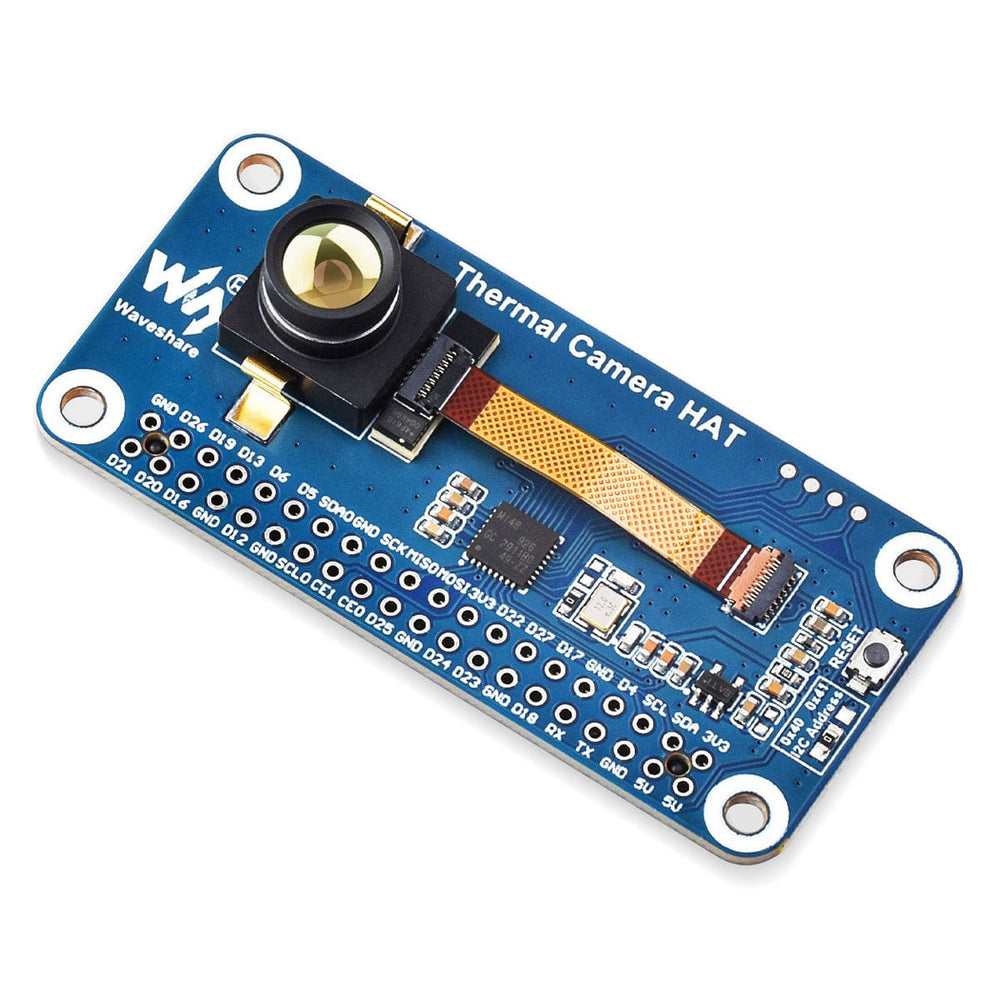

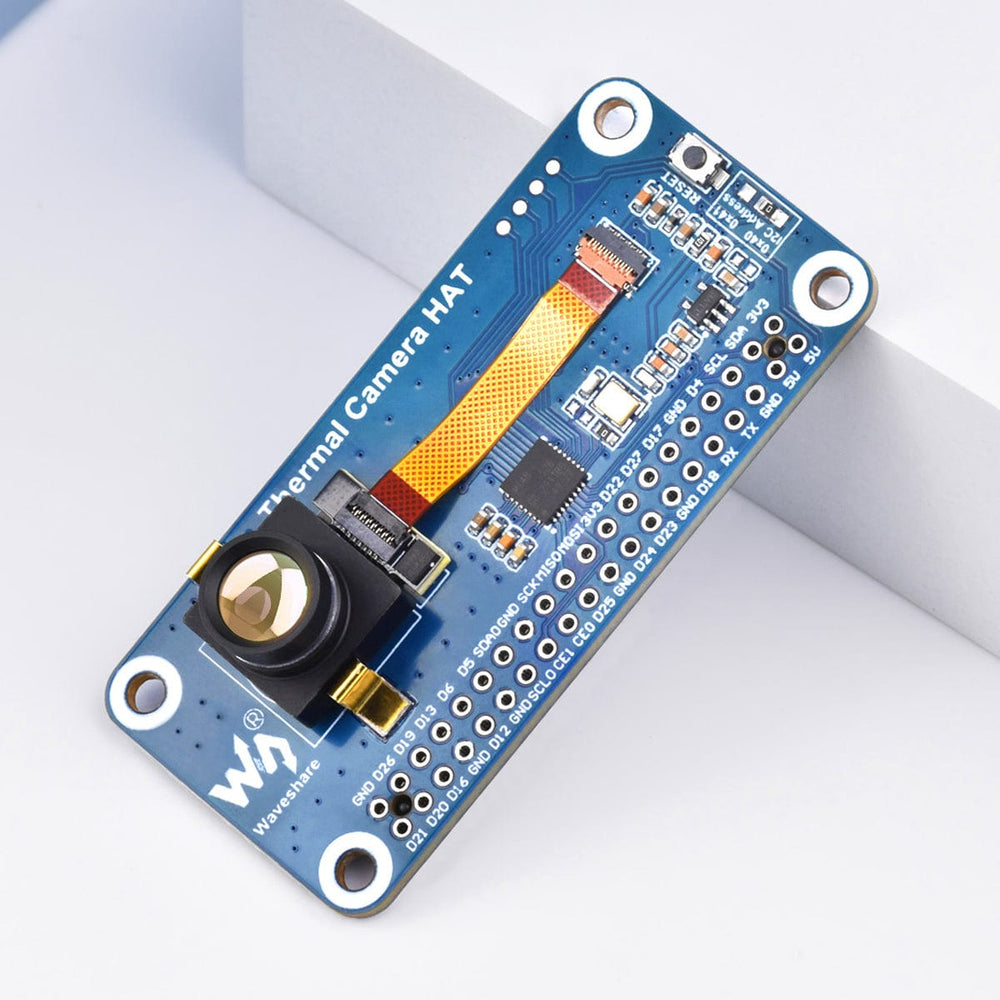

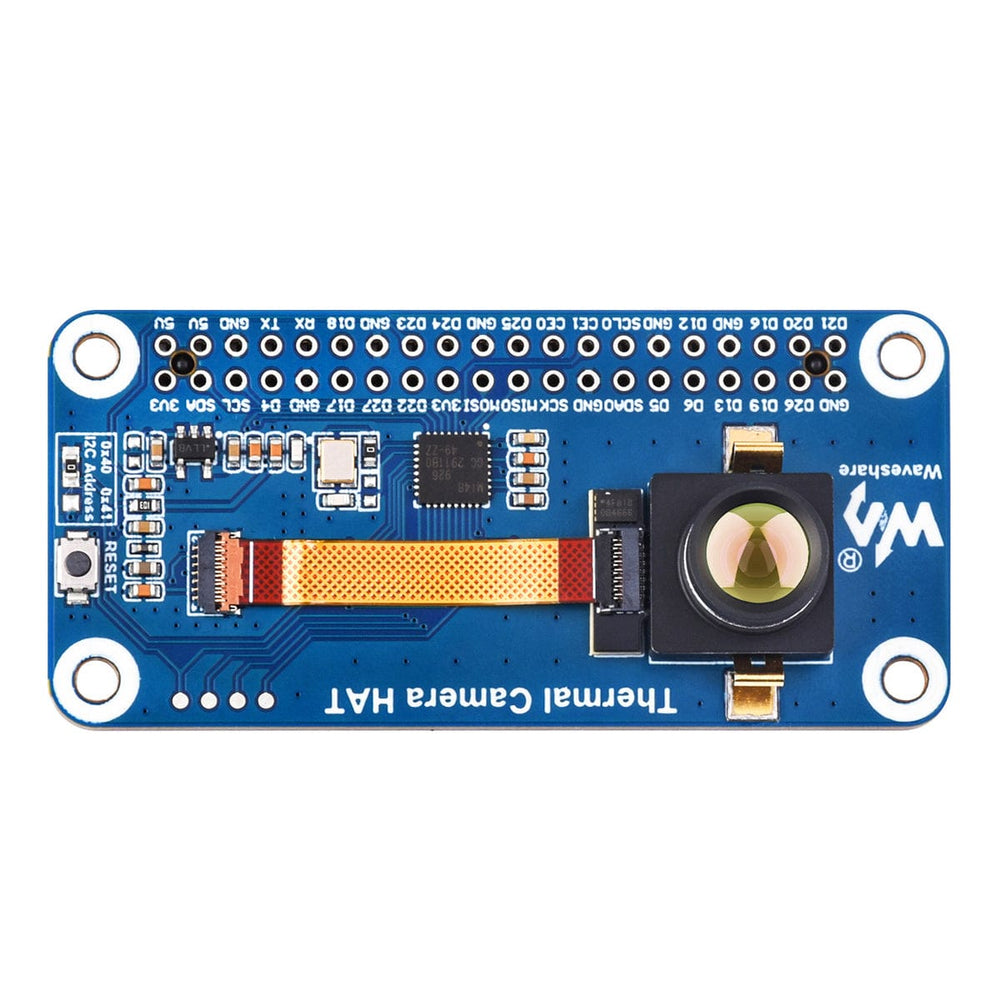

Long-wave IR Thermal Imaging Camera HAT for Raspberry Pi

WaveshareSKU: WAV-25287
Price:
Sale price £113.70
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi 5
Sale priceFrom £57.60 incl. VAT excl. VAT
Raspberry PiRaspberry Pi Zero 2 W
Sale priceFrom £14.40 incl. VAT excl. VAT

This camera module features a long-wave infrared design that has a hybrid technology combining a microbolometer and thermopile pixels. With an 80 x 62 pixel IR array and a 45° field of view, it detects the IR distribution of objects, calculates their surface temperatures, and generates detailed thermal images. Its shutterless design allows for continuous operation and a thermal imaging video stream, providing uninterrupted monitoring and diagnostics. It is equipped with a Raspberry Pi 40-pin GPIO header, providing compatibility and ease of integration with Raspberry Pi projects.

The camera has impressive sensitivity with a Noise Equivalent Temperature Difference (NETD) of 150mK RMS at a 1Hz refresh rate and can deliver a thermal imaging video stream at up to 25 frames per second for clear results. It is ideal for a wide range of projects, from security surveillance to environmental monitoring.

It comes fully supported with online resources and manuals, including a Python demo for Raspberry Pi and compatibility with Android and Windows host computers, making it a versatile choice for anyone looking to add advanced thermal imaging to their projects.

We also have a USB-C version in the store

Note: Raspberry Pi boards are NOT included

Features

  • Adopts the hybrid technology of microbolometer and thermopile, 80 x 62 array pixels
  • Continuous operation and thermal imaging video stream due to shutterless design
  • Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
  • Up to 25FPS (Max) thermal imaging video stream output
  • Comes with online resources and manuals (Python demo for Raspberry Pi, Android/Windows host computer and user manual, etc.)

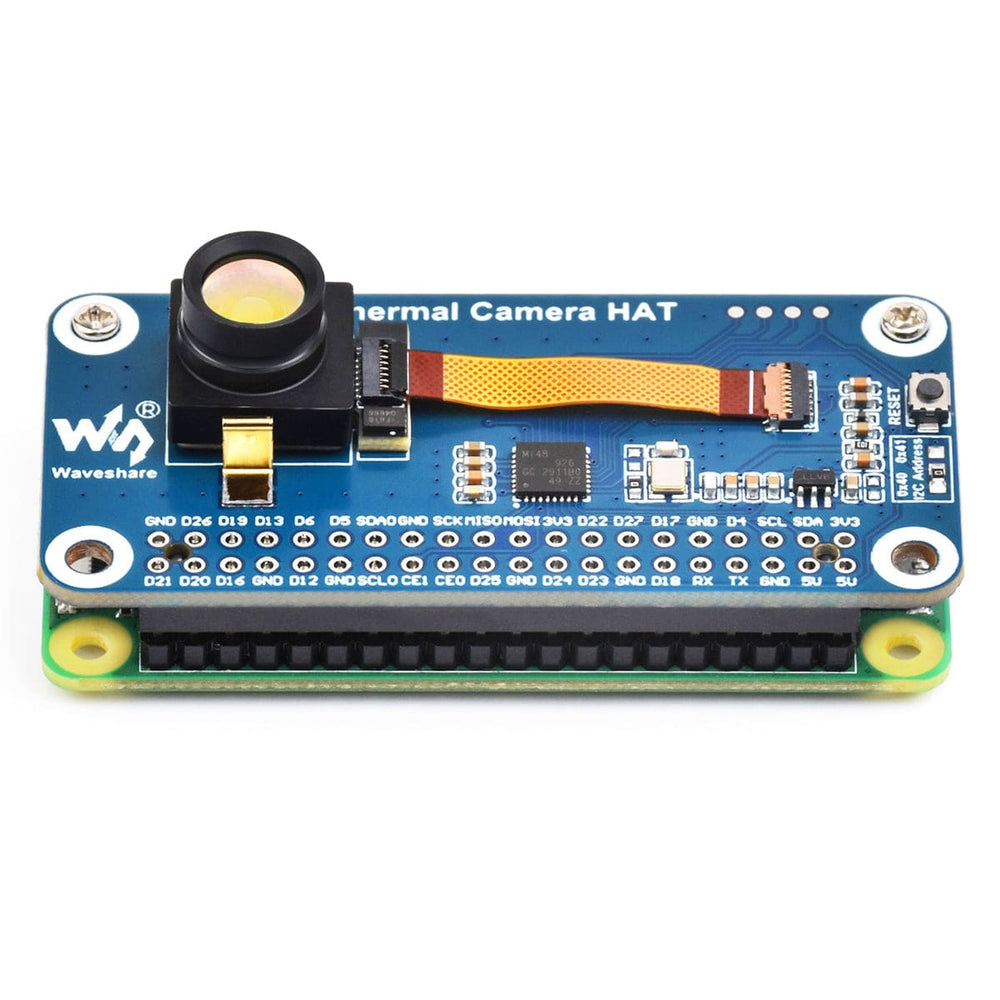

Connection Example - Raspberry Pi

Specifications

Power Supply 5V
Operating Current 61mA@5V
Wavelength Range 8~14μm
Operating Temperature -20~85℃
Target Temperature -20~400℃
Refresh Rate 25 FPS (Max)
FOV Basic version: 45°(H) x 45°(V)
Noise Equivalent

Temperature Difference
150mK
Measuring Accuracy ±2℃ (ambient temp. 10~70℃)

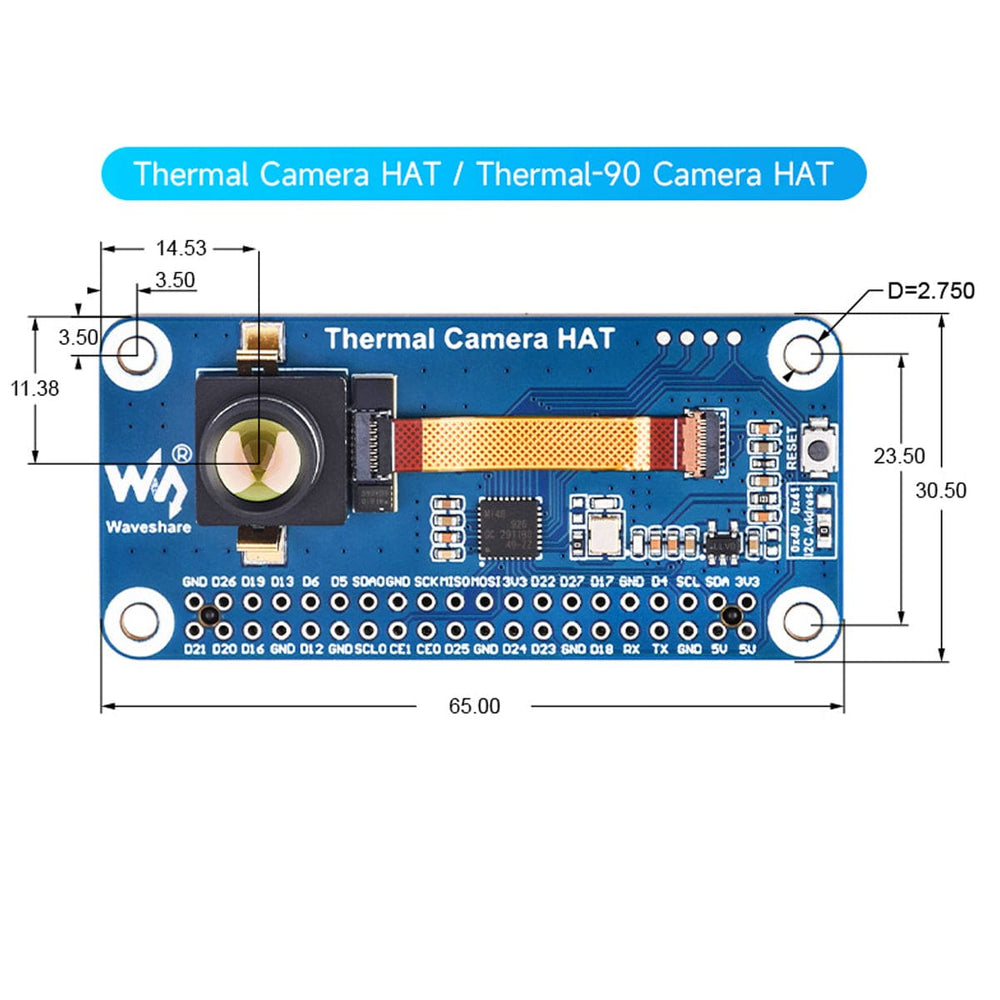

Dimensions Thermal Camera HAT: 65.0 x 30.5mm

Resources

Package Contents

  1. 1x Thermal Camera HAT
  2. 1x 40-pin Female Header
  3. 1x FPC 15 PIN cable 0.3mm pitch -100mm
  4. 1x Screws Pack
