2-Axis Joystick

ParallaxSKU: ADA245
Price:
Sale price £11.40
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

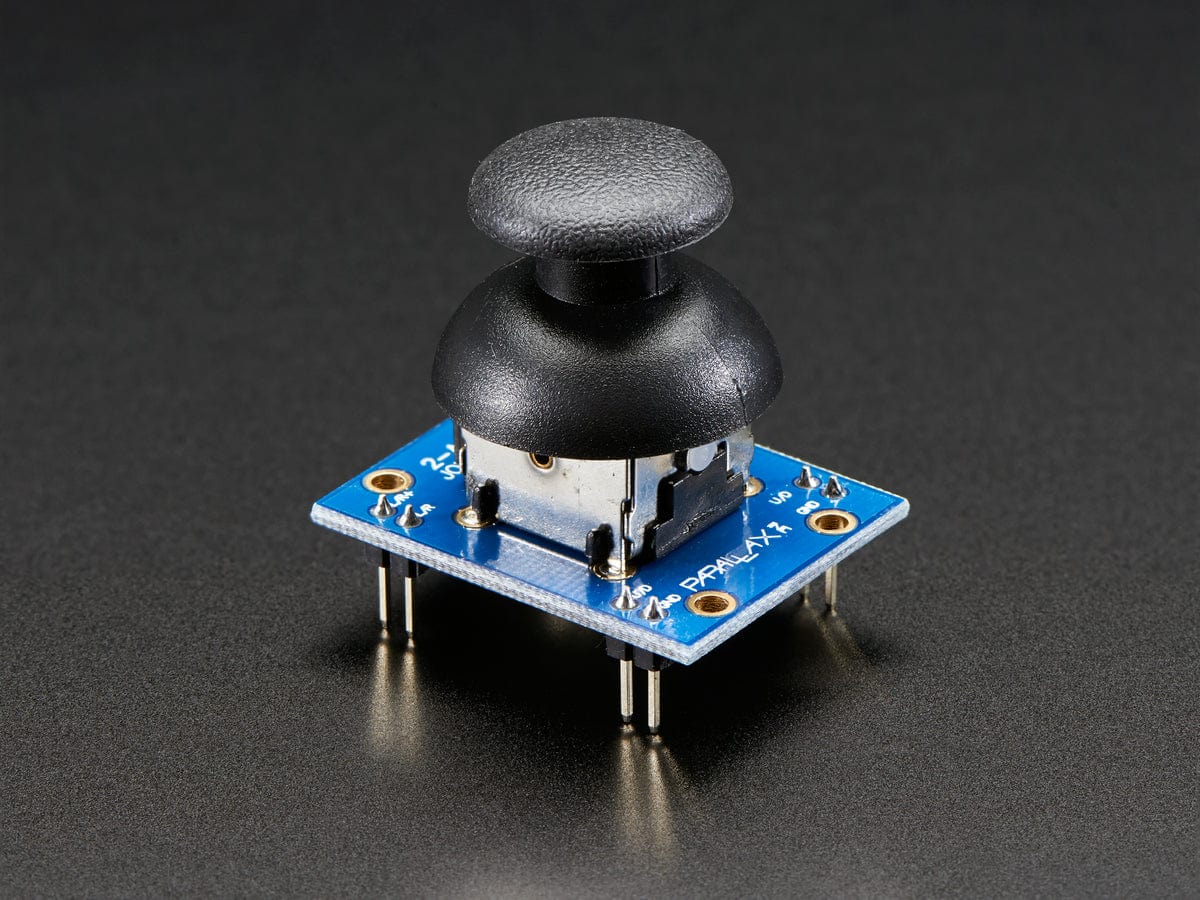

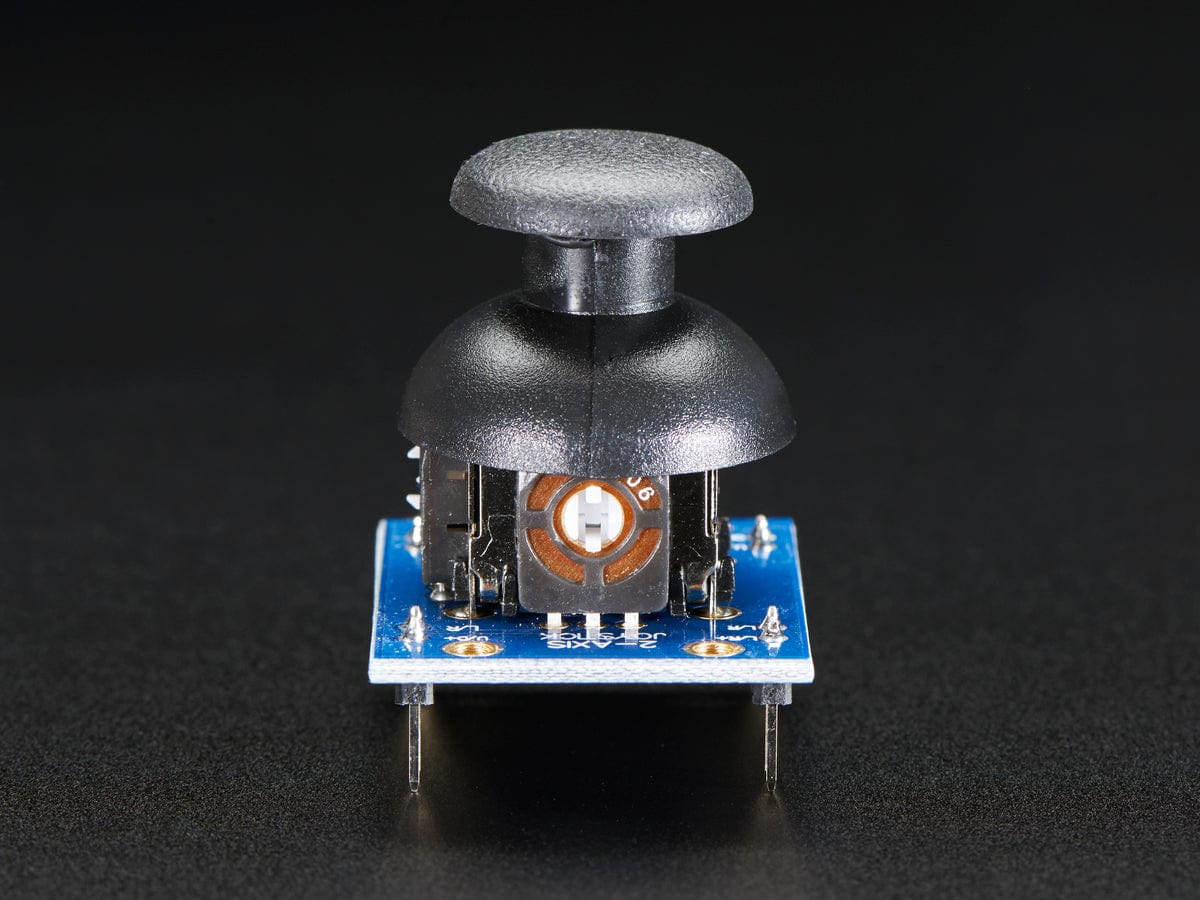

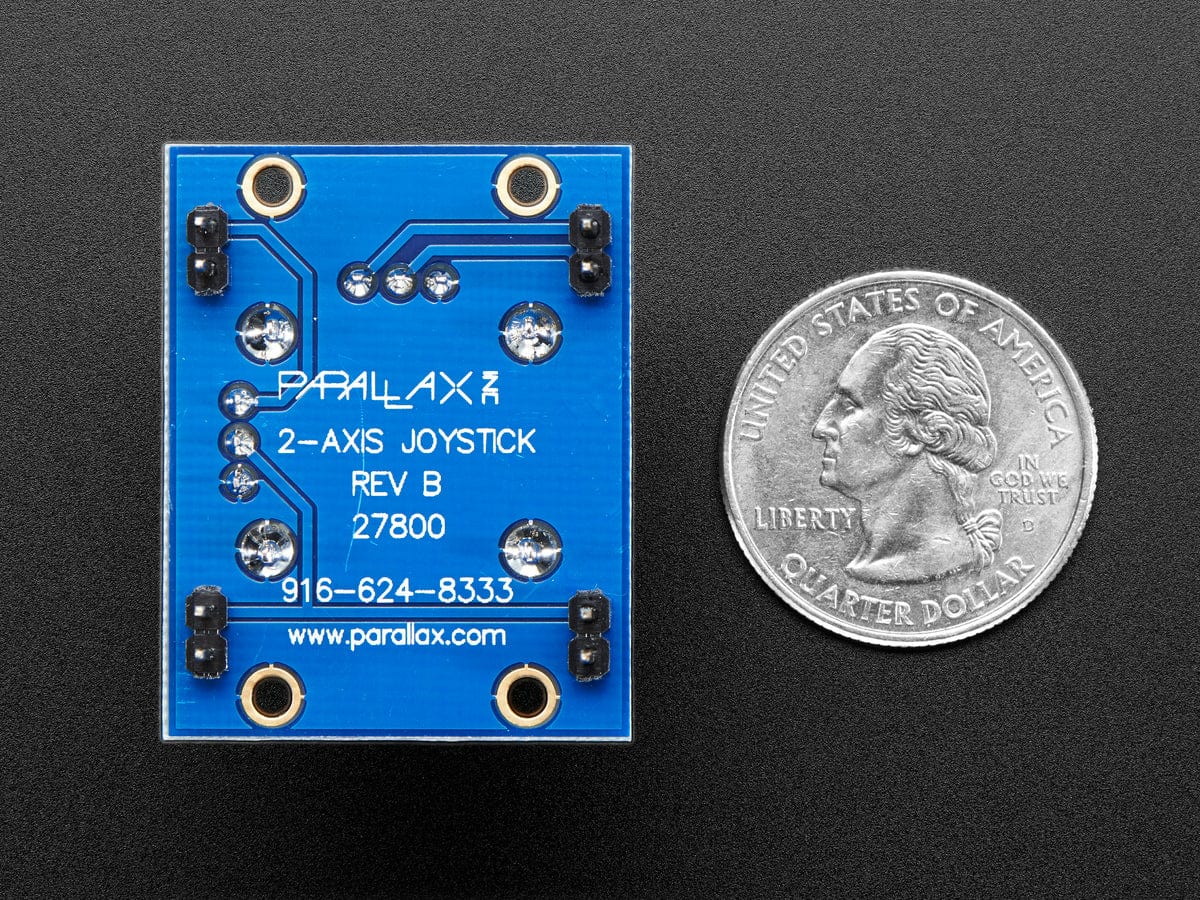

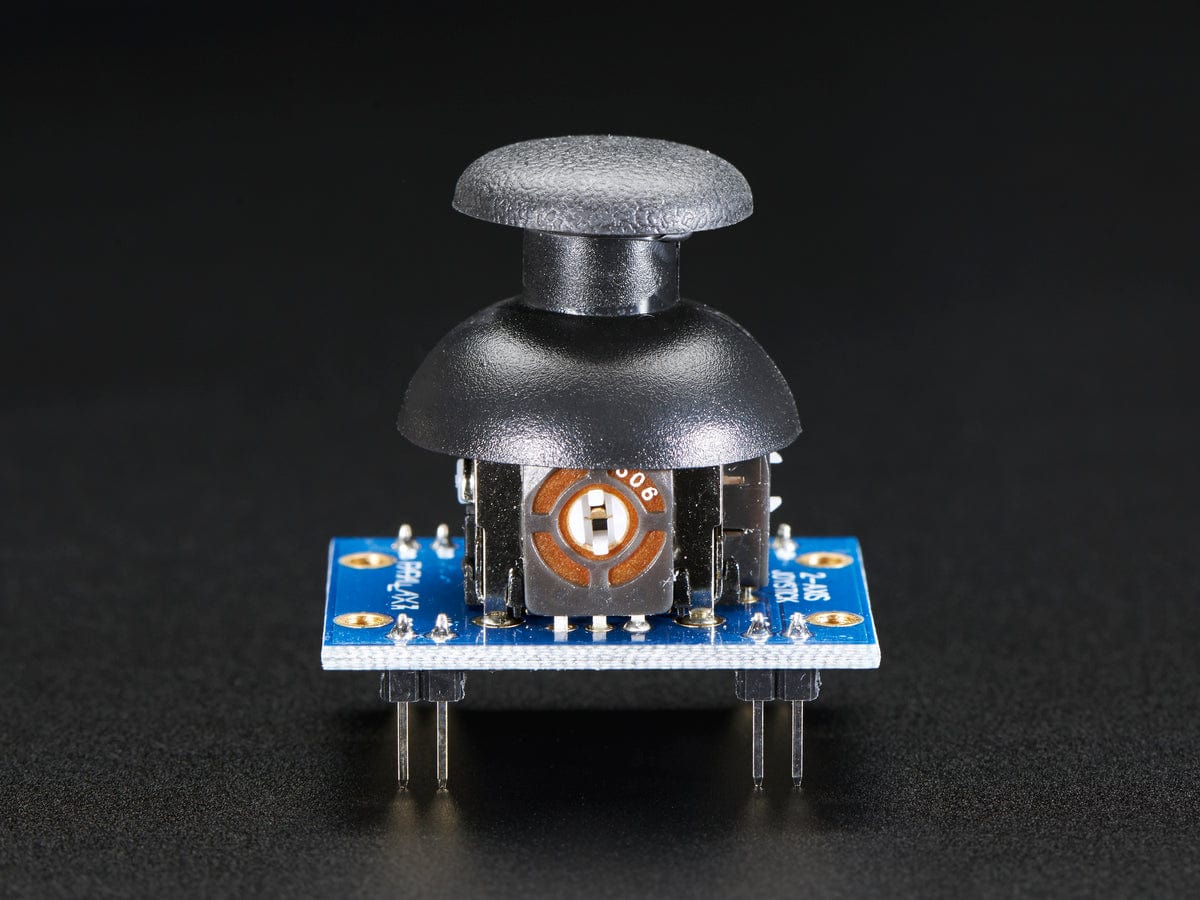

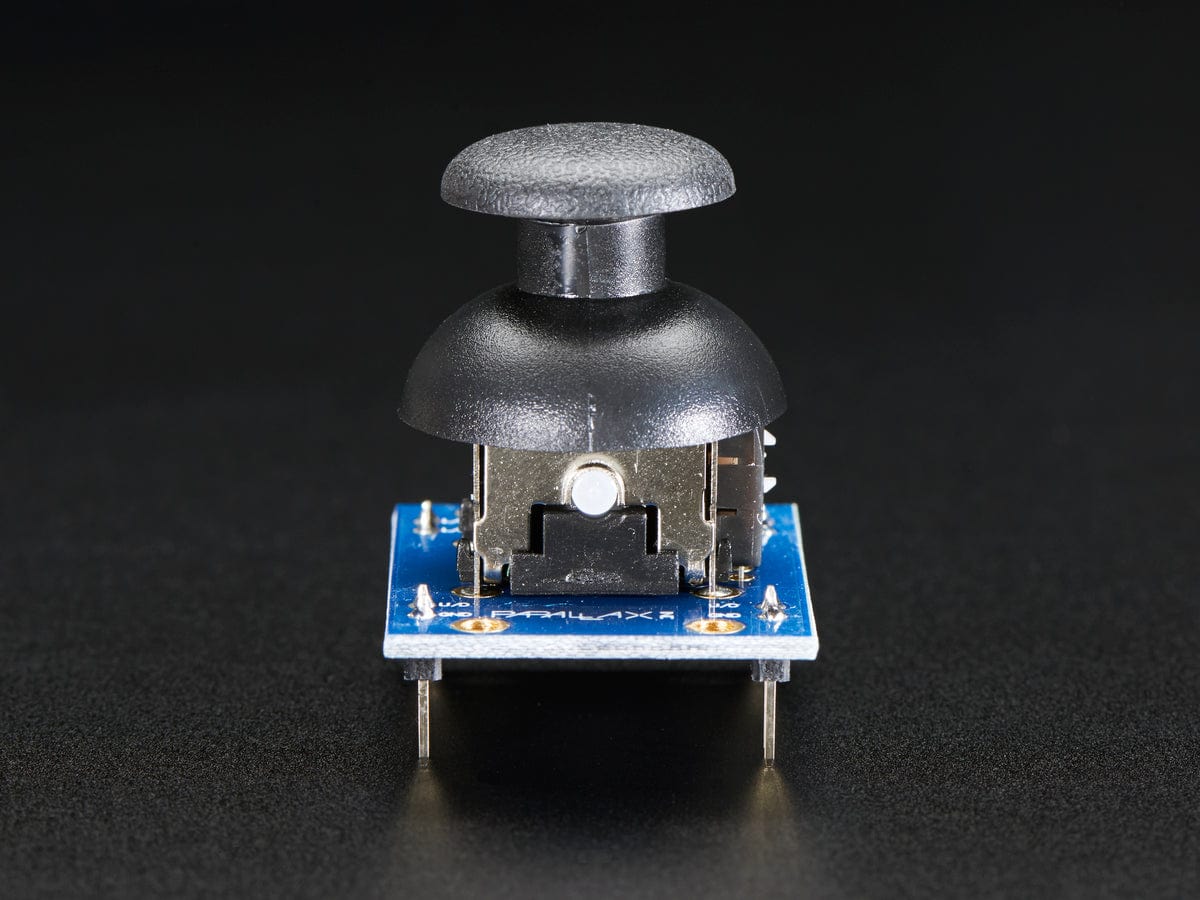

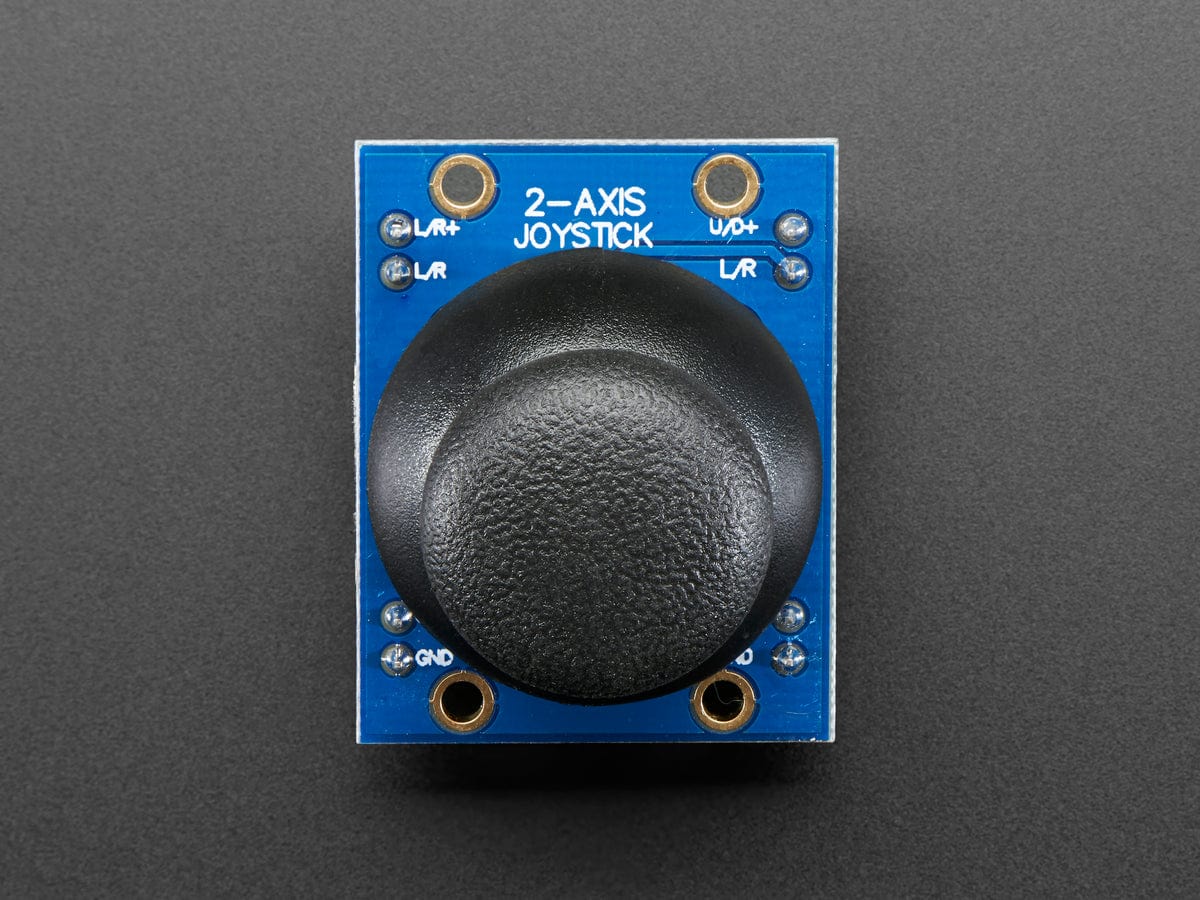

Our 2-Axis Joystick can be used to add analog input to your next project. The 2-Axis Joystick contains two independent potentiometers (one per axis) for reporting the joystick's position, with wiring options for voltage or resistance outputs. The modular form-factor allows you to plug the 2-Axis Joystick directly into a breadboard for easy prototyping. The 2-Axis Joystick includes spring auto return to center and a comfortable cup-type knob.

Features:

  • Easy breadboard connection
  • Two independent 10K potentiometers with common ground
  • Spring auto return to center
  • Comfortable cup-type knob

Downloads & Resources:
2-Axis Joystick Documentation (.pdf)
2-Axis Joystick Schematic (.pdf)
RCTIME Example (.zip)
ADC Example (.zip)

Technical Details

Key Specifications:

  • Power: 0.01W
  • Interface: Dual 10K potentiometers with common ground
  • Dimensions: 1.64 x 1.2 x 1.1 in (41.67 x 30.54 x 27.7 mm)
  • Operating temp range: +32°F to +158°F (0°C to +70°C)
