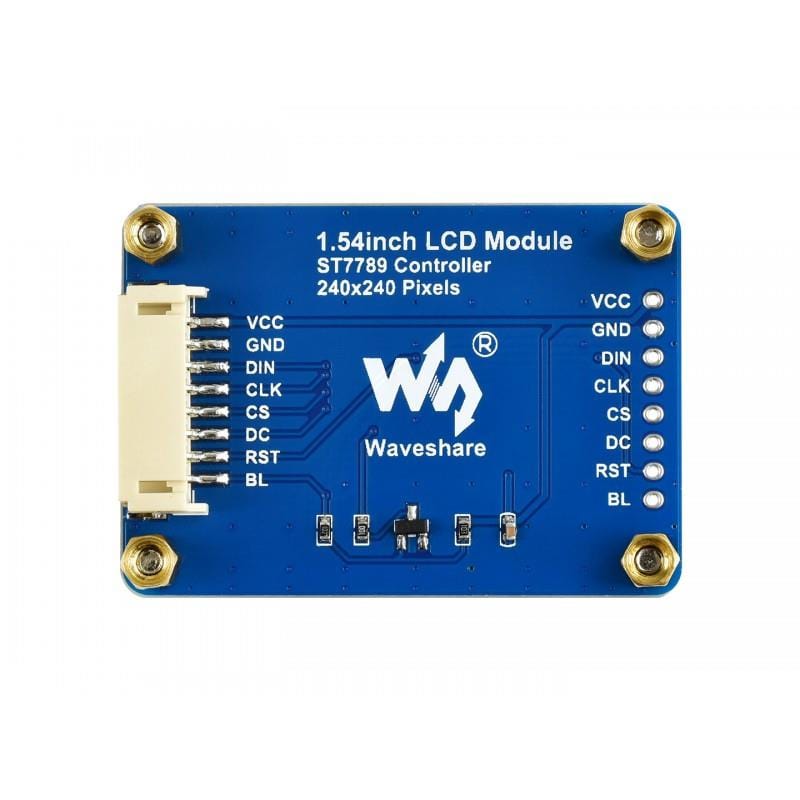

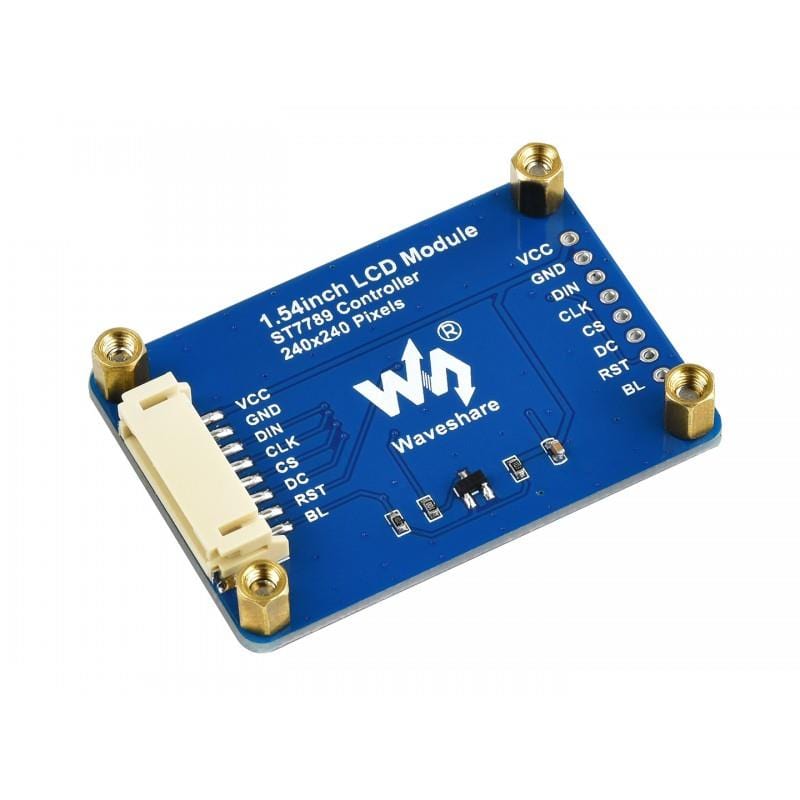

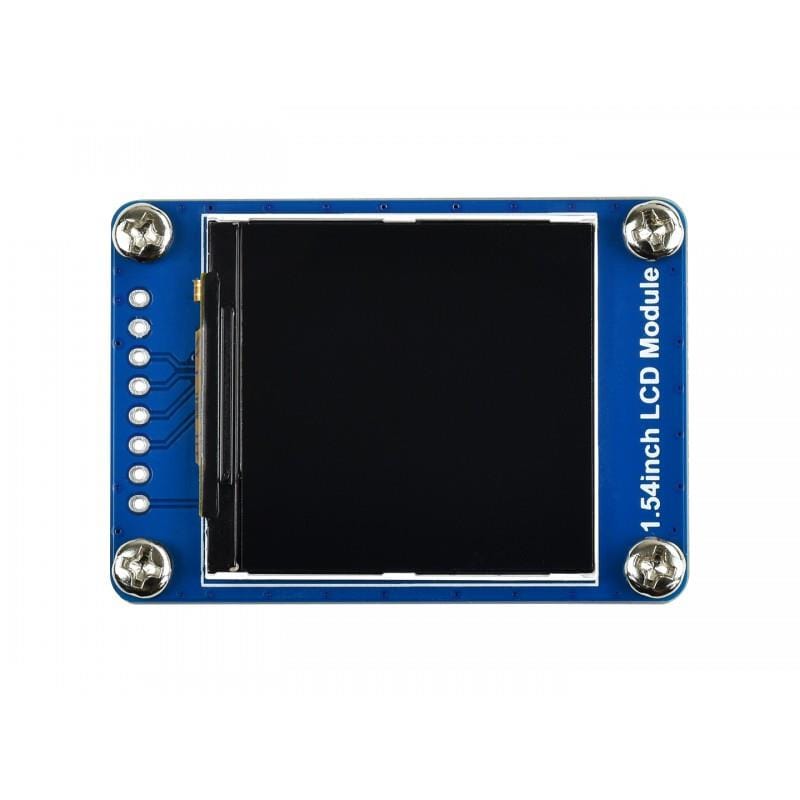

1.54" LCD Display Module (240x240)

This 1.54" IPS LCD module from Waveshare is a great way to add a mini high-quality display to your project.

The display has a 240x240 resolution and offers 65K RGB colours via its IPS display. The module is controlled via a simple 4-wire SPI thanks to the embedded ST7789 driver.

The handy mounting holes make it easy to incorporate into a custom panel or 3D printed enclosure, and the online development resources make it easy to get up and running on a Raspberry Pi or Arduino board.

Features

• 1.54" LCD Display
• 240×240 resolution
• 65K RGB colours
• Clear and colourful display
• SPI interface minimizes required IO pins
• Supports controller boards such as Raspberry Pi and Arduino
• Comes with online development resources (examples for Raspberry Pi/Arduino)

Wiring Examples

Package Contents

• 1x 1.54" LCD Module
• 1x PH2.0 8-pin 20cm cable

Resources

• Product Wiki including wiring and code examples
• Dimensions (drawing)

Tech Specs

• Operating voltage: 3.3V/5V
• Interface: SPI
• LCD type: IPS
• Controller: ST7789
• Resolution: 240(H)RGB x 240(V)
• Display area: 27.72（H）x 27.72（V）mm
• Pixel size: 0.1155（H）x 0.1155（V）mm
• Dimension: 50 x 35(mm)
