L9110H H-Bridge Motor Driver for DC Motors - 8 DIP (2.5V-12V 800mA)

Price:
Sale price £1.50
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

PololuPololu DRV8833 Dual Motor Driver Carrier
Sale price £9.60 incl. VAT excl. VAT

Run two solenoids, or a single DC motor with up to 800mA per channel using the super-simple L9110H H-bridge driver. This bridge chip is an 8 DIP package so it's easy to fit onto any breadboard or perfboard.

Each chip contains one full H-bridges (two half H-bridges). That means you can drive 2 solenoids or a single DC motors bi-directionally. Just make sure they're good for under 800 mA since that's the limit of this chip. They do handle a peak of 1.5A but that's just for a short amount of time. What we like most about this particular driver is that it comes with built in kick-back diodes internally so you don't have to worry about the inductive kick damaging your project or driver!

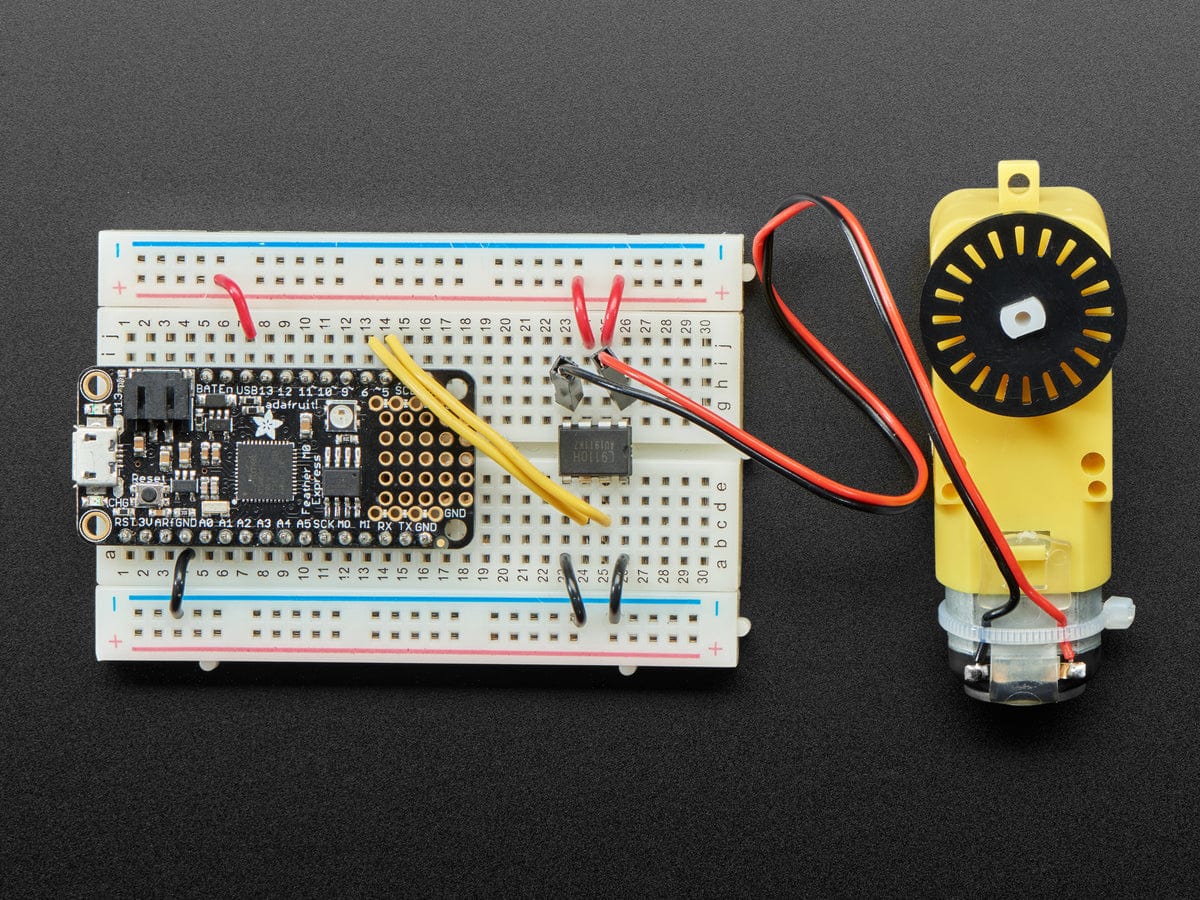

There's a PWM input per driver so you can control motor speed and direction. Good for motor power voltages from 2.5V up to 12V! This chip doesn't have split logic/power pins, but it seems that you can use 3.3V logic level with higher voltages no problem - we controlled a 9V motor setup with a Feather running at 3.3V.

Technical Details

Dimensions:

  • 9.3mm x 6.4mm x 3.2mm
  • Height with pins: 7mm
