This 20W 4-Inch Speaker delivers powerful, full-range audio, making it an excellent choice for DIY sound systems, amplifiers, arcade cabinets, and other projects that need room-filling sound.

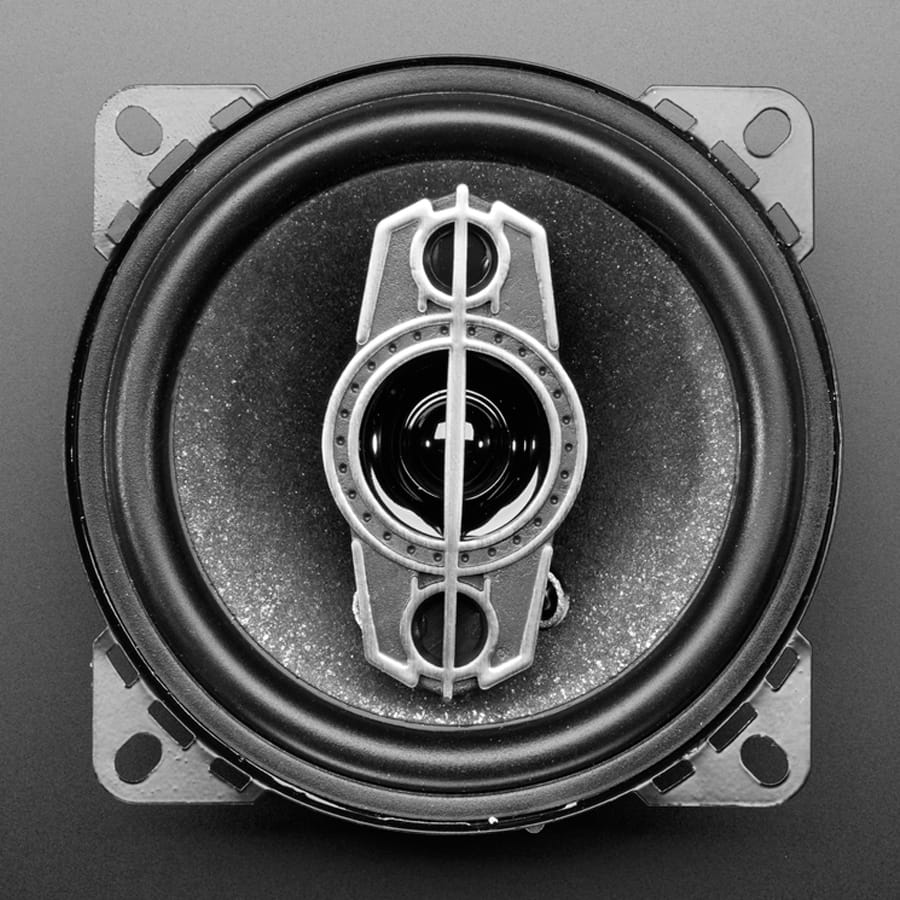

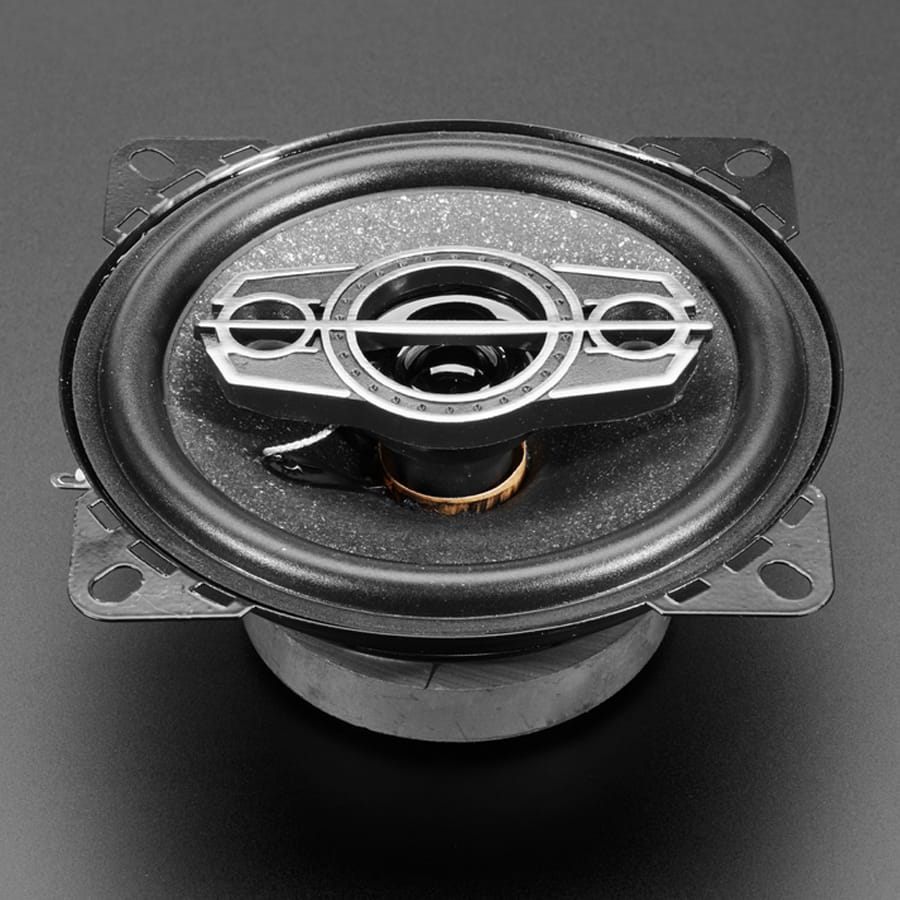

Listen up! This high power 4" diameter speaker will amp up any audio project where you need loud sound! It is 4 ohm impedance, rated for 20W continuous power. (This thing is really loud) It also has four handy mounting tabs 3 inches apart, and a grill that fits on top. The grill is to protect the cones, and is not necessary for use.
This speaker has a nice wide range of 60Hz - 24kHz, which is pretty good for a speaker this large. Originally designed for use in car doors, but we think its good for any project where you need to fill a room.
We played some David Bowie through two of these speakers using our MAX9744 amplifier running from 12V power and it could easily fill 5,000 sq ft with sound. For best use, place into some sort of enclosed cabinet.
Features
4" diameter speaker with high power output
4 ohm impedance rated for 20W continuous power
Four mounting tabs spaced 3 inches apart

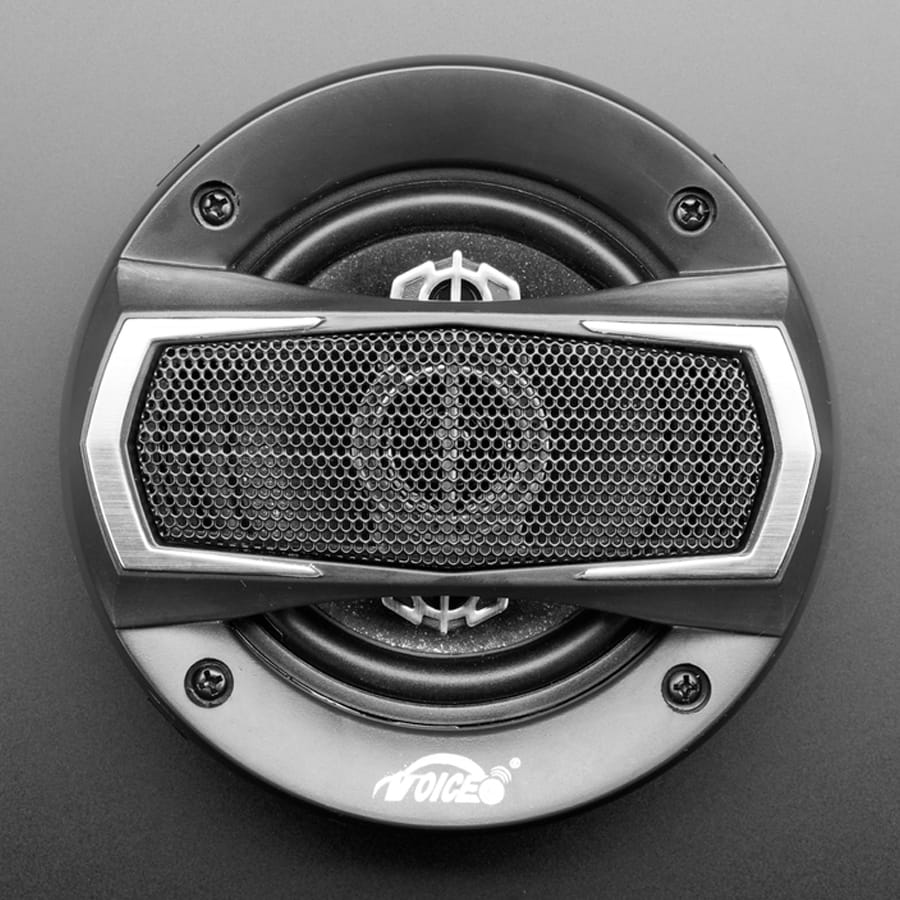

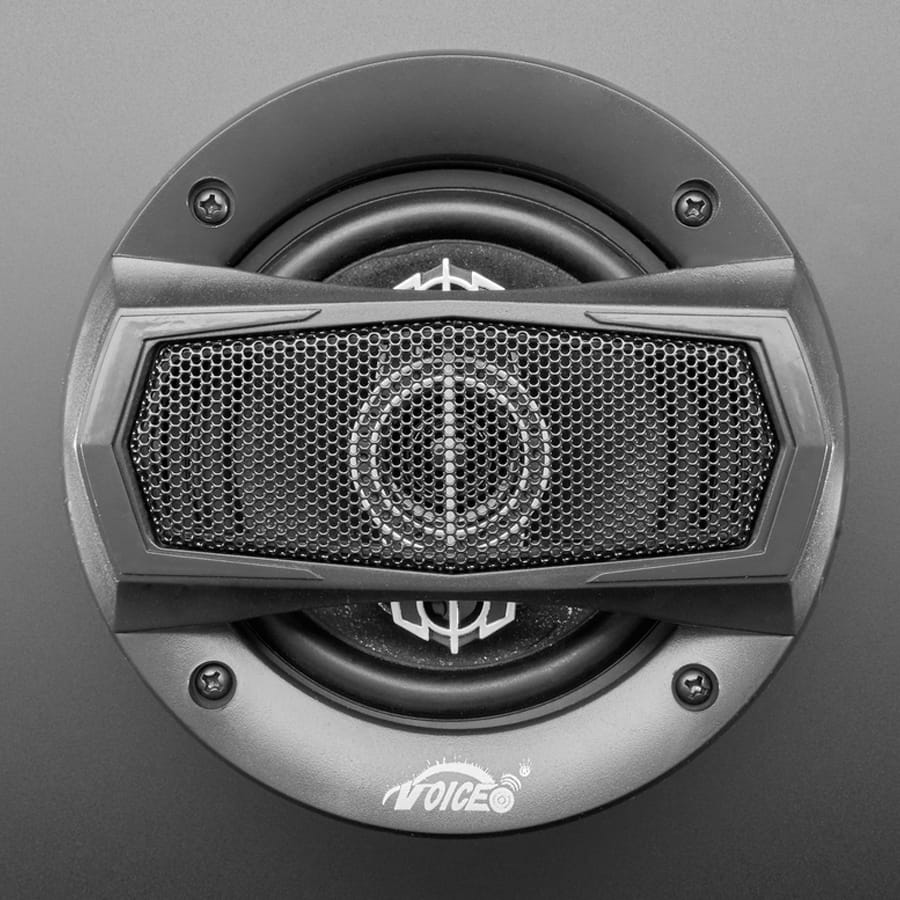

Protective removable grill included
Wide frequency range 60Hz - 24kHz
Suitable for car door installation or general projects
Capable of filling large spaces up to 5,000 sq ft
Works with 12V amplifier systems
Best performance when mounted in an enclosed cabinet
Specifications
Speaker (w/o cage) Dimensions
Diameter: 102mm / 4.0"
Height: 53mm / 2.1"
Mounting Tab Length: 14mm / 0.6"
Distance Between Tabs: 77mm / 3"
Weight: 249.4g
Grill Dimensions
Diameter: 136mm / 5.4"
Height: 20mm / 0.8"
Weight: 48.6g
Peak Power: 120W
Rated Power: 20W
Impedance: 4Ω
Frequency Response: 60Hz - 24kHz
Revision History
As of Dec 5th, 2024 - the speaker grill make come with an accent colour in silver or black
As of June 1, 2023 - this revision no longer comes with the x4 metal brackets otherwise dimensions and functionality are the same.

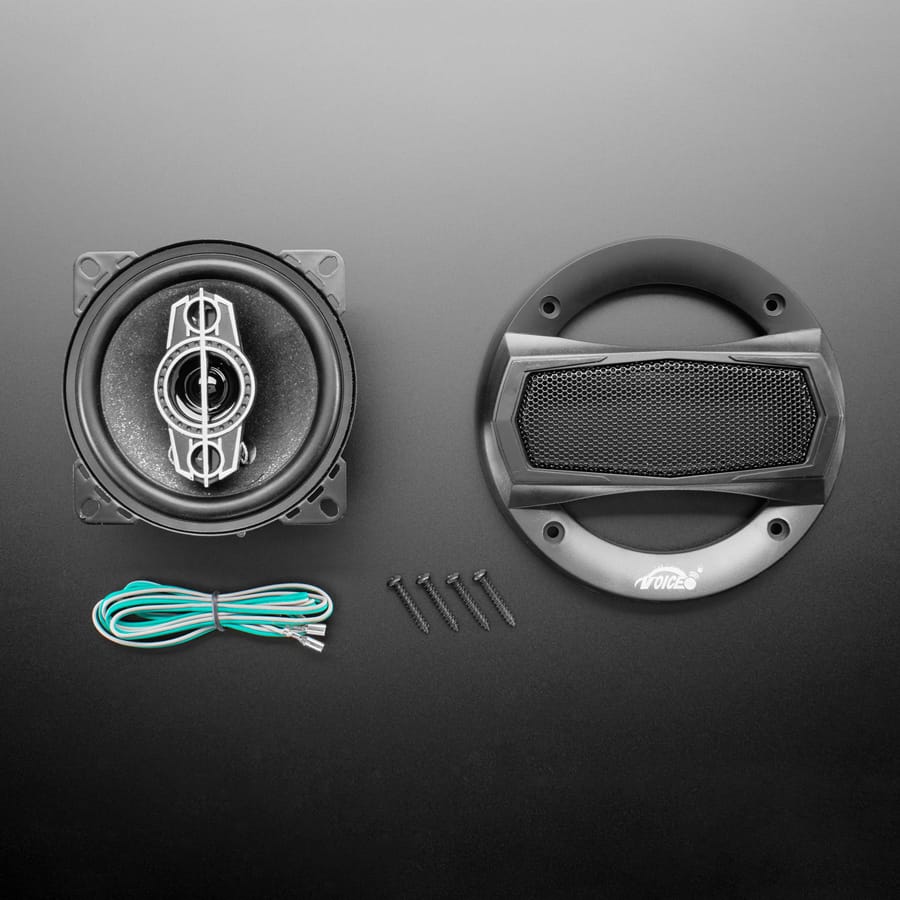

Package Contents
1x 20W 4 Ohm Full Range Speaker (XS-GTF1027)
