Spring-Loaded Terminal Breakout Board for Raspberry Pi

SequentSKU: 102756
Price:
Sale price £14.90
incl. VAT
excl. VAT
Stock:
Only 11 units left
Quantity:

Compatible with:

Awesome Extras

Save 30%
SequentScrew Mount Breakout Card for Raspberry Pi (for 26-18 AWG wires)
Sale price £9.80 Regular price £14 incl. VAT excl. VAT

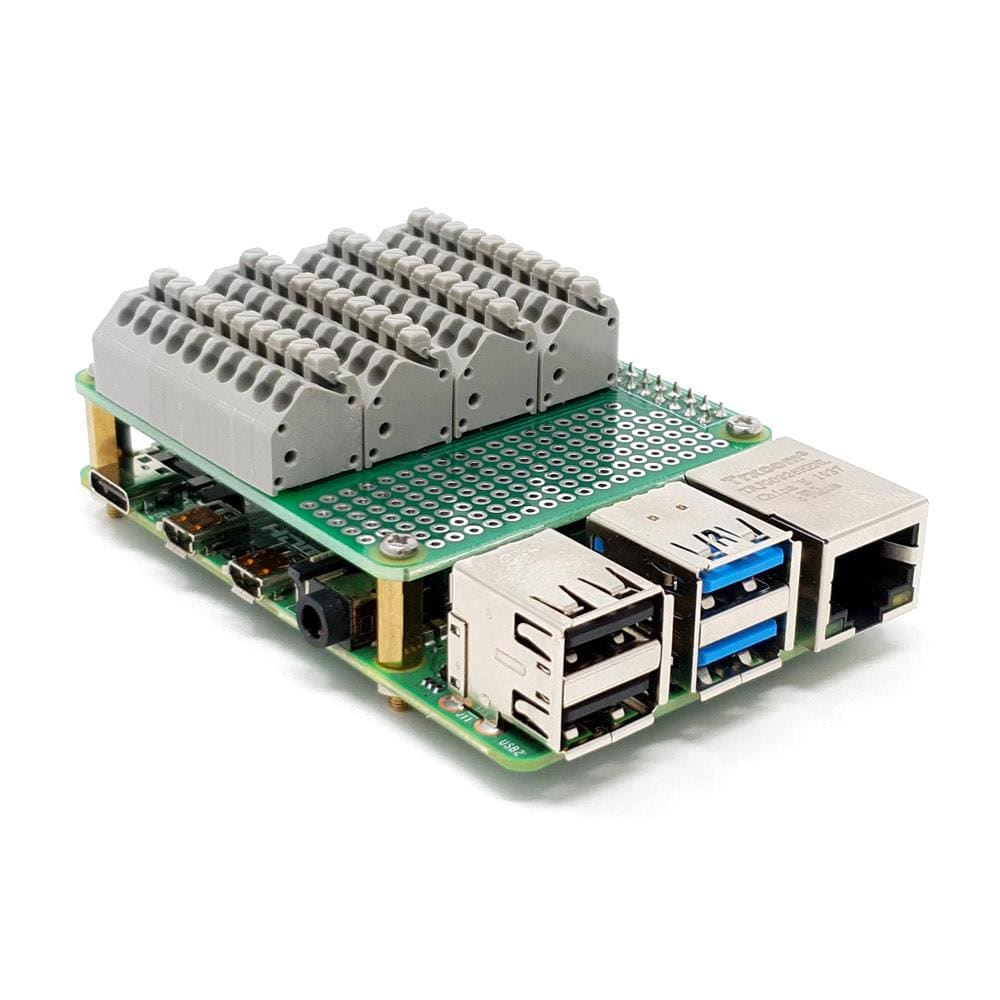

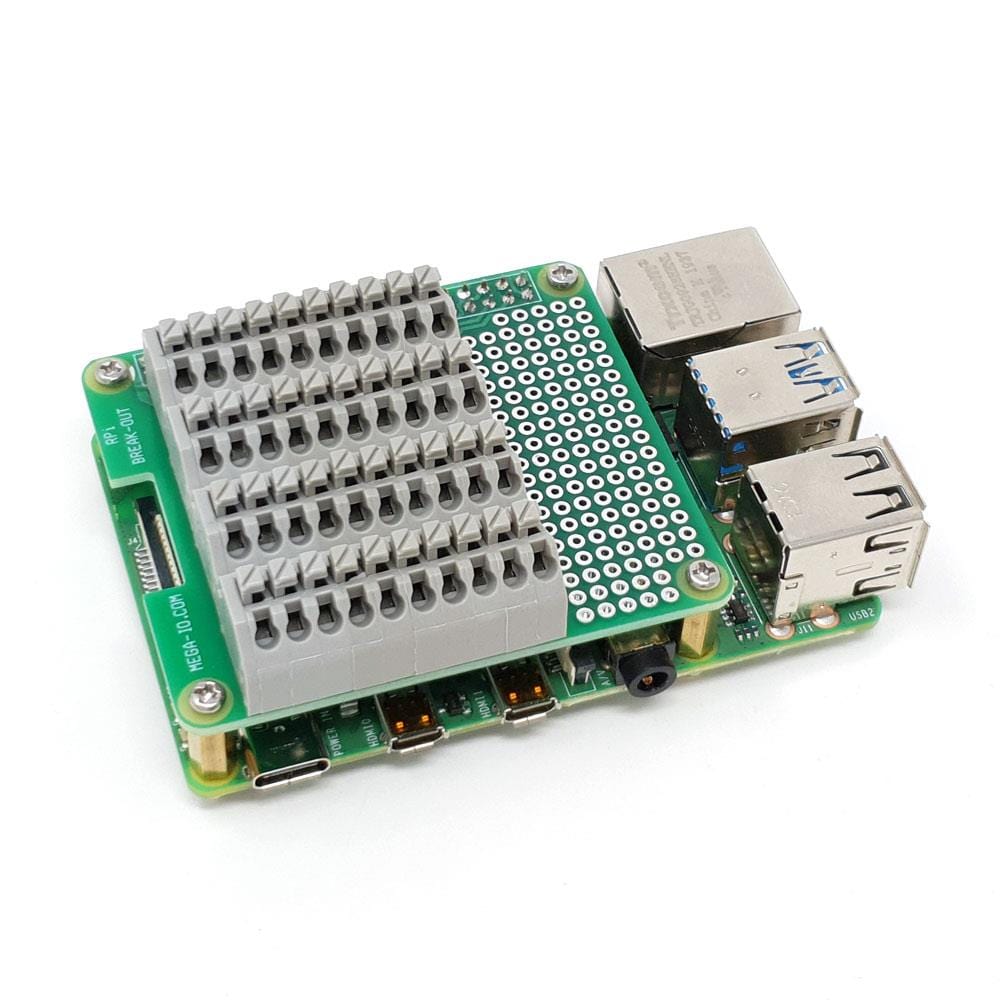

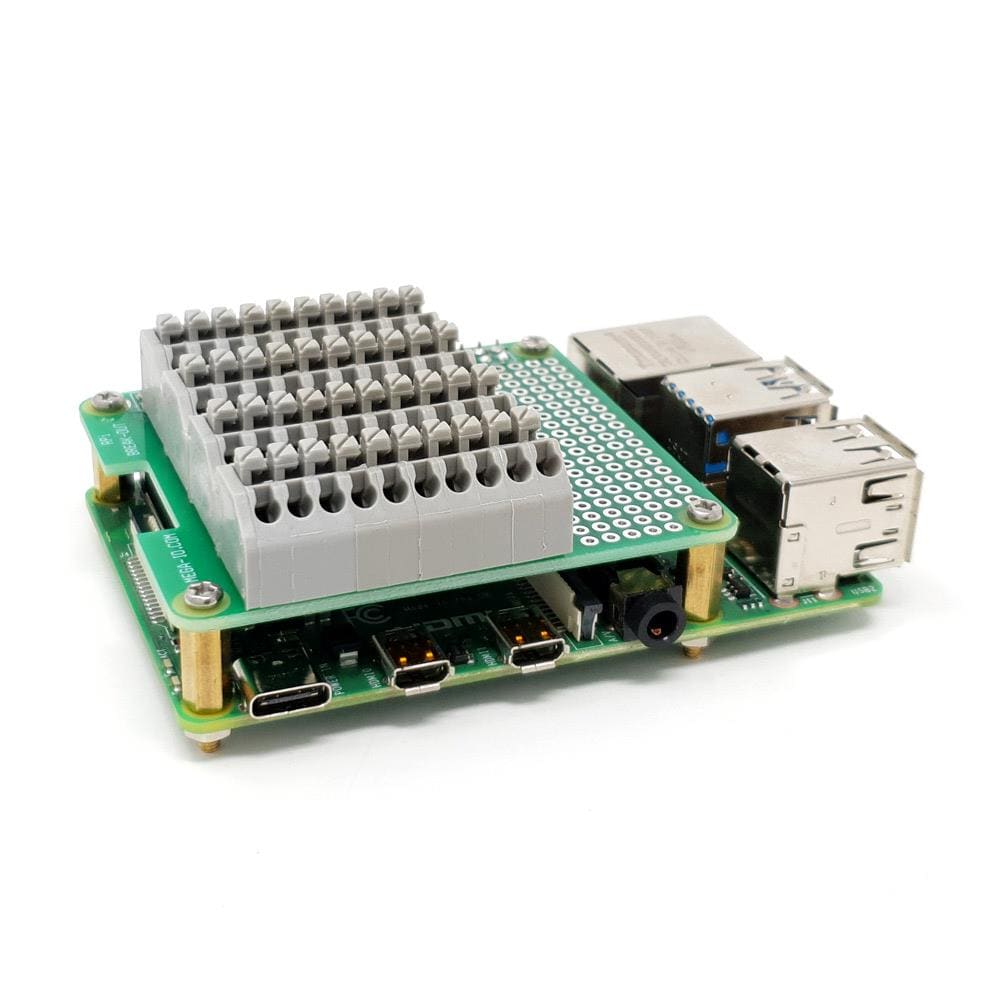

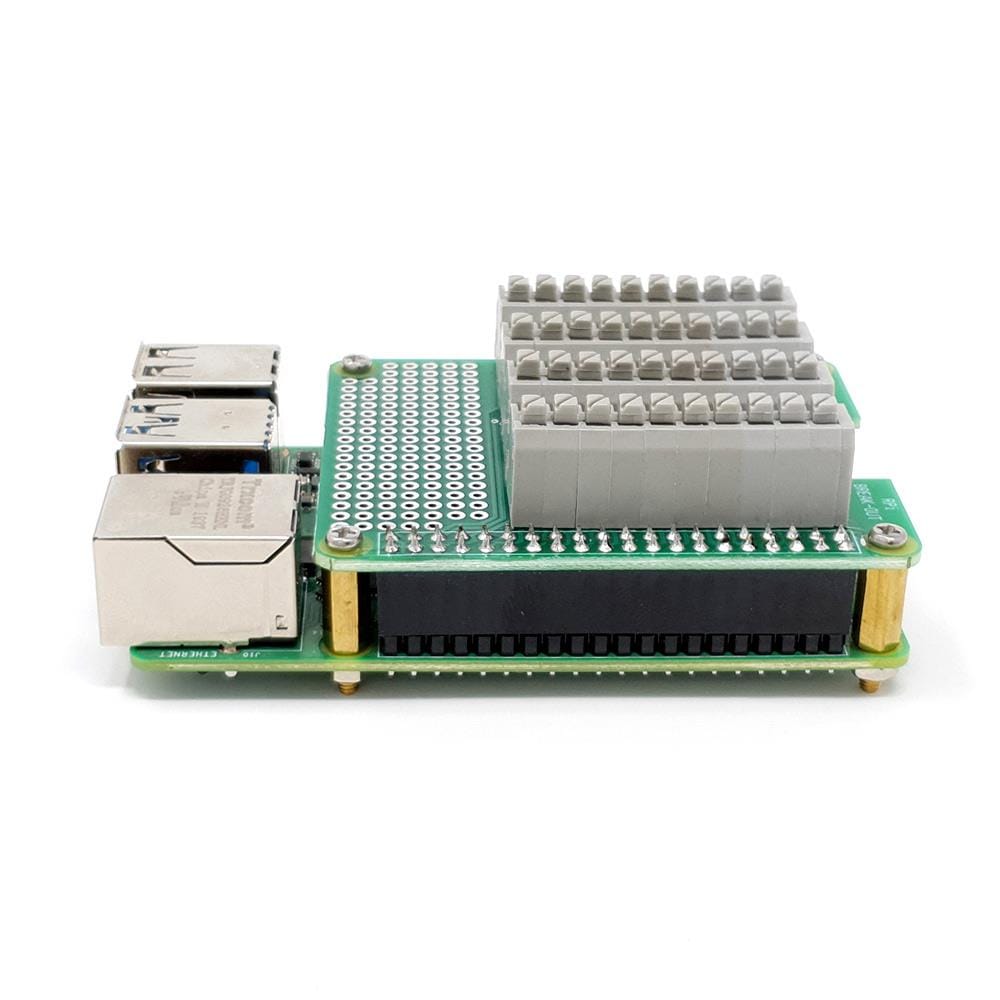

This card plugs into the Raspberry Pi 40-pin GPIO socket and brings all GPIO pins out to spring-loaded terminal blocks.

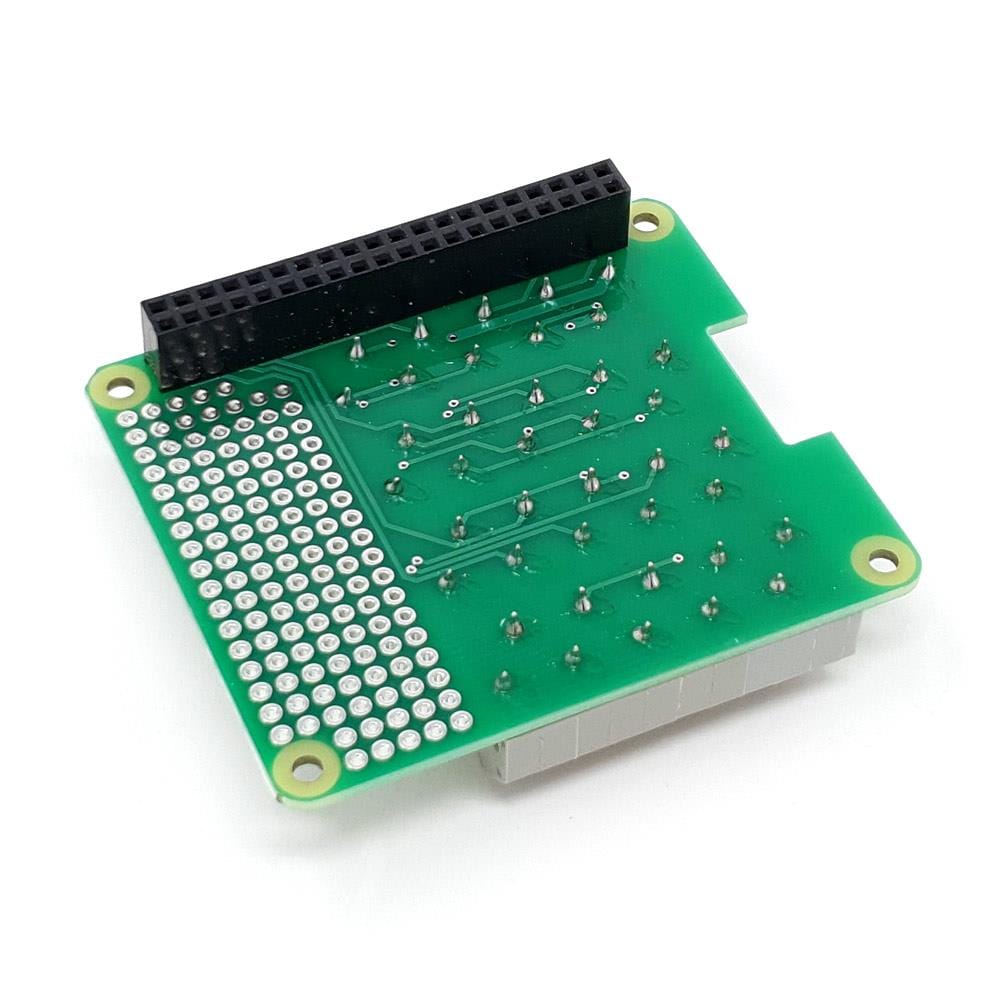

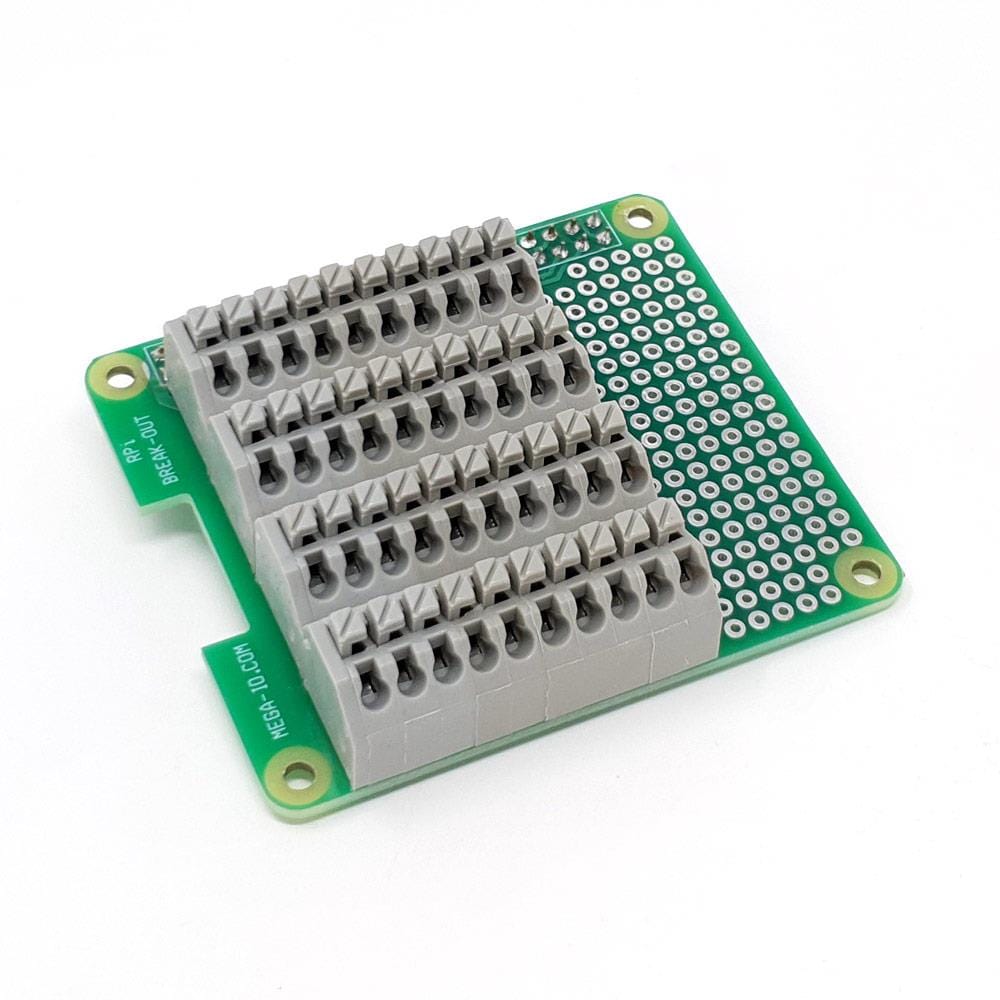

Spring-loaded terminal blocks allow for rapid, convenient and tool-free connection to GPIO pins. The prototype area can also be used to test your own hardware.

A connection map reference card is included in the package below can also be printed below.

Compatible with all 40-pin Raspberry Pis.

For any technical questions about this product please email support@sequentmicrosystems.com

Features & Specs

  • 3.5mm pitch PCB spring-loaded terminal block connectors
  • Stainless steel wire guard
  • Phosphor bronze, tin-plated pin header
  • Rated Voltage: 300V
  • Rated Current: 7A
  • Contact Resistance: 20 mOhms
  • Insulation Resistance: 5000 MOhms/DC 1000V
  • Withstanding Voltage: 2000 VAC minimum/1Min
  • Wire Range: 22-18 AWG
  • Strip Length: 8-9 mm

Terminal block connections

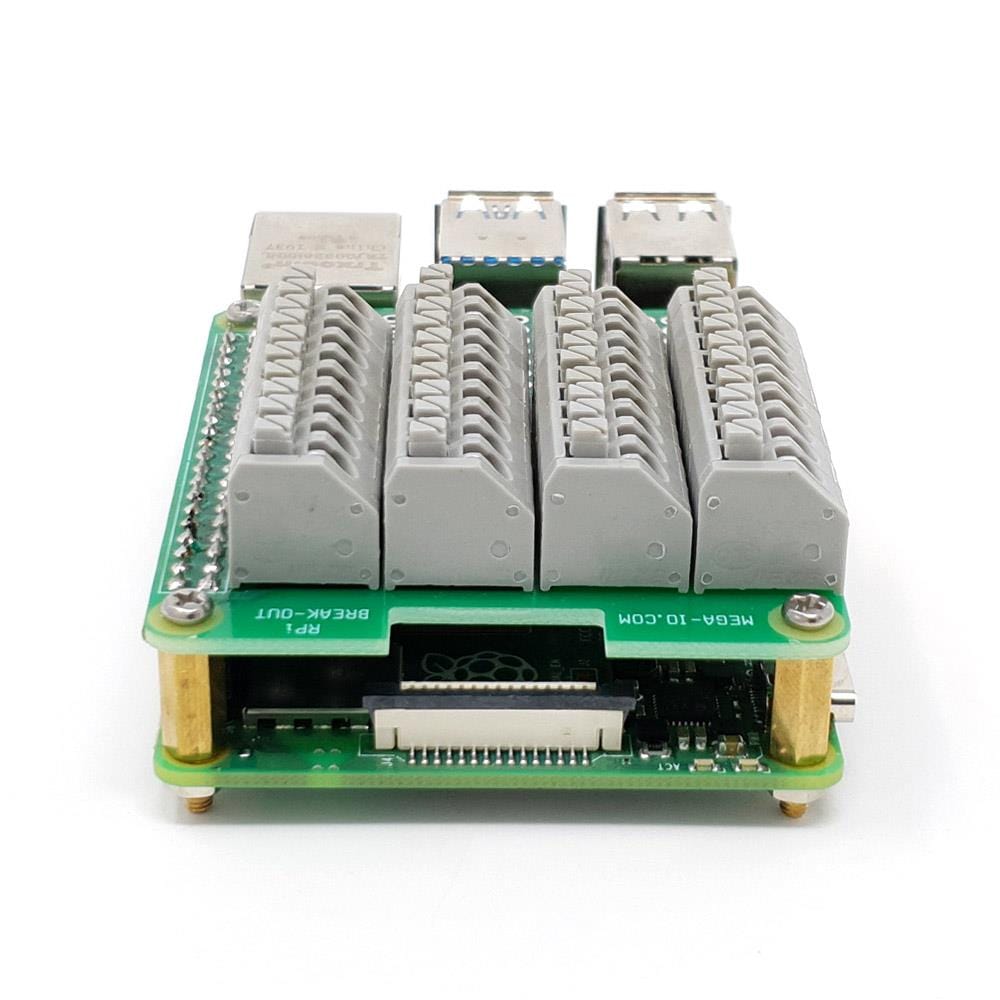

The four connectors of 10 pins each are wired as follows:

GPIO
