Pico Indicator

See the input/output level on your Raspberry Pi Pico's pins!

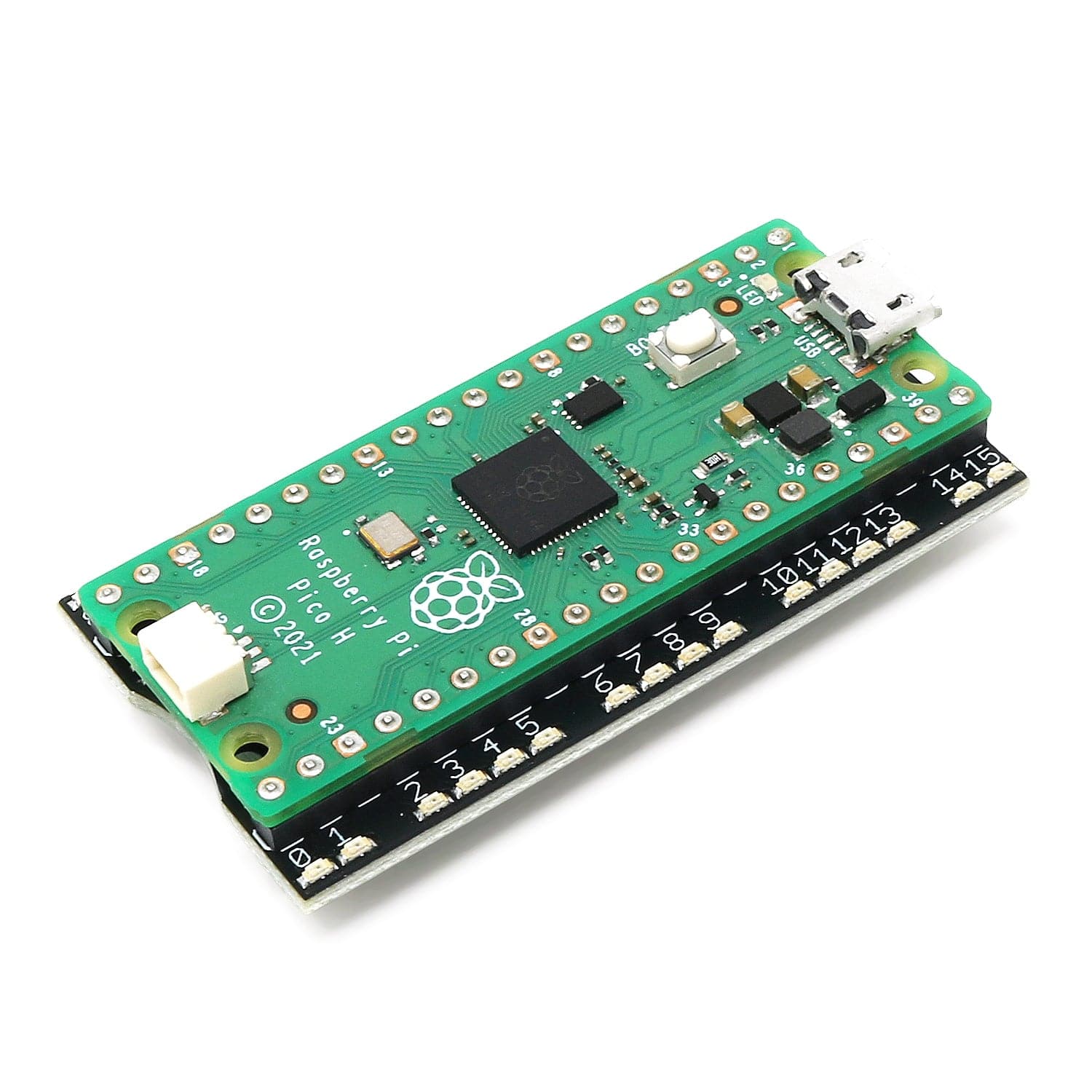

The Pico Indicator is a simple board with 29 LEDs for use with Raspberry Pi Pico, Pico W, Pico 2, Pico 2 W (and compatible boards) to indicate which pins are logic level high.

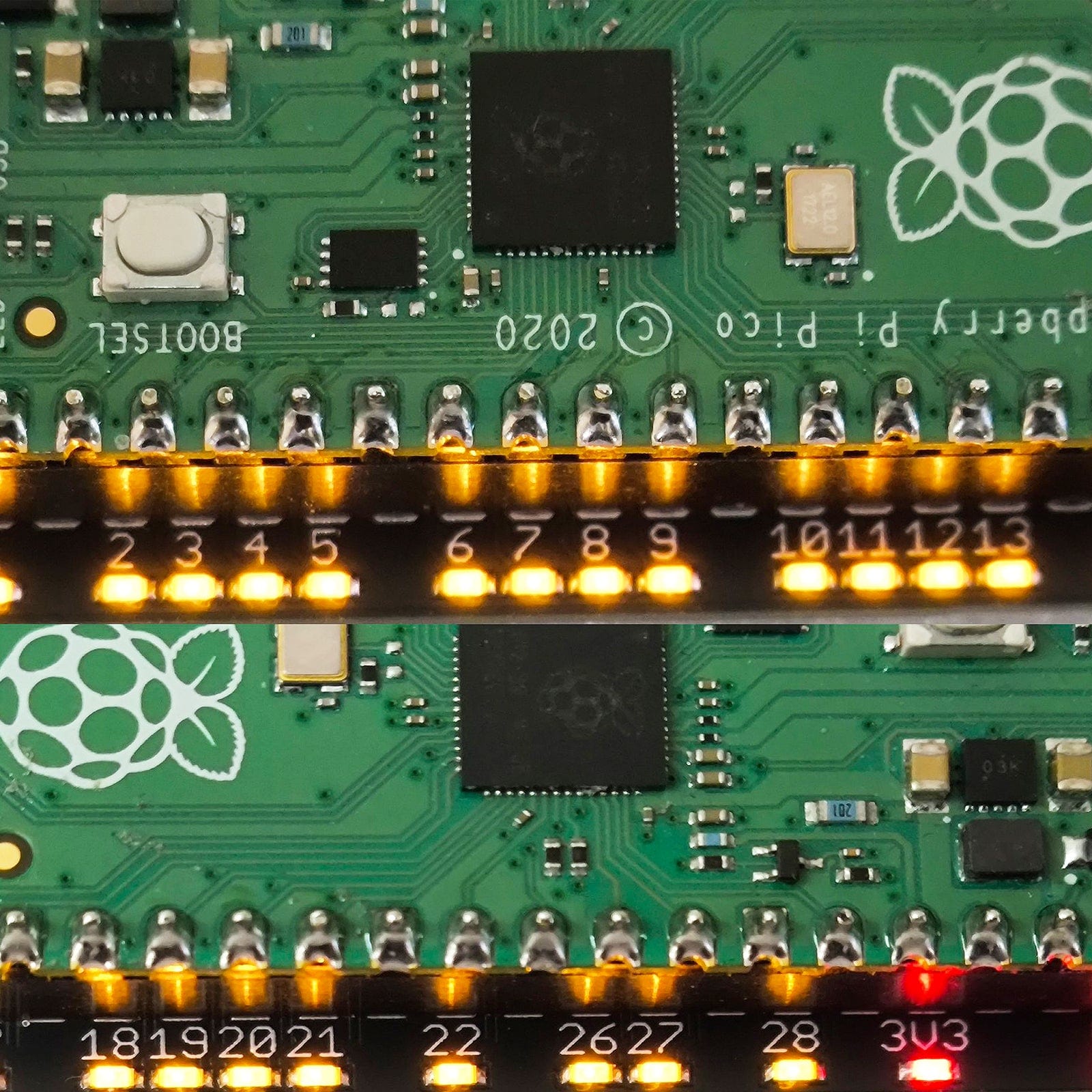

There are 3 red LEDs for power (VBUS, VSYS, 3V3) and 26 amber LEDs for GP0 to GP28 (excludes GP23, GP24, GP25, which aren't exposed on the Pico).

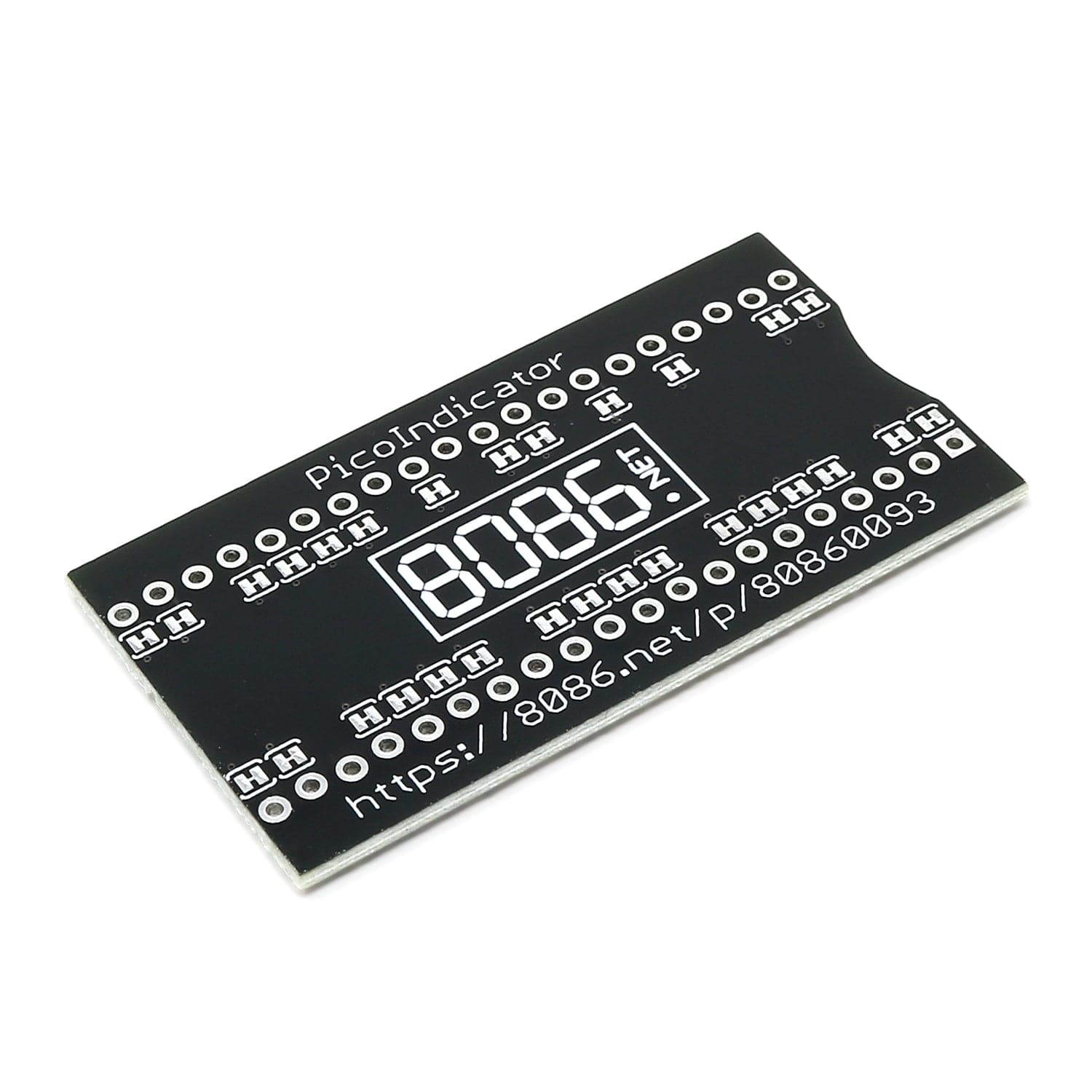

Each LED is aligned with the pin and the GP number (or power name) is printed alongside it on the board. The LED is then connected via a current-limiting resistor and a solder jumper before going to the pin. If an indicator interferes with the signal (when reading an ADC, for example), the solder jumper on the underside of the PCB can be cut, isolating it from the GPIO pin.

Raspberry Pi Pico not included.

Options

The Pico Indicator is currently available in two versions:

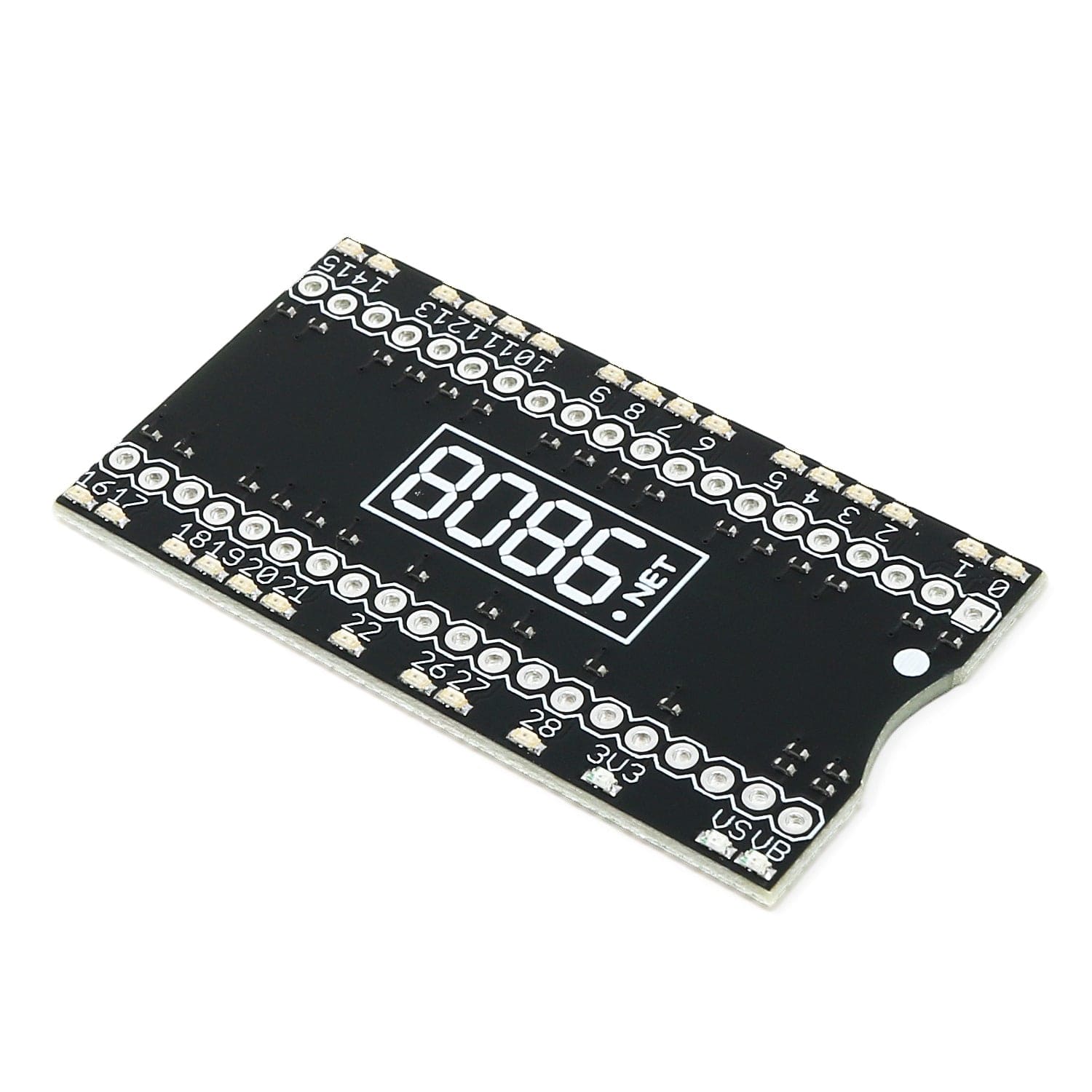

• No headers - SMT assembled but without connectors for the Pico (the pads are staggered, meaning you don't have to solder it on if you don't want to - the pins on your Pico should grip for the connection)

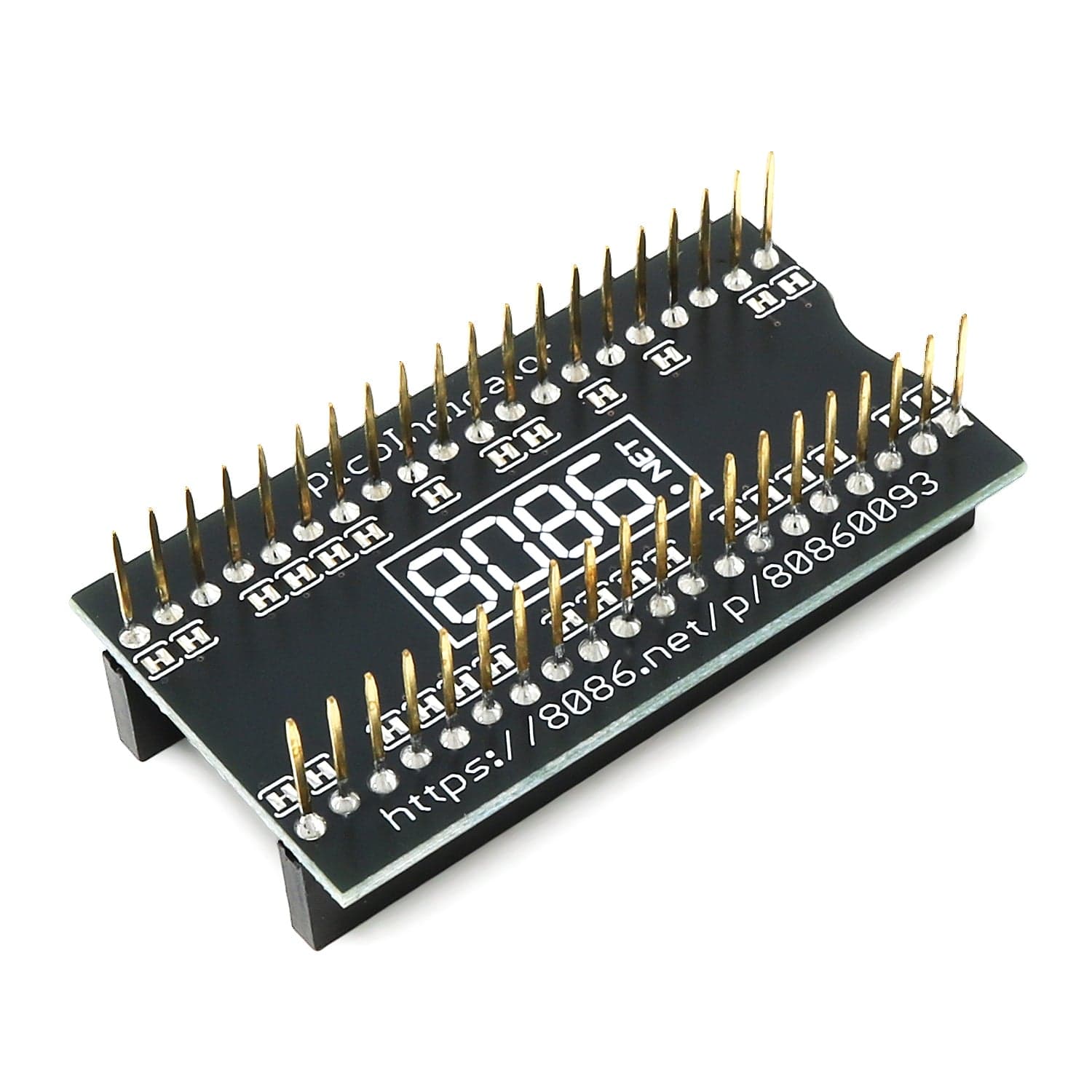

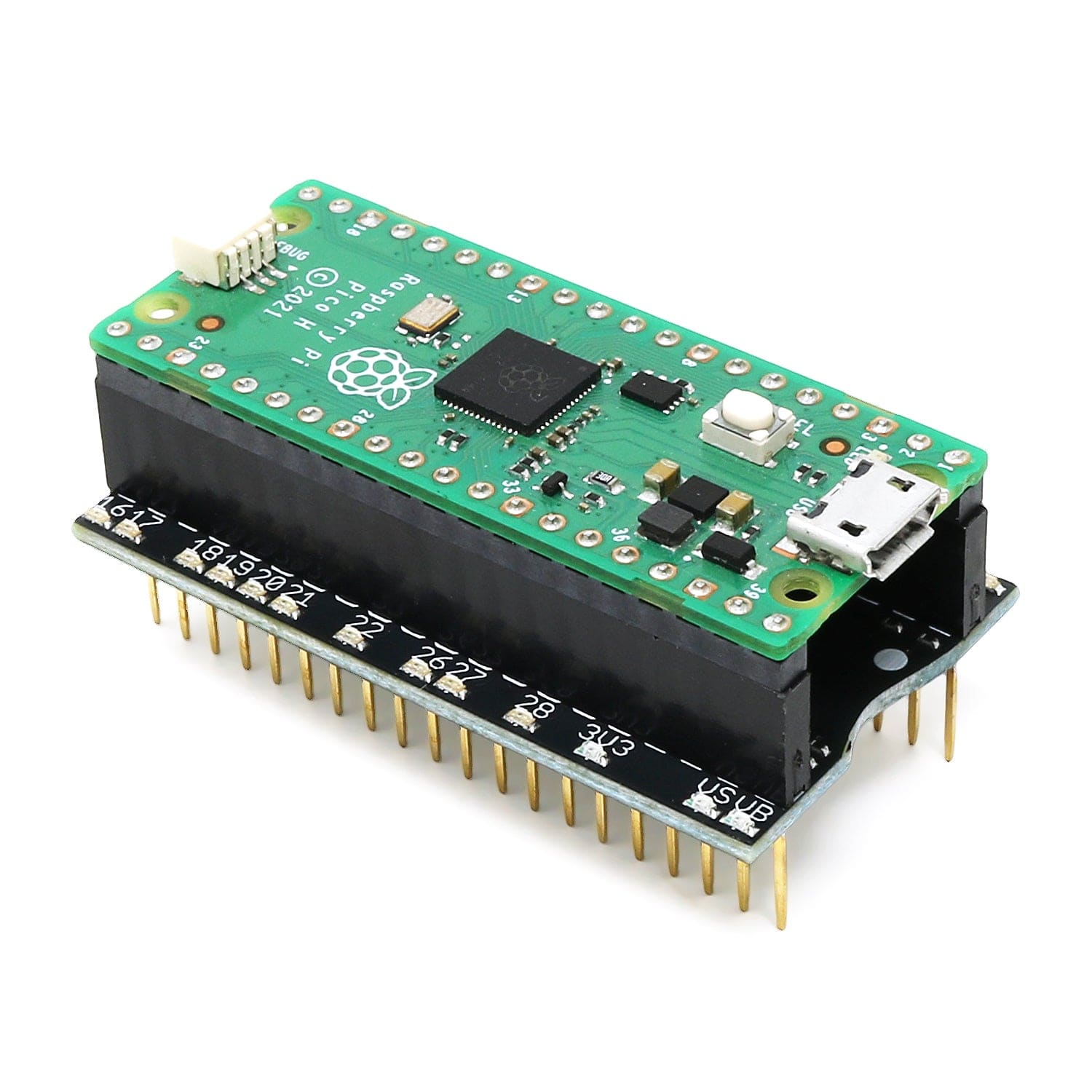

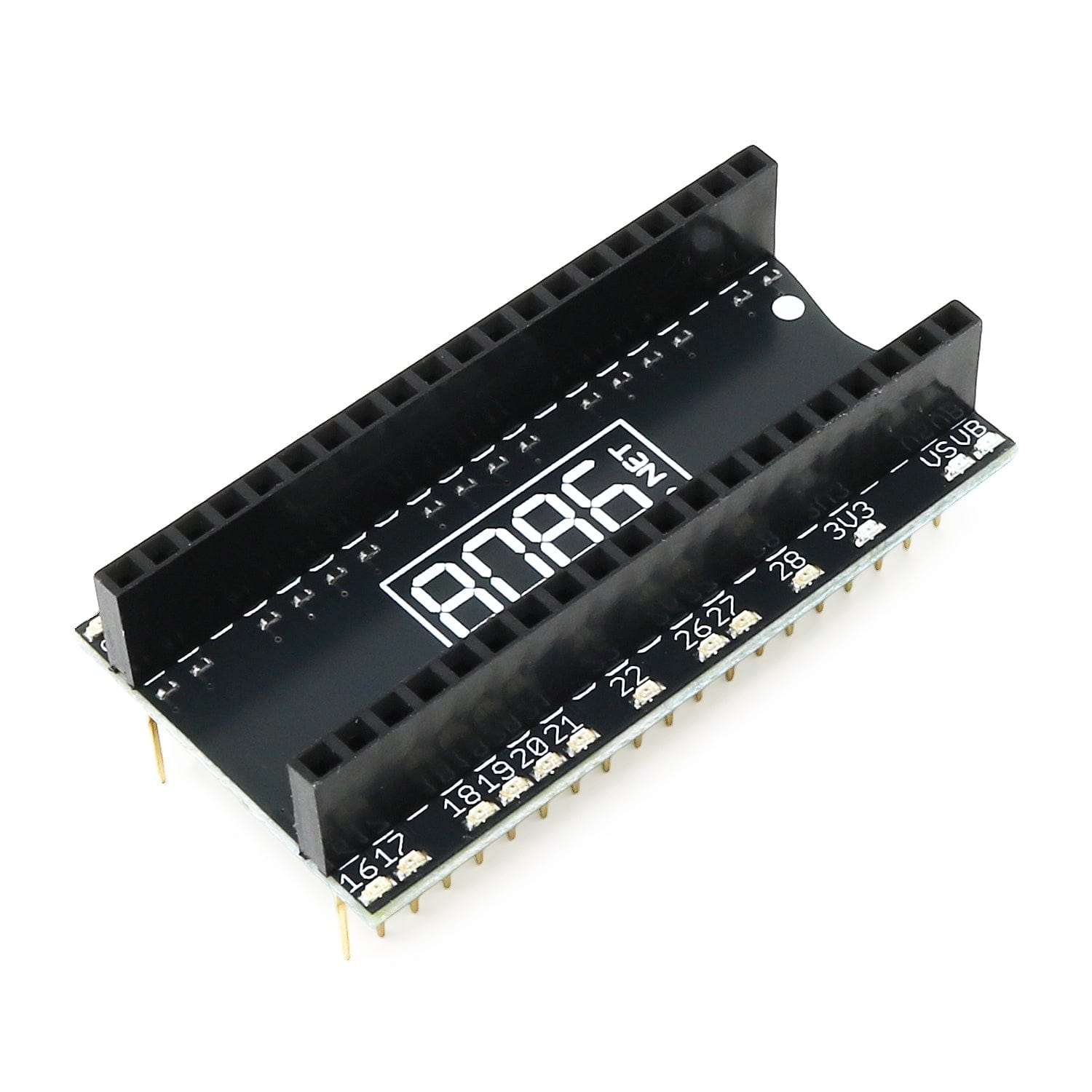

• Stacking Header - Assembled with two 20-pin stacking socket headers

Package Contents

• 1x Pico indicator
  • Select a version before adding to cart
