5" IPS HDMI Capacitive Touch Display for Raspberry Pi (1024x600)
Price:
Sale price
£52.80
Stock:
Quantity:
Awesome Extras
This 5" HDMI touch display has a screen with a 1024 x 600 resolution, a wide 178° viewing angle and 800cd/㎡ brightness, providing sharp, colourful visuals from most angles.
It works well with the Raspberry Pi, including mounting points to secure your board to the rear, but can also be used as a generic HDMI display for your PC.
It includes dual audio outputs, a 3.5mm headphone jack and a 4-pin speaker jack, adding flexibility for sound output. With its 5-point capacitive touch, durable toughened glass, and OSD brightness control, this display is strong, vibrant and versatile for various projects.
Features
- 5" IPS screen with a hardware resolution of 1024 x 600, and the software resolution can reach up to 1920 x 1080.
- 5-point capacitive touch, with toughened glass panel, hardness up to 6H.
- Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi.
- Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.
- Multi-language OSD menu (can be used for power control, adjusting brightness/contrast, etc.)
- HDMI audio output, onboard 3.5mm headphone jack, and 4-pin speaker jack.

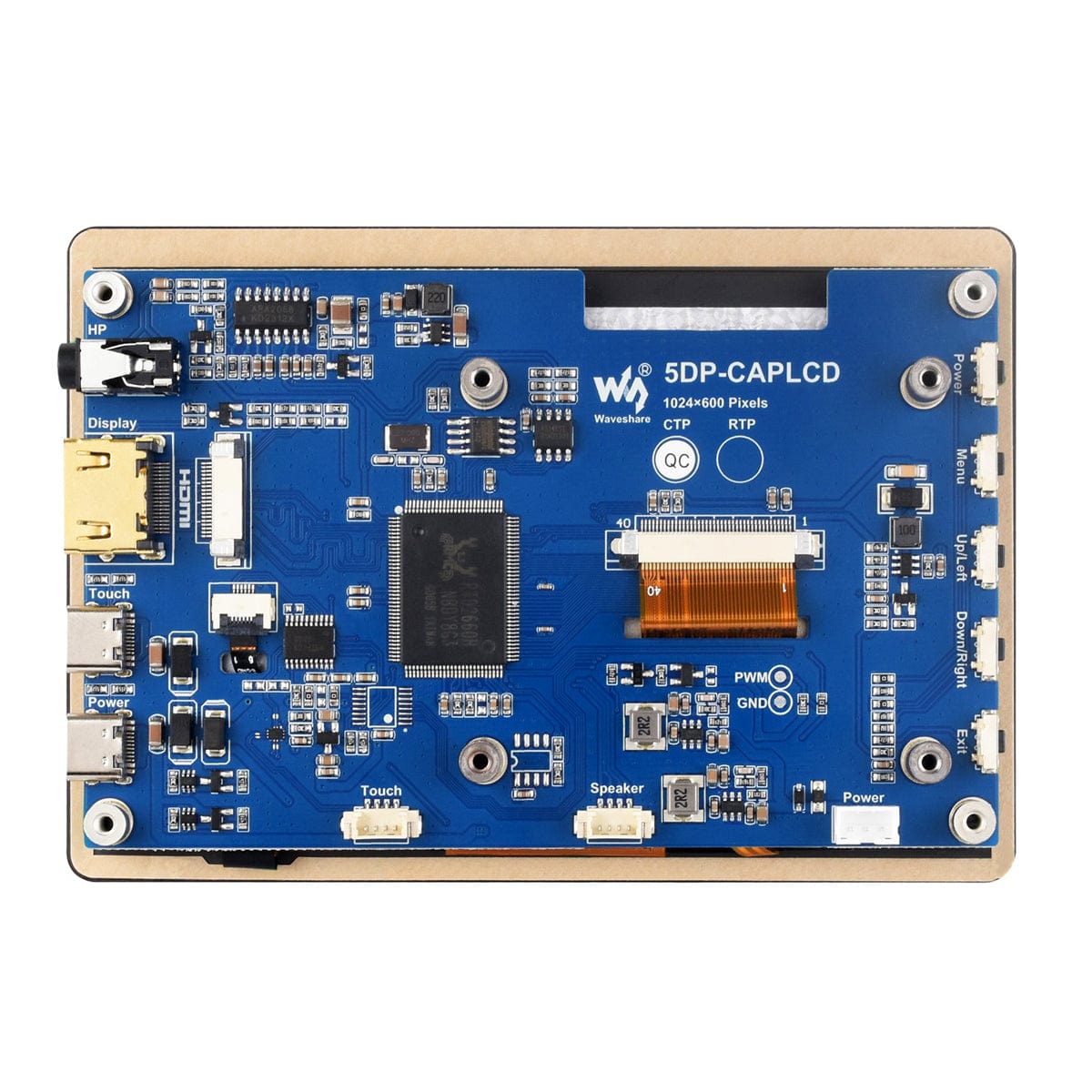

What's on Board
Specifications
| Size | 5 | " |
| Viewing Angle | 178 | Degree |
| Resolution | 1024 x 600 | Pixels |

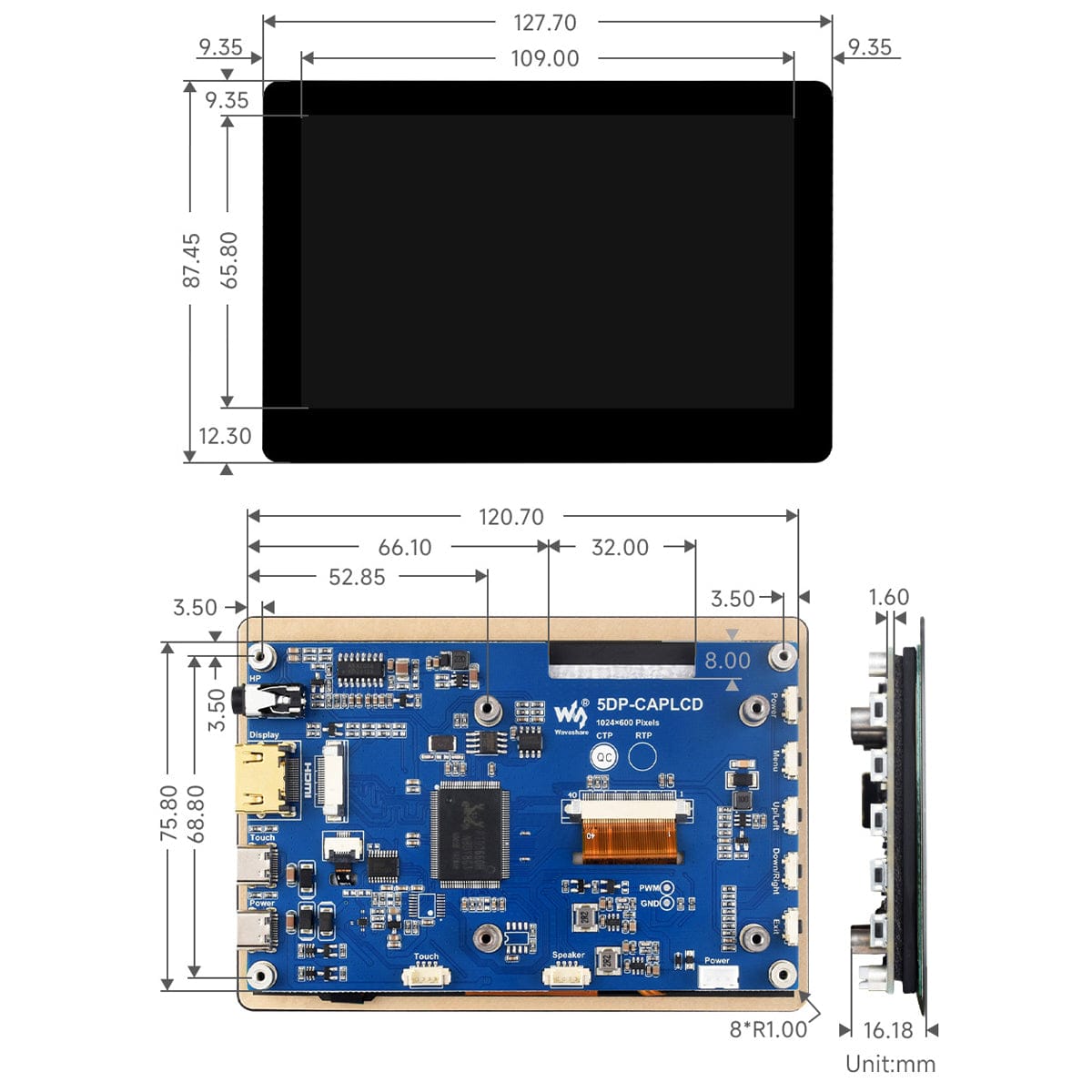

| Display Area | 108.03(H) x 64.8(V) | mm |
| Pixel Pitch | 0.1055(H) x 0.1080(V) | mm |
| Colour Gamut | 0.58 | NTSC |
| Maximum Brightness | 800 | cd/m² |
| Contrast | 33.33402778 | / |
| Backlight Adjustment | OSD Menu Brightness Adjustment | / |
| Refreshing Rate | 60 | Hz |
| Display Interface | Standard HDMI Interface | / |
| Touch Port | Type-C Interface | / |
| Power Port | Type-C Interface | / |
| Power Consumption | 4.2 | Watt |
Connection Examples - Raspberry Pi's
Resources
Package Contents
- 1x 5DP-CAPLCD-B
- 1x HDMI cable ~1m
- 1x HDMI to Micro HDMI adapter
- 1x USB Type A to Type C cable ~1m
- 1x Micro HDMI adapter
- 1x HDMI adapter
- 2x FFC 20PIN cable
- 1x 3-pin cable
- 1x Screws pack
- 1x PH1.25 4-pin to Type-A cable
