Quite possibly the finest large display we've ever offered here at The Pi Hut, this premium 10.5" AMOLED 2K 2560x1600 touchscreen display is the ultimate treat for your Raspberry Pi or desktop PC setup!

This display uses next-generation AMOLED technology to bring your true, deep blacks and an ultra-high contrast ratio offering 100% Adobe RGB and 100% DCI-P3 Colour Gamut. Unlike LCDs, AMOLED features active emissive technology - each pixel on the panel will light up by itself like a firefly, or turn off completely to create brighter highlights or true black shadows while retaining rich details. Better blacks, more delicate colours, more picture details and ultra-vivid video images!

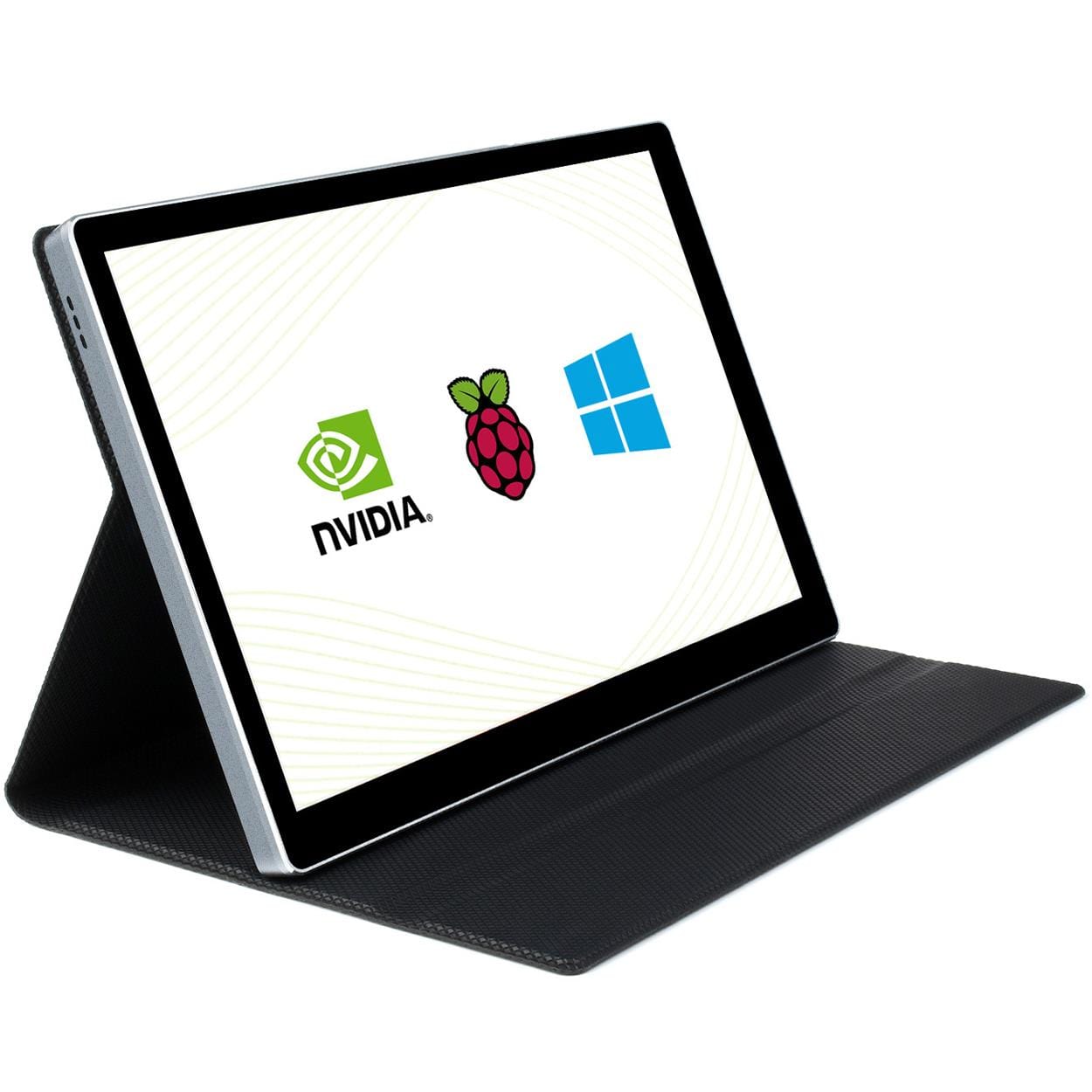

You can use this display with a range of devices as it uses a full-size HDMI port for video input - use it with a Raspberry Pi, Windows PC, Jetson Nano and more. A USB-C connection allows you to feed touch data from the display back to your input device - up to 10-point capacitive touch is available (OS/device dependent) via the fully laminated 6H toughened glass panel.

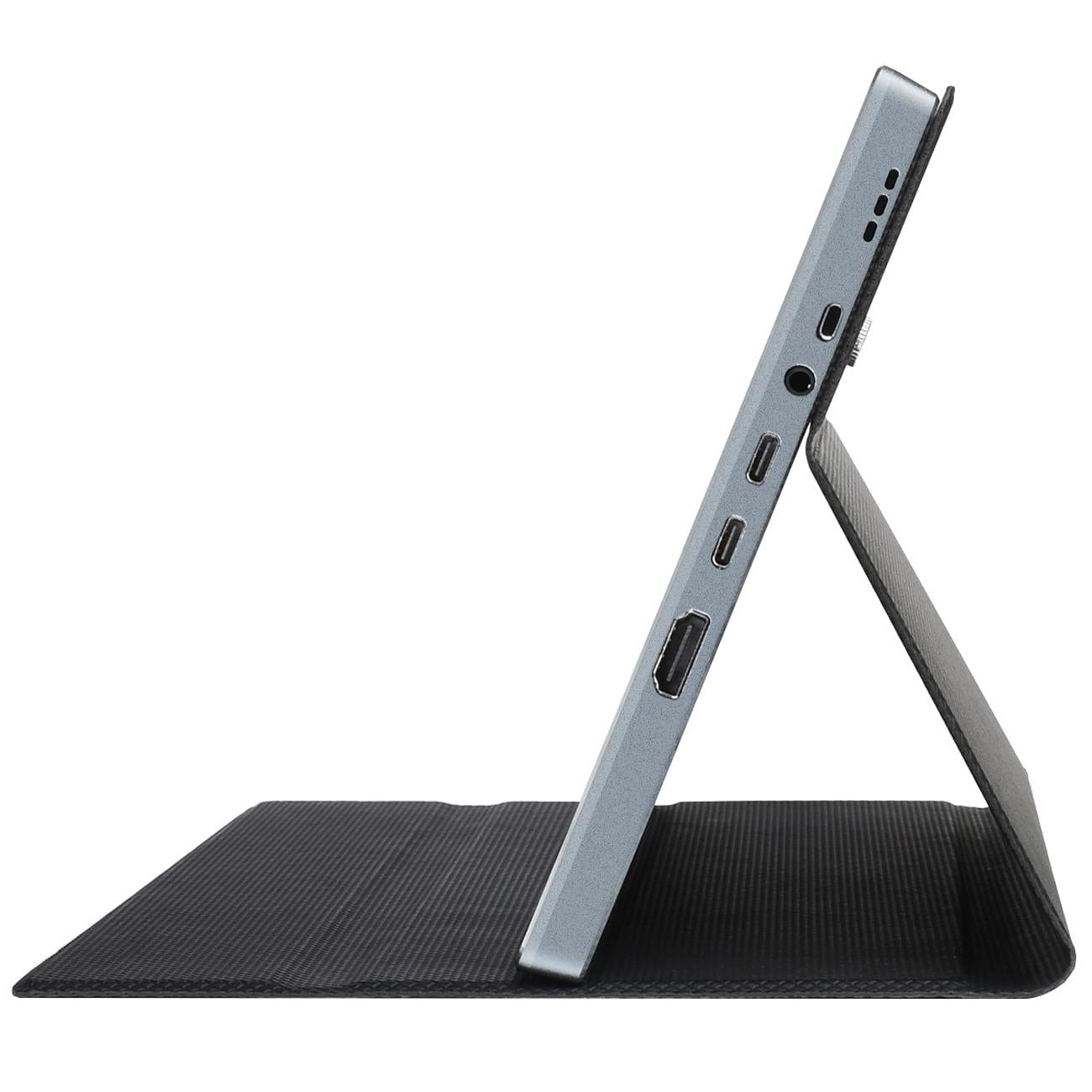

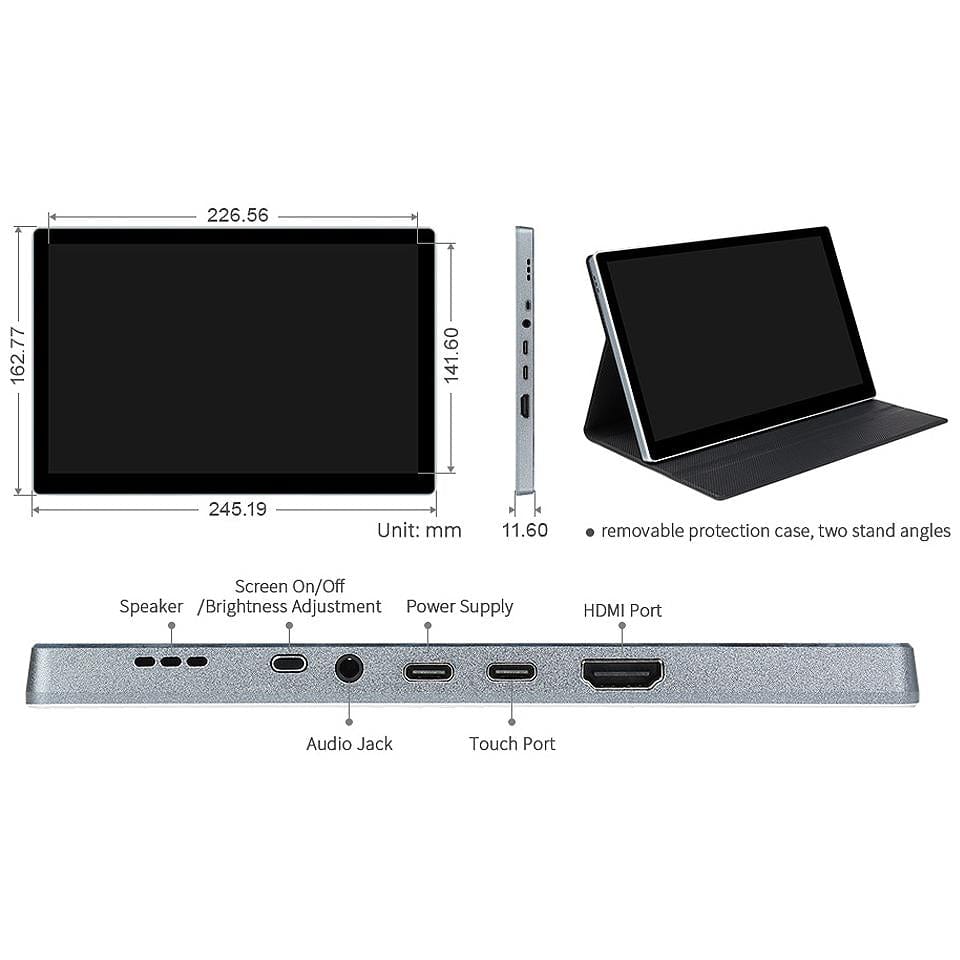

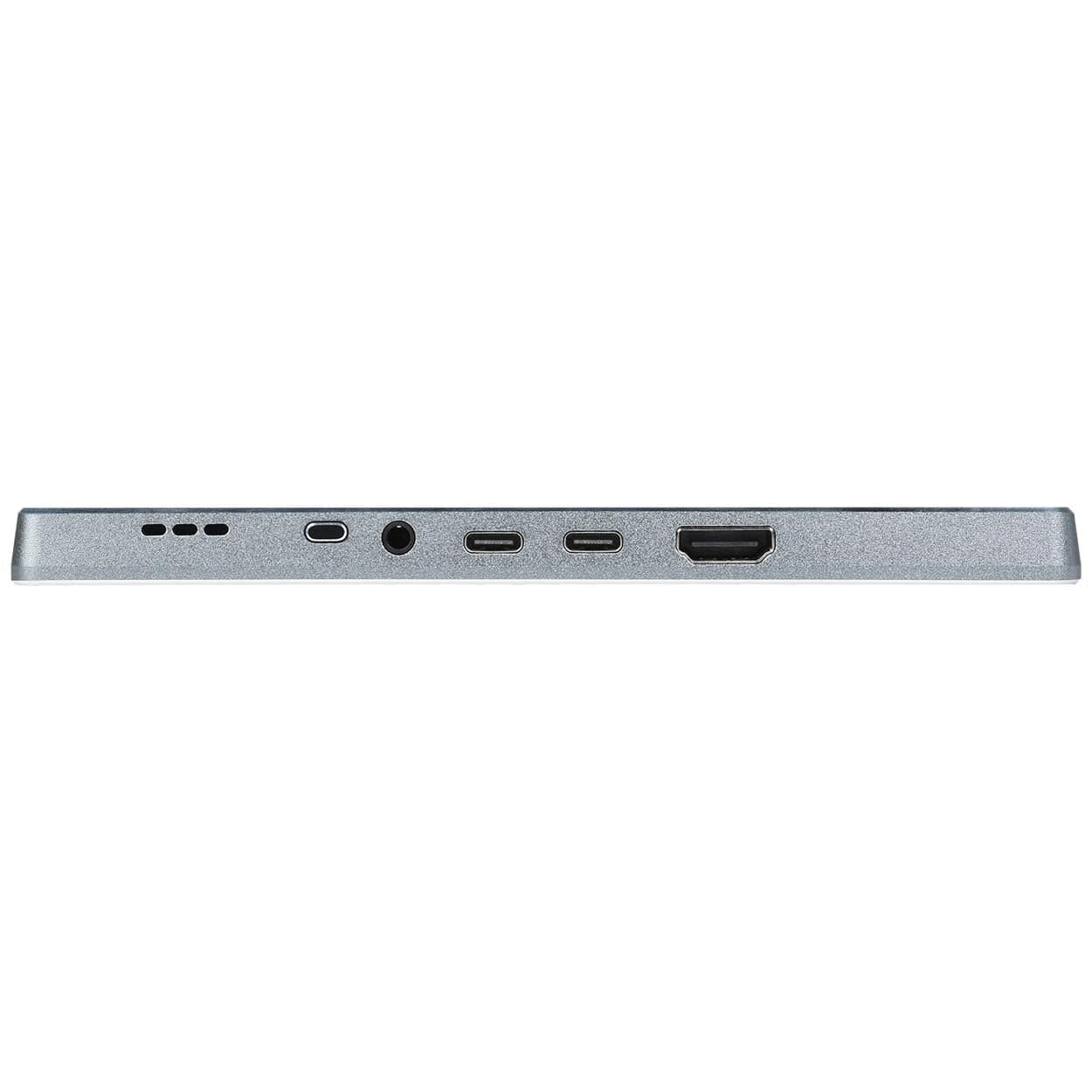

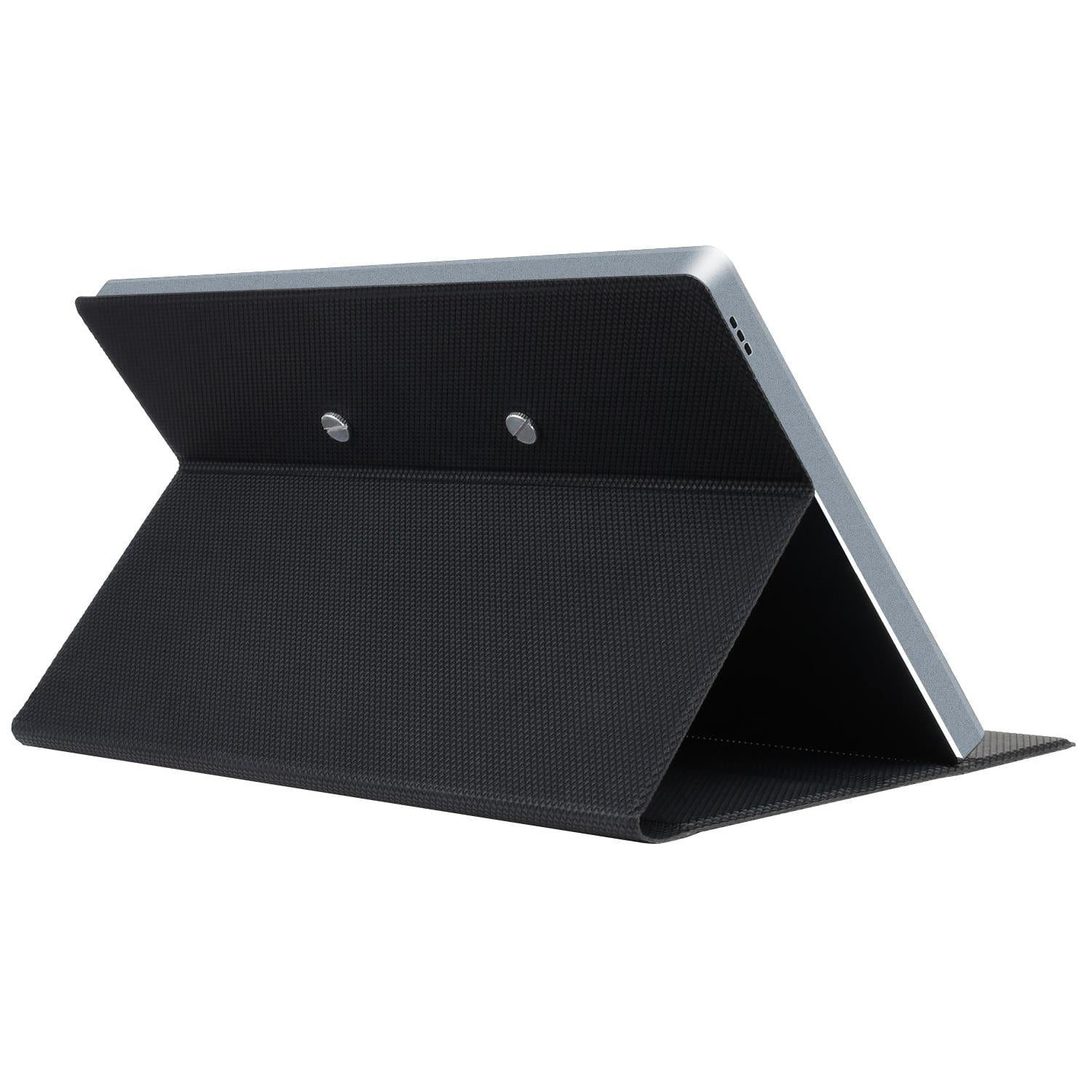

HiFi speakers are built-in which feed audio from your device's HDMI connection, or break this out via the 3.5mm jack to your own set of powered speakers. An on/off (single click) and brightness adjustment (long-click) button is located on the side of the stunning CNC alloy crafted frame. Wall mounting is possible using the rear 75x75 VESA mounting points, or simply use the included removable case/stand for angled desktop usage (two angles available).

The display comes complete with a UK 5V 3A power supply, flat HDMI cable, HDMI to Micro-HDMI cable and a USB-C cable. Check out the product Wiki for setup and configuration guidance.

Feature Summary

  • 10.5" AMOLED Display
  • 2560 x 1600 2K resolution
  • HDMI input
  • Up to 10-points touch (depending on the operating system)
  • Up to 6H hardness toughened glass panel
  • Fully laminated screen
  • Supports Raspberry Pi OS / Ubuntu / Kali (driver free)
  • Supports Windows 11/10/8.1/8/7, ten-point touch (driver free)
  • Embedded Hi-Fi Speaker
  • 3.5mm audio jack
  • USB-C port for touch
  • Brightness/power control button
  • CNC alloy enclosure

Feature Details

10.5″ 2K Touch AMOLED

Wide Viewing Angles

Rendering the Real Sight

100% Adobe RGB, 100% DCI-P3 colour gamut, rendering more colours offering a more immersive movie experience.

AMOLED Active Light-Emitting Screen

Next-generation display technology, 4.09m active light-emitting pixels. Compared to traditional LCD displays, AMOLED features precise light-control capability, representing more delicate colours, more picture details and a more vivid video image.

High Contrast, No Detail Lost

Striking one-hundred-thousand grade contrast radio.

Virtually 0nit True Black

Brighter highlights, darker shadows. Traditional LCDs require backlight and colour film to work, i.e. they represent colours by controlling the white light from the backlight layer to pass through the colour film, frequently causing light-leaking.

Touch Control

Capacitive touch. Up to 10-point touch. Toughened glass panel. Fully laminated.

Audio Feature

Dual track. Ferrite Hi-Fi Speakers.

Connection Example - Raspberry Pi

Package Contents

  • 1x 10.5" AMOLED display
  • 1x HDMI flat cable ~1m
  • 1x HDMI to micro HDMI cable ~1m
  • 1x USB-A to USB-C cable ~1m
  • 1x 5V 3A UK USB-C power adapter

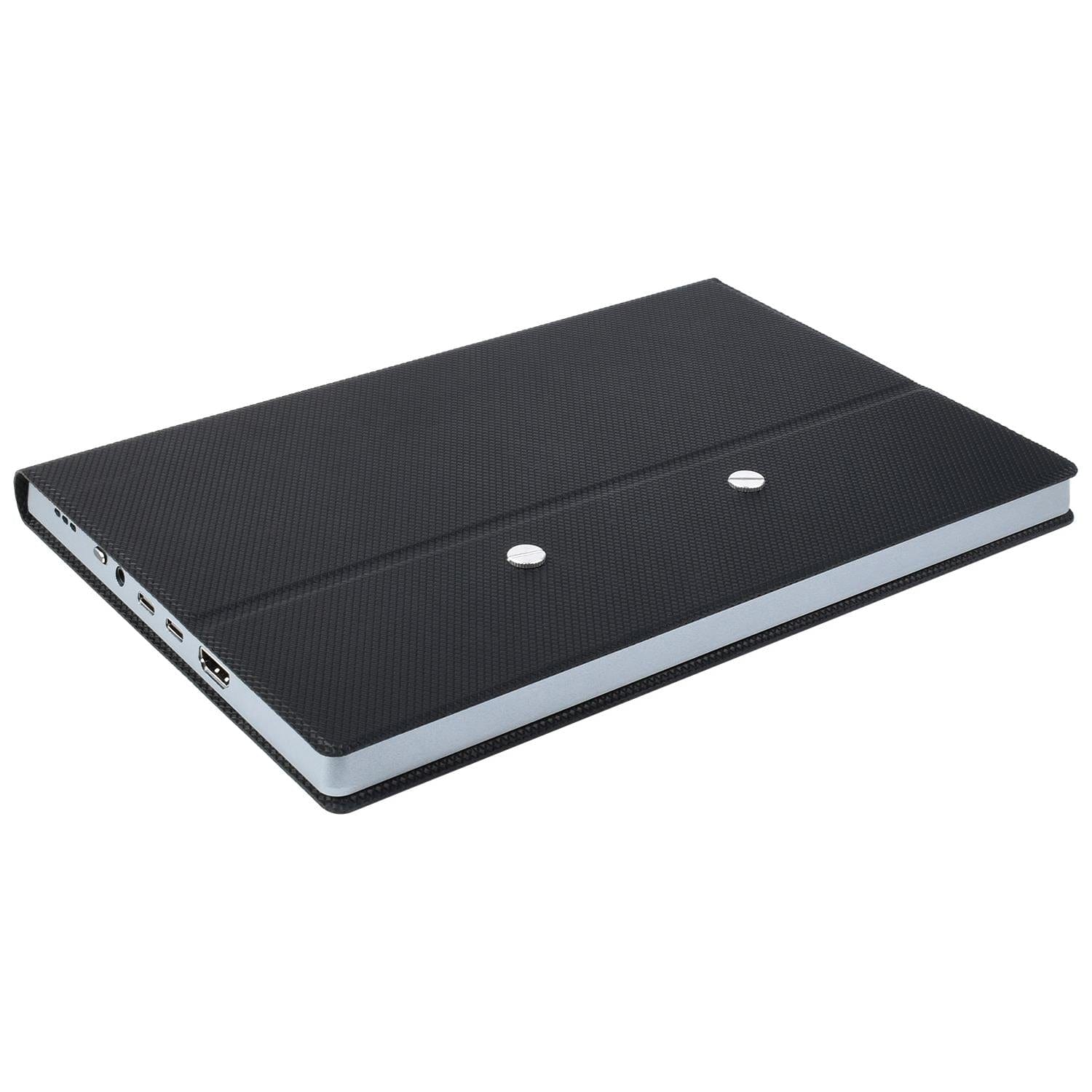

  • 1x Protection case

Raspberry Pi not included
