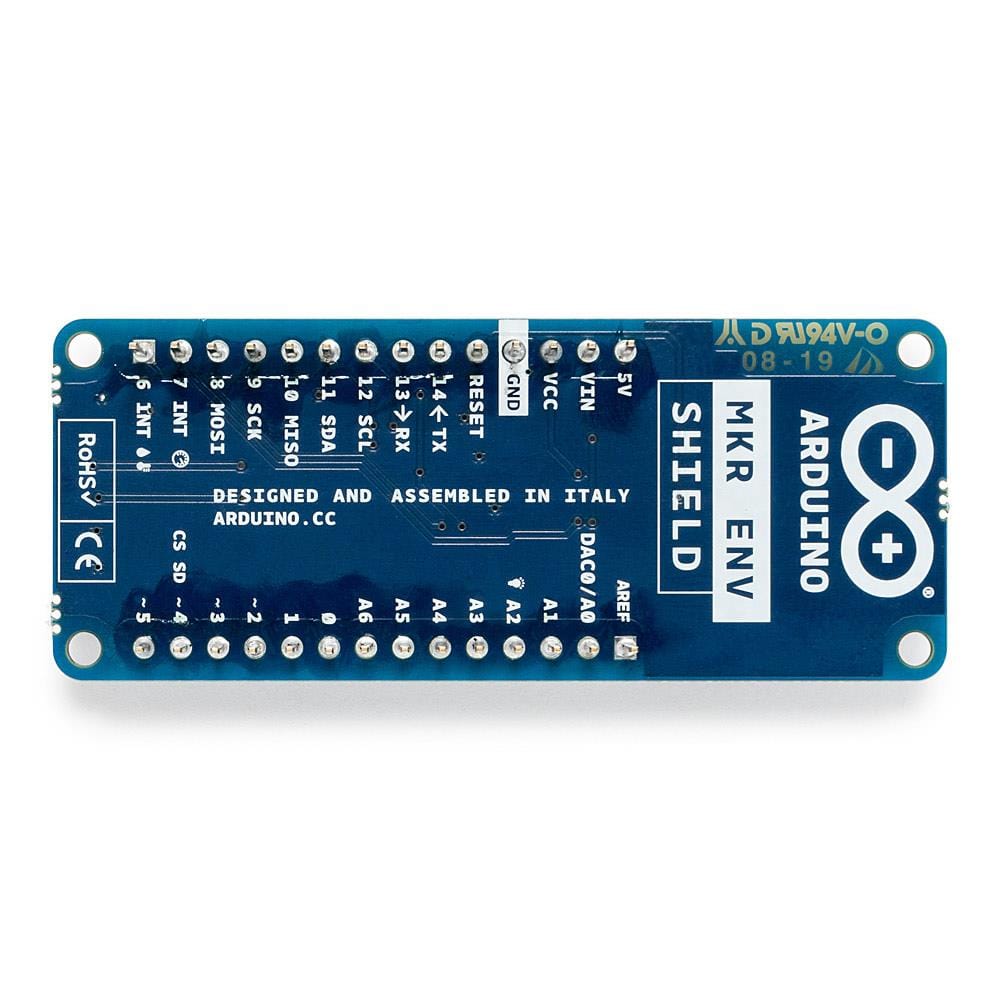

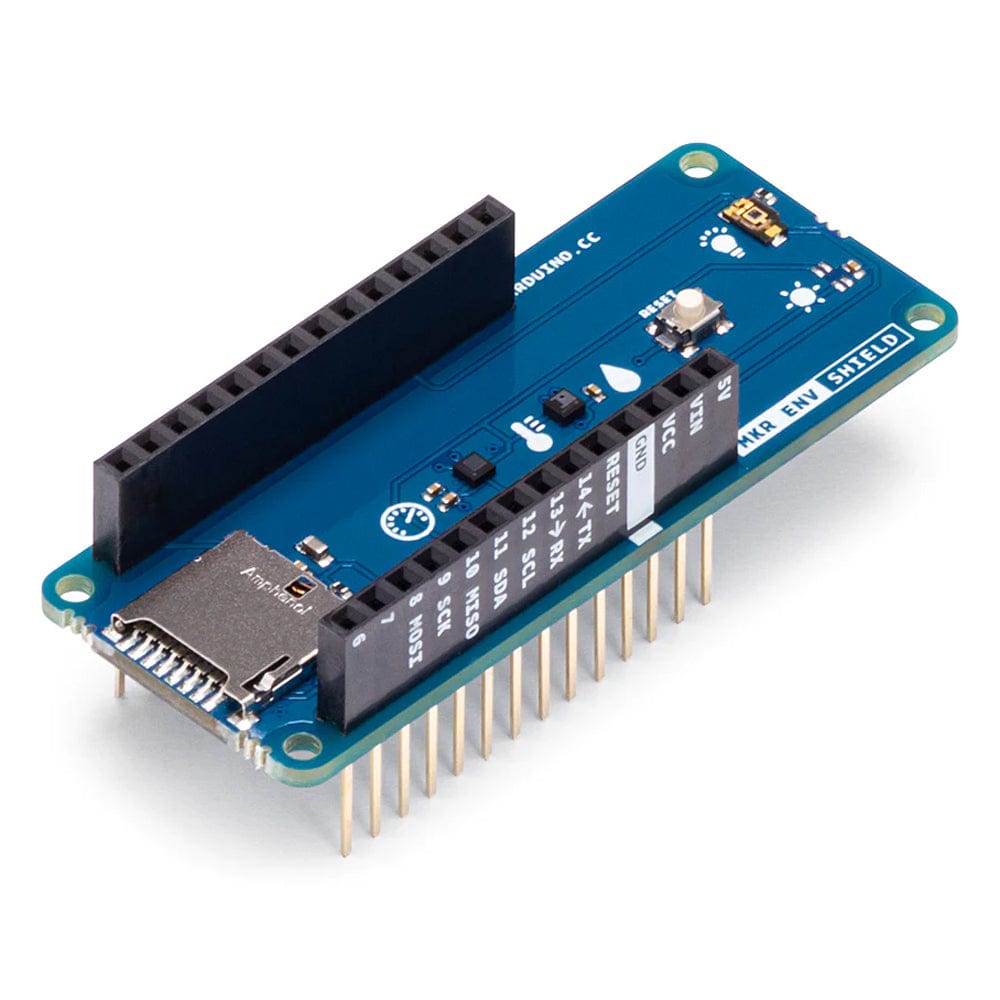

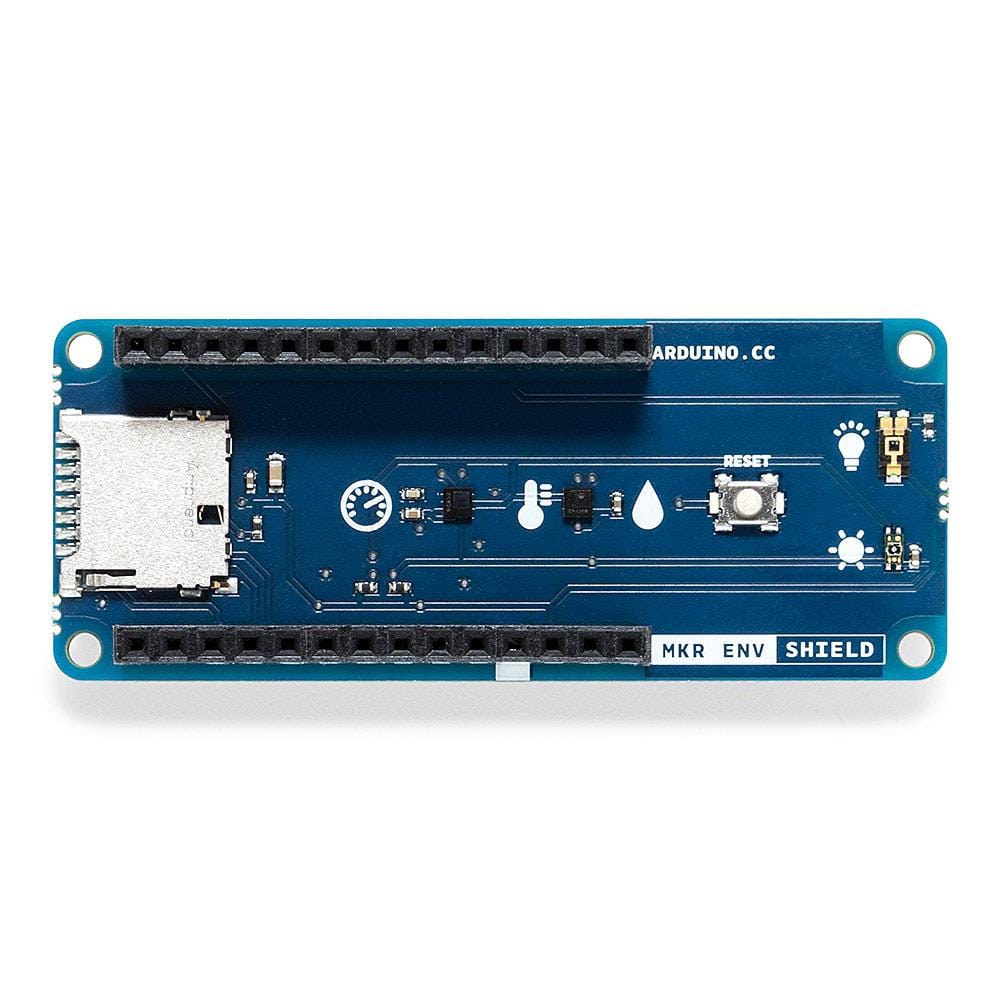

Arduino MKR ENV Shield Rev2

ArduinoSKU: ASX00029
Price:
Sale price £38
incl. VAT
excl. VAT
Stock:
Only 18 units left
Quantity:

Awesome Extras

ArduinoArduino MKR Zero
Sale price £30 incl. VAT excl. VAT
SanDiskSanDisk MicroSD Card (Class 10 A1)
Sale priceFrom £6 incl. VAT excl. VAT
The Pi HutUSB-A to Micro-USB Cable
Sale priceFrom £1.50 incl. VAT excl. VAT

The MKR ENV Shield Rev2 allows an Arduino MKR board to acquire environmental data collected by an array of sensors.

These sensors are of the latest generation and measure:

  • Atmospheric pressure
  • Temperature and humidity
  • Light intensity (in LUX)

To help you build projects and store the data collected locally, this shield has a slot for a microSD card (not provided).

There is a ready to use library with examples and methods to read values from the different sensors, that provides an easy and smooth integration path.

Sensors used

  • ST LPS22HB : atmospheric pressure
  • ST HTS221 : temperature and humidity
  • VISHAY TEMT6000 : Lux of the ambient

Resources

Specifications

ICs

LPS22HB
TEMT6000

Input Voltage 3.3V
Operating Voltage 3.3V
Ranges

Pressure: 260 to 1260 hPa
rH sensitivity: 0.004% rH/LSB
Humidity accuracy: ± 3.5% rH, 20 to +80% rH
UVA, UVB and UVBI measurment
0 to 650 Lux

Communication I2C/Analog
Length 61 mm
Width 25 mm
Weight 32 gr.
