In most projects, relays are the first choice to drive large current devices. They require a certain amount of current to drive the internal coil to pick up contact. But for some microcontrollers, like the Raspberry Pi and other microcontrollers with a limited current GPIO, it can be hard to drive one or more relays simultaneously.

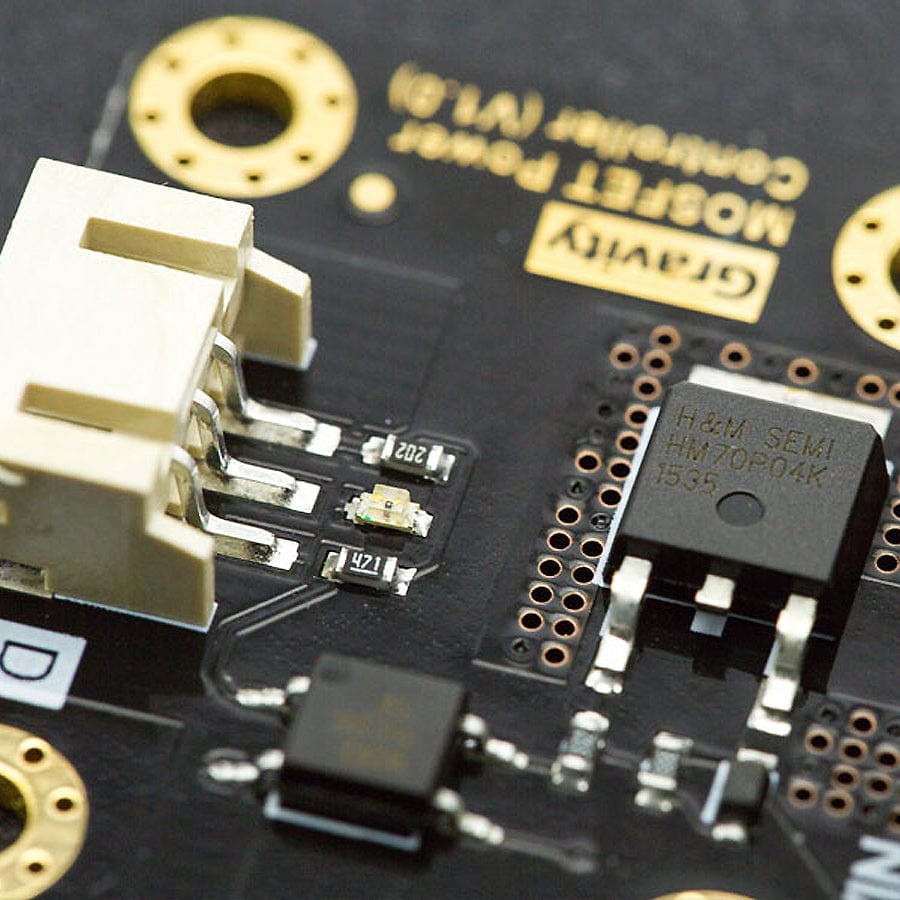

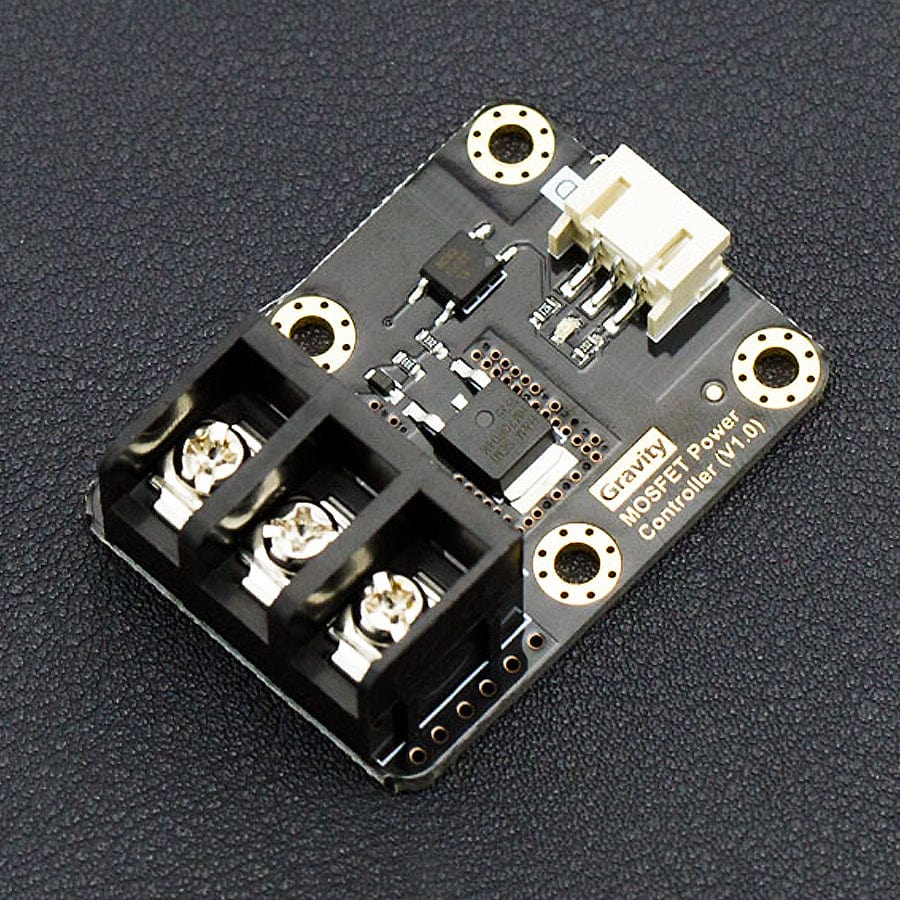

The MOSFET power controller is a module which can drive a large current device with limited current GPIO. It works as a MOSFET relay or MOSFET driver. When you give it a digital high-level signal (3.3~10V), the MOSFET turns on, and vice versa.
Compared to a relay module, a MOSFET power controller is compatible with Arduino, Raspberry Pi and other microcontrollers, and supports 3.3~10V logic power control. The VIN port supports 5~36V; 0~20A power input, if the current is over 10A we recommend an external heat sink. The MOSFET module also supports a quick ON-OFF switch, the switching frequency arrives at 1KHz. That's a good point for robot control!
The MOSFET power controller comes with a standard PH2.0 3-pin Gravity interface. It makes the module compatible with the Arduino IO expansion shield.
Note: works with direct current (DC) only!
Connection Example - Arduino
- VIN Operating Voltage: 5V-36V DC
- VIN Operating Current: 0A-20A (external heat sink required when the current is over 10A)
- Logic Operating Voltage: 3.3~10V DC
- Logic Control Signal: 3.3~10V DC
- Switching Frequency: 0-1KHz
- Switching Character: T(on)=20us/T(off)=50us
- Operating Temperature: -55℃-155℃
- Interface Type: PH2.0 3-pin

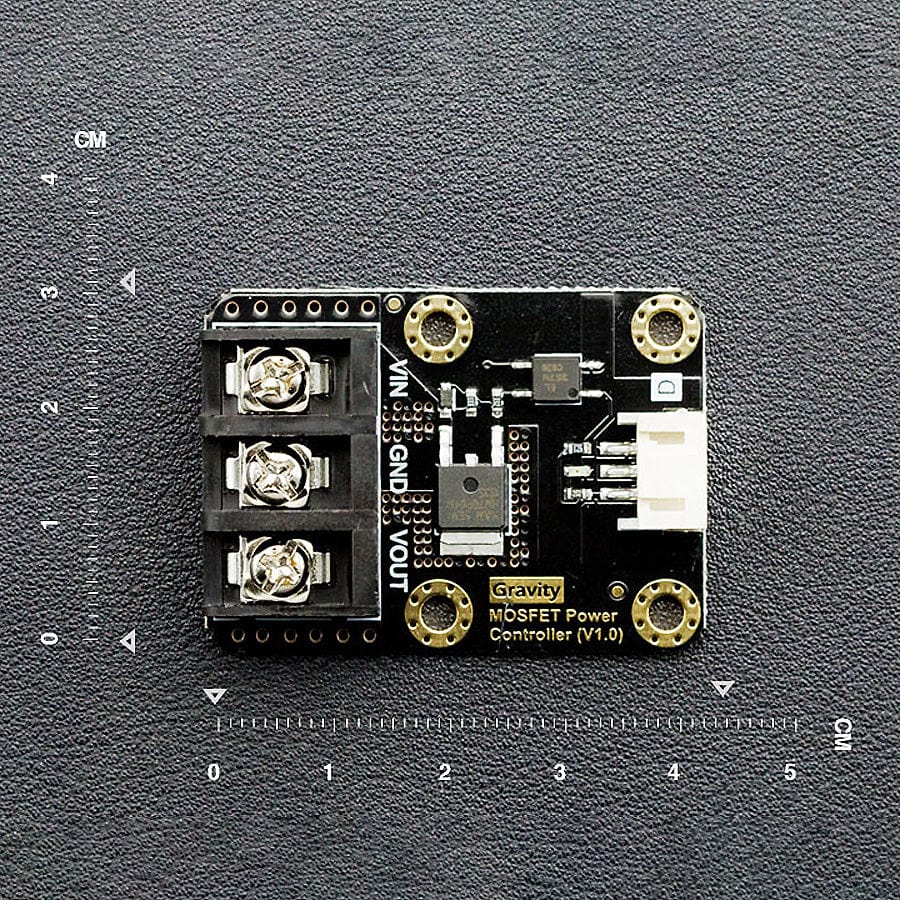

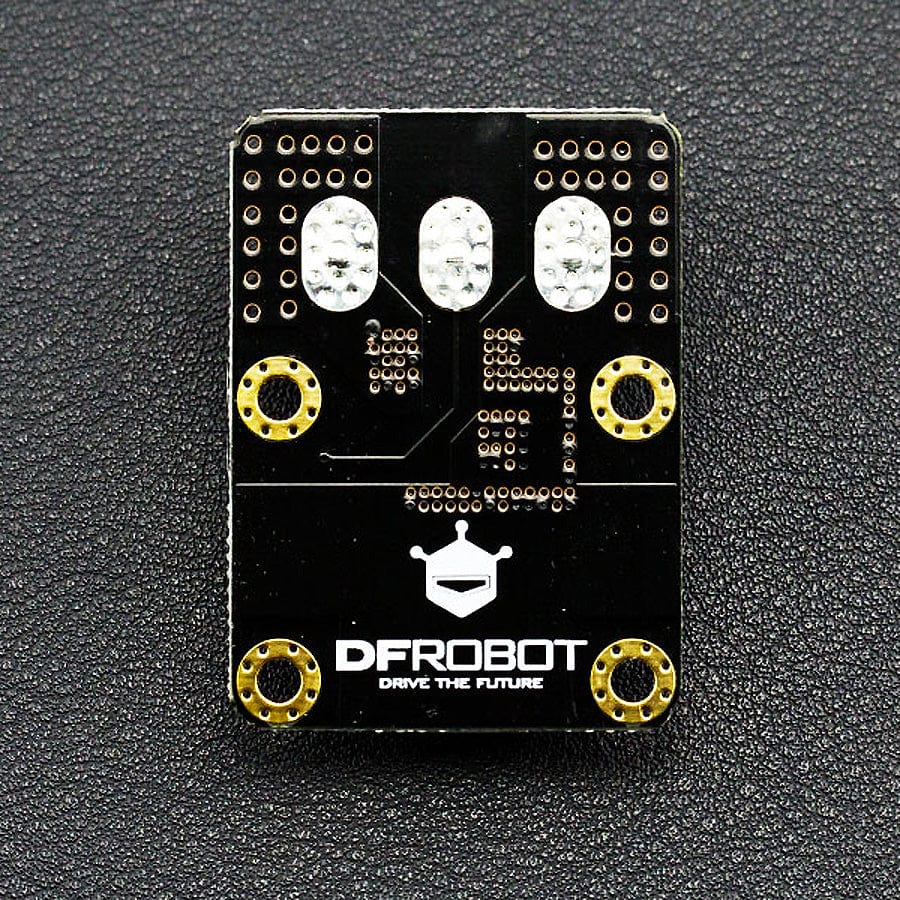

- Dimension: 44 x 32 mm
|1||VIN||Power Input (DC:5~36V)|
|4||PH2.0 3-pin||Gravity Interface|
