Gravity: 2-Channel I2C DAC Module

DFRobotSKU: DFR0971
Price:
Sale price £8.75
incl. VAT
excl. VAT
Stock:
Only 13 units left
Quantity:

Awesome Extras

DFRobotFireBeetle 2 ESP32-E IoT Microcontroller
Sale priceFrom £7.92 incl. VAT excl. VAT
The Pi Hut2-Way Fast Wire Connectors - Pack of 3
Sale price £2.08 incl. VAT excl. VAT
The Pi Hut3-Way Fast Wire Connectors - Pack of 3
Sale price £2.92 incl. VAT excl. VAT

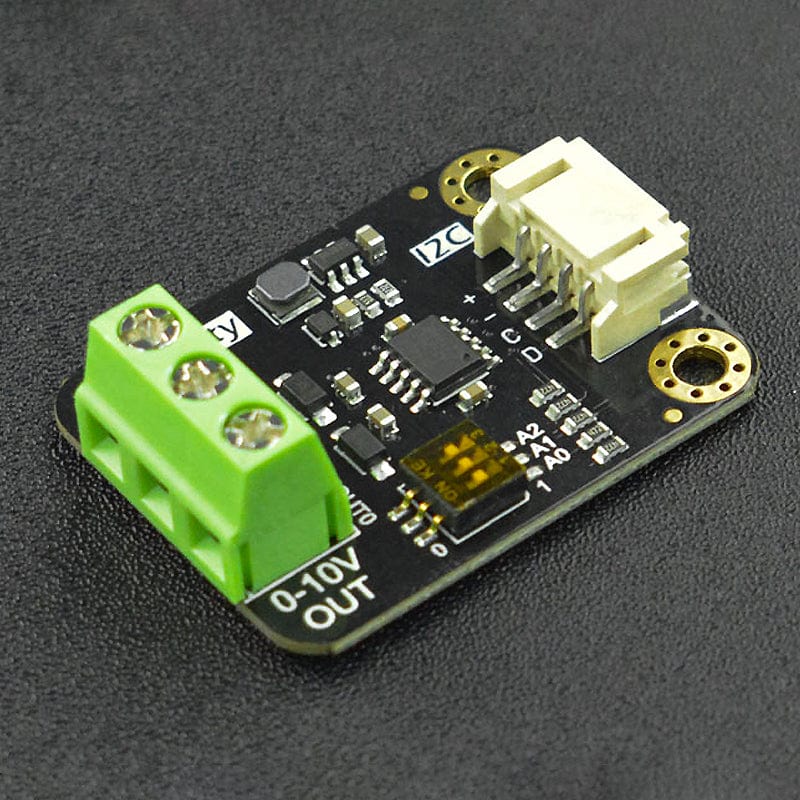

This 2-Channel I2C DAC module from DFRobot can output a voltage of 0-10V, which is a standard driver in industrial applications. It can be widely used with most 0-10V devices on the market such as light controllers, inverters, valves and pumps - all via Arduino programming with a compatible development board.

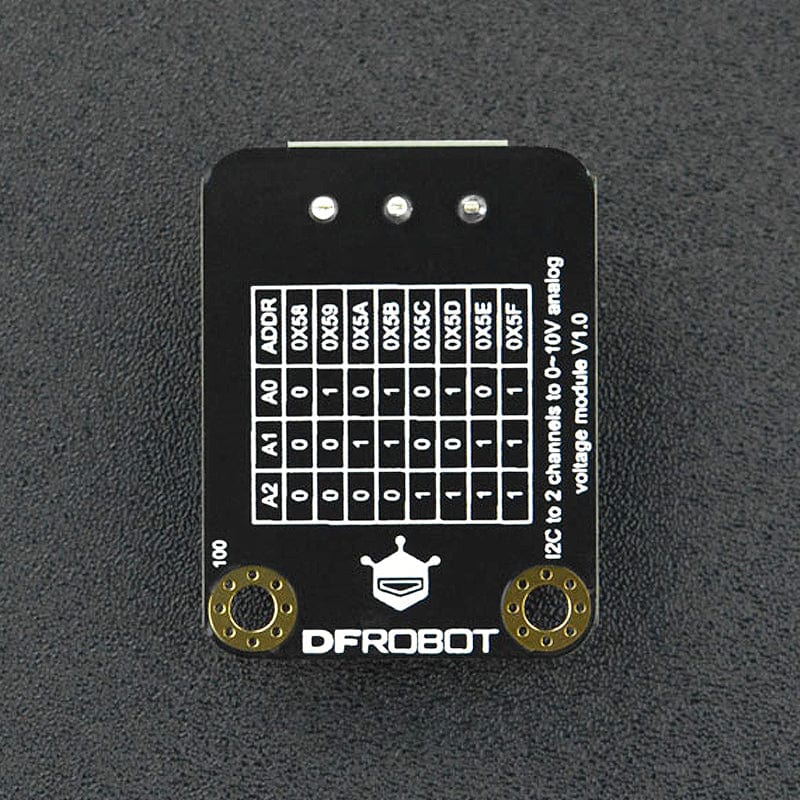

This module supports 8 different I2C addresses, which can be changed using the onboard DIP switch, allowing a cascade of 16 devices.

The module comes complete with a compatible Gravity I2C/UART cable.

Connection Example

Features

  • Support 3.3V-5V power supply
  • Output voltage error is less than 0.5%
  • Output short-circuit protection

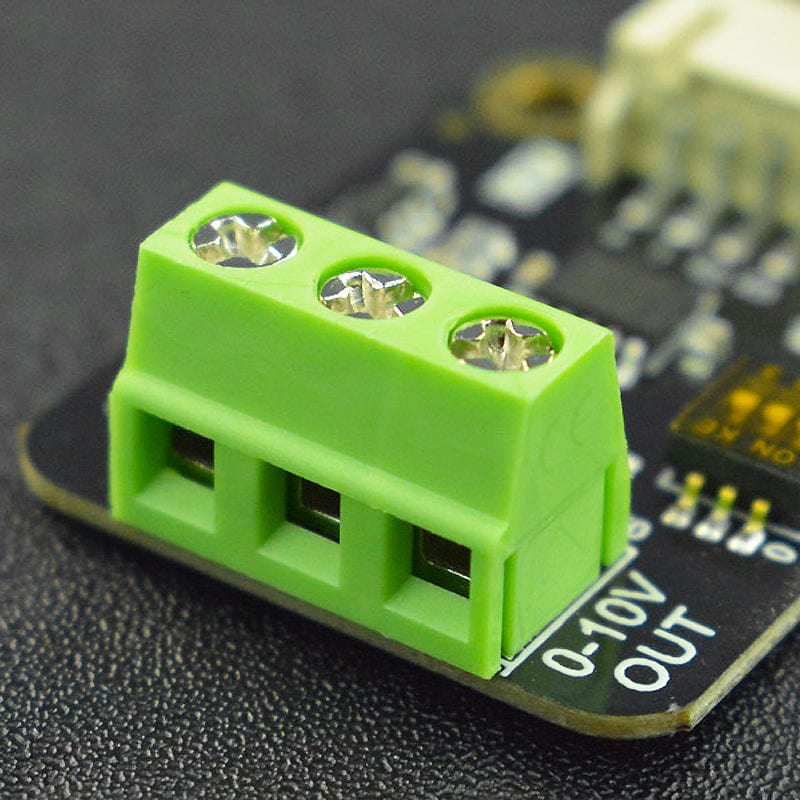

  • Two-channel 0-5V/0-10V output for connecting to and controlling standard analog voltage devices
  • Gravity interface, I2C communication, Arduino control, suitable for program automation control
  • Adjustable 8-way I2C addresses, able to control 16 devices at the same time

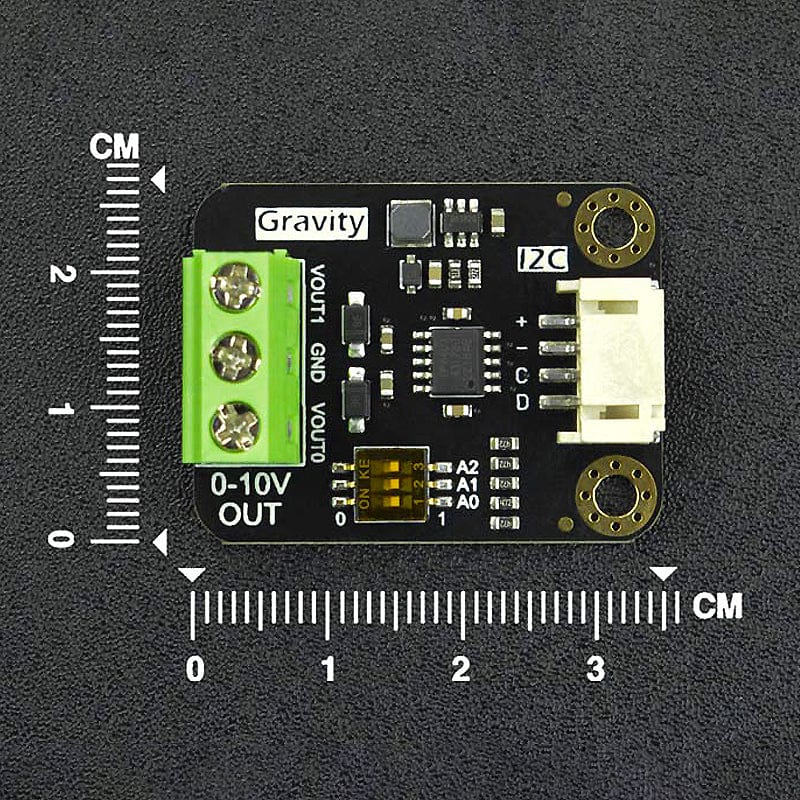

Specifications

  • Operating Voltage: 3.3V~5V
  • I2C Interface: PH2.0-4P (Gravity Line Sequence)
  • Chip Type: GP8403
  • Input Signal: 12Bit (0x000 - 0xFFF)
  • Input I2C Signal High Level: 2.7V - 5V
  • VOUT0 Output Voltage: 0 - 10V
  • VOUT1 Output Voltage: 0 - 10V
  • Output Voltage Error: < 0.5%
  • Linearity Error of Output Voltage: 0.1%
  • Power Consumption: < 4mA
  • Output Short-circuit Protection

Resources

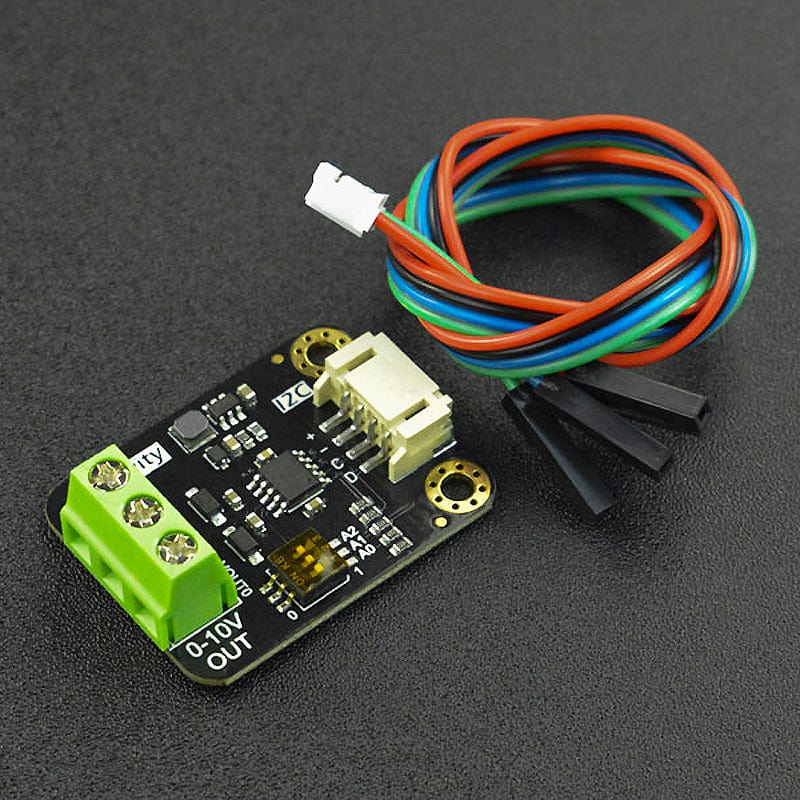

Package Contents

  • 1x Gravity: 2-Channel 0-10V I2C DAC Module
  • 1x Gravity I2C/UART Sensor Cable
