Dreamer Nano V4.1 (Arduino Leonardo Compatible)

DFRobotSKU: DFR0213
Price:
Sale price £8.50
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

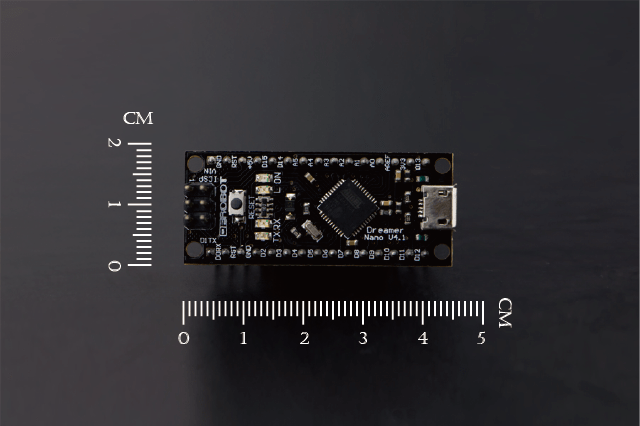

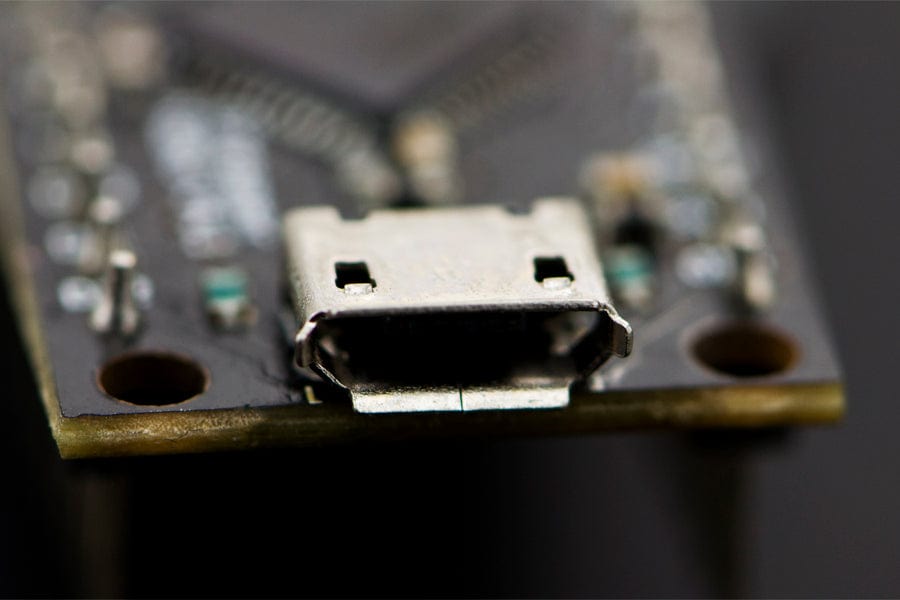

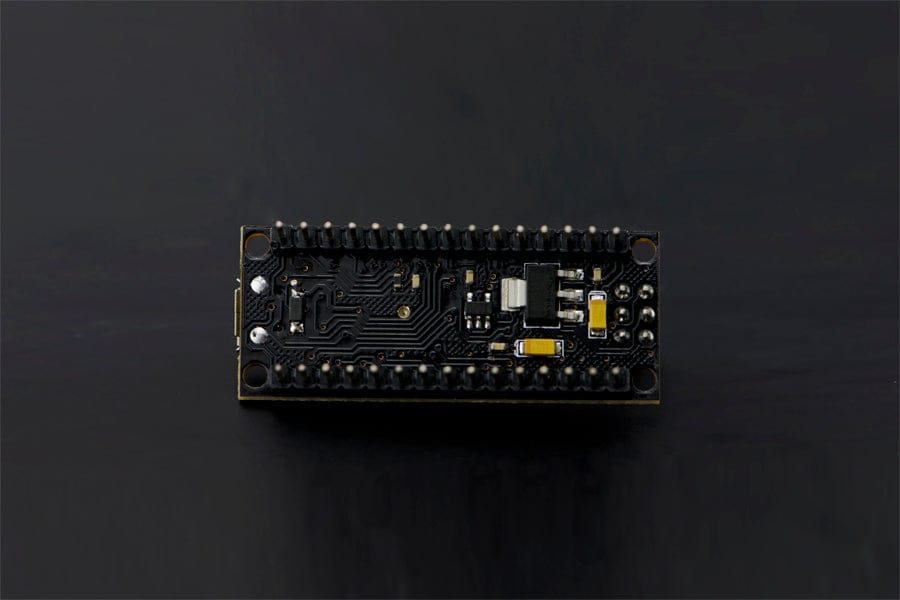

The Dreamer Nano V4 is a surface mount breadboard embedded version of the ATMEGA 32U4 with integrated Micro USB. It has everything that Arduino Leonardo has (electrically). Physically, it is just missing power jack to save space.
Using the ATmega32U4 as its sole microcontroller allows it to be cheaper and simpler. Also, because the 32U4 is handling the USB directly, code libraries are available which allow the board to emulate a computer keyboard, mouse, and more using the USB-HID protocol!
The Dreamer Nano v4 is compatible with most Nano shield in the market. It's suitable for projects that require a compact size controller system.
Note: The pins supporting I2C/TWI is located at Digital Pins D2(SDA) and D3(SCL).

Dreamer Nano V4.1 Projects 01:
Hardware components:

3mm LED Pack (50 pcs)
perf board
Hand tools and fabrication machines:
3D Printer (generic)
Soldering iron (generic)

Dreamer Nano V4.1 Projects 02:

The Offensive Maker | Homemade # Posture-controlled Gamepad# to Shame Among Us Players


Specification

  • Microcontroller:ATmega32u4
  • Operating Voltage:5V
  • Input Voltage (recommended):6.5-12v (VIN) / 5v (Micro USB)
  • Input Voltage (limits):6.5-12V
  • Digital I/O Pins:21
  • PWM Channels:7
  • Analog Input Channels:6
  • DC Current per I/O Pin:40 mA
  • DC Current for 3.3V Pin:50 mA
  • Flash Memory:32 KB (ATmega32u4) of which 4 KB used by bootloader
  • SRAM:2.5 KB (ATmega32u4)
  • EEPROM:1 KB (ATmega32u4)
  • Clock Speed:16 MHz
  • Compatible with most of Nano shield
  • Size: 45x20x20mm (1.77x0.79x0.79")

Documents


Shipping List

  • Dreamer Nano V4.1 x1
