The Large 4-Digit Seven-Segment Display gives your project bold red numeric output for clocks, timers, counters, and readouts, with colon dots and an extra indicator dot built in.

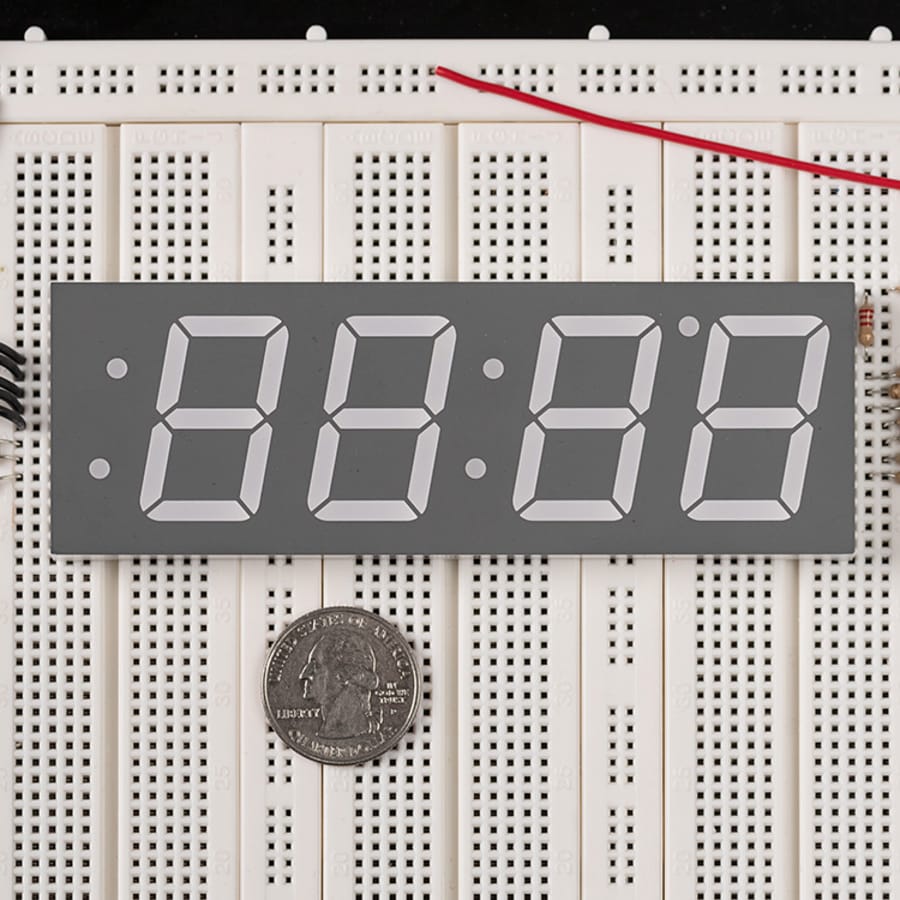

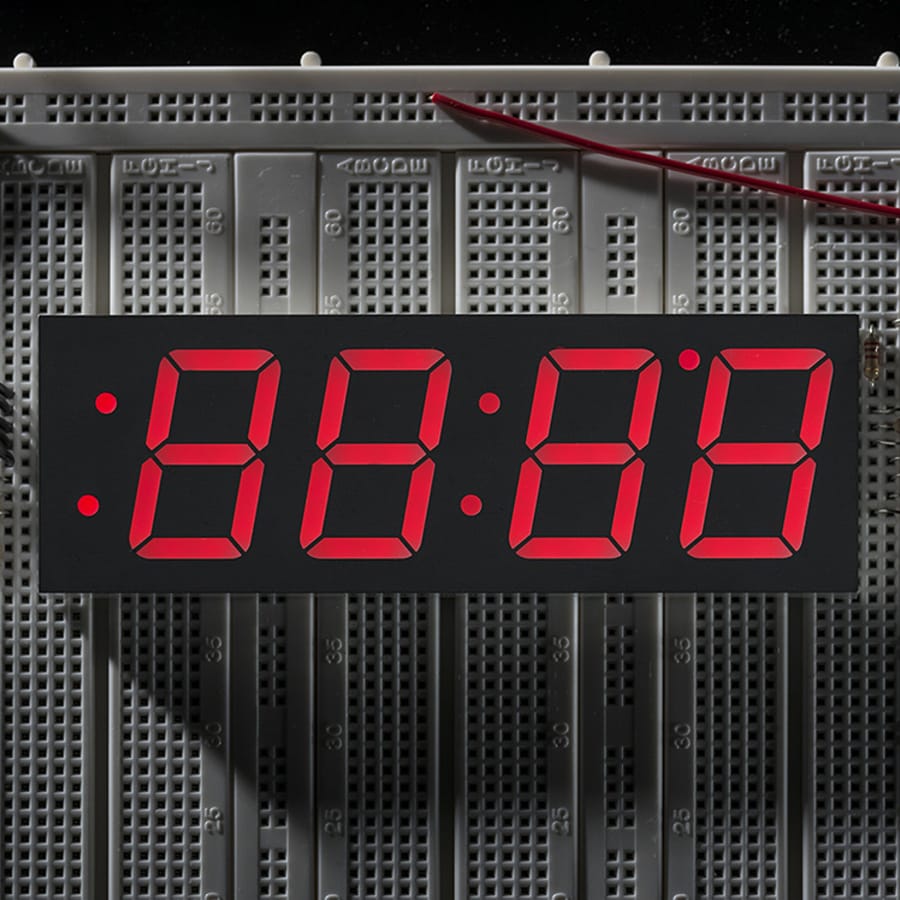

I like big seven-segment displays and I cannot lie! Design a clock, timer or counter into your next project using our pretty, candy-bar sized 4-digit seven-segment display. These bright crisp displays are good for adding numeric output. Besides the four 7-segments there is a top right dot (perhaps useful as a degrees symbol) and two sets of colon-dots (good for time-based projects).
These are 38mcd bright per segment. Each segment is made of two LEDs in series for even colouring (check the datasheet for a diagram). You can drive these with less current to get the same brightness to save power, or crank them up to 20mA and have them at their brightest.
These displays are multiplexed, common-cathode. What that means it that you can use a 74HC595 or just 8 microcontroller pins if you can spare them to control the 8 anodes (7-seg + decimal) at about ~15mA each, and then connect NPN transistors or a TPIC6B595 to the cathodes to sink the 8*20mA = ~120mA maximum per digit.
We strongly recommend getting our backpack version, which comes with an LED driver on the back. This version is just the raw display, and requires a lot more work to get running!
These come in a bright red colour, we also have many other sizes and colours!
Features
4-digit seven-segment display, candy-bar sized
38mcd brightness per segment
Each segment contains two LEDs in series for even colouring
Top right dot (degrees symbol)
Two sets of colon-dots for time-based projects
Multiplexed, common-cathode configuration
Adjustable brightness (5mA to 20mA per segment)
Maximum 120mA per digit
Requires 8 microcontroller pins or 74HC595 shift register for control
Requires NPN transistors or TPIC6B595 for cathode connection
