The White Adafruit 0.54" Dual Alphanumeric Display FeatherWing Combo Pack combines two bright 14-segment displays with an I2C FeatherWing driver, providing four characters for displaying letters, numbers and symbols with any Feather.
Display, elegantly, 012345678 or 9! Gaze, hypnotized, at ABCDEFGHIJKLM - well it can display the whole alphabet. You get the point.
This is the White Adafruit 0.54" Dual Alphanumeric Display w/ FeatherWing Combo Pack! We also have these combo packs in Green, Red, and Yellow.

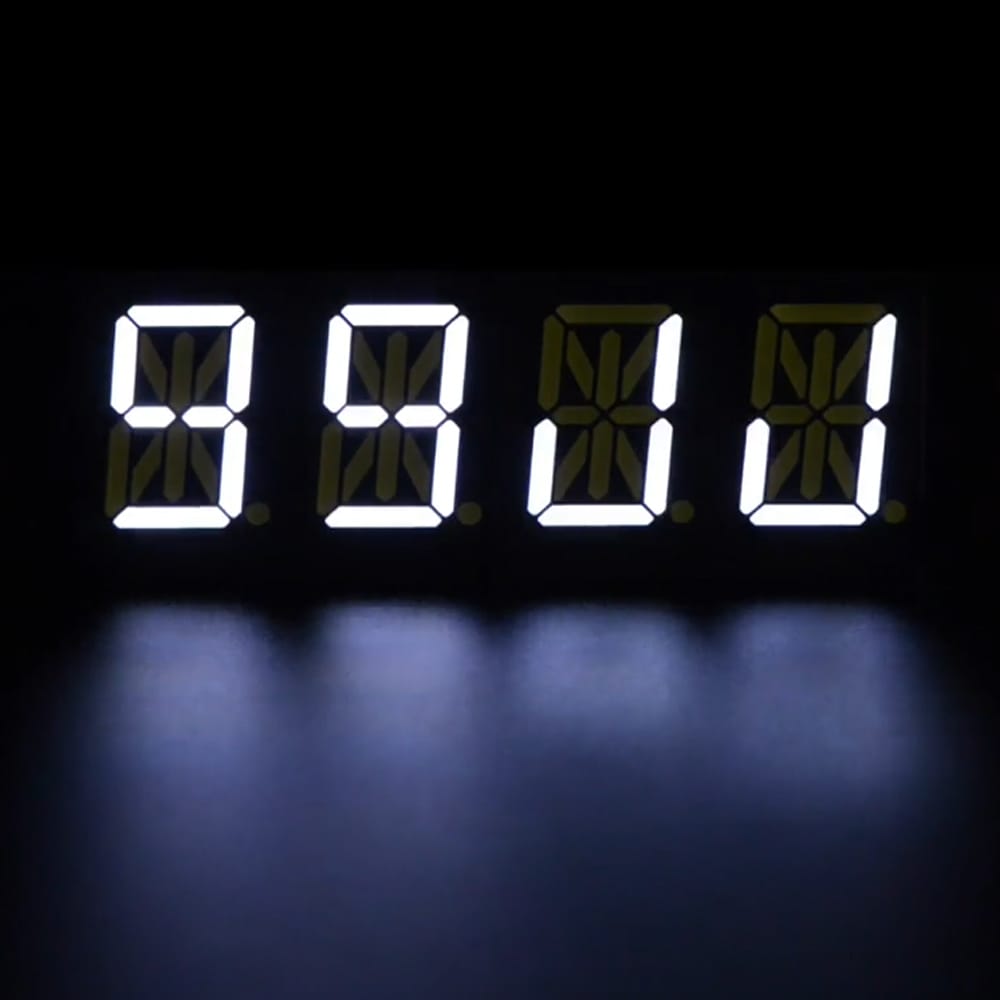

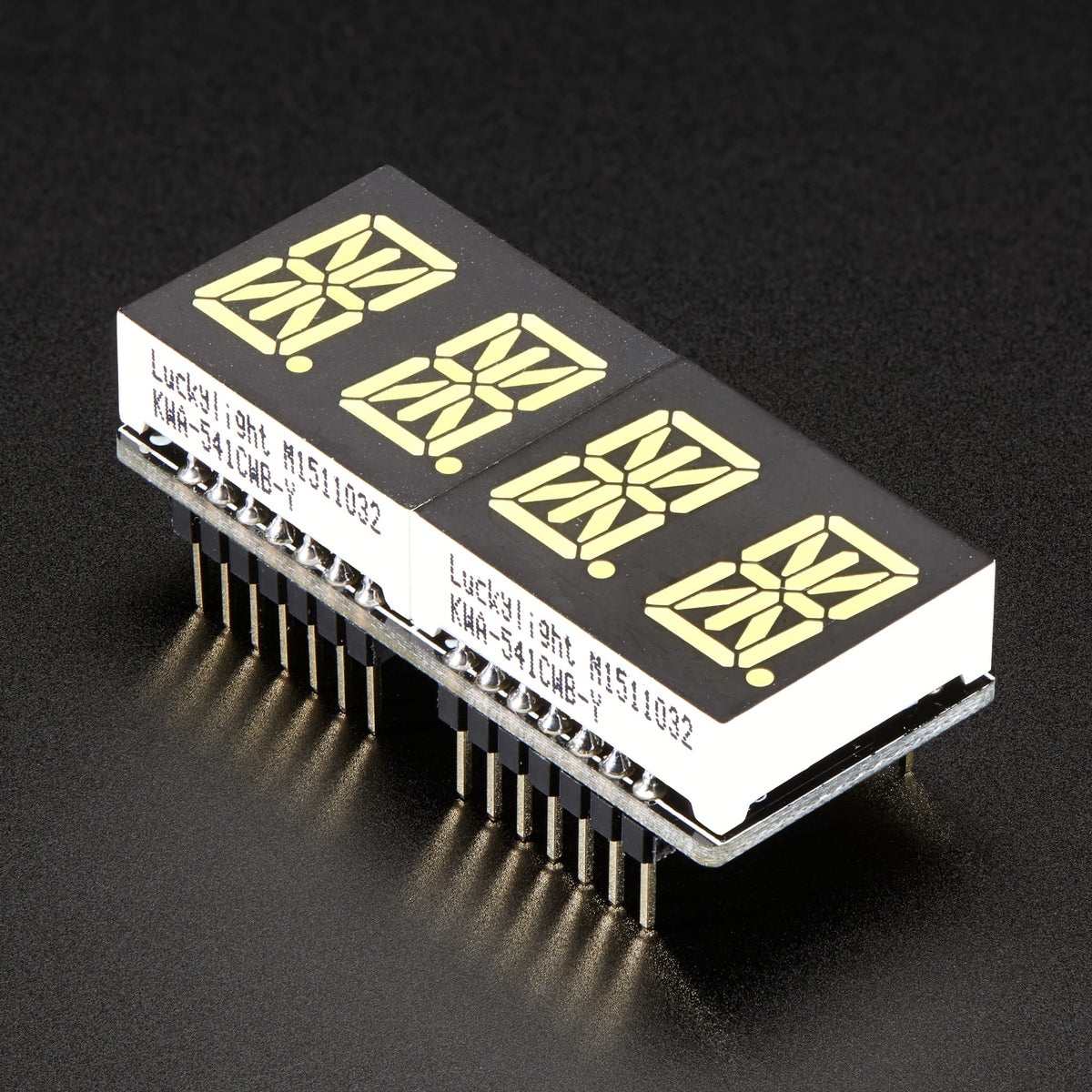

This is a nice, bright alphanumeric display that shows letters and numbers in a beautiful hue. It's super bright and designed for viewing from distances up to 7 meters away. Each of the digit sets have 14 segments on a dark background and we give you a set of two alphanumeric displays as well as a Featherwing driver board so you can make a clock or a four letter word.
14-Segment Matrices like these are 'multiplexed' - so to control all the fourteen-segment LEDs you need 18 pins. That's a lot of pins, and there are driver chips like the MAX7219 that can control a matrix for you but there's a lot of wiring to set up and they take up a ton of space. Wouldn't it be awesome if you could control a matrix without tons of wiring? That's where these Alphanumeric LED Matrix FeatherWings come in, they make it really easy to add a 4-digit alphanumeric display with decimal points.

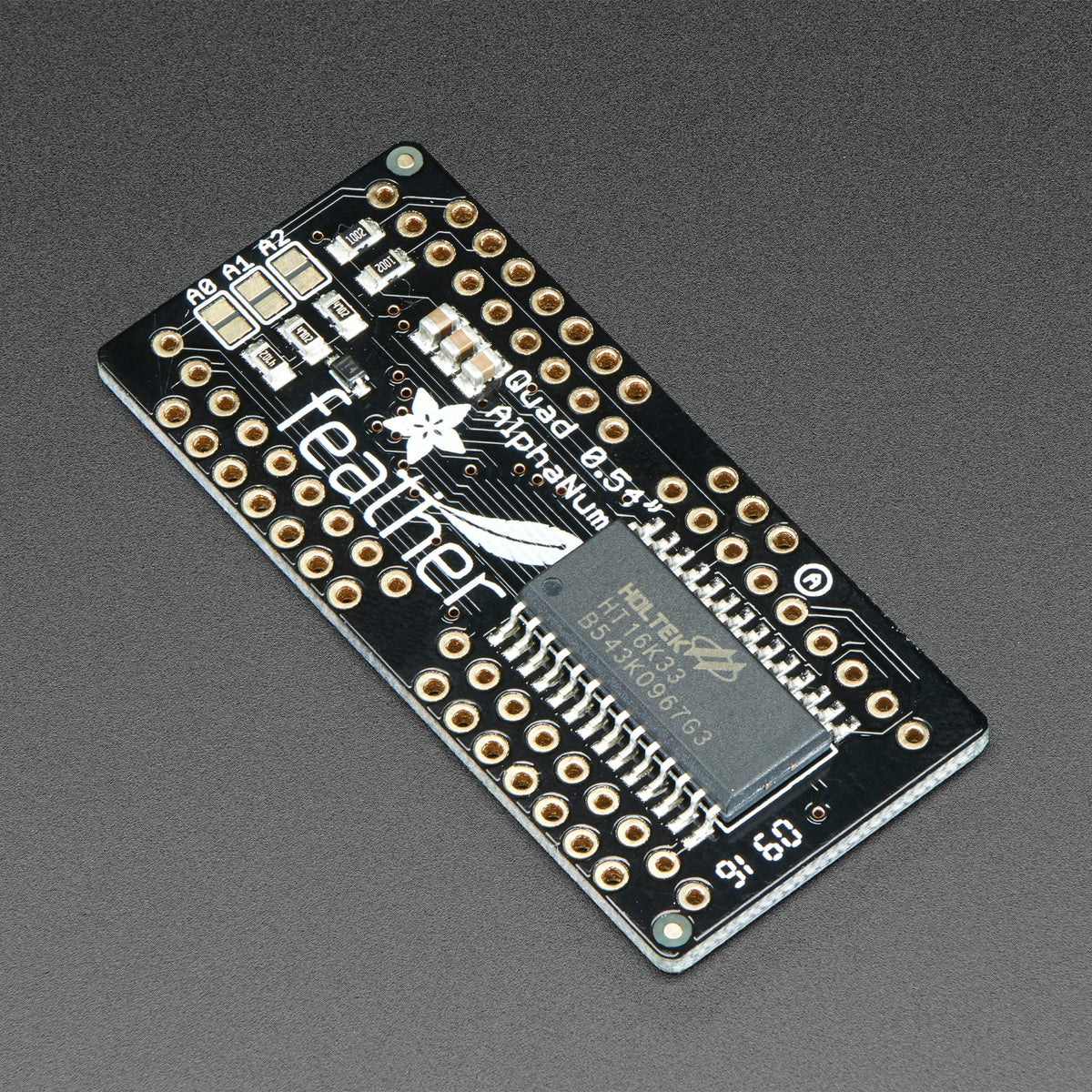

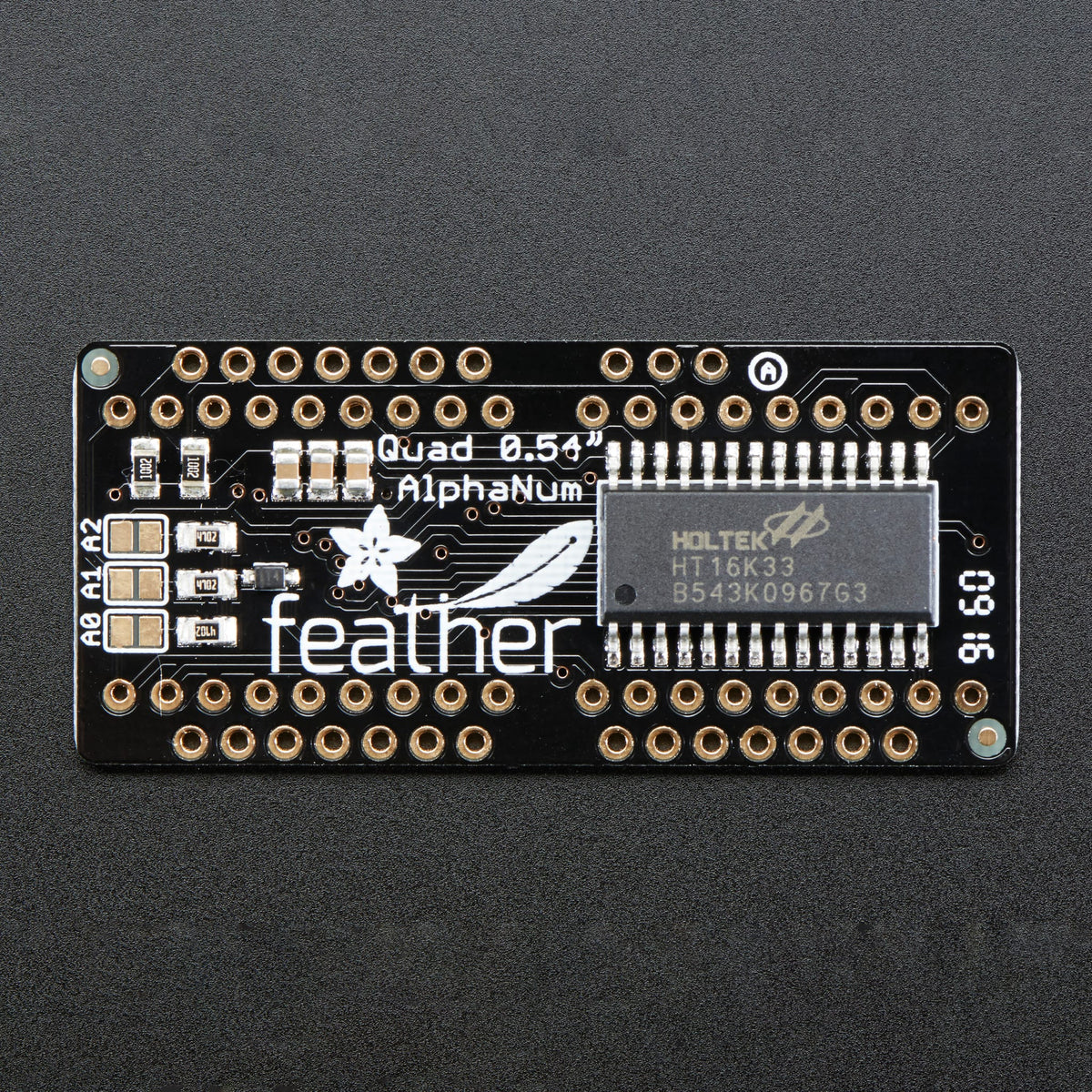

The LEDs themselves do not connect to the Feather. Instead, a matrix driver chip (HT16K33) does the multiplexing for you. The Feather simply sends I2C commands to the chip to tell it what LEDs to light up and it is handled for you. This takes a lot of the work and pin-requirements off the Feather. Since it uses only I2C for control, it works with any Feather and can share the I2C pins for other sensors or displays.

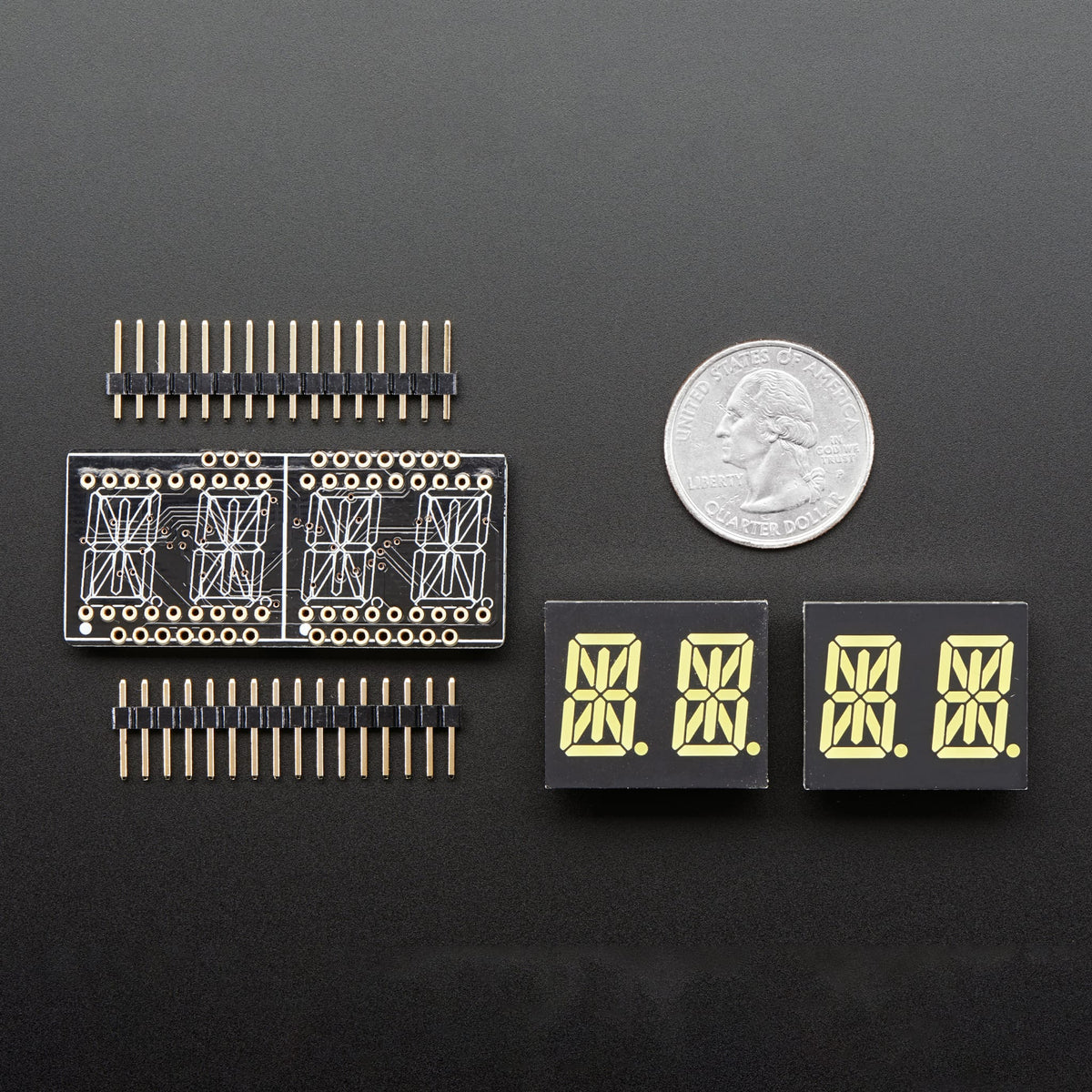

0.54" Ultra-bright dual alphanumeric white display - 2 pack
Two 16-pin headers
Of course, in classic Adafruit fashion, they also have a detailed tutorial showing you how to solder, wire and control the display. They even wrote a very nice library for the backpacks in both Arduino & CircuitPython so you can get running in under half an hour, displaying letters or numbers on the 14-segment.
If you've been eyeing matrix displays but hesitated because of the complexity, this is the solution you've been looking for.
Features
0.54" ultra-bright dual alphanumeric white display (2 pack)
14-segment matrices for displaying letters, numbers and symbols
Visible from distances up to 23 feet (7 metres) away
FeatherWing driver board with HT16K33 matrix driver chip included
I2C control - requires only 2 pins, compatible with any Feather board
Can share I2C pins with other sensors or displays
Fully assembled and tested
Includes two 16-pin headers
Arduino and CircuitPython libraries provided
Detailed tutorial and documentation included
Easy soldering and setup - operational in under 30 minutes
Specifications
FeatherWing Dimensions: 51mm x 23mm x 4.2mm
Backpack Weight: 4.6g
Dual Alphanumeric Display Dimensions: 21mm x 25mm x 7mm
