Fermion: 1.51” OLED Transparent Display with Converter

DFRobotSKU: DFR0934
Sale price £30
incl. VAT
excl. VAT
Only 5 units left

Awesome Extras

DFRobotFireBeetle 2 ESP32-E IoT Microcontroller
Sale priceFrom £7.92 incl. VAT excl. VAT
AntexAntex Lead Free Solder - 4m Tube
Sale price £3.75 incl. VAT excl. VAT

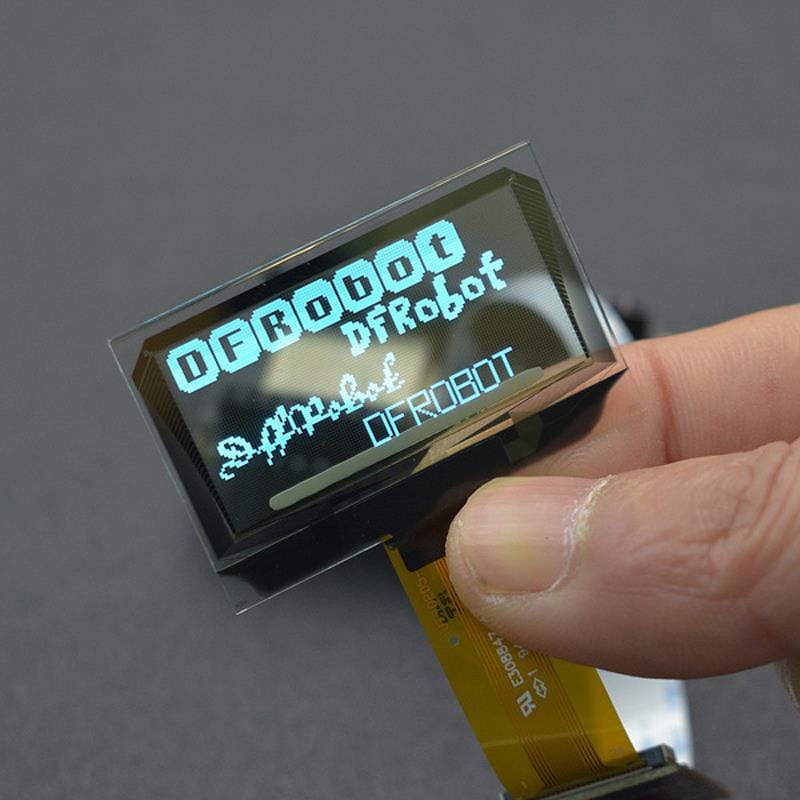

This is a 1.51” SSD1309 transparent monochrome OLED display (light blue) with a converter. It offers a resolution of 128×64 with a full-view blue display (the completely transparent area is 128×56 - there is a small section near the pins that are not transparent but still can display content).

For convenience, the small converter comes with two available connections: GDI and SPI.

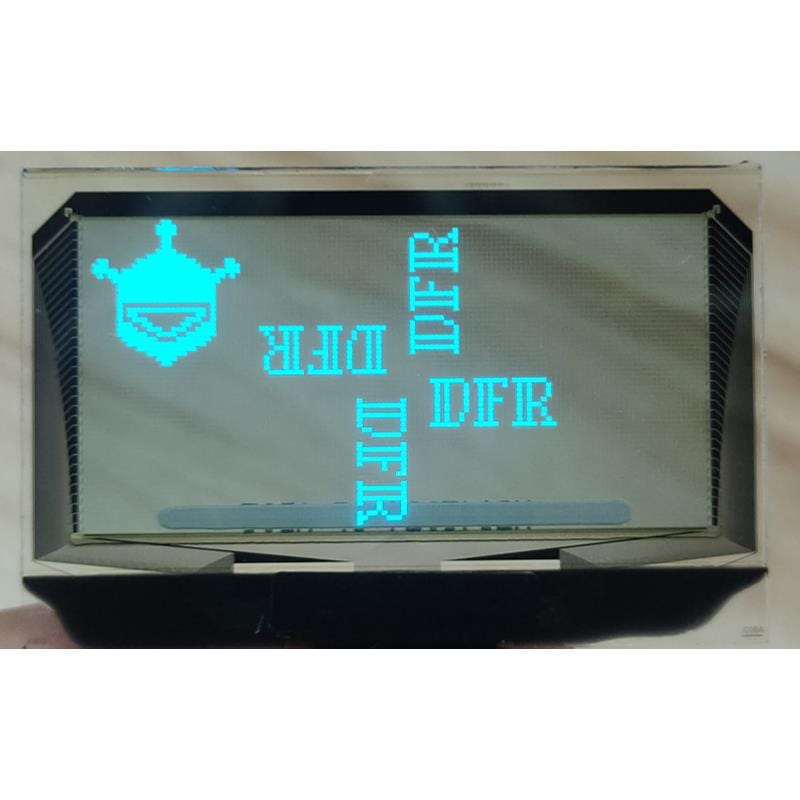

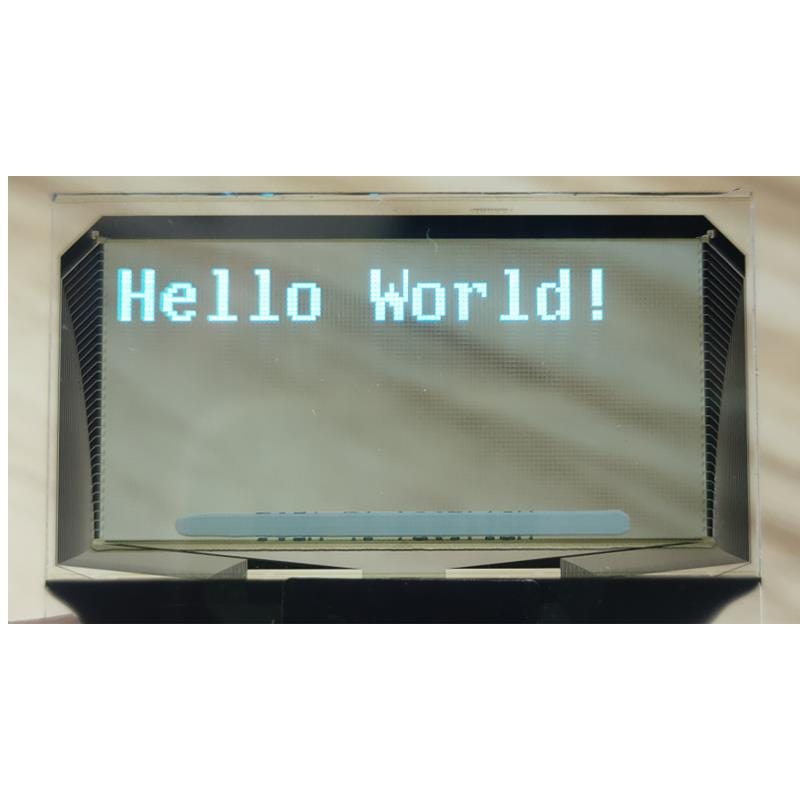

The product wiki includes a number of different display code examples for meeting the basic requirements of most users.

Connection Example


  • Transparent OLED display
  • Full-view display
  • High resolution
  • Blue display


  • Working Voltage: 3.3V
  • View Angle: Full view
  • Driver Chip: SSD1309
  • Converter Interface: SPI and GDI
  • Adapter Size: 18 x 28mm
  • Display Area: 35.05 x 15.32 (mm)
  • Display Color: blue
  • Pixel Pitch: 0.274 x 0.274mm
  • Screen Size: 42x27mm
  • Working Temperature: -40~70 ℃

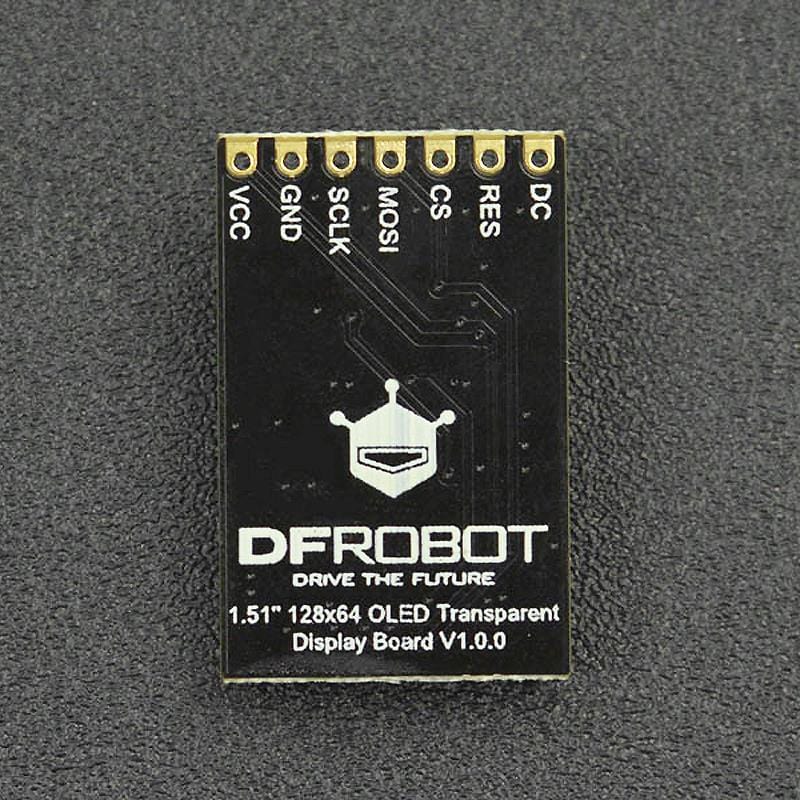

Pin Pin Name Functions
1 VCC Power(3.3V-5V)
2 GND Negative pole
3 SCLK Clock
4 MOSI Data (sent by host and received by slave)
5 CS Screen piece selected
6 RES Reset
7 DC Data/Command

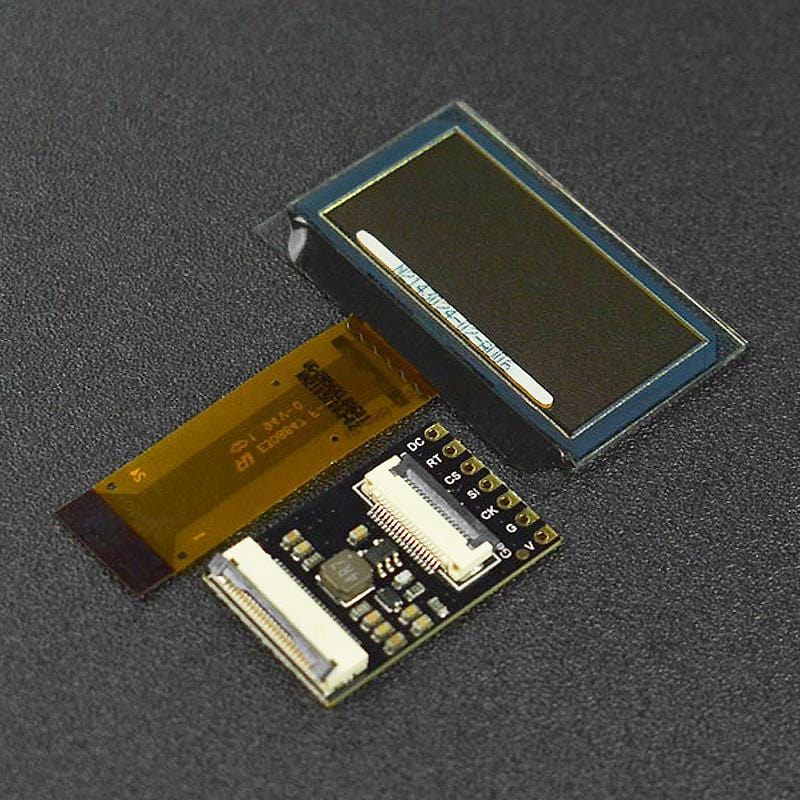

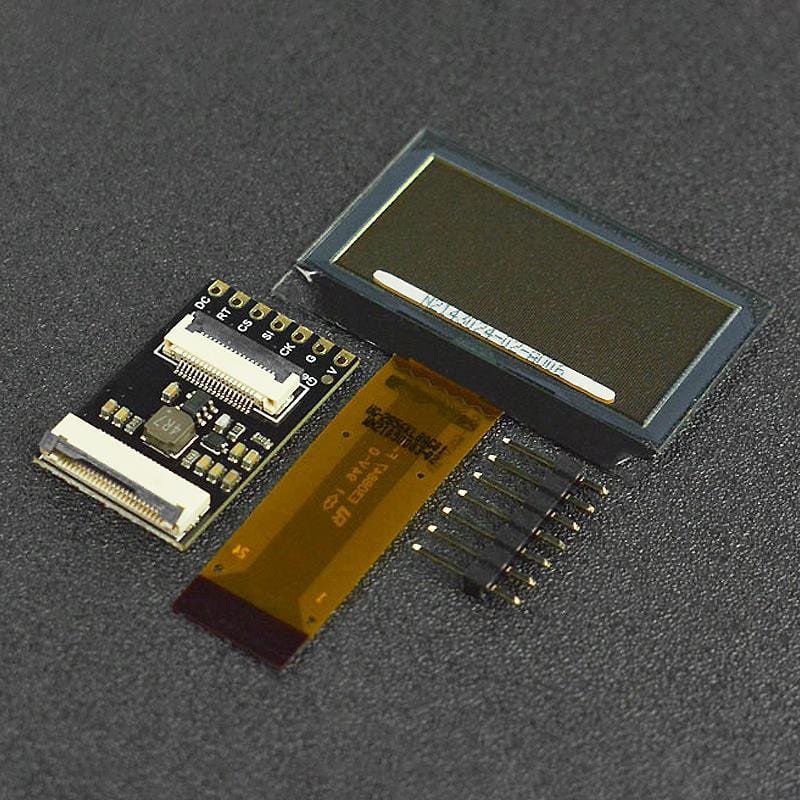

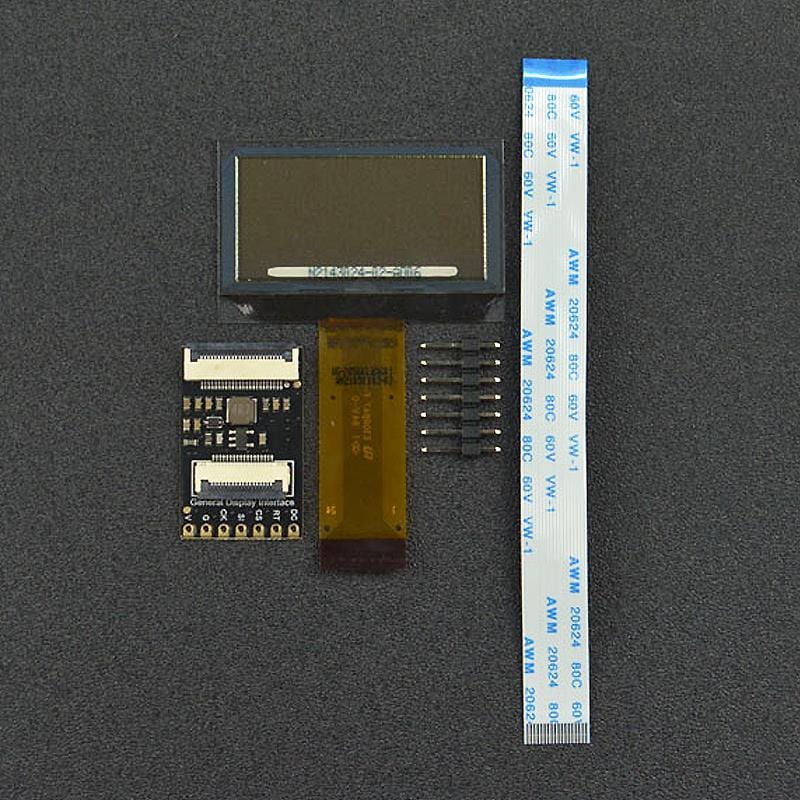

Package Contents

  • 1x 1.51" OLED Transparent Display
  • 1x 1.51" OLED Transparent Display Converter
  • 1x 2.54mm Single-row 7-pin Connector
  • 1x FPC0.5-18-pin Reverse Direction Cable

Development board not included
