DPDT ON-OFF-ON Non-Latching Miniature Toggle Switch

The Pi HutSKU: 105231

£1.50

incl. VAT

excl. VAT

In stock

Awesome Extras

Autosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire by Warton Metals - The Pi Hut

Warton Metals Autosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire

From £8.80 incl. VAT excl. VAT

Prototyping Wire Spool Set - 6 Spool Solid Core by The Pi Hut - The Pi Hut

The Pi Hut Prototyping Wire Spool Set - 6 Spool Solid Core

£12 incl. VAT excl. VAT

Notify me

265-Piece Ultimate Heat Shrink Kit by The Pi Hut - The Pi Hut

The Pi Hut 265-Piece Ultimate Heat Shrink Kit

£6 incl. VAT excl. VAT

Multifunction Wire Strippers by The Pi Hut - The Pi Hut

The Pi Hut Multifunction Wire Strippers

£6 incl. VAT excl. VAT

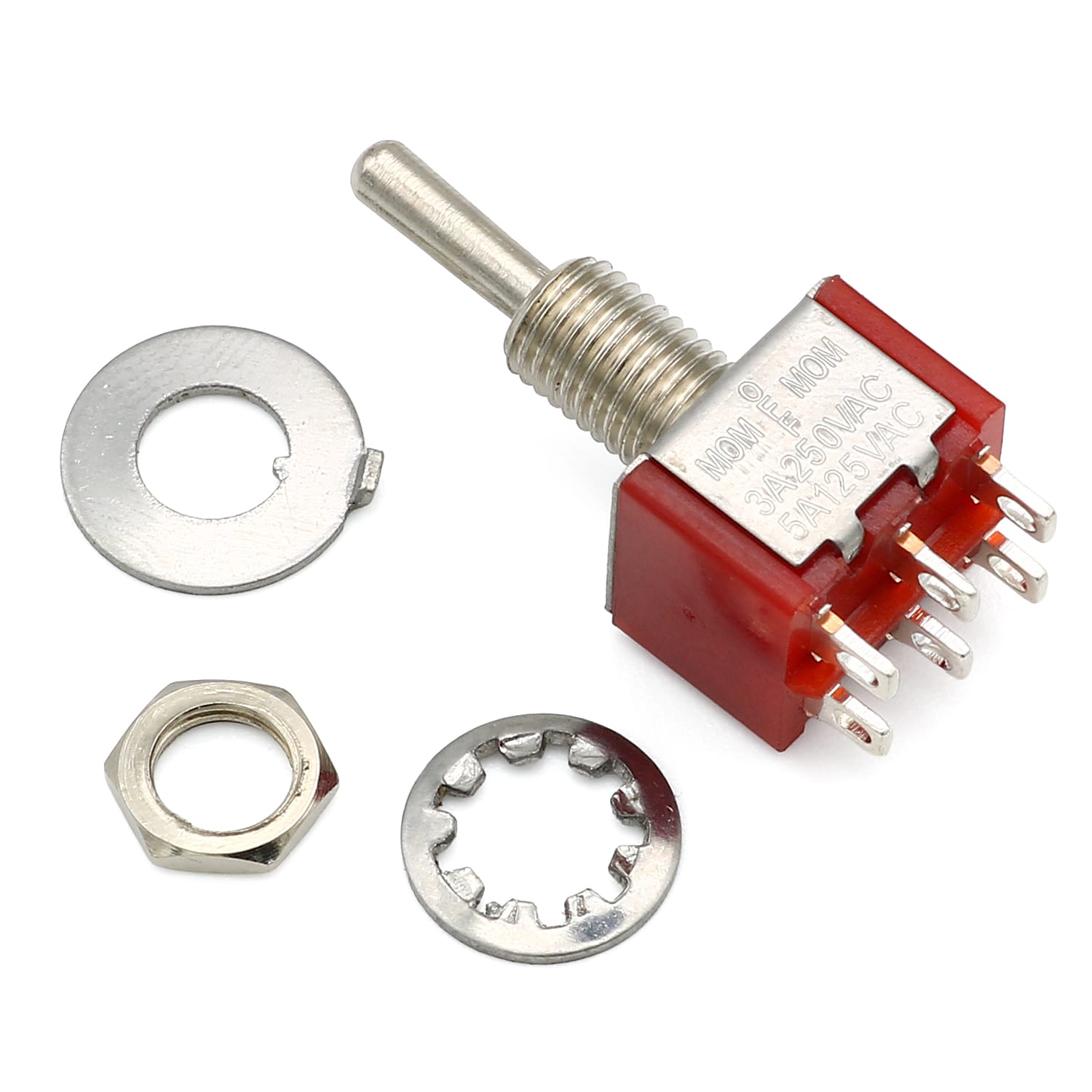

This is a non-latching DPDT ON-OFF-ON miniature toggle switch with 6 pins, rated to AC 250V/2A, 5A/120V. The 'ON' positions each side are momentary i.e. non-latching.

The switch has 6 pins allowing double pole, double throw (DPDT) use. The thread shaft requires a 6mm hole and has enough length to mount it to a panel/enclosure around 5mm thick (when using the included nuts/washers).

The switch comes with washers and nuts to mount to your panel/enclosure.

Do not use these switches with mains voltages!

Features

Miniature toggle switch
DPDT (double pole, double throw)
Non-latching (momentary) 'ON' action
ON-OFF-ON switch
Rated to 250VAC/3A,125VAC/5A
6 contacts/pins
Body colour: Red
Washers and nut included
Model number: MTS-223
Thread hole size: 6mm
Maximum mounting panel thickness: 5mm

Package Contents

1x DPDT ON-OFF-ON Non-Latching Miniature Toggle Switch
