The 5V Peltier Module creates a temperature difference at the touch of a button, with one side cooling while the other heats up, making it a great choice for compact cooling, temperature-control, and thermoelectric experiments.

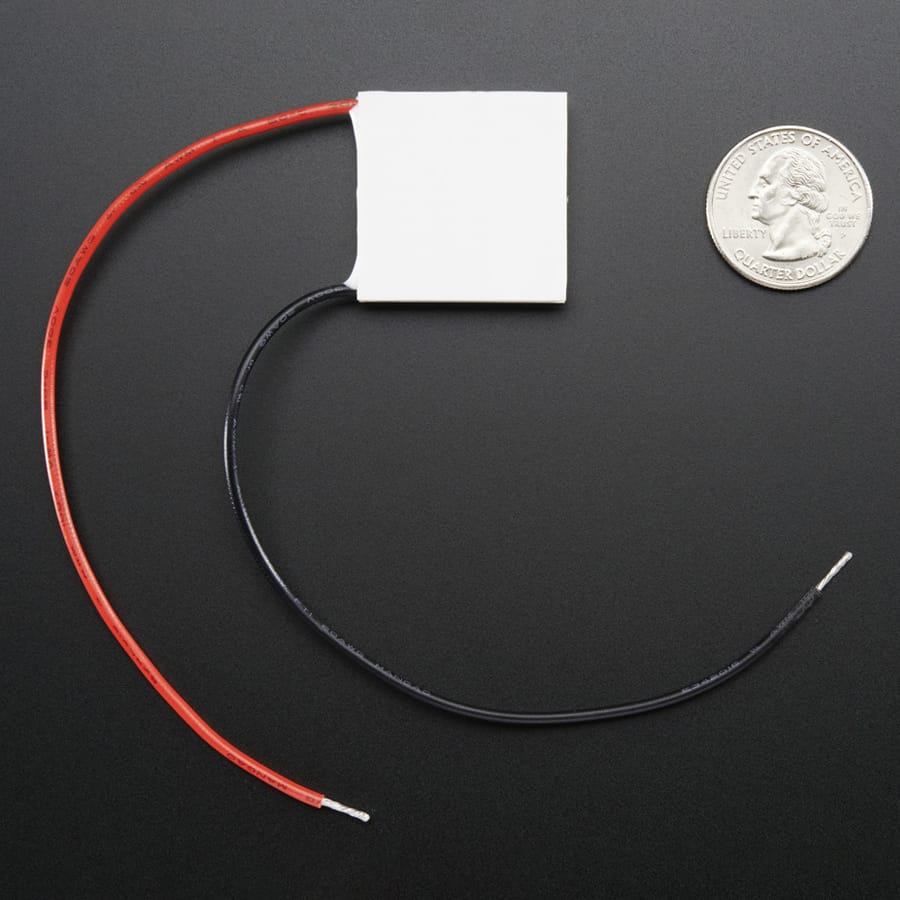

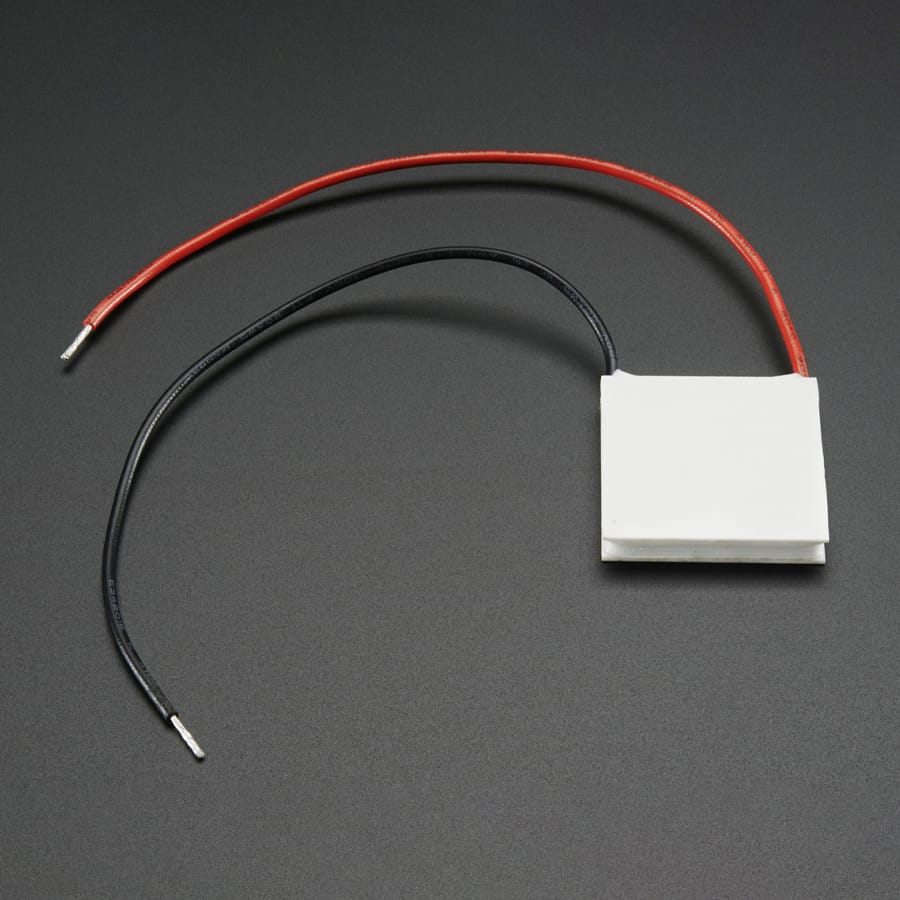

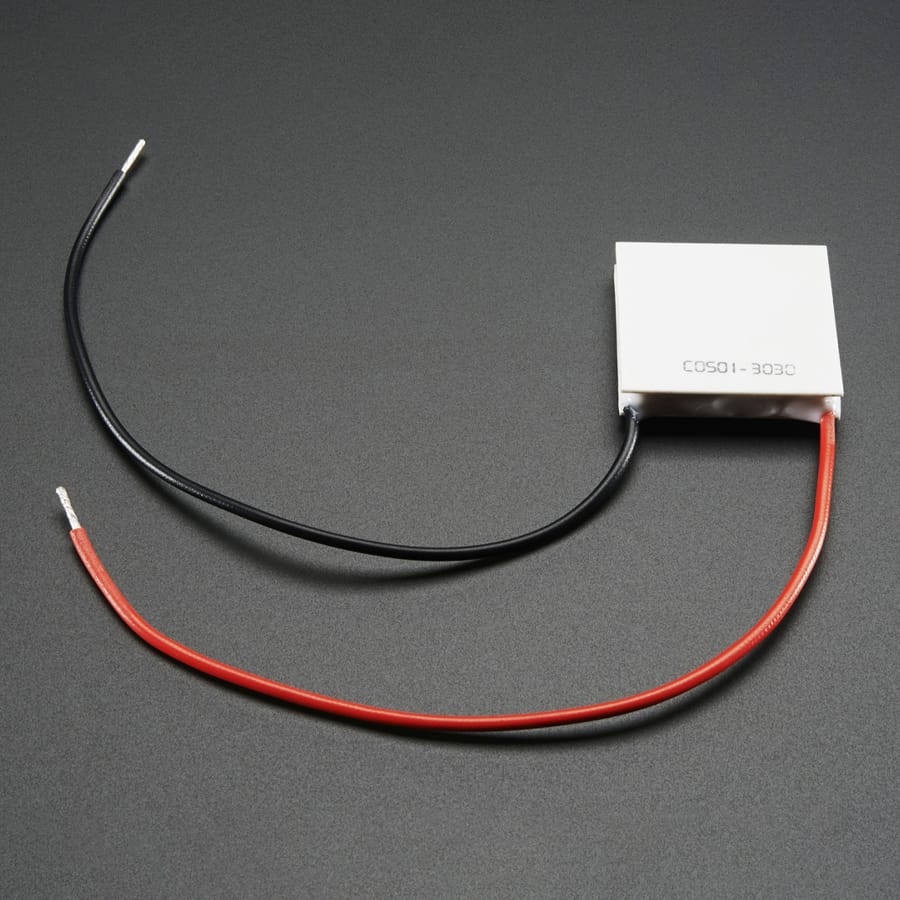

Keep it cool with a Peltier module. These unique electronic components can generate a temperature differential when powered. That is to say, apply 5V to the red (positive) and black (negative) wires and one side will get cold while the other side gets hot. For best results, you'll need to wick away that heat (otherwise the cold side will slowly get warmer). A fan and/or heatsink is ideal.
This module is a 5V module, and is rated for 5W max (5V/1A) but when we plugged them in they seemed to draw more like 1.5A so we suggest our 5V/2A power adapter for use.
Features
Peltier thermoelectric cooling module
Creates temperature differential when powered
One side gets cold, opposite side gets hot
Rated for 5V operation
Maximum 5W power consumption
Typical current draw approximately 1.5A
Requires heatsink and/or fan for optimal performance
Heat dissipation recommended to maintain cold side temperature
Compatible with 5V/2A power adapter
Includes red (positive) and black (negative) connection wires
Specifications
Max current: 1.5A @ 5V
Suggested Voltage range: 5V to 7V
Maximum temperature differential (Tmax @ Qc = 0): 65°C
