UPS Module for Raspberry Pi Pico with 600mAh LiPo Battery

WaveshareSKU: WAV-20121
Price:
Sale price £17.30
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi Pico W
Sale priceFrom £5.80 incl. VAT excl. VAT
Raspberry PiRaspberry Pi Pico
Sale priceFrom £3.80 incl. VAT excl. VAT
The Pi HutEssential Raspberry Pi Pico Kit
Sale price £6 incl. VAT excl. VAT

This UPS (Uninterruptable Power Supply) module can keep your Raspberry Pi Pico running when power is disconnected - whether that's to move your project between power supplies, for power cuts or just reassurance for your critical project.

The board incorporates a LiPo battery switching charger with power path management. A voltage/current monitoring chip also allows you to monitor the battery operating status via the I2C bus.

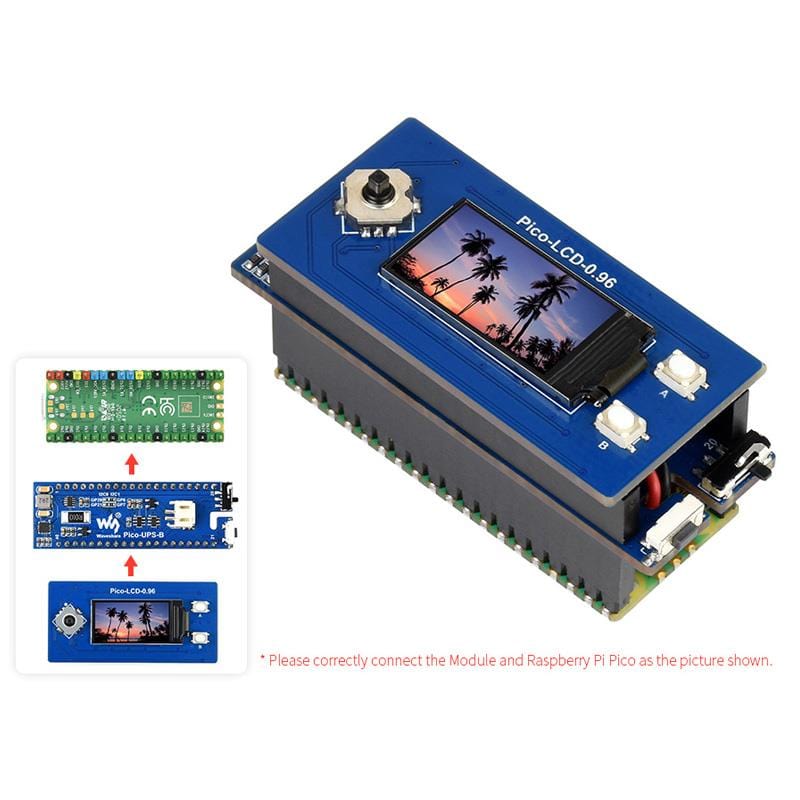

The stackable design (female header under the board and male headers on top) allows you to use this with other Raspberry Pi Pico add-ons and accessories or jumper wires, making it easier to combine components and add-ons with this board whilst keeping your project compact.

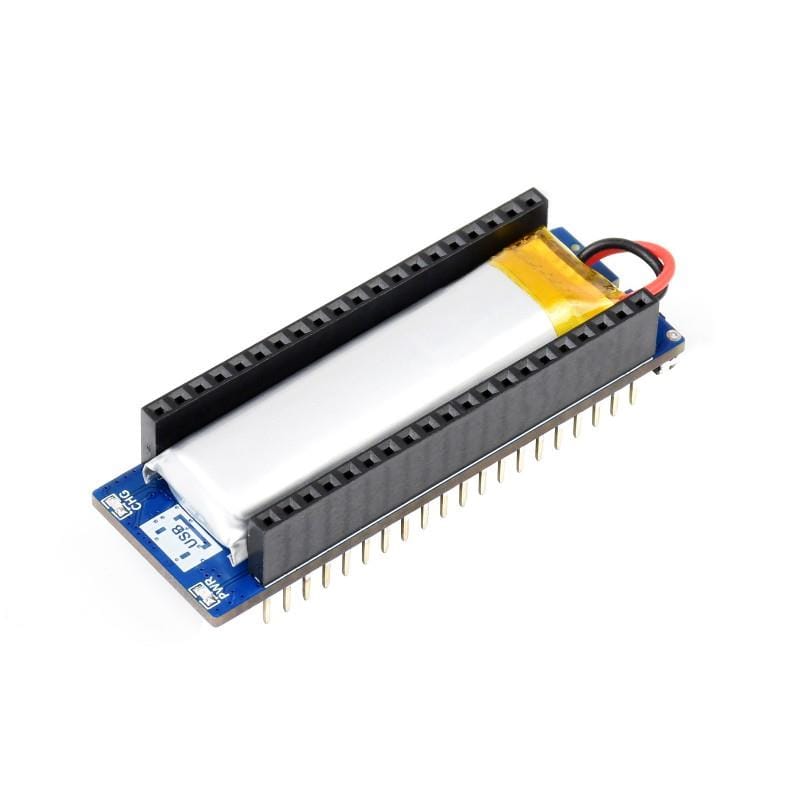

The Pico UPS module comes with its own 600mAh LiPo battery in the package.

Note: Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy a Pico with pre-soldered headers.


Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?


Features

  • Standard Raspberry Pi Pico header
  • Incorporates Li-po battery switching charger with dynamic power path management, more stable power supply
  • I2C bus communication, monitoring the battery voltage, current, power and remaining capacity in real-time
  • Multi battery protection circuits: overcharge/discharge protection, over current protection, short circuit protection and reverse protection
  • Onboard recharging indicator, power indicator, easy to check the battery status
  • Stackable design
  • LiPo battery included
  • Online development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Package Contents

  • 1x Pico UPS module
  • 1x 600mAh LiPo Battery

Raspberry Pi Pico not included

Specifications

  • Recharge voltage: 5V
  • Control Bus: I2C
  • Battery Support: 600mAh 3.7V Li-po battery (included)

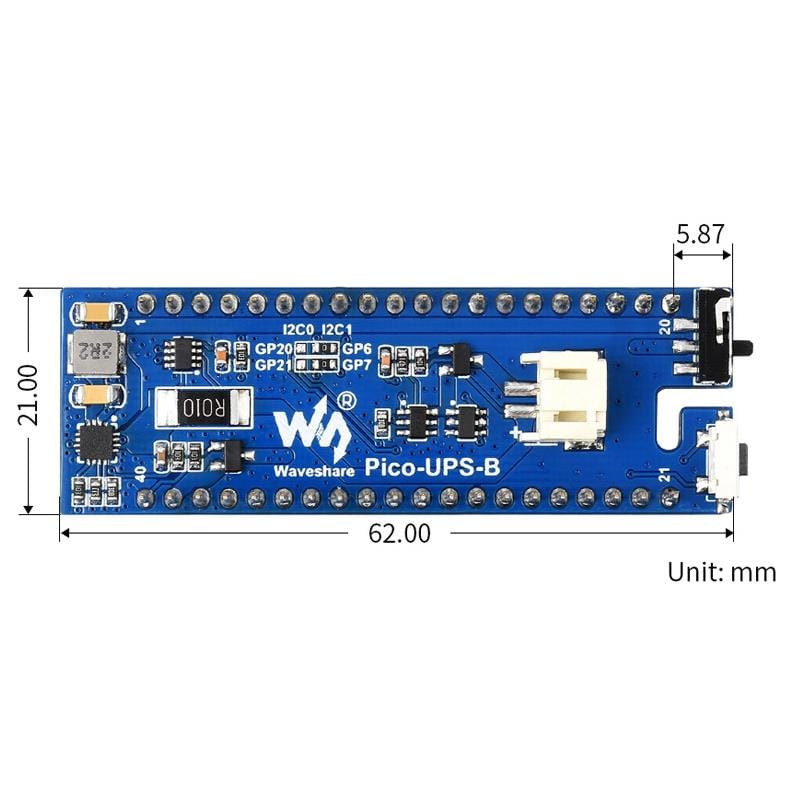

  • Dimensions: 62mm x 21mm

What's Onboard

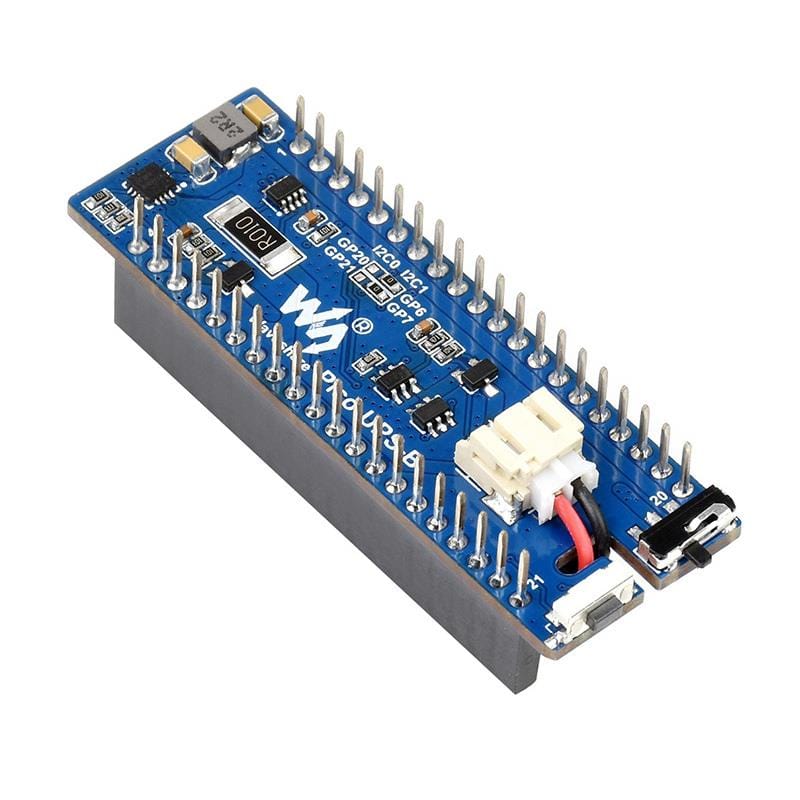

Raspberry Pi Pico UPS HAT features onboard

1) ETA6003
- Recharger chip
2) INA219
- Voltage/current monitoring chip
3) S8261
- Li-po battery protection chip
4) FS8205
- Li-po battery protection MOS
5) AO3400
- Reverse-proof MOS
6) SI2305
- Counter current preventing MOS
7) Raspberry Pi Pico header
- For direct attaching to Raspberry Pi Pico
8) Power switch
9) Activate button
- Activate the protection circuit after replacing the battery
10) Battery header
- For connecting 3.7V Li-po battery

Resources

Pinout

Pico UPS HAT Pinout
