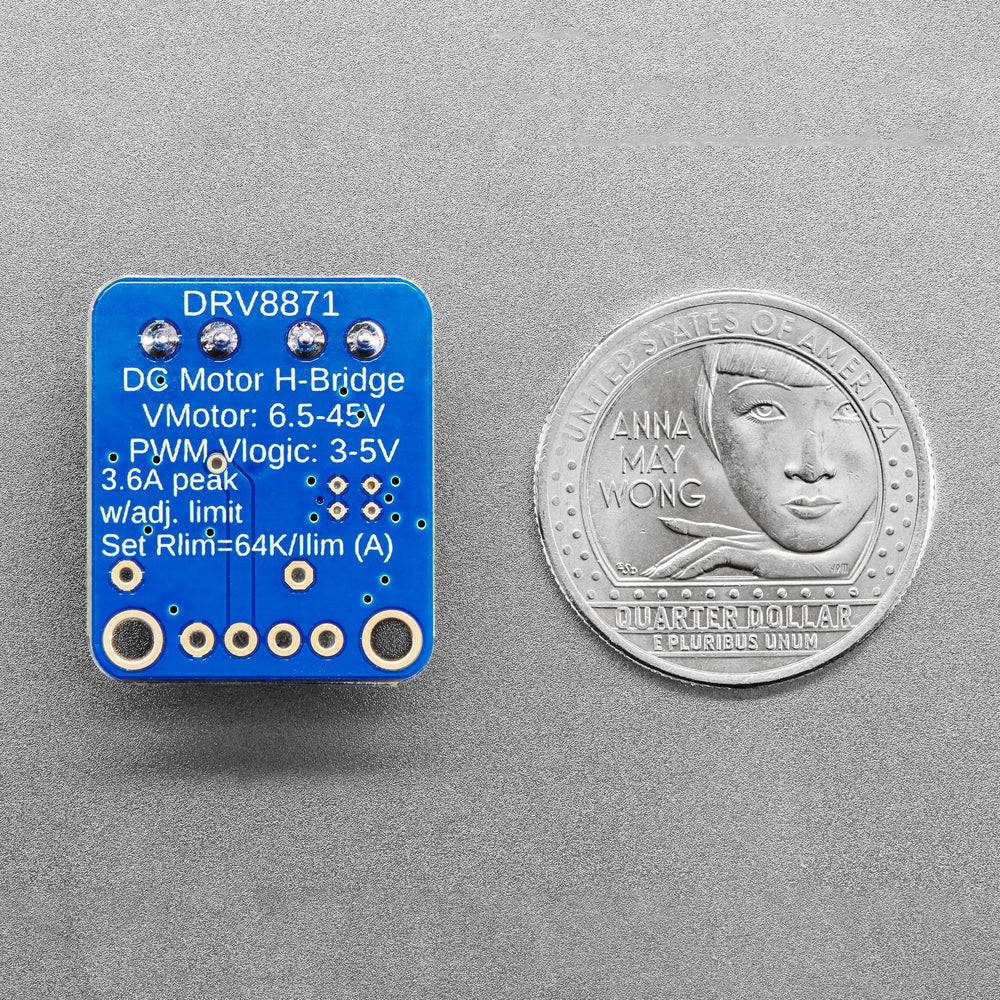

The Adafruit DRV8871 Motor Driver Breakout Board provides simple control of brushed DC motors, handling 6.5–45V motor power with up to 3.6A peak current, PWM control and adjustable current limiting.
Crank up your robotics with powerful Adafruit DRV8871 motor driver breakout board. This motor driver has a lot of great specs that make it useful for a wide variety of mechatronics. In particular, the simple resistor-set current limiting and auto-magic PWM support make it super easy to use with just about any brushed DC motor.
Check out the specs for the DRV8871:
6.5V to 45V motor power voltage
Up to 5.5V logic level on IN pins
565mΩ Typical RDS(on) (high + low)
3.6A peak current
PWM control
Current limiting/regulation without an inline sense resistor
Undervoltage lockout
Overcurrent protection
Thermal shutdown

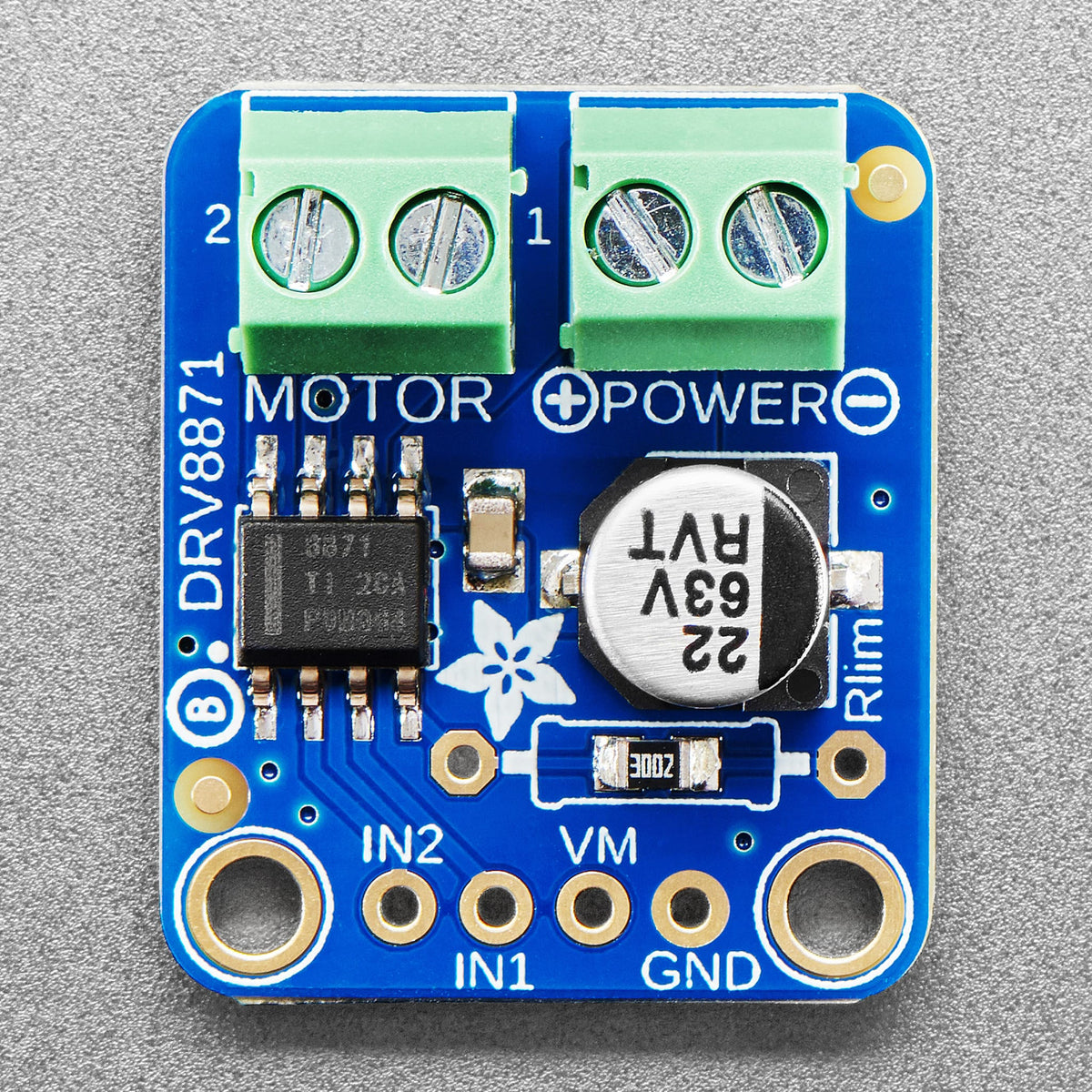

Using it is super simple. Connect your motor to the OUT terminal block. Power the board with 6.5-45VDC power on VMotor and provide the H-bridge input control on IN1 and IN2. You can even PWM the inputs and the driver chip will do the right thing.

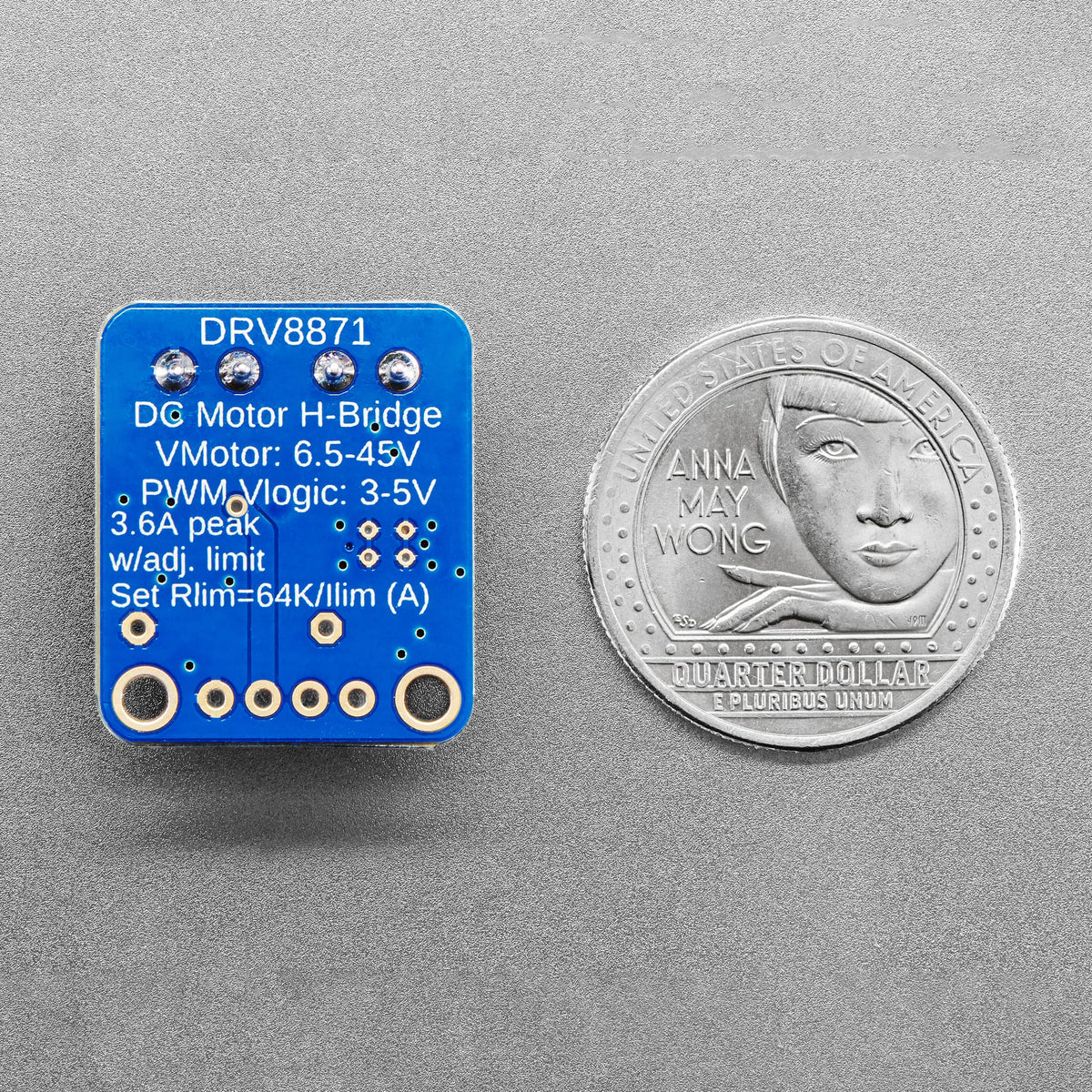

You can set the current limiting with an external resistor Rlim. We solder in a 30K resistor by default for a ~2A current limit, however you can remove this resistor and/or solder a resistor over it to change the resistance and change the limit.

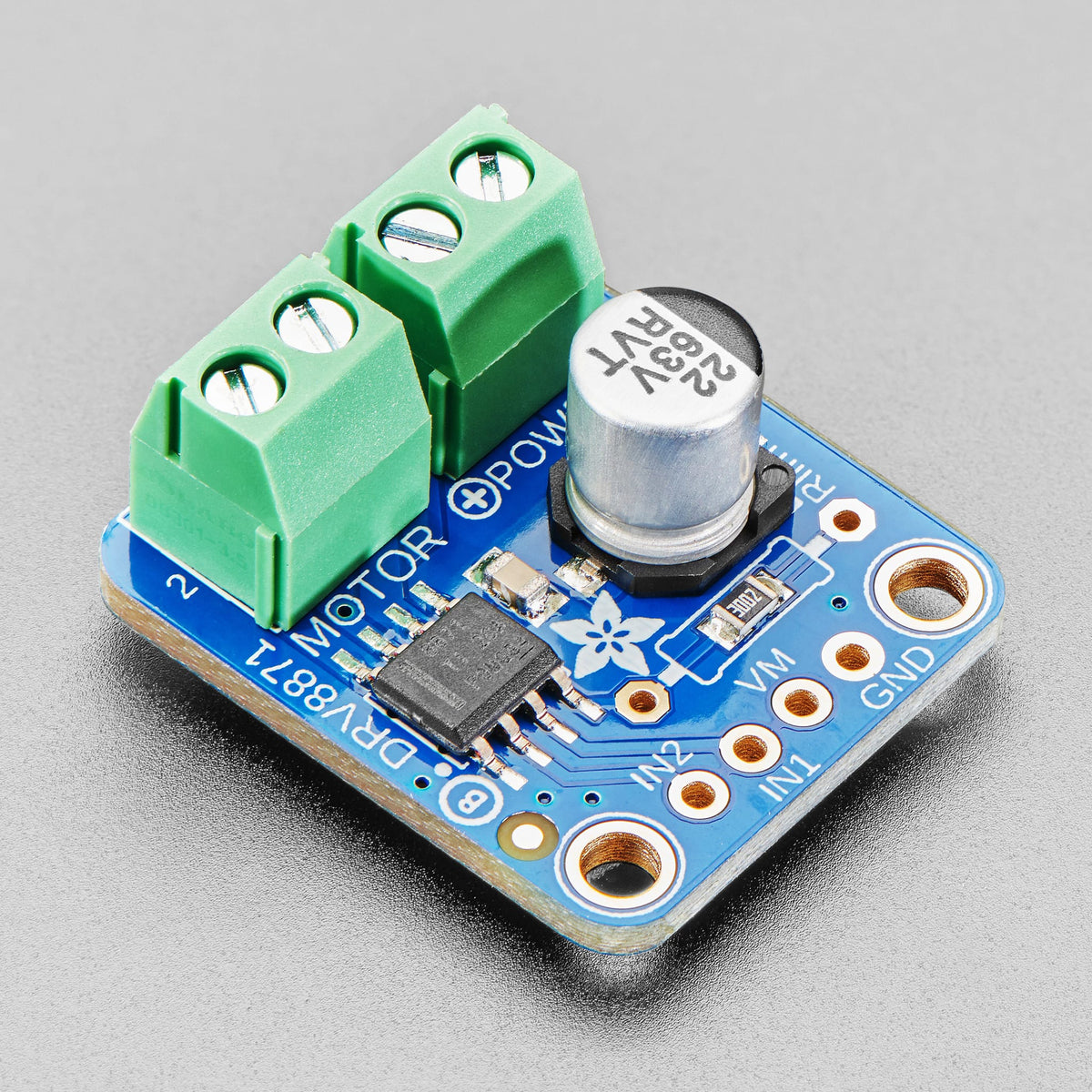

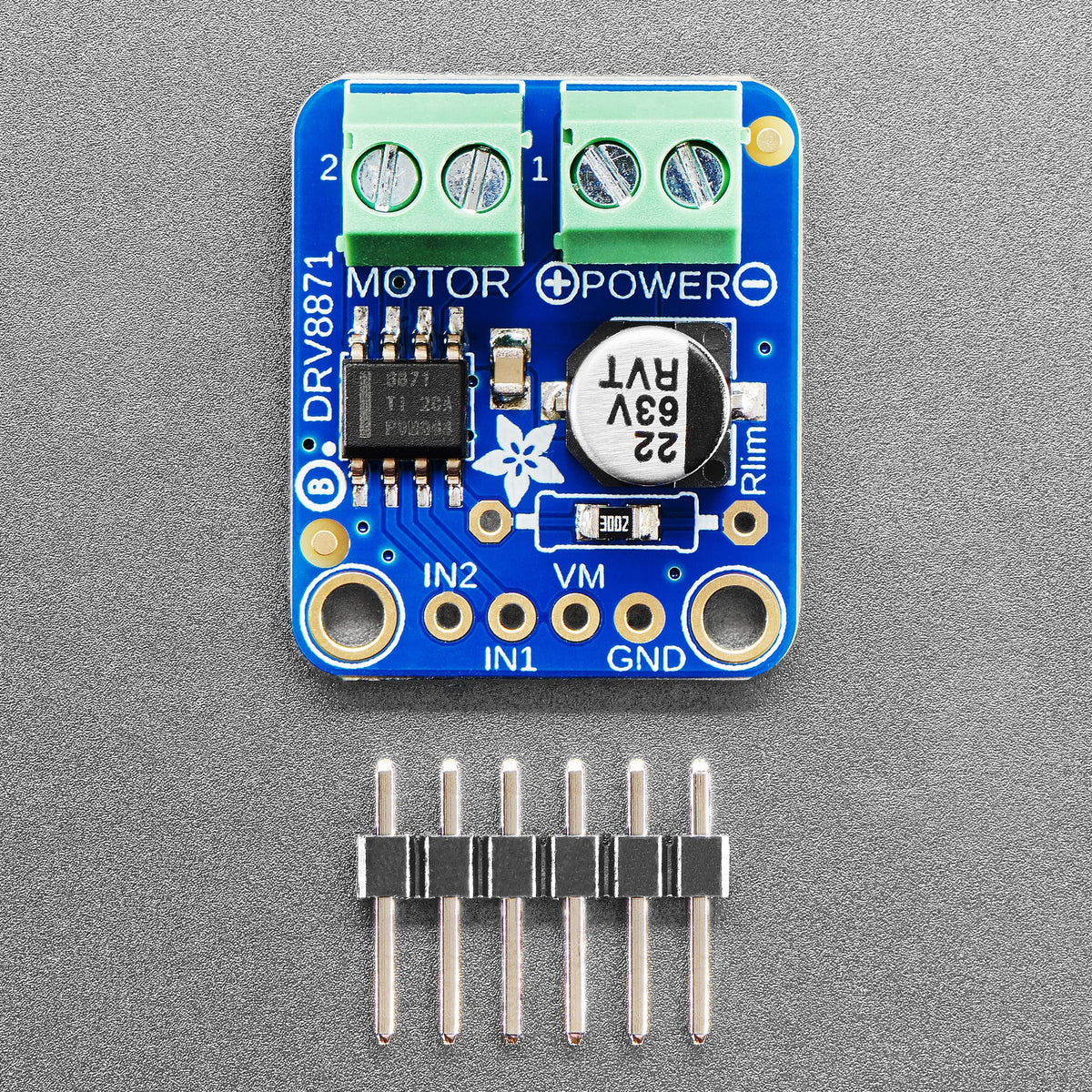

Each order comes with one fully assembled and tested motor driver breakout with two pre-soldered 2-pin terminal blocks and a small strip of header. Some light soldering is required to attach the header, but it's a simple task that can be done with basic soldering equipment.

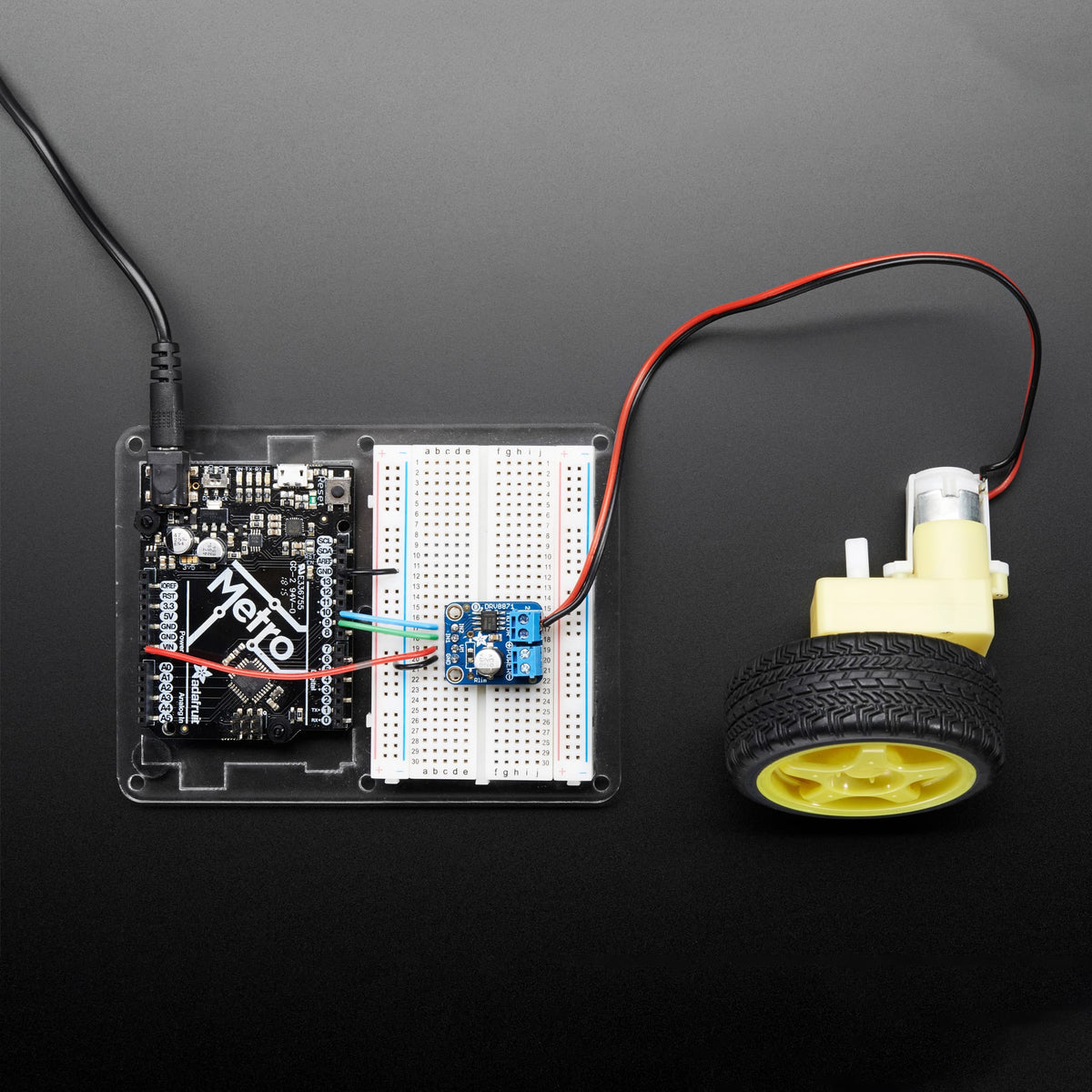

Breadboard, wheel, cables, and Metro not included.
Features
Motor power voltage: 6.5V to 45V DC
Logic level: up to 5.5V on IN pins
565mΩ typical RDS(on) (high + low)
Peak current: 3.6A
PWM control support
Current limiting/regulation without inline sense resistor
Undervoltage lockout protection
Overcurrent protection
Thermal shutdown protection
Fully assembled and tested
Includes two pre-soldered 2-pin terminal blocks
Includes header strip (requires basic soldering)
Adjustable current limit via external resistor (default 30K for ~2A limit)
Compatible with brushed DC motors
Revision History

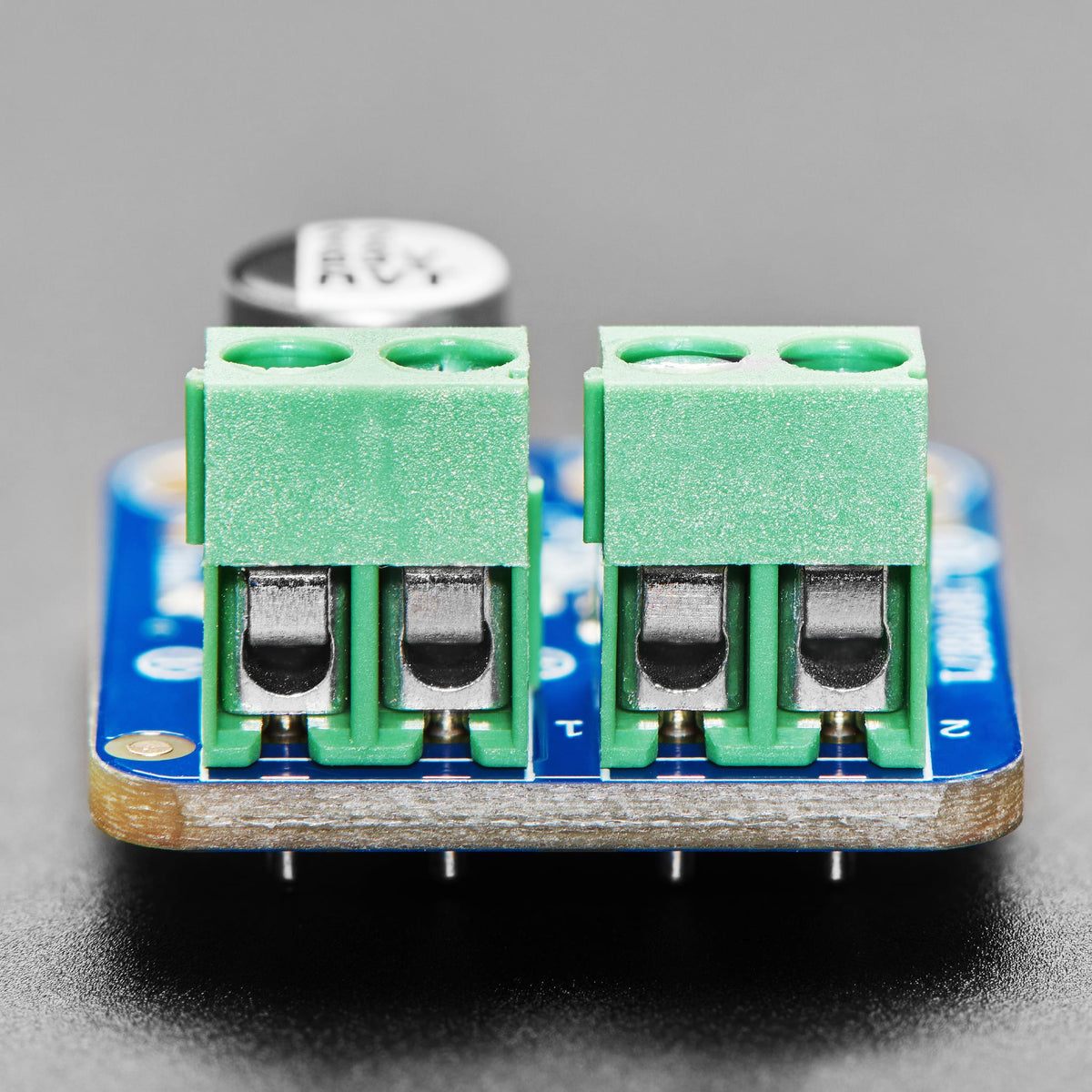

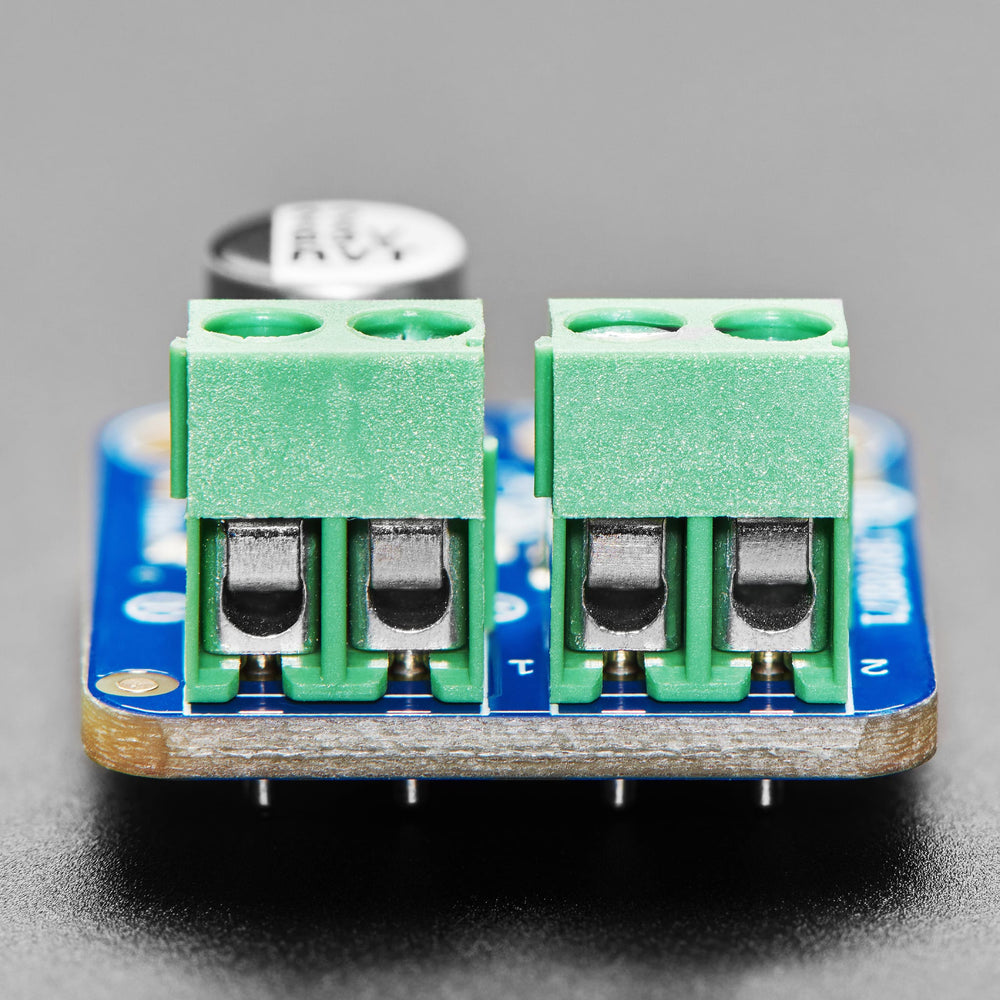

As of February 12, 2024 We added two pre-soldered terminal blocks.
As of August 22, 2023 we've updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen - you may get the new PCB or the older version with vector fonts - both are identical other than the fancy silkscreen.
