Some of us just can't make up our minds: just deciding what to have for dinner is a major decision process. We want it all! And now we can have it all, with this python-powered internet-of-things powerhouse. It's like getting to have pizza AND sushi AND tacos AND casserole AND a burger for dinner, wow!

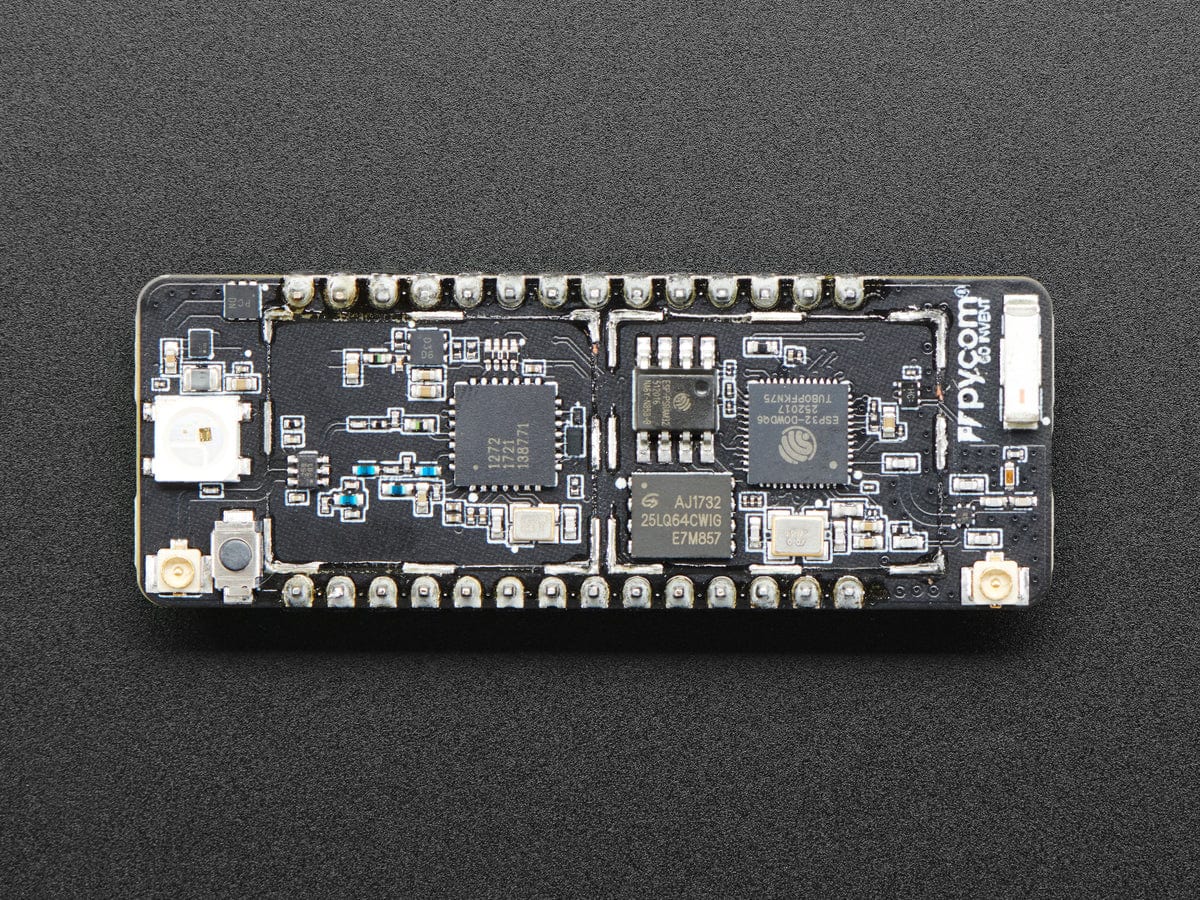

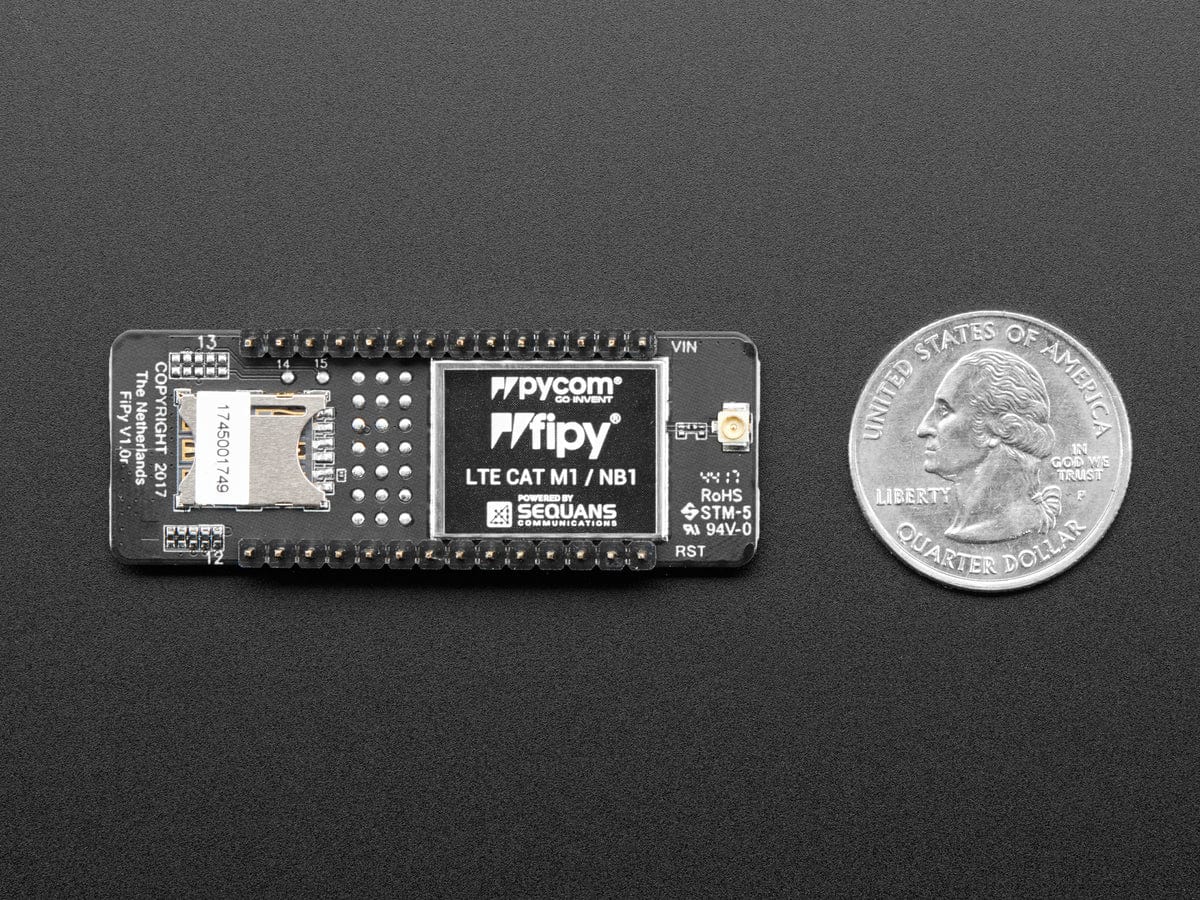

Imagine five networks in one perfectly-formed, same-small-foot-print-as-WiPy- LoPy-and SiPy, IoT development board. MicroPython enabled. FiPy includes WiFi, Bluetooth LE, LoRa, Sigfox and dual LTE-M (CAT M1 and NBIoT). That means you never have to pick-and-choose your IoT transport ever again - the FiPy gives access to all the world’s LPWAN networks on one bitty board.
This one-of-a-kind board gives you full flexibility during testing, install, deployment and even later when you want to switch real-time your airtime network provider. You can switch when the time is right for you or set some parameters that will do so automatically. The FiPy has a built-in operating system that supports MicroPython, the lightweight cousin of the Python web programming language. You can use this board as is, or develop your application, then minimize the design with one of the smaller and simpler Pycom boards (if, say, you realize you don't need SigFox or Cellular)
Comes with just the dev board. You'll need an antenna for each transport you want to use other than WiFi/BLE (which has a ceramic antenna built in). Using a transport without an antenna can damage the board!
Networking processor handles the WiFi connectivity and the IPv6 stack
Main processor is entirely free to run the user application
An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherals during deep-sleep mode while only consuming 25uA
Interfaces
2 x UART, 2 x SPI, I2C, micro SD card
Analog channels: 8×12 bit ADCs, 2×8 bit DAC
Timers: 2×64 bit with PWM with up to 16 channels
DMA on all peripherals
GPIO: Up to 22
Hash / Encryption
SHA, MD5, DES, AES
WiFi Networking
802.11b/b/n 16mbps
Bluetooth
Low energy and classic
RTC
Running at 32KHz
Range
Node range: Up to 50km
Security & Certifications
SSL/TLS support up to 1.2
WPA Enterprise security
AES encryption engine
Memory
RAM: 4MB
Flash Memory: 8MB
GPIO: Up to 22
Hardware floating point acceleration
Python multi-threading
Power
Voltage Input: 3.3V – 5.5V
3v3 output capable of sourcing up to 400mA
Sigfox Operating Frequencies
RCZ1 – 868MHz(Europe)
RCZ2 – 902MHz (US, Canada and Mexico)
RCZ3 – (Japan and Korea)
RCZ4 – 920-922MHz (ANZ, Latin America and S-E Asia)
Sigfox Specification
TI CC1125NarrowbandTransceiver
Class 0 device. Maximum Tx power:
+14dBm (Europe)
+22dBm (America)
+22dBm (Australia and New Zealand)
Node range: Up to 50km
Sigfox pre-certified (October 2016)
Power
Sigfox (Europe): 17mA in Rx mode, 47mA in Tx mode and 0.5uA in standby
Sigfox (Australia, New Zealand and South America):
24mA in rX mode, 257 mA in Tx mode and 0.5uA in standby
Bluetooth Networking
Low energy and classic
Compliant with Bluetooth v4.2 BR/EDR and BLE specification
Class-1, Class-2 and Class-3 transmitter without external power amplifer
Enhanced power control
+10dBm transmitting power
NZIF receiver with -98 dBm sensitivity
Adaptive Frequency Hopping (AFH)
Standard HCI based on SDIO/SPI/UART
High speed UART HCI, up to 4 Mbps
BT 4.2 controller and host stack
Service Discover Protocol (SDP)
General Access Profile (GAP)
Security Manage Protocol (SMP)
Bluetooth Low Energy (BLE)
ATT/GATT
HID
All GATT-based profile supported
SPP-Like GATT-based profile
BLE Beacon
A2DP/AVRCP/SPP, HSP/HFP, RFCOMM
CVSD and SBC for audio codec
Bluetooth Piconet and Scatternet
LoRa Operating Frequencies
868MHz(Europe) at +14dBm maximum
915MHz (North and South America, Australia and New Zealand) at +20dBm maximum
LoRa Specification
Power consumption: 10mA Rx, 28mA Tx
LoRaWAN stack – Class A and C devices
Node range: Up to 40km
Nano-gateway: Up to 22km (Capacity up to 100 nodes)
LTE-M Operating Frequencies
4 bands supports from 699Mhz to 2690Mhz (Total world-wide support)
LTE-M Specification
One single chip for both CAT M1 and NB1 (yes, only one chip)
3GPP release 13 LTE Advanced Pro
Supports narrowband LTE UE categories M1/NB1
Integrated baseband, RF, RAM memory and power management
Reduced Tx power class option
Peak power estimations: TX current = 420mA peak @1.5Watt RX current = 330mA peak @1.2Watt
