SMT Socket - Wide SOIC-16

Name: SMT Socket - Wide SOIC-16
Brand: The Pi Hut
SKU: ADA4727
Price: 6.90 GBP
Availability: InStock

The Pi HutSKU: ADA4727

£6.90

incl. VAT

excl. VAT

Only 11 units left

Awesome Extras

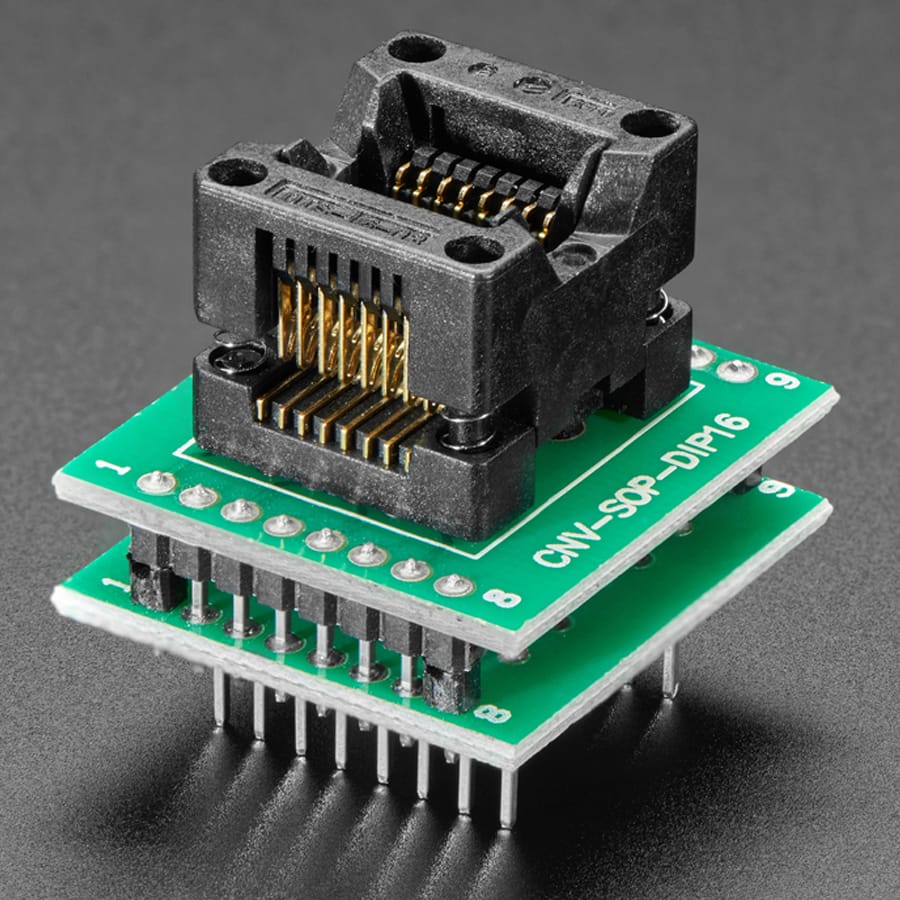

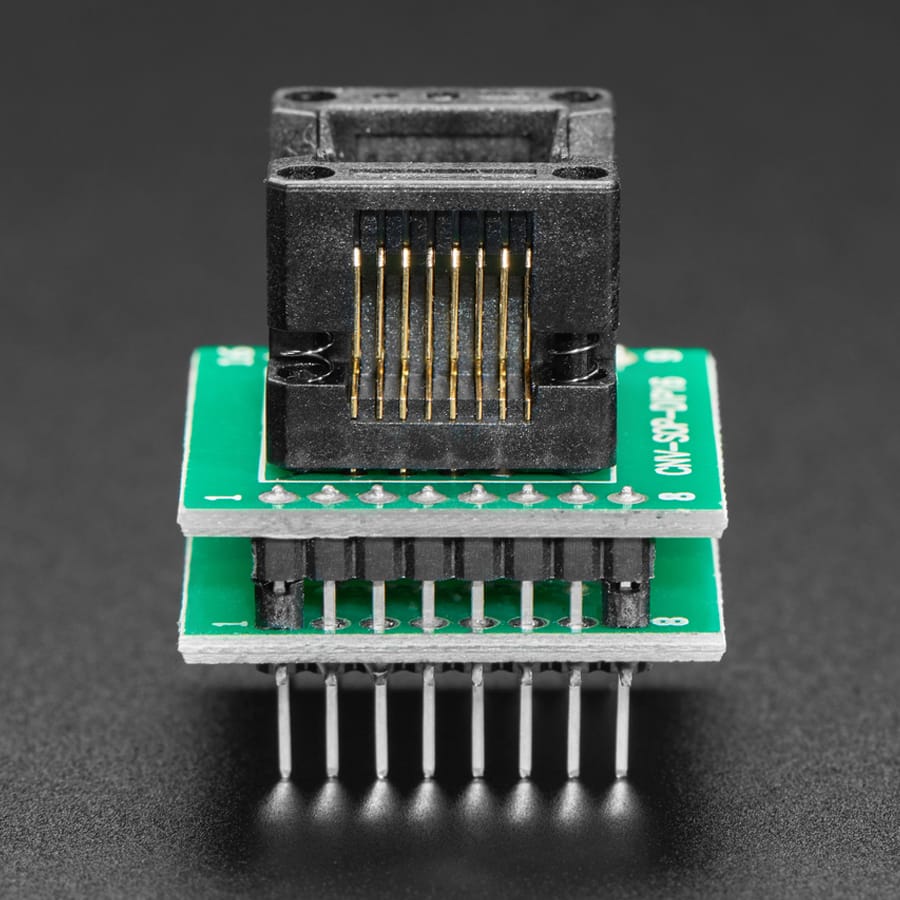

SMT Test Socket - SOIC-16 Narrow Breakout - The Pi Hut

The Pi Hut SMT Test Socket - SOIC-16 Narrow Breakout

£19.90 incl. VAT excl. VAT

Pomona 5252 16-pin SOIC Clip - The Pi Hut

Pomona Pomona 5252 16-pin SOIC Clip

£19.50 incl. VAT excl. VAT

Notify me

SMT Breakout PCB for SOIC-16 or TSSOP-16 - 3 Pack! - The Pi Hut

Adafruit SMT Breakout PCB for SOIC-16 or TSSOP-16 - 3 Pack!

£3.90 incl. VAT excl. VAT

Notify me

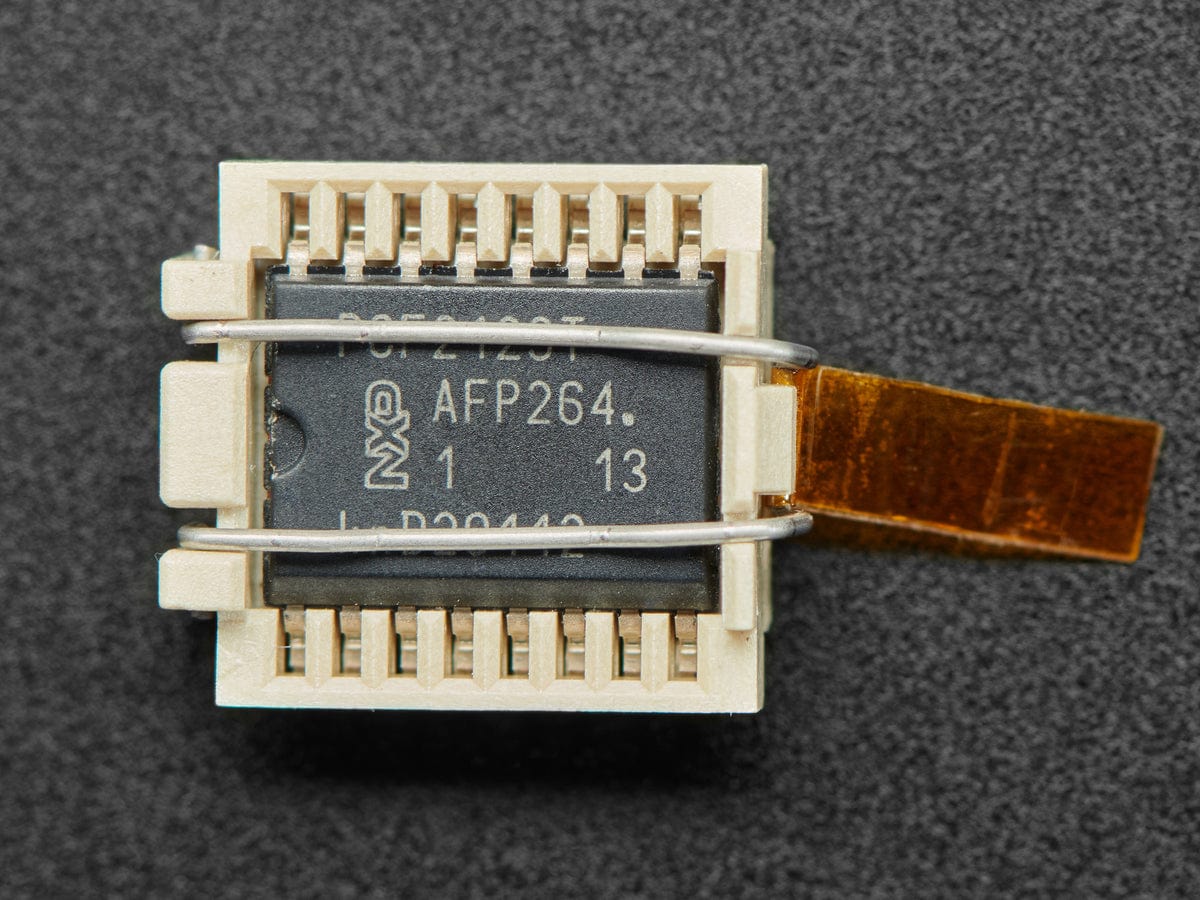

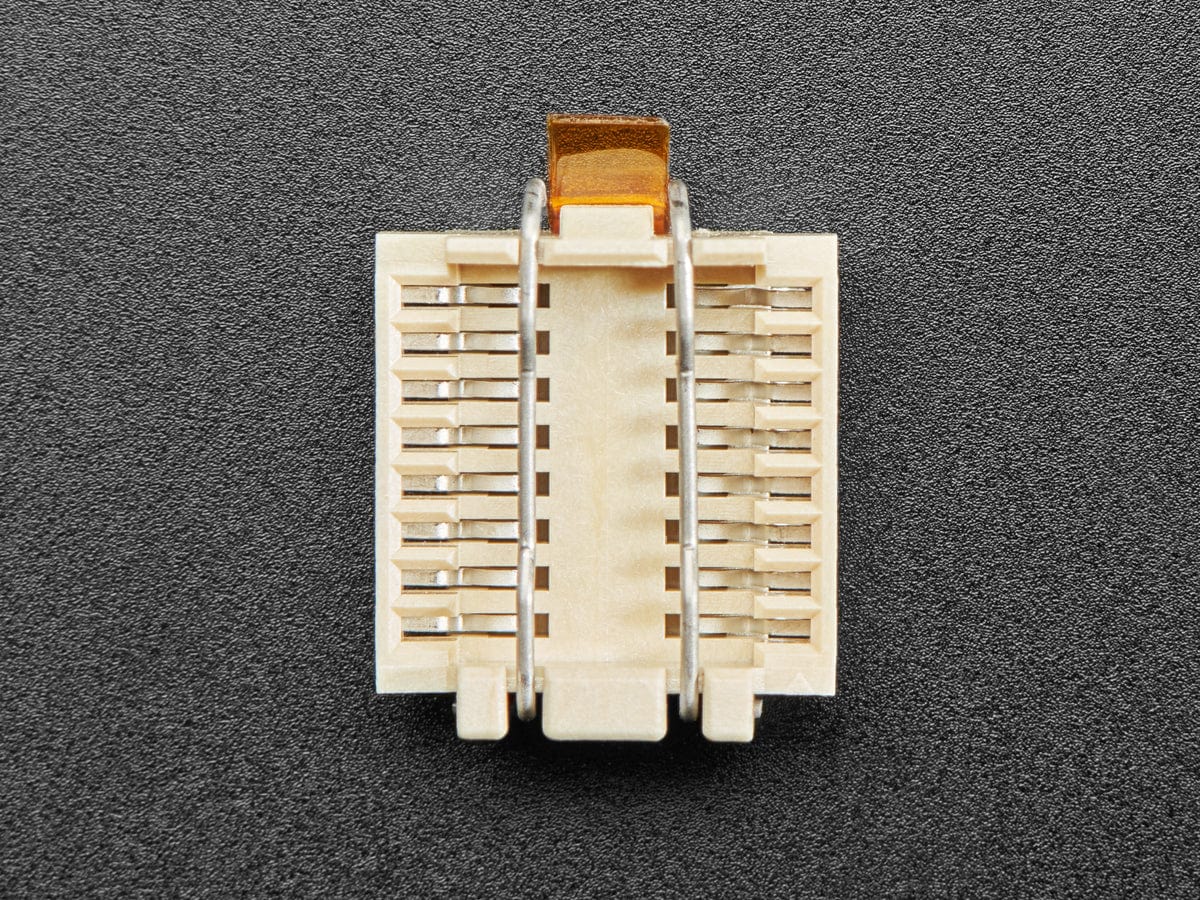

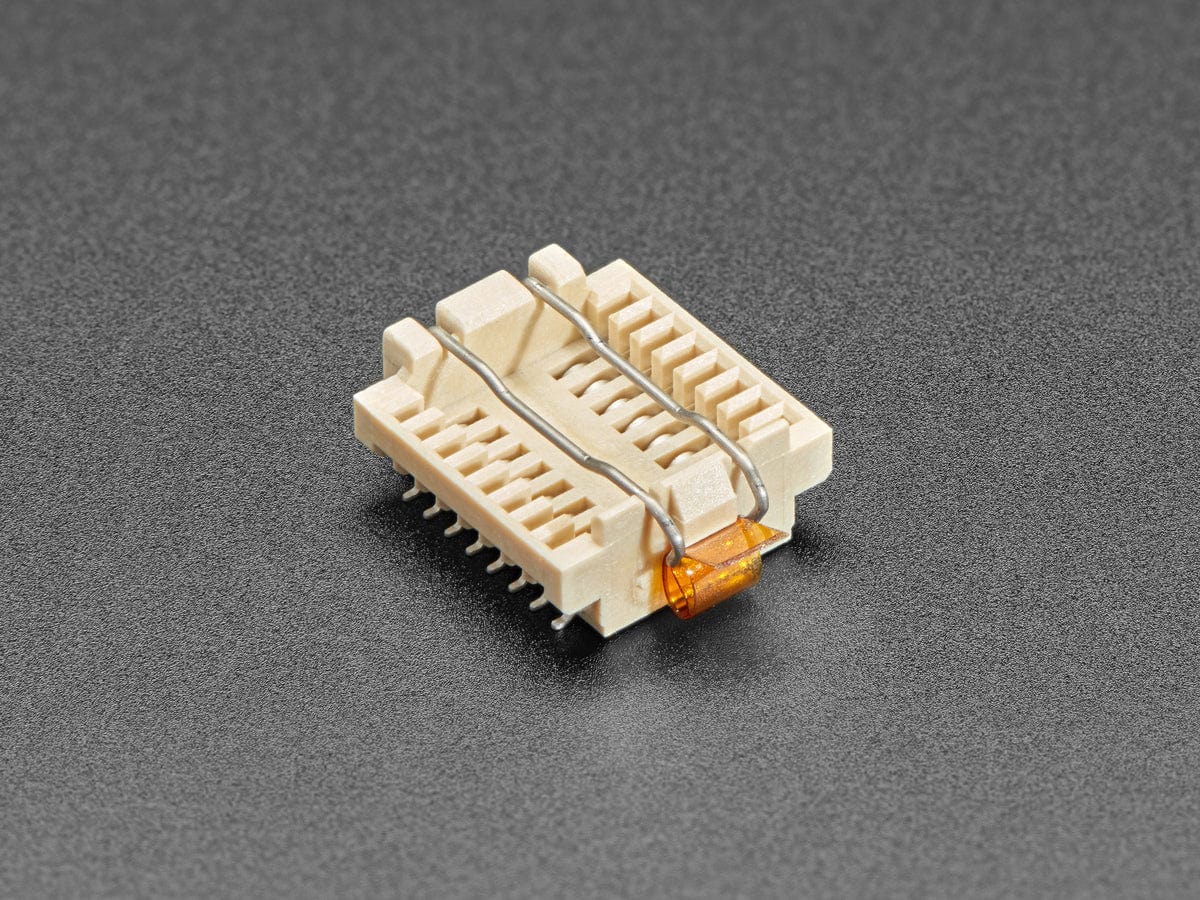

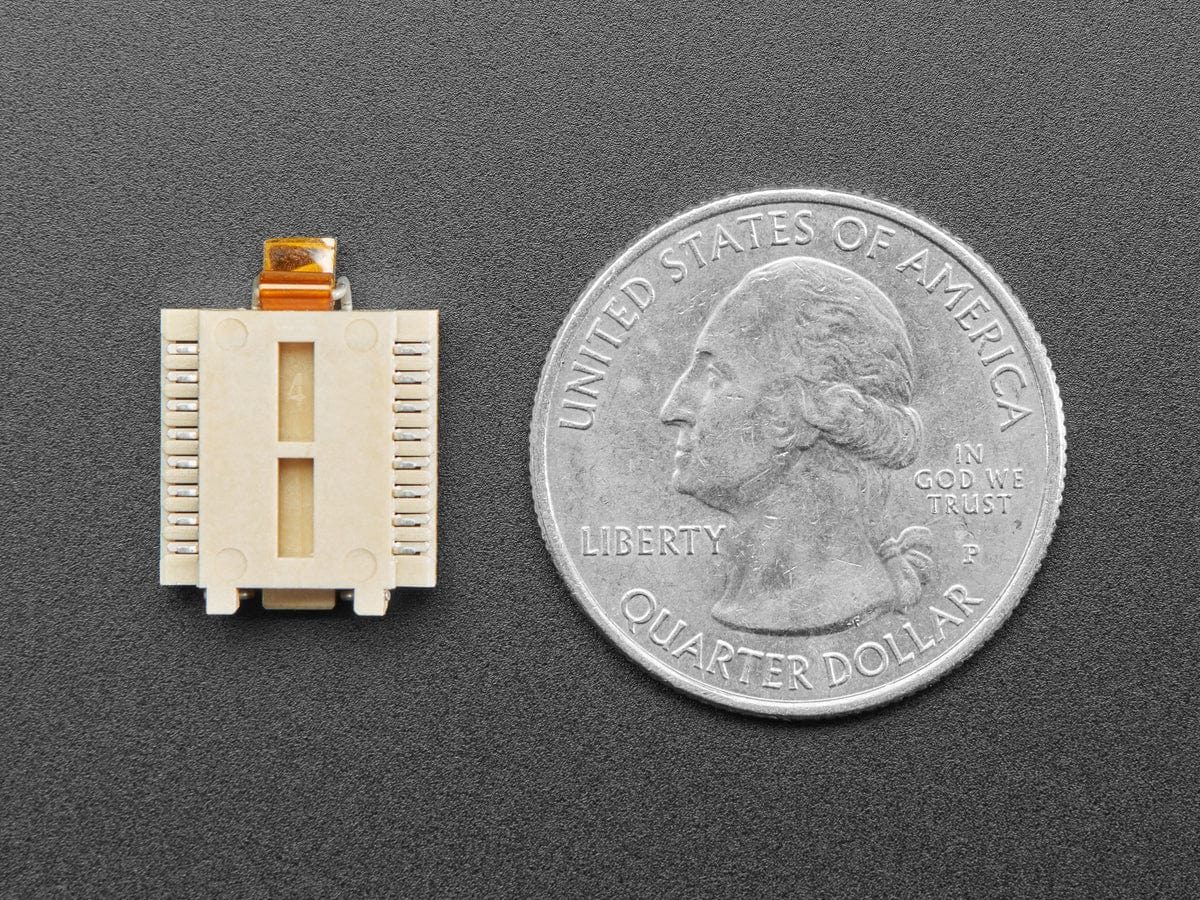

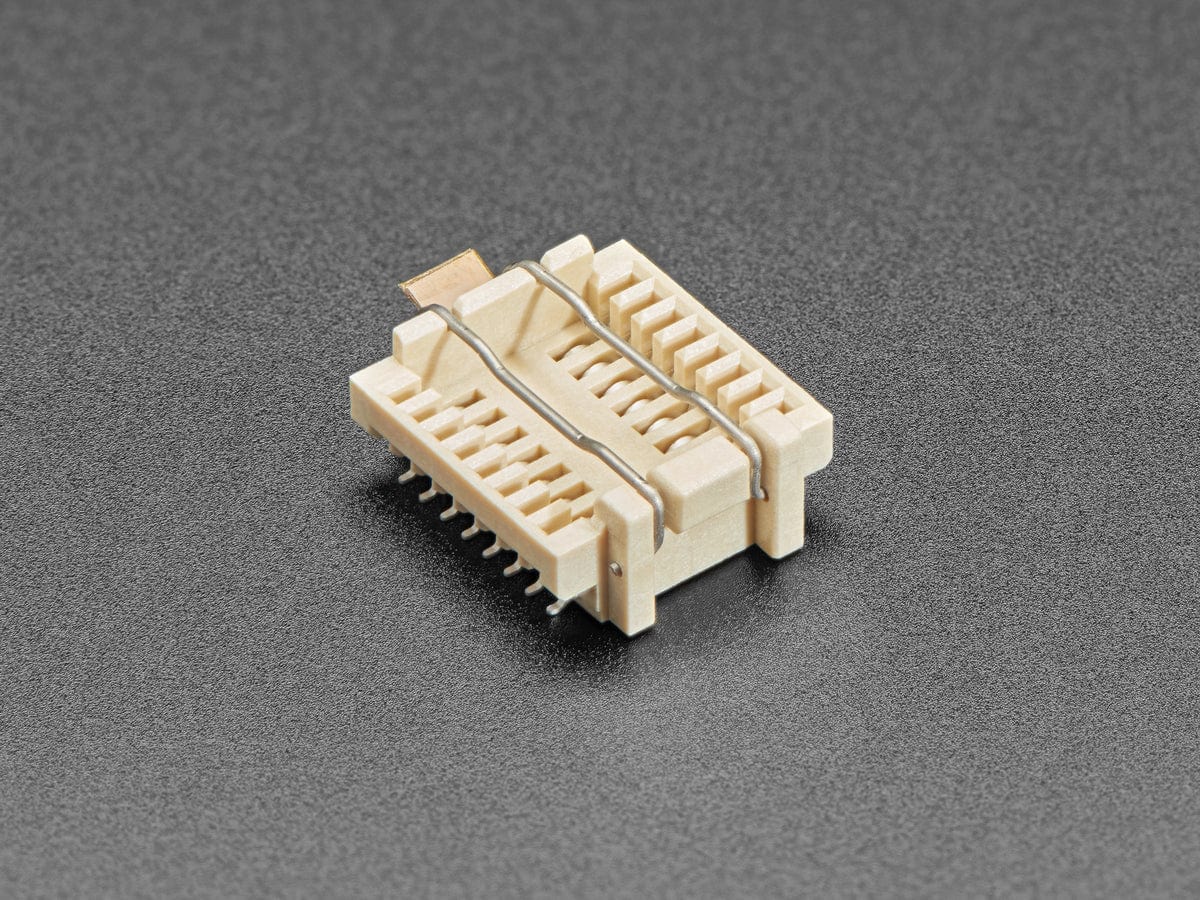

This socket is good for any SOIC/SOP Wide-body 16 pin chip in a 300mil wide body. Simply flip open the latch, insert the chip, and flip down the latch to secure it in place.

The chip is held securely against gold 'fingers' (no, stop, Mr. Bond! It's not that Goldfinger!) in the socket. The bottom footprint matches the same SOIC footprint so you can solder this onto an existing PCB as long as you have the clearance for the body of the socket

150mil wide chips will not fit! These are designed primarily for flash chips.
