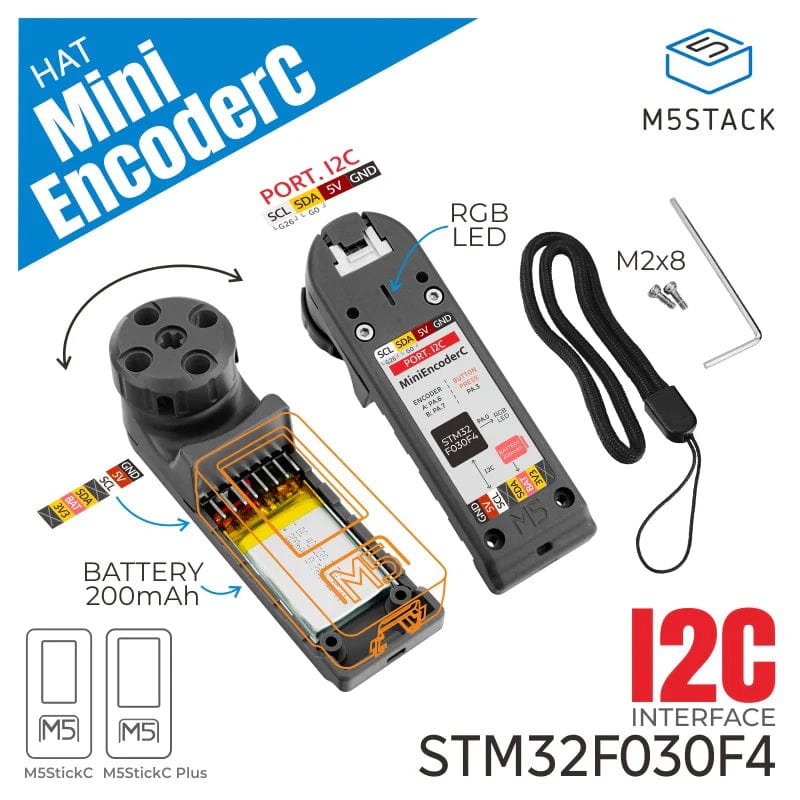

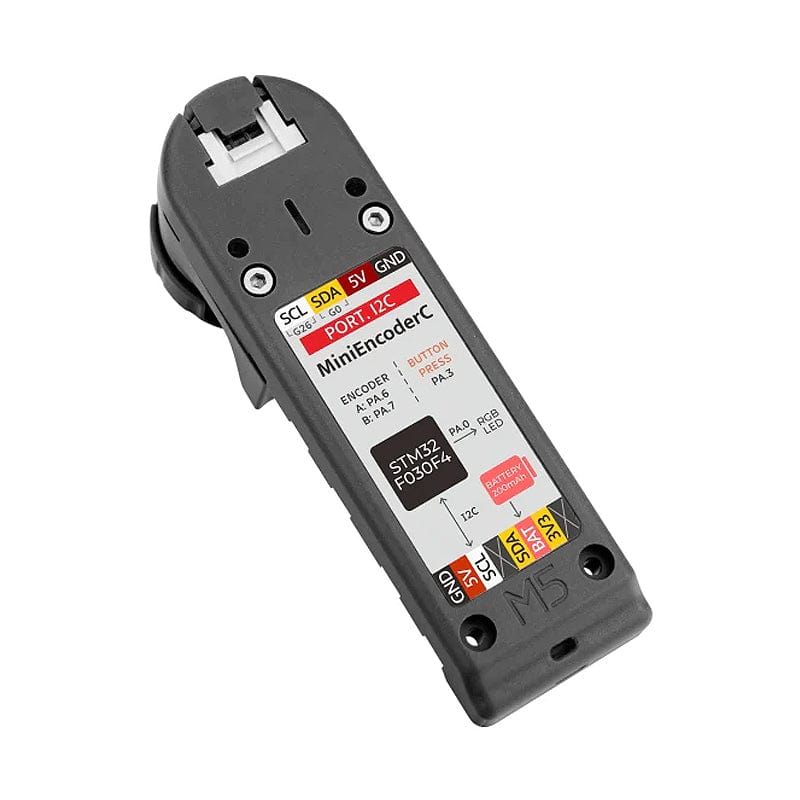

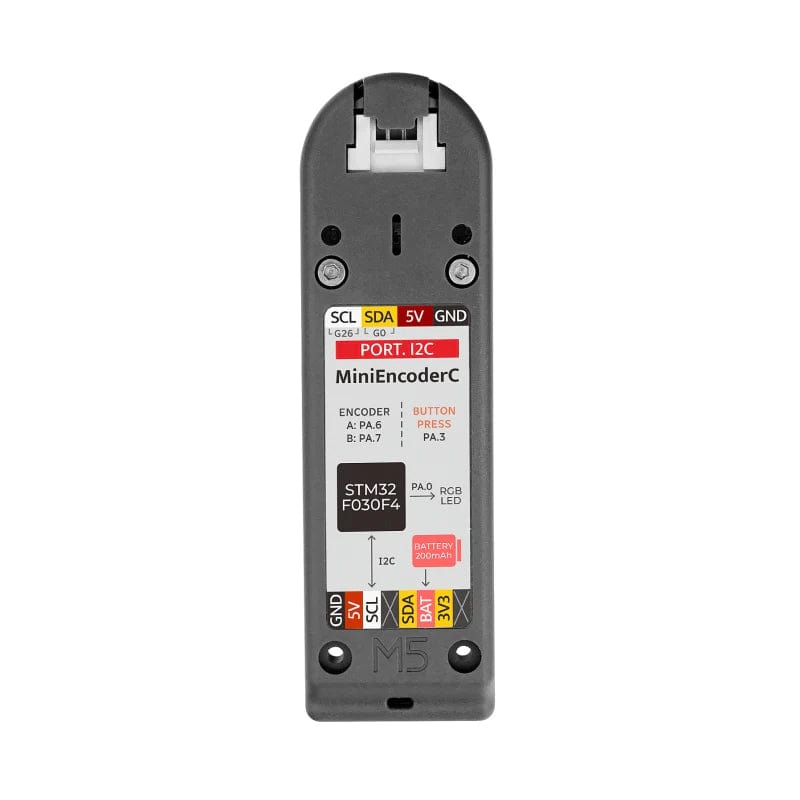

The M5Stack MiniEncoderC HAT is a rotary encoder extension base for the M5StickC/C-CPlus, which integrates a rotary AB encoder with a button function, and comes with standard building brick holes to facilitate the expansion of structural parts.

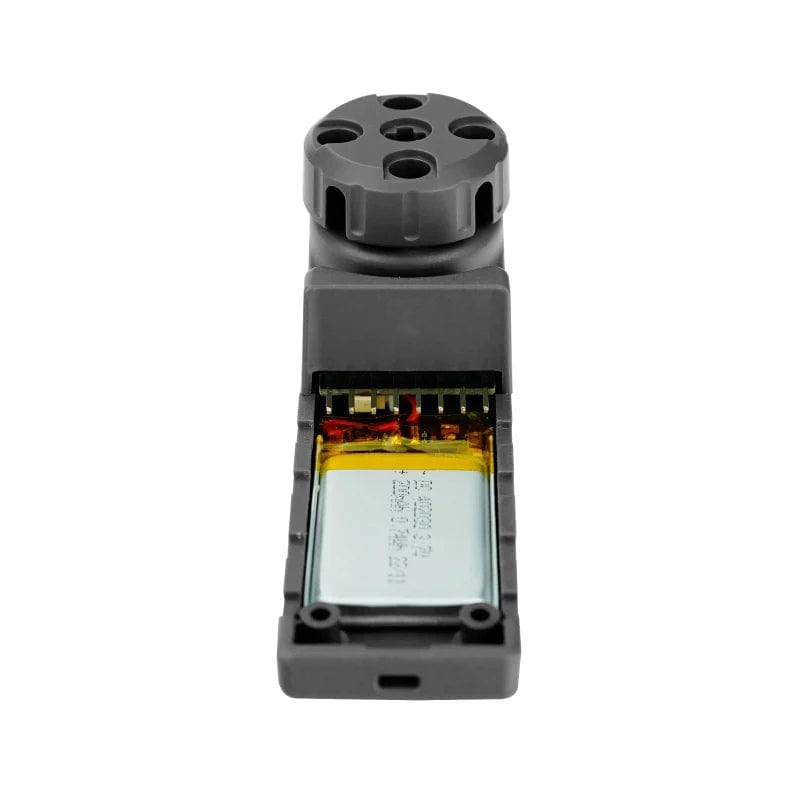

It contains a 200mAh polymer lithium battery and an SK6812 RGB LED. This product can be used to remotely adjust RGB lighting and remotely control robot joints.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

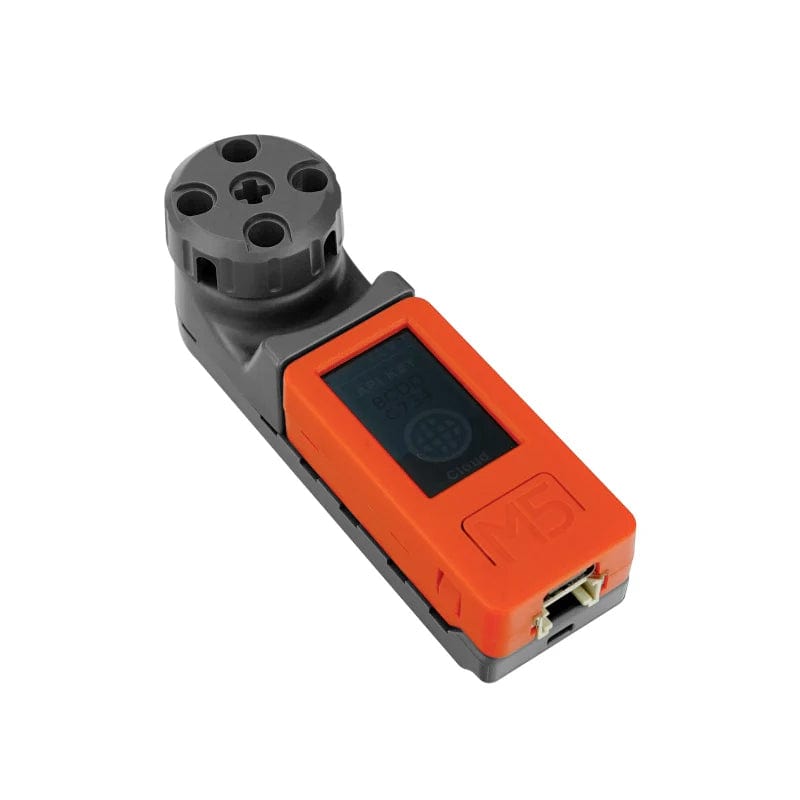

StickC not included
MCU | STM32F030F4P6 |
support voltage | 3.3V |
RGB | SK6812-3535 |
Battery level | 200mAh |
Product Size | 81.05mm × 29mm × 24mm |
Package Size | 101mm × 27mm × 22mm |
Product Weight | 19.3g |
Package Weight | 24.5g |
