USB to TTL Serial Cable for Raspberry Pi

The Pi HutSKU: 103041
(16 Reviews)
£6
incl. VAT
excl. VAT
In stock

Compatible with:

Awesome Extras

Raspberry Pi 4 Model B - The Pi HutRaspberry Pi 4 Model B - The Pi Hut
(3194 Reviews)
Raspberry PiRaspberry Pi 4 Model B
From £33.30 incl. VAT excl. VAT
Raspberry Pi 4 Model B Starter Kit - The Pi HutRaspberry Pi 4 Model B Starter Kit - The Pi Hut
(2752 Reviews)
The Pi HutRaspberry Pi 4 Model B Starter Kit
From £60 incl. VAT excl. VAT
4-Piece Raspberry Pi 4 Heatsink Set - The Pi Hut4-Piece Raspberry Pi 4 Heatsink Set - The Pi Hut
(304 Reviews)
The Pi Hut4-Piece Raspberry Pi 4 Heatsink Set
£2 incl. VAT excl. VAT

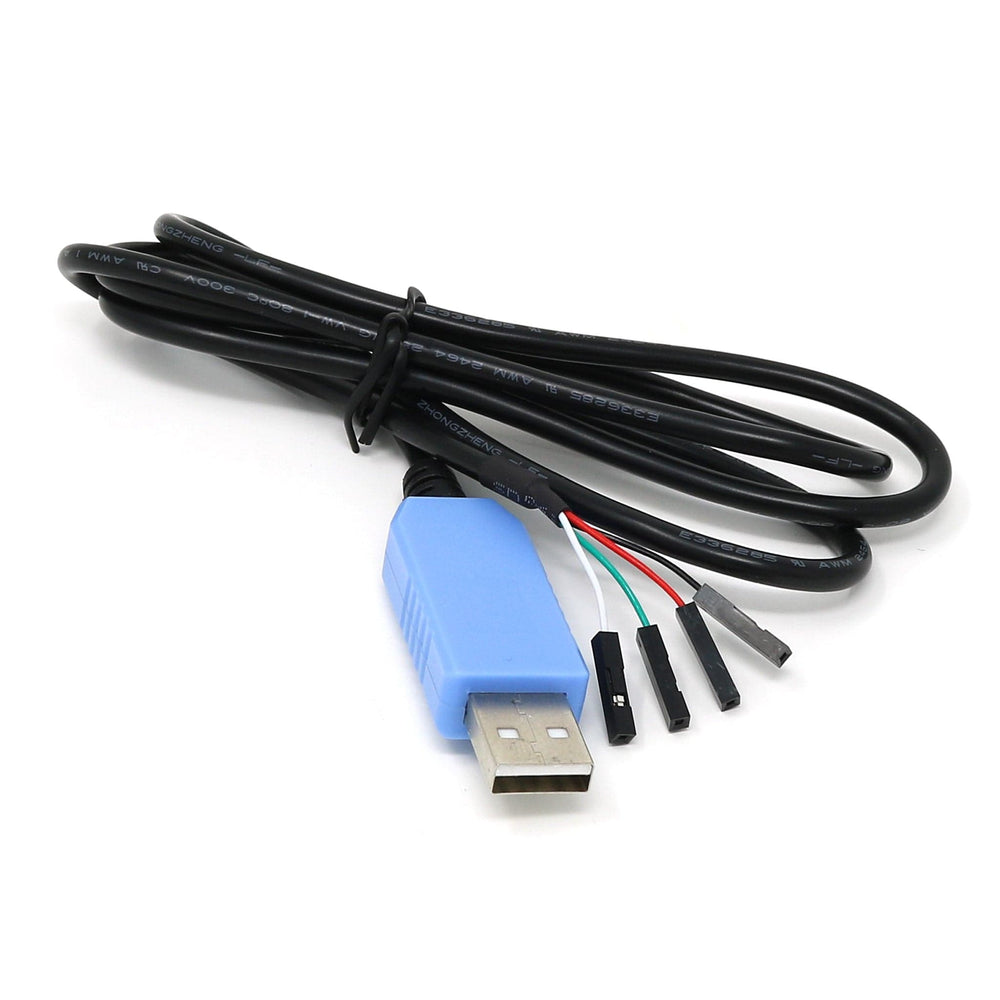

USB to TTL serial cables allow you to connect to your Raspberry Pi or microcontroller serial console port.

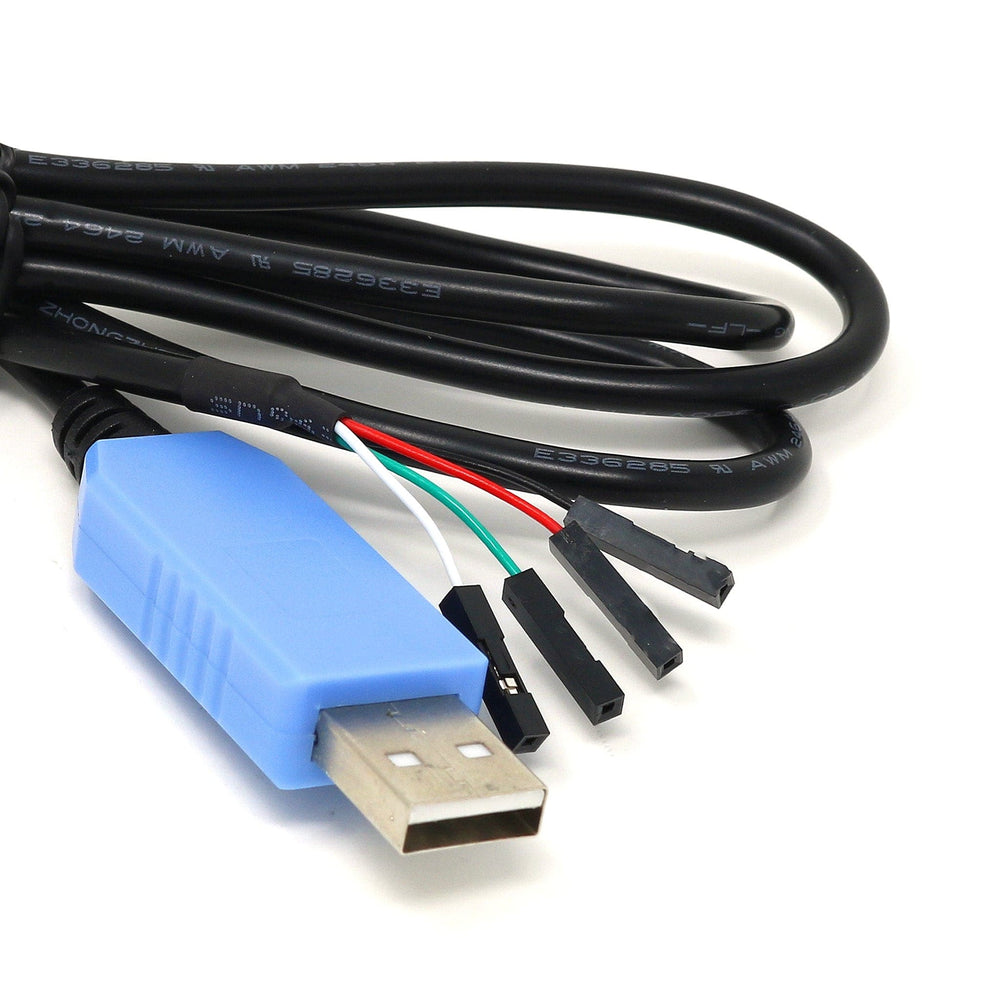

The main body has a USB serial conversion chip, and the other end has four wires to hook up to your target board:

  • Red = power
  • Black - GND
  • White = RX (into USB port)
  • Green = TX (out of USB port)

The power pin provides 5V 500mA direct from the USB port and the RX/TX pins are 3.3V for interfacing with most common 3.3V logic level chipsets.

The split jumper wires make it easy to hook up to a Raspberry Pi's debug console. Just connect the wires to the correct pins to set up a link to your board. You can even use these cables on some WiFi routers to install alternative operating systems.

This cable is not for Arduino re-programming - it does not have the DTR/RTS wire necessary for initiating the bootloader reboot sequence. Use FTDI instead.

Resources

If you are running Linux, drivers are already included in the kernel, no need to install anything!

Revision History

  • As of December 2016 we will be shipping cables with SiLabs CP2012 chipset instead of Prolific
