Adafruit PCB Ruler v2 - 6"

Name: Adafruit PCB Ruler v2 - 6"
Brand: Adafruit
SKU: ADA1554
Price: 4.80 GBP
Availability: InStock

AdafruitSKU: ADA1554

(7 Reviews)

£4.80

incl. VAT

excl. VAT

In stock

Awesome Extras

Troika Construction Multi-Tool Ballpoint Pen - The Pi Hut

(11 Reviews)

Troika Troika Construction Multi-Tool Ballpoint Pen

From £20.80 incl. VAT excl. VAT

Troika Construction Liliput + Lilipad - Pen & Notepad Combo - The Pi Hut

(3 Reviews)

Troika Troika Construction Liliput + Lilipad - Pen & Notepad Combo

£15 incl. VAT excl. VAT

Troika Zimmerman Carpenter Pencil - The Pi Hut

Troika Troika Zimmerman Carpenter Pencil

£29 incl. VAT excl. VAT

The first time you soldered up a surface mount component you may have been surprised "These are really small parts!" and there are dozens of different names too! QFN, TDFN, SOIC, SOP, J-Lead, what do they mean and how can you tell how big they are? Now you can have a reference board at your fingertips, with this snazzy PCB reference ruler.

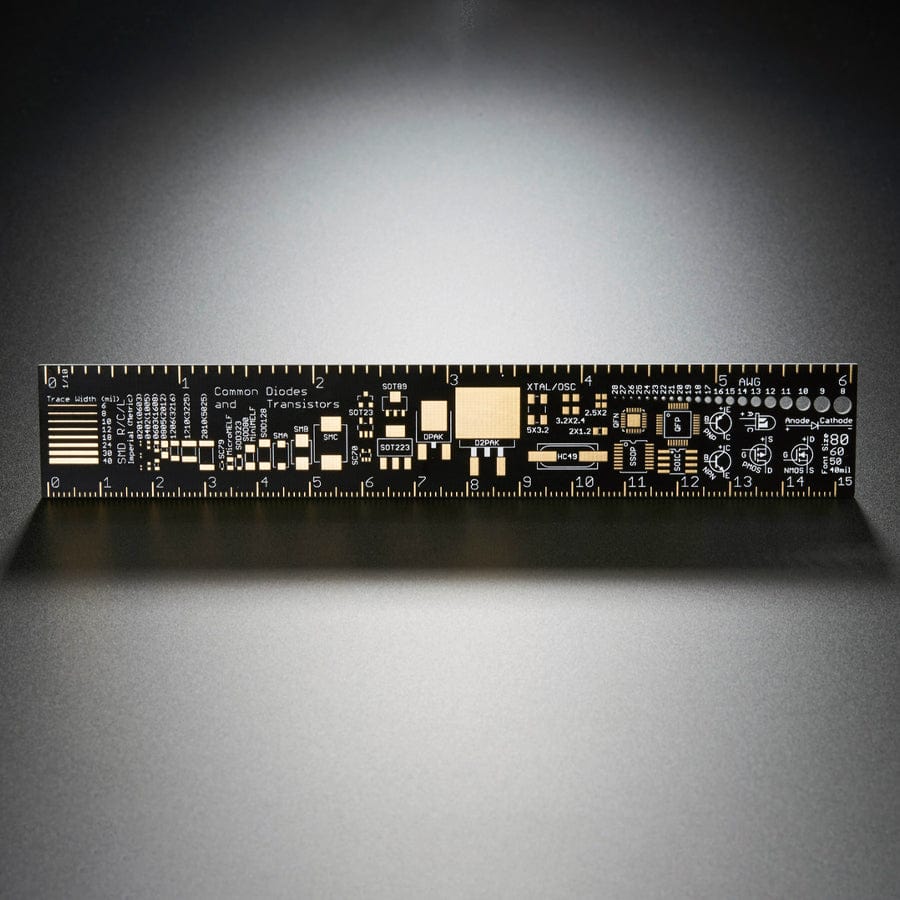

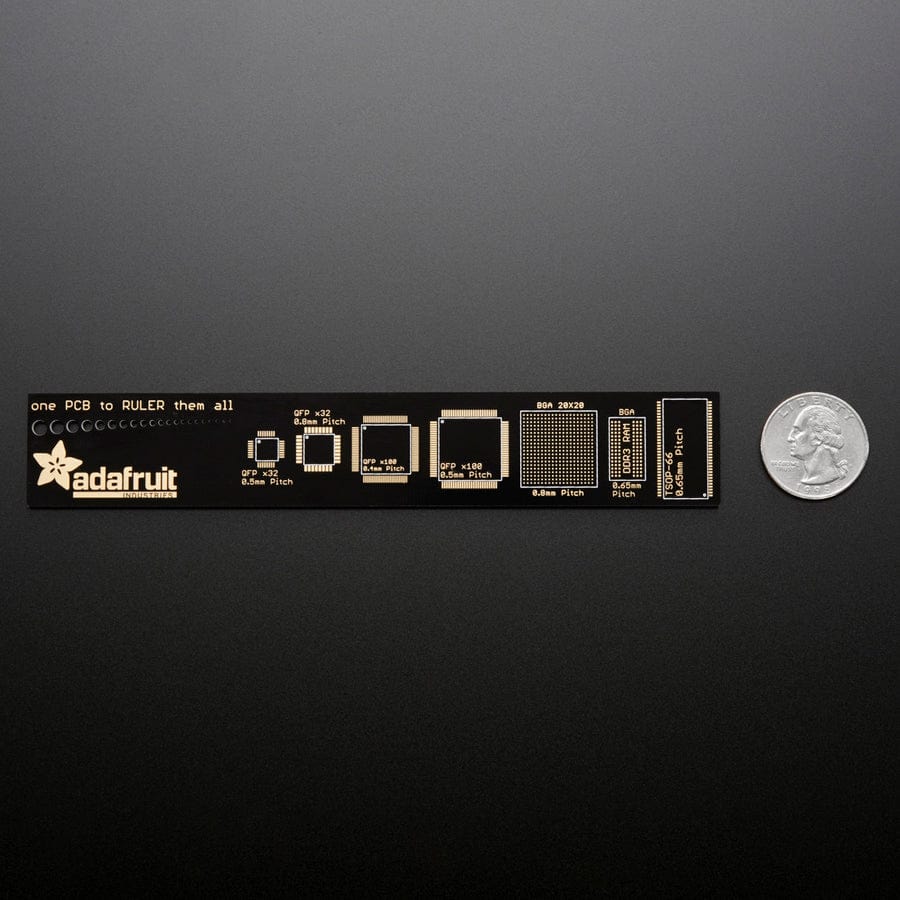

Measuring approx 1" x 6", this standard-thickness FR4, gold plate ruler has the most common component packages you'll encounter. It also has a font size guide, trace-width diagram, and a set of AWG-sized drills so you can gauge your wire thicknesses.

Revision History

As of August 2nd, 2024, we're now shipping v2 which is basically the same thing as the original but Inches are marked with 1/10" rather than the more common 1/8". The centimetre side is still 0.1cm marks.

Specifications

Dimensions: 25.6mm x 153.98mm x 1.64mm
Weight: 12.07g
